IslandPath Analysis: Vibrio cholerae O395

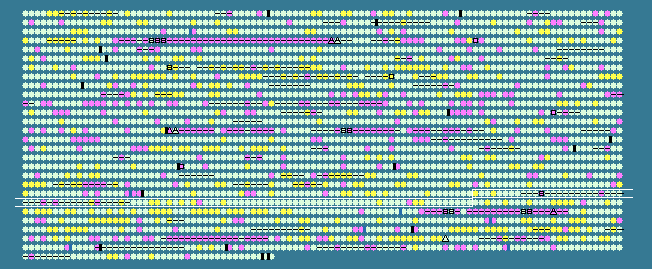

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2076	 53.40	+1	2292340..2292987	-	215	147675279	cysC	VC0395_A2135	-	adenylylsulfate kinase
2077	 48.99	0	2292998..2294428	-	476	147673489	cysN	VC0395_A2136	-	sulfate adenylyltransferase subunit 1
2078	 49.17	0	2294446..2295354	-	302	147674260	cysD	VC0395_A2137	-	sulfate adenylyltransferase subunit 2
2079	 55.33	+1	2295457..2296356	-	299	147675164	cysG	VC0395_A2138	-	uroporphyrin-III C-methyltransferase
2080	 48.88	0	2296557..2298602	+	681	147675775	cpdB	VC0395_A2139	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
2081	 50.35	0	2298721..2299290	+	189	147674395	-	VC0395_A2140	-	hypothetical protein
2082	 50.90	0	2299293..2300675	-	460	147673597	dbpA	VC0395_A2141	-	ATP-dependent RNA helicase DbpA
2083	 48.67	0	2300901..2301350	+	149	147674368	-	VC0395_A2142	-	acetyltransferase
2084	 51.12	0	2301353..2302246	+	297	147673569	-	VC0395_A2143	-	drug/metabolite exporter family protein
2085	 45.30	0	2302681..2302797	+	38	147674545	-	VC0395_A2144	-	hypothetical protein
2086	 50.89	0	2302988..2303608	+	206	147673755	fklB	VC0395_A2145	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2087	 38.81	-2	2303785..2304222	+	145	147673367	tnpA	VC0395_A2146	-	IS1004 transposase
2088	 45.34	0	2304366..2304848	+	160	147675514	-	VC0395_A2147	-	hypothetical protein
2089	 49.10	0	2304992..2305378	-	128	147674916	rplQ	VC0395_A2148	-	50S ribosomal protein L17
2090	 47.03	0	2305405..2306397	-	330	147674278	rpoA	VC0395_A2149	-	DNA-directed RNA polymerase subunit alpha
2091	 46.54	0	2306422..2307042	-	206	147675276	rpsD	VC0395_A2150	-	30S ribosomal protein S4
2092	 50.26	0	2307070..2307459	-	129	147673111	rpsK	VC0395_A2151	-	30S ribosomal protein S11
2093	 47.34	0	2307479..2307835	-	118	147674839	rpsM	VC0395_A2152	-	30S ribosomal protein S13
2094	 45.61	0	2307985..2308098	-	37	147675535	rpmJ	VC0395_A2153	-	50S ribosomal protein L36
2095	 45.62	0	2308137..2309471	-	444	147673663	secY	VC0395_A2154	-	preprotein translocase subunit SecY
2096	 47.13	0	2309492..2309926	-	144	147674243	rplO	VC0395_A2155	-	50S ribosomal protein L15
2097	 41.24	-1	2309932..2310108	-	58	147674502	rpmD	VC0395_A2156	-	50S ribosomal protein L30
2098	 46.43	0	2310115..2310618	-	167	147675266	rpsE	VC0395_A2157	-	30S ribosomal protein S5
2099	 50.00	0	2310633..2310986	-	117	147675740	rplR	VC0395_A2158	-	50S ribosomal protein L18
2100	 47.19	0	2310996..2311529	-	177	147673740	rplF	VC0395_A2159	-	50S ribosomal protein L6
2101	 46.06	0	2311544..2311936	-	130	147674032	rpsH	VC0395_A2160	-	30S ribosomal protein S8
2102	 46.73	0	2311966..2312271	-	101	147673229	rpsN	VC0395_A2161	-	30S ribosomal protein S14
2103	 47.78	0	2312289..2312828	-	179	147673227	rplE	VC0395_A2162	-	50S ribosomal protein L5
2104	 41.19	-1	2312853..2313170	-	105	147675182	rplX	VC0395_A2163	-	50S ribosomal protein L24
2105	 47.31	0	2313183..2313554	-	123	147674361	rplN	VC0395_A2164	-	50S ribosomal protein L14
2106	 43.92	-1	2313717..2313971	-	84	147673772	rpsQ	VC0395_A2165	-	30S ribosomal protein S17
2107	 46.35	0	2313971..2314162	-	63	147674803	rpmC	VC0395_A2166	-	50S ribosomal protein L29
2108	 47.69	0	2314162..2314572	-	136	147674181	rplP	VC0395_A2167	-	50S ribosomal protein L16
2109	 50.00	0	2314584..2315285	-	233	147673134	rpsC	VC0395_A2168	-	30S ribosomal protein S3
2110	 47.45	0	2315305..2315637	-	110	147675261	rplV	VC0395_A2169	-	50S ribosomal protein L22
2111	 45.16	0	2315648..2315926	-	92	147673573	rpsS	VC0395_A2170	-	30S ribosomal protein S19
2112	 51.52	0	2315947..2316771	-	274	147675192	rplB	VC0395_A2171	-	50S ribosomal protein L2
2113	 43.56	-1	2316788..2317090	-	100	147673850	rplW	VC0395_A2172	-	50S ribosomal protein L23
2114	 46.60	0	2317087..2317689	-	200	147673082	rplD	VC0395_A2173	-	50S ribosomal protein L4
2115	 47.14	0	2317706..2318335	-	209	147673700	rplC	VC0395_A2174	-	50S ribosomal protein L3
2116	 46.79	0	2318350..2318661	-	103	147675533	rpsJ	VC0395_A2175	-	30S ribosomal protein S10
2117	 52.55	+1	2319132..2319875	-	247	147673348	-	VC0395_A2176	-	23S rRNA (guanosine-2'-O-)-methyltransferase
2118	 50.65	0	2319883..2322348	-	821	147675348	vacB	VC0395_A2177	-	ribonuclease R
2119	 47.83	0	2322492..2324360	+	622	147674403	-	VC0395_A2178	-	hypothetical protein
2120	 50.47	0	2324387..2325022	-	211	147674337	motX	VC0395_A2179	-	sodium-type flagellar protein MotX
2121	 49.11	0	2325230..2326528	-	432	147673842	purA	VC0395_A2180	-	adenylosuccinate synthetase
2122	 52.50	+1	2326656..2327636	-	326	147674447	-	VC0395_A2181	-	putative asparaginase
2123	 52.33	+1	2327799..2328398	-	199	147674781	slyD	VC0395_A2182	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2124	 49.25	0	2328490..2328690	-	66	147675564	-	VC0395_A2183	-	hypothetical protein
2125	 51.64	0	2328700..2330502	-	600	147673616	kefB	VC0395_A2184	-	glutathione-regulated potassium-efflux system protein KefB
2126	 50.93	0	2330483..2331073	-	196	147674366	-	VC0395_A2185	-	glutathione-regulated potassium-efflux system ancillary protein KefG
2127	 51.96	+1	2331196..2333112	+	638	147674436	-	VC0395_A2186	-	ABC transporter, ATP-binding protein
2128	 47.12	0	2333113..2333598	+	161	147675154	-	VC0395_A2187	-	hypothetical protein
2129	 52.32	+1	2333595..2334584	+	329	147673191	-	VC0395_A2188	-	putative hydrolase
2130	 43.33	-1	2334713..2334922	+	69	147674020	-	VC0395_A2189	-	hypothetical protein
2131	 51.03	0	2335019..2335888	+	289	147675716	prkB	VC0395_A2190	-	phosphoribulokinase
2132	 48.03	0	2336131..2336763	+	210	147674948	-	VC0395_A2191	-	cAMP-regulatory protein
2133	 47.98	0	2336842..2337633	-	263	147673169	-	VC0395_A2192	-	hypothetical protein
2134	 54.46	+1	2337776..2339233	-	485	147675138	aruD	VC0395_A2193	-	succinylglutamic semialdehyde dehydrogenase
2135	 48.73	0	2339243..2340301	-	352	147674325	-	VC0395_A2194	-	putative arginine/ornithine succinyltransferase
2136	 51.16	0	2340402..2341613	-	403	147673566	argD	VC0395_A2195	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
2137	 49.31	0	2342011..2342592	-	193	147673532	pabA	VC0395_A2196	-	para-aminobenzoate synthase component II
2138	 50.46	0	2342846..2344258	+	470	147675671	-	VC0395_A2197	-	hypothetical protein
2139	 50.23	0	2344335..2346944	-	869	147674583	-	VC0395_A2198	-	hypothetical protein
2140	 48.19	0	2347214..2347987	-	257	147673998	-	VC0395_A2199	-	hypothetical protein
2141	 48.82	0	2348144..2349241	-	365	147673103	trpS	VC0395_A2200	-	tryptophanyl-tRNA synthetase
2142	 50.22	0	2349288..2349968	-	226	147673858	gph	VC0395_A2201	-	phosphoglycolate phosphatase
2143	 51.05	0	2349988..2350698	-	236	147674230	rpe	VC0395_A2202	-	ribulose-phosphate 3-epimerase
2144	 48.32	0	2350789..2351622	-	277	147675035	dam	VC0395_A2203	-	DNA adenine methylase
2145	 48.44	0	2351692..2353167	-	491	147675481	-	VC0395_A2204	-	hypothetical protein
2146	 50.77	0	2353222..2354322	-	366	147673423	aroB	VC0395_A2205	-	3-dehydroquinate synthase
2147	 47.24	0	2354335..2354859	-	174	147675064	aroK	VC0395_A2206	-	shikimate kinase I
2148	 46.86	0	2355046..2356782	-	578	147673064	pilQ	VC0395_A2207	-	fimbrial assembly protein
2149	 49.13	0	2356787..2357305	-	172	147673518	-	VC0395_A2208	-	putative fimbrial assembly protein PilP
2150	 49.50	0	2357295..2357894	-	199	147674321	-	VC0395_A2209	-	putative fimbrial assembly protein PilO
2151	 47.21	0	2357878..2358468	-	196	147675508	-	VC0395_A2210	-	putative fimbrial assembly protein PilN
2152	 47.20	0	2358452..2359468	-	338	147673687	-	VC0395_A2211	-	putative fimbrial assembly protein PilM
2153	 49.56	0	2359581..2362088	+	835	147674290	mrcA	VC0395_A2212	-	penicillin-binding protein 1A
2154	 49.66	0	2362162..2363055	-	297	147674528	-	VC0395_A2213	-	DNA-binding transcriptional regulator OxyR
2155	 46.91	0	2363183..2363926	+	247	147675129	-	VC0395_A2214	-	peroxiredoxin family protein/glutaredoxin
2156	 51.20	0	2363998..2365452	+	484	147673312	-	VC0395_A2215	-	dihydrolipoamide dehydrogenase
2157	 46.21	0	2365678..2365941	+	87	147675165	-	VC0395_A2216	-	hypothetical protein
2158	 50.18	0	2366192..2367568	-	458	147673344	argH	VC0395_A2217	-	argininosuccinate lyase
2159	 50.95	0	2367801..2369015	-	404	147673961	argG	VC0395_A2218	-	argininosuccinate synthase
2160	 53.61	+1	2369091..2369879	-	262	147675582	argB	VC0395_A2219	-	acetylglutamate kinase
2161	 50.14	0	2369889..2370929	-	346	147675531	argC	VC0395_A2220	-	N-acetyl-gamma-glutamyl-phosphate reductase
2162	 50.31	0	2371046..2372182	+	378	147673951	argE	VC0395_A2221	-	acetylornithine deacetylase
2163	 50.49	0	2372356..2375019	+	887	147674866	ppc	VC0395_A2222	-	phosphoenolpyruvate carboxylase
2164	 47.41	0	2375378..2375917	+	179	147675097	-	VC0395_A2223	-	hypothetical protein
2165	 44.19	0	2375866..2375994	+	42	147673343	-	VC0395_A2224	-	hypothetical protein
2166	 52.92	+1	2376033..2376854	-	273	147673248	cysE	VC0395_A2225	-	serine acetyltransferase
2167	 51.79	+1	2376927..2377961	-	344	147673990	gpsA	VC0395_A2226	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
2168	 49.68	0	2378151..2378615	-	154	147674386	secB	VC0395_A2227	-	preprotein translocase subunit SecB
2169	 45.29	0	2378782..2379216	-	144	147675092	-	VC0395_A2228	-	hypothetical protein
2170	 48.67	0	2379346..2380395	-	349	147673524	yjeA	VC0395_A2229	-	lysyl-tRNA synthetase
2171	 49.97	0	2380624..2382432	+	602	147673130	frdA	VC0395_A2230	-	fumarate reductase flavoprotein subunit
2172	 49.67	0	2382432..2383190	+	252	147673358	frdB	VC0395_A2231	-	fumarate reductase iron-sulfur subunit
2173	 48.18	0	2383193..2383576	+	127	147674812	frdC	VC0395_A2232	-	fumarate reductase subunit C
2174	 50.41	0	2383587..2383949	+	120	147674506	frdD	VC0395_A2233	-	fumarate reductase subunit D
2175	 47.44	0	2384063..2384629	-	188	147673907	efp	VC0395_A2234	-	elongation factor P
47.83	MEAN

3.88	STD DEV
