IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O395

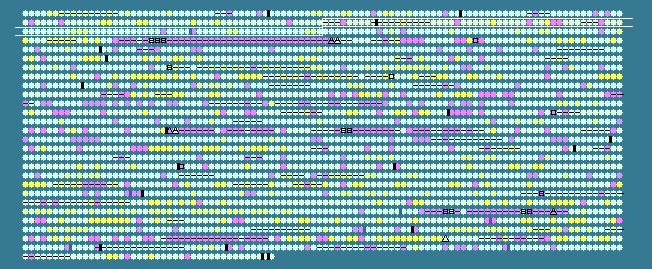

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
151	 47.68	0	164071..165534	-	487	147673807	dacB	VC0395_A0161	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
152	 45.87	0	165614..166666	-	350	147674883	ompU	VC0395_A0162	-	outer membrane protein OmpU
153	 44.65	0	167192..167668	+	158	147675665	greA	VC0395_A0163	-	transcription elongation factor GreA
154	 43.43	-1	167745..168041	-	98	147673609	-	VC0395_A0164	-	hypothetical protein
155	 44.92	0	168161..168790	+	209	147673945	rrmJ	VC0395_A0165	-	23S rRNA methyltransferase J
156	 47.85	0	168891..170846	+	651	147673292	ftsH	VC0395_A0166	-	cell division protein FtsH
157	 45.88	0	170913..171749	+	278	147674024	folP	VC0395_A0167	-	dihydropteroate synthase
158	 47.87	0	171775..173115	+	446	147674754	glmM	VC0395_A0168	-	phosphoglucosamine mutase
159	 45.24	0	173372..173707	+	111	147675589	secG	VC0395_A0169	-	preprotein translocase subunit SecG
160	 44.96	0	174138..174593	+	151	147673580	-	VC0395_A0172	-	hypothetical protein
161	 47.98	0	174612..176099	+	495	147674353	nusA	VC0395_A0173	-	transcription elongation factor NusA
162	 49.35	0	176124..178820	+	898	147675225	infB	VC0395_A0174	-	translation initiation factor IF-2
163	 48.66	0	178910..179320	+	136	147673152	rbfA	VC0395_A0175	-	ribosome-binding factor A
164	 51.76	+1	179320..180258	+	312	147675140	truB	VC0395_A0176	-	tRNA pseudouridine synthase B
165	 47.78	0	180400..180669	+	89	147675292	rpsO	VC0395_A0177	-	30S ribosomal protein S15
166	 49.56	0	181032..183170	+	712	147674727	pnp	VC0395_A0178	-	polynucleotide phosphorylase/polyadenylase
167	 49.89	0	183286..184197	+	303	147674411	-	VC0395_A0179	-	lipoprotein NlpI
168	 45.00	0	184284..184703	+	139	147674022	-	VC0395_A0180	-	MarR family transcriptional regulator
169	 50.56	0	184746..186086	+	446	147673240	vmrA	VC0395_A0181	-	multidrug efflux pump VmrA
170	 48.12	0	186139..187017	-	292	147674830	-	VC0395_A0182	-	hypothetical protein
171	 50.10	0	187029..188042	-	337	147673781	-	VC0395_A0183	-	putative protease
172	 47.54	0	188150..190204	-	684	147673182	-	VC0395_A0184	-	PAS/GGDEF domain-containing protein
173	 44.13	0	190437..190964	+	175	147674979	-	VC0395_A0185	-	hypothetical protein
174	 50.99	0	190948..191451	+	167	147674103	-	VC0395_A0186	-	putative acetyltransferase
175	 50.49	0	191562..191969	+	135	147675574	holD	VC0395_A0187	-	DNA polymerase III subunit psi
176	 47.33	0	191930..192415	+	161	147674031	rimI	VC0395_A0189	-	ribosomal-protein-alanine acetyltransferase
177	 47.13	0	192404..194461	-	685	147673612	-	VC0395_A0188	-	GGDEF domain-containing protein
178	 50.19	0	194665..196260	+	531	147674859	prfC	VC0395_A0190	-	peptide chain release factor 3
179	 51.81	+1	196365..197636	-	423	147674594	srmB	VC0395_A0191	-	ATP-dependent RNA helicase SrmB
180	 48.55	0	197724..198446	-	240	147675421	-	VC0395_A0192	-	hypothetical protein
181	 49.54	0	198755..200068	+	437	147673070	brnQ	VC0395_A0193	-	branched chain amino acid transport system II carrier protein
182	 48.78	0	200437..201336	+	299	147673826	prfB	VC0395_A0194	-	peptide chain release factor 2
183	 49.77	0	201361..202899	+	512	147674731	lysS	VC0395_A0195	-	lysyl-tRNA synthetase
184	 48.61	0	203173..204507	+	444	147675556	-	VC0395_A0196	-	sigma-54 dependent transcriptional regulator
185	 35.66	-2	204644..204772	+	42	147674721	-	VC0395_A0197	-	hypothetical protein
186	 48.89	0	205022..205336	+	104	147675388	-	VC0395_A0198	-	hypothetical protein
187	 46.84	0	205374..206432	-	352	147673112	-	VC0395_A0199	-	aldo/keto reductase family oxidoreductase TAS
188	 52.10	+1	206625..207290	-	221	147673814	mutH	VC0395_A0200	-	DNA mismatch repair protein
189	 38.89	-2	207312..207455	-	47	147674981	-	VC0395_A0201	-	hypothetical protein
190	 35.37	-2	207752..207898	+	48	147675711	-	VC0395_A0202	-	hypothetical protein
191	 46.74	0	207858..208439	+	193	147674319	-	VC0395_A0203	-	dinucleoside polyphosphate hydrolase
192	 48.73	0	208442..210688	+	748	147673679	ptsP	VC0395_A0204	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain-containing protein
193	 47.30	0	210698..211492	+	264	147675364	-	VC0395_A0205	-	hypothetical protein
194	 48.90	0	211521..212336	+	271	147674969	lgt	VC0395_A0206	-	prolipoprotein diacylglyceryl transferase
195	 45.89	0	212346..213197	+	283	147673512	thyA	VC0395_A0207	-	thymidylate synthase
196	 48.04	0	213290..214438	-	382	147673742	ntpA	VC0395_A0208	-	nptA protein
197	 43.77	-1	214833..215723	+	296	147674750	nhaR	VC0395_A0209	-	transcriptional activator NhaR
198	 46.12	0	215990..216247	+	85	147675700	hlyU	VC0395_A0210	-	transcriptional activator HlyU
199	 47.51	0	216316..216576	-	86	147673748	rpsT	VC0395_A0211	-	30S ribosomal protein S20
200	 47.97	0	216819..218396	+	525	147674115	mviN	VC0395_A0212	-	MviN protein
201	 50.46	0	218465..219433	+	322	147675076	ribF	VC0395_A0213	-	bifunctional riboflavin kinase/FMN adenylyltransferase
202	 50.28	0	219464..222313	+	949	147675239	ileS	VC0395_A0214	-	isoleucyl-tRNA synthetase
203	 49.42	0	222329..222844	+	171	147674341	lspA	VC0395_A0215	-	lipoprotein signal peptidase
204	 49.66	0	223007..223441	+	144	147674041	fkpB	VC0395_A0216	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
205	 50.67	0	223476..224438	+	320	147673232	ispH	VC0395_A0217	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
206	 50.24	0	224575..226059	-	494	147673650	-	VC0395_A0218	-	putative carbon starvation protein A
207	 46.20	0	226312..226653	+	113	147674079	-	VC0395_A0219	-	putative lipoprotein
208	 50.97	0	226672..228468	+	598	147674441	-	VC0395_A0220	-	hypothetical protein
209	 53.79	+1	228492..229415	-	307	147675680	-	VC0395_A0221	-	N-acetylmuramic acid-6-phosphate etherase
210	 53.55	+1	229433..230545	-	370	147673249	anmK	VC0395_A0222	-	anhydro-N-acetylmuramic acid kinase
211	 52.17	+1	230651..231643	+	330	147673776	nagZ	VC0395_A0223	-	beta-hexosaminidase
212	 47.90	0	231670..232383	-	237	147674462	-	VC0395_A0224	-	putative two-component response-regulatory protein YehT
213	 48.96	0	232393..234069	-	558	147675427	-	VC0395_A0225	-	hypothetical protein
214	 48.98	0	234311..235384	+	357	147673285	aroF	VC0395_A0226	-	phospho-2-dehydro-3-deoxyheptonate aldolase
215	 49.47	0	235397..236524	+	375	147674187	tyrA	VC0395_A0227	-	bifunctional chorismate mutase/prephenate dehydrogenase
216	 46.77	0	236591..236962	-	123	147674608	-	VC0395_A0228	-	hypothetical protein
217	 50.60	0	237133..238800	-	555	147675380	-	VC0395_A0229	-	putative ABC transporter ATP-binding protein
218	 47.20	0	239162..241108	+	648	147673203	slt	VC0395_A0230	-	soluble lytic murein transglycosylase
219	 49.30	0	241118..241474	+	118	147673635	-	VC0395_A0231	-	Trp operon repressor
220	 48.76	0	241552..242076	-	174	147673906	-	VC0395_A0232	-	NTPase
221	 44.99	0	242024..244399	-	791	147674861	-	VC0395_A0233	-	signal protein domain/GGDEF domain-containing protein
222	 46.85	0	244383..245462	-	359	147674245	-	VC0395_A0234	-	putative spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
223	 47.11	0	245605..246780	-	391	147674498	pheA	VC0395_A0235	-	chorismate mutase/prephenate dehydratase
224	 42.81	-1	247020..247346	-	108	147675178	-	VC0395_A0236	-	putative sigma-54 modulation protein
225	 48.03	0	247747..248508	-	253	147675286	-	VC0395_A0237	-	putative lipoprotein
226	 50.36	0	248627..249601	+	324	147673459	rluD	VC0395_A0238	-	23S rRNA pseudouridine synthase D
227	 50.35	0	249604..250326	+	240	147674392	-	VC0395_A0239	-	hypothetical protein
228	 49.73	0	250451..253024	+	857	147675005	clpB-1	VC0395_A0240	-	clpB protein
229	 43.83	-1	258928..259251	+	107	147673086	-	VC0395_A0248	-	hypothetical protein
230	 45.50	0	259261..259983	+	240	147675451	frp	VC0395_A0249	-	nitroreductase A
231	 48.24	0	260018..260272	-	84	147673050	-	VC0395_A0250	-	ferredoxin
232	 49.54	0	260275..261675	-	466	147674148	-	VC0395_A0251	-	putative protease
233	 49.62	0	261826..262740	-	304	147673880	rdgC	VC0395_A0252	-	recombination associated protein
234	 49.86	0	262977..263666	+	229	147674650	phoB	VC0395_A0253	-	DNA-binding response regulator PhoB
235	 51.46	0	263688..264989	+	433	147675436	phoR	VC0395_A0254	-	phosphate regulon sensor protein
236	 52.56	+1	264986..265963	+	325	147673708	-	VC0395_A0255	-	putative phosphate ABC transporter, periplasmic phosphate-binding protein
237	 47.50	0	266031..267533	-	500	147673098	ppx	VC0395_A0256	-	exopolyphosphatase
238	 46.87	0	267514..269619	-	701	147674904	ppk	VC0395_A0257	-	polyphosphate kinase
239	 50.41	0	269818..272013	+	731	147675548	pstC-1	VC0395_A0258	-	phosphate ABC transporter, permease protein
240	 49.42	0	272023..273669	+	548	147674308	pstA-1	VC0395_A0259	-	phosphate ABC transporter, permease protein
241	 49.76	0	273672..274493	+	273	147673468	pstB-1	VC0395_A0260	-	phosphate ABC transporter, ATP-binding protein
242	 48.38	0	274527..275237	+	236	147674474	phoU	VC0395_A0261	-	transcriptional regulator PhoU
243	 50.06	0	275298..276074	-	258	147675249	-	VC0395_A0262	-	hypothetical protein
244	 50.85	0	276277..277041	-	254	147673970	cutC	VC0395_A0263	-	copper homeostasis protein
245	 46.15	0	277376..277999	-	207	147673354	-	VC0395_A0264	-	anti-oxidant AhpCTSA family protein
246	 47.68	0	278203..279108	+	301	147673590	-	VC0395_A0265	-	LysR family transcriptional regulator
247	 49.37	0	279659..281329	+	556	147675709	aceB	VC0395_A0266	-	malate synthase
248	 51.45	0	281459..282772	+	437	147675086	aceA	VC0395_A0267	-	isocitrate lyase
249	 51.76	+1	282925..283434	-	169	147673820	-	VC0395_A0268	-	hypothetical protein
250	 50.42	0	283664..284722	+	352	147675363	queA	VC0395_A0269	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
47.83	MEAN

3.88	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
