IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O395

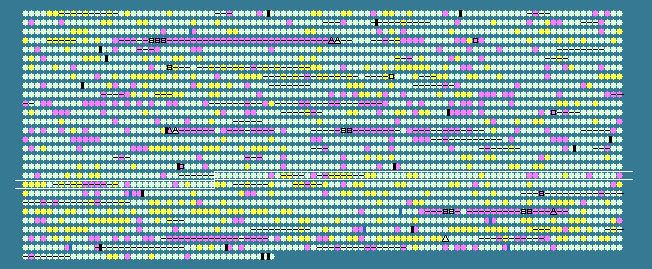

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1833	 48.45	0	2002774..2004162	-	462	147674300	nqrA	VC0395_A1884	-	Na(+)-translocating NADH-quinone reductase subunit A
1834	 47.66	0	2004599..2004919	-	106	147674547	bolA	VC0395_A1885	-	bolA protein
1835	 45.32	0	2004964..2006214	+	416	147675117	-	VC0395_A1886	-	hypothetical protein
1836	 46.22	0	2006211..2006831	+	206	147673359	-	VC0395_A1887	-	putative lipoprotein
1837	 48.55	0	2006788..2007372	+	194	147673347	ppiA	VC0395_A1888	-	peptidyl-prolyl cis-trans isomerase A
1838	 47.88	0	2007441..2008829	+	462	147673933	-	VC0395_A1889	-	putative ampG protein
1839	 48.75	0	2008917..2009597	-	226	147675664	-	VC0395_A1890	-	putative transcriptional activator
1840	 45.98	0	2009594..2010178	-	194	147673682	-	VC0395_A1891	-	RNA polymerase sigma factor
1841	 45.02	0	2010269..2010850	-	193	147675044	-	VC0395_A1892	-	hypothetical protein
1842	 43.43	-1	2011088..2011978	+	296	147674324	ompK	VC0395_A1893	-	nucleoside-specific channel-forming protein
1843	 49.94	0	2012117..2013007	+	296	147675273	panE	VC0395_A1894	-	2-dehydropantoate 2-reductase
1844	 54.62	+1	2013004..2013609	+	201	147675570	thiJ	VC0395_A1895	-	4-methyl-5(B-hydroxyethyl)-thiazole monophosphate biosynthesis enzyme
1845	 52.35	+1	2013593..2014807	+	404	147673408	-	VC0395_A1896	-	aminotransferase, class V
1846	 51.03	0	2014877..2015311	-	144	147674303	-	VC0395_A1897	-	hypothetical protein
1847	 49.27	0	2015316..2016137	-	273	147675632	-	VC0395_A1898	-	HesA/MoeB/ThiF family protein
1848	 49.86	0	2016229..2017335	-	368	147673142	mltA	VC0395_A1899	-	murein transglycosylase A
1849	 42.96	-1	2017406..2017810	-	134	147673802	-	VC0395_A1900	-	hypothetical protein
1850	 49.45	0	2018048..2019418	+	456	147674698	argA	VC0395_A1901	-	N-acetylglutamate synthase
1851	 44.09	0	2019645..2019830	+	61	147675559	-	VC0395_A1902	-	hypothetical protein
1852	 52.48	+1	2019860..2021980	-	706	147674978	recD	VC0395_A1903	-	exodeoxyribonuclease V, 67 kDa subunit
1853	 54.01	+1	2021977..2025603	-	1208	147674146	recB	VC0395_A1904	-	exodeoxyribonuclease V, 135 kDa subunit
1854	 52.60	+1	2025868..2029314	-	1148	147673707	recC	VC0395_A1905	-	exonuclease V subunit gamma
1855	 53.25	+1	2029535..2030503	-	322	147675376	-	VC0395_A1906	-	hypothetical protein
1856	 50.16	0	2030614..2031528	+	304	147674585	-	VC0395_A1907	-	LysR family transcriptional regulator
1857	 50.81	0	2031644..2031952	+	102	147674235	-	VC0395_A1908	-	hypothetical protein
1858	 53.78	+1	2032262..2033293	+	343	147673636	dapD	VC0395_A1909	-	2,3,4,5-tetrahydropyridine-2,6-dicarboxylate N-succinyltransferase
1859	 51.65	0	2033375..2034619	-	414	147673068	-	VC0395_A1910	-	hypothetical protein
1860	 49.18	0	2034722..2035813	-	363	147675158	-	VC0395_A1911	-	acetyltransferase
1861	 49.10	0	2036018..2037469	+	483	147674943	-	VC0395_A1912	-	hypothetical protein
1862	 48.17	0	2037659..2038642	+	327	147673395	-	VC0395_A1913	-	hypothetical protein
1863	 49.66	0	2038626..2039213	+	195	147675371	-	VC0395_A1915	-	hypothetical protein
1864	 50.14	0	2039210..2039554	-	114	147674584	-	VC0395_A1914	-	hypothetical protein
1865	 51.79	+1	2039713..2040720	+	335	147675743	-	VC0395_A1916	-	LacI family transcription regulator
1866	 51.36	0	2040732..2043866	-	1044	147673874	lacZ	VC0395_A1917	-	beta-D-galactosidase
1867	 51.27	0	2044189..2045331	+	380	147675324	-	VC0395_A1918	-	putative transporter
1868	 45.89	0	2045467..2046621	+	384	147674678	-	VC0395_A1919	-	hypothetical protein
1869	 46.75	0	2046821..2048512	+	563	147673766	-	VC0395_A1920	-	putative long-chain-fatty-acid--CoA ligase
1870	 47.17	0	2048626..2050713	-	695	147673153	fusA-2	VC0395_A1921	-	elongation factor G
1871	 49.57	0	2050984..2052363	-	459	147673564	radA	VC0395_A1922	-	DNA repair protein RadA
1872	 47.26	0	2052491..2054830	+	779	147673923	-	VC0395_A1923	-	hypothetical protein
1873	 49.65	0	2055035..2056021	-	328	147674858	serB	VC0395_A1924	-	phosphoserine phosphatase
1874	 47.44	0	2056118..2056741	+	207	147675400	-	VC0395_A1925	-	putative smp protein
1875	 48.76	0	2056823..2057548	-	241	147673694	deoD	VC0395_A1926	-	purine nucleoside phosphorylase
1876	 50.78	0	2057631..2058851	-	406	147674309	deoB	VC0395_A1927	-	phosphopentomutase
1877	 52.59	+1	2058869..2060296	-	475	147673836	deoA	VC0395_A1928	-	thymidine phosphorylase
1878	 48.46	0	2060303..2061082	-	259	147674428	deoC	VC0395_A1929	-	deoxyribose-phosphate aldolase
1879	 49.21	0	2061184..2061372	+	62	147675563	-	VC0395_A1930	-	hypothetical protein
1880	 48.77	0	2061684..2062940	-	418	147673370	-	VC0395_A1931	-	NupC family protein
1881	 50.35	0	2063127..2063978	-	283	147674354	-	VC0395_A1932	-	hypothetical protein
1882	 48.61	0	2063923..2064066	-	47	147673145	-	VC0395_A1933	-	hypothetical protein
1883	 45.35	0	2064093..2064866	-	257	147675020	-	VC0395_A1934	-	hypothetical protein
1884	 48.71	0	2065030..2066460	-	476	147674420	-	VC0395_A1935	-	sodium/alanine symporter
1885	 41.88	-1	2067099..2067332	+	77	147674976	-	VC0395_A1936	-	hypothetical protein
1886	 42.68	-1	2067476..2068117	-	213	147675579	-	VC0395_A1937	-	hypothetical protein
1887	 48.75	0	2068117..2068797	-	226	147675455	ung	VC0395_A1938	-	uracil-DNA glycosylase
1888	 47.97	0	2069166..2070026	-	286	147674847	nfo	VC0395_A1939	-	endonuclease IV
1889	 48.15	0	2070372..2070749	+	125	147674239	-	VC0395_A1940	-	autonomous glycyl radical cofactor GrcA
1890	 49.57	0	2070829..2072109	-	426	147673667	thrC	VC0395_A1941	-	threonine synthase
1891	 52.14	+1	2072106..2073062	-	318	147673067	thrB	VC0395_A1942	-	homoserine kinase
1892	 50.04	0	2073083..2075560	-	825	147674796	thrA	VC0395_A1943	-	bifunctional aspartokinase I/homeserine dehydrogenase I
1893	 46.79	0	2076090..2076572	+	160	147673558	-	VC0395_A1945	-	hypothetical protein
1894	 45.19	0	2076569..2077057	-	162	147674216	-	VC0395_A1944	-	ribonuclease activity regulator protein RraA
1895	 43.75	-1	2077084..2077467	-	127	147675746	-	VC0395_A1946	-	hypothetical protein
1896	 47.56	0	2077782..2078498	+	238	147674429	fexA	VC0395_A1947	-	two-component response regulator
1897	 46.82	0	2078557..2080914	-	785	147673942	fexB	VC0395_A1948	-	aerobic respiration control sensor protein ArcB
1898	 49.43	0	2081021..2082760	-	579	147673373	-	VC0395_A1949	-	sensory box/GGDEF family protein
1899	 50.05	0	2082828..2083778	-	316	147675264	-	VC0395_A1950	-	hypothetical protein
1900	 31.67	-2	2083800..2083919	-	39	147674811	-	VC0395_A1951	-	hypothetical protein
1901	 51.97	+1	2084297..2088889	+	1530	147674370	gltB-1	VC0395_A1952	-	glutamate synthase, large subunit
1902	 52.38	+1	2088890..2090359	+	489	147675131	gltD	VC0395_A1953	-	glutamate synthase subunit beta
1903	 52.96	+1	2090887..2095350	+	1487	147675611	gltB	VC0395_A1954	-	glutamate synthase subunit alpha
1904	 52.54	+1	2095366..2096781	+	471	147674672	gltD	VC0395_A1955	-	glutamate synthase subunit beta
1905	 50.57	0	2096968..2097402	+	144	147674365	-	VC0395_A1956	-	hypothetical protein
1906	 49.86	0	2097490..2098185	+	231	147673439	pfs	VC0395_A1957	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1907	 52.10	+1	2098198..2099151	+	317	147673669	-	VC0395_A1958	-	adenosylcobinamide-phosphate synthase
1908	 50.78	0	2099152..2099982	+	276	147675710	-	VC0395_A1959	-	hypothetical protein
1909	 53.78	+1	2100065..2100685	+	206	147673769	-	VC0395_A1960	-	hypothetical protein
1910	 51.65	0	2101627..2102412	-	261	147673176	-	VC0395_A1961	-	hypothetical protein
1911	 32.00	-2	2102874..2103845	+	323	147673179	-	VC0395_A1962	-	RNA-directed DNA polymerase
1912	 31.33	-2	2103846..2104643	+	265	147673450	-	VC0395_A1963	-	hypothetical protein
1913	 31.86	-2	2104856..2105467	+	203	147674421	-	VC0395_A1964	-	hypothetical protein
1914	 43.54	-1	2106202..2106348	-	48	147675204	-	VC0395_A1965	-	hypothetical protein
1915	 48.24	0	2106709..2107191	+	160	147674257	-	VC0395_A1966	-	hypothetical protein
1916	 52.06	+1	2107281..2110511	-	1076	147673654	carB	VC0395_A1967	-	carbamoyl phosphate synthase large subunit
1917	 50.35	0	2110528..2111667	-	379	147675544	carA	VC0395_A1968	-	carbamoyl phosphate synthase small subunit
1918	 34.11	-2	2111934..2112062	+	42	147674973	-	VC0395_A1969	-	hypothetical protein
1919	 50.74	0	2112150..2112959	-	269	147674435	dapB	VC0395_A1970	-	dihydrodipicolinate reductase
1920	 49.12	0	2113074..2113472	-	132	147674265	mutT	VC0395_A1971	-	mutator MutT protein
1921	 48.97	0	2113622..2116333	-	903	147673246	secA	VC0395_A1972	-	preprotein translocase subunit SecA
1922	 48.73	0	2116687..2117160	+	157	147673610	-	VC0395_A1973	-	hypothetical protein
1923	 47.17	0	2117265..2118182	-	305	147675593	lpxC	VC0395_A1974	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1924	 49.29	0	2118280..2119476	-	398	147674018	ftsZ	VC0395_A1975	-	cell division protein FtsZ
1925	 48.61	0	2119507..2120769	-	420	147673219	ftsA	VC0395_A1976	-	cell division protein FtsA
1926	 41.76	-1	2120762..2121544	-	260	147673236	ftsQ	VC0395_A1977	-	cell division protein FtsQ
1927	 50.44	0	2121726..2123186	-	486	147675354	murC	VC0395_A1978	-	UDP-N-acetylmuramate--L-alanine ligase
1928	 52.68	+1	2123200..2124264	-	354	147675068	murG	VC0395_A1979	-	N-acetylglucosaminyl transferase
1929	 48.29	0	2124248..2125444	-	398	147674339	ftsW	VC0395_A1980	-	cell division protein FtsW
1930	 51.17	0	2125461..2126783	-	440	147674702	murD	VC0395_A1981	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1931	 49.95	0	2126807..2127889	-	360	147674771	mraY	VC0395_A1982	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1932	 50.73	0	2127886..2129247	-	453	147673448	murF	VC0395_A1983	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
47.83	MEAN

3.88	STD DEV
