IslandPath Analysis: Vibrio cholerae O395

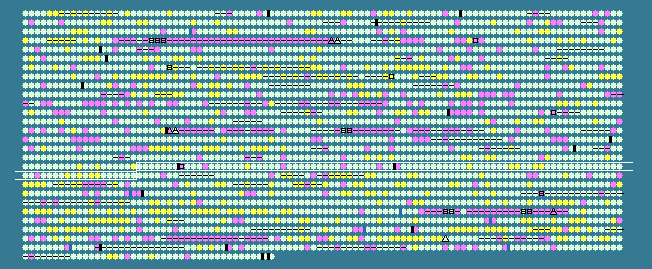

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1720	 50.32	0	1876730..1877818	-	362	147674456	prfA	VC0395_A1756	-	peptide chain release factor 1
1721	 50.08	0	1877848..1879107	-	419	147674777	hemA	VC0395_A1757	-	glutamyl-tRNA reductase
1722	 46.23	0	1879248..1879883	+	211	147675171	lolB	VC0395_A1758	-	outer membrane lipoprotein LolB
1723	 50.74	0	1879880..1880752	+	290	147673745	-	VC0395_A1759	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1724	 49.84	0	1880783..1881727	+	314	147673671	prsA	VC0395_A1760	-	ribose-phosphate pyrophosphokinase
1725	 48.22	0	1881896..1882486	+	196	147675550	pth	VC0395_A1761	-	peptidyl-tRNA hydrolase
1726	 48.63	0	1882497..1883588	+	363	147674921	-	VC0395_A1762	-	translation-associated GTPase
1727	 38.81	-2	1885708..1886145	-	145	147673504	tnpA	VC0395_A1777	-	IS1004 transposase
1728	 48.25	0	1886189..1886302	-	37	147673266	-	VC0395_A1778	-	hypothetical protein
1729	 48.41	0	1886309..1887442	-	377	147675419	flaC	VC0395_A1779	-	flagellin
1730	 48.77	0	1887997..1889136	-	379	147674518	flaA	VC0395_A1780	-	flagellin
1731	 41.11	-1	1889285..1889464	-	59	147673159	-	VC0395_A1781	-	hypothetical protein
1732	 47.40	0	1889544..1890737	-	397	147674282	flgL	VC0395_A1782	-	flagellar hook-associated protein FlgL
1733	 47.95	0	1890750..1892624	-	624	147675062	flgK	VC0395_A1783	-	flagellar hook-associated protein FlgK
1734	 48.78	0	1892804..1893742	-	312	147673638	flgJ	VC0395_A1784	-	peptidoglycan hydrolase
1735	 50.46	0	1893753..1894838	-	361	147674065	flgI	VC0395_A1785	-	flagellar basal body P-ring protein
1736	 49.11	0	1894929..1895714	-	261	147674828	flgH	VC0395_A1786	-	flagellar basal body L-ring protein
1737	 48.92	0	1895729..1896517	-	262	147674573	flgG	VC0395_A1787	-	flagellar basal body rod protein FlgG
1738	 51.60	0	1896537..1897286	-	249	147673274	flgF	VC0395_A1788	-	flagellar basal body rod protein FlgF
1739	 47.43	0	1897469..1898773	-	434	147674037	flgE	VC0395_A1789	-	flagellar hook protein FlgE
1740	 48.16	0	1898802..1899509	-	235	147674438	flgD	VC0395_A1790	-	flagellar basal body rod modification protein
1741	 46.28	0	1899527..1899943	-	138	147675208	flgC	VC0395_A1791	-	flagellar basal body rod protein FlgC
1742	 48.99	0	1899948..1900343	-	131	147673875	flgB	VC0395_A1792	-	flagellar basal body rod protein FlgB
1743	 46.62	0	1900563..1901390	-	275	147673113	cheR-2	VC0395_A1793	-	chemotaxis protein methyltransferase CheR
1744	 44.01	0	1901401..1902327	-	308	147674785	cheV-3	VC0395_A1794	-	chemotaxis protein CheV
1745	 45.70	0	1902384..1903151	+	255	147674697	flgA	VC0395_A1795	-	flagellar basal body P-ring biosynthesis protein FlgA
1746	 49.07	0	1903282..1903605	+	107	147673622	flgM	VC0395_A1796	-	negative regulator of flagellin synthesis FlgM
1747	 44.91	0	1903703..1904134	+	143	147675612	-	VC0395_A1797	-	hypothetical protein
1748	 50.23	0	1904244..1904681	-	145	147674431	-	VC0395_A1798	-	putative lipoprotein
1749	 47.98	0	1904689..1905357	-	222	147674348	-	VC0395_A1799	-	putative lipoprotein
1750	 47.62	0	1905485..1906618	+	377	147673377	-	VC0395_A1800	-	hypothetical protein
1751	 49.56	0	1906748..1914001	-	2417	147674802	vibF	VC0395_A1801	-	nonribosomal peptide synthetase VibF
1752	 45.83	0	1914247..1915062	-	271	147675600	viuB	VC0395_A1802	-	vibriobactin utilization protein ViuB
1753	 46.27	0	1915366..1917429	-	687	147675048	viuA	VC0395_A1803	-	ferric vibriobactin receptor
1754	 43.35	-1	1917849..1918547	+	232	147674387	-	VC0395_A1804	-	hypothetical protein
1755	 47.72	0	1918636..1919601	-	321	147673624	ompA	VC0395_A1805	-	outer membrane protein OmpA
1756	 48.50	0	1919897..1921426	-	509	147675108	gltX	VC0395_A1806	-	glutamyl-tRNA synthetase
1757	 51.02	0	1921495..1924242	+	915	147674687	-	VC0395_A1807	-	cation transporter E1-E2 family ATPase
1758	 46.80	0	1924239..1924691	+	150	147673957	-	VC0395_A1808	-	hypothetical protein
1759	 49.55	0	1924828..1927479	-	883	147673355	chb-2	VC0395_A1809	-	beta-N-acetylhexosaminidase
1760	 42.11	-1	1927512..1927625	+	37	147674810	-	VC0395_A1810	-	hypothetical protein
1761	 45.30	0	1927707..1927823	-	38	147674204	-	VC0395_A1811	-	hypothetical protein
1762	 47.27	0	1927896..1928792	+	298	147675759	-	VC0395_A1812	-	hypothetical protein
1763	 43.26	-1	1929273..1929413	+	46	147675489	-	VC0395_A1814	-	hypothetical protein
1764	 49.57	0	1929595..1930173	+	192	147675370	-	VC0395_A1815	-	hypothetical protein
1765	 47.51	0	1930203..1931225	+	340	147674574	-	VC0395_A1816	-	pseudouridine synthase family 1 protein
1766	 45.22	0	1931323..1932861	-	512	147673860	-	VC0395_A1817	-	GGDEF family protein
1767	 46.57	0	1933092..1933718	-	208	147675197	upp	VC0395_A1818	-	uracil phosphoribosyltransferase
1768	 50.14	0	1933885..1934925	+	346	147675067	purM	VC0395_A1819	-	phosphoribosylaminoimidazole synthetase
1769	 48.51	0	1934928..1935566	+	212	147674294	purN	VC0395_A1820	-	phosphoribosylglycinamide formyltransferase
1770	 50.12	0	1935707..1936552	-	281	147673553	-	VC0395_A1821	-	hypothetical protein
1771	 45.66	0	1936615..1937190	-	191	147673432	gmhA	VC0395_A1822	-	phosphoheptose isomerase
1772	 50.39	0	1937508..1939952	+	814	147675558	fadE	VC0395_A1823	-	acyl-CoA dehydrogenase
1773	 47.22	0	1940099..1941358	-	419	147674375	-	VC0395_A1824	-	hypothetical protein
1774	 47.58	0	1941367..1942110	-	247	147674786	dnaQ	VC0395_A1825	-	DNA polymerase III subunit epsilon
1775	 52.87	+1	1942167..1942637	+	156	147675243	rnhA	VC0395_A1826	-	ribonuclease H
1776	 45.39	0	1942708..1943445	-	245	147673588	-	VC0395_A1827	-	hypothetical protein
1777	 49.41	0	1943483..1944241	+	252	147673202	-	VC0395_A1828	-	putative hydroxyacylglutathione hydrolase GloB
1778	 49.66	0	1944313..1945911	+	532	147673804	mltD	VC0395_A1829	-	membrane-bound lytic murein transglycosylase D
1779	 47.87	0	1945928..1946773	-	281	147674622	-	VC0395_A1830	-	hypothetical protein
1780	 47.54	0	1946841..1947185	-	114	147675404	glnB-2	VC0395_A1831	-	nitrogen regulatory protein P-II
1781	 44.76	0	1947339..1947863	-	174	147674939	-	VC0395_A1832	-	decarboxylase
1782	 51.54	0	1948240..1948563	-	107	147675046	-	VC0395_A1833	-	cytochrome c554
1783	 52.38	+1	1948599..1949921	-	440	147674336	tilS	VC0395_A1834	-	tRNA(Ile)-lysidine synthetase
1784	 50.10	0	1950061..1951020	-	319	147674788	accA	VC0395_A1835	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1785	 50.70	0	1951075..1954569	-	1164	147675187	dnaE	VC0395_A1836	-	DNA polymerase III subunit alpha
1786	 51.53	0	1954593..1955213	-	206	147673627	rnhB	VC0395_A1837	-	ribonuclease HII
1787	 51.84	+1	1955238..1956377	-	379	147673997	lpxB	VC0395_A1838	-	lipid-A-disaccharide synthase
1788	 49.56	0	1956538..1957326	-	262	147674688	lpxA	VC0395_A1839	-	UDP-N-acetylglucosamine acyltransferase
1789	 44.59	0	1957328..1957789	-	153	147674767	fabZ	VC0395_A1840	-	(3R)-hydroxymyristoyl-ACP dehydratase
1790	 49.24	0	1957865..1958920	-	351	147675586	lpxD	VC0395_A1841	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1791	 44.71	0	1958930..1959439	-	169	147674756	ompH	VC0395_A1842	-	outer membrane protein OmpH
1792	 47.76	0	1959454..1961865	-	803	147675293	-	VC0395_A1843	-	outer membrane protein assembly factor YaeT
1793	 48.57	0	1961914..1963272	-	452	147673634	-	VC0395_A1844	-	hypothetical protein
1794	 50.79	0	1963269..1964477	-	402	147674244	dxr	VC0395_A1845	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1795	 48.16	0	1964526..1965368	-	280	147674661	cdsA	VC0395_A1846	-	phosphatidate cytidylyltransferase
1796	 46.17	0	1965386..1966156	-	256	147675134	uppS	VC0395_A1847	-	undecaprenyl diphosphate synthase
1797	 47.31	0	1966230..1966787	-	185	147673161	frr	VC0395_A1848	-	ribosome recycling factor
1798	 49.04	0	1966841..1967572	-	243	147674990	pyrH	VC0395_A1849	-	uridylate kinase
1799	 48.16	0	1967760..1968602	-	280	147675519	tsf	VC0395_A1850	-	elongation factor Ts
1800	 47.33	0	1968734..1969462	-	242	147673418	rpsB	VC0395_A1851	-	30S ribosomal protein S2
1801	 46.74	0	1969803..1970645	+	280	147674261	map	VC0395_A1852	-	methionine aminopeptidase
1802	 49.28	0	1970735..1973380	+	881	147673286	glnD	VC0395_A1853	-	PII uridylyl-transferase
1803	 39.61	-2	1973626..1974039	+	137	147675190	-	VC0395_A1854	-	hypothetical protein
1804	 49.02	0	1974080..1974589	-	169	147674430	pgpA	VC0395_A1855	-	phosphatidylglycerophosphatase A
1805	 50.45	0	1974586..1975590	-	334	147673943	thiL	VC0395_A1856	-	thiamine monophosphate kinase
1806	 46.92	0	1975651..1976121	-	156	147673228	nusB	VC0395_A1857	-	transcription antitermination protein NusB
1807	 46.55	0	1976121..1976642	-	173	147675653	ribH	VC0395_A1858	-	riboflavin synthase subunit beta
1808	 51.44	0	1976856..1977965	-	369	147674884	ribB/A	VC0395_A1859	-	3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II
1809	 48.78	0	1978006..1978659	-	217	147673055	ribE	VC0395_A1860	-	riboflavin synthase subunit alpha
1810	 51.81	+1	1978664..1979767	-	367	147673692	ribD	VC0395_A1861	-	riboflavin biosynthesis protein RibD
1811	 48.00	0	1979793..1980242	-	149	147674568	nrdR	VC0395_A1862	-	transcriptional regulator NrdR
1812	 51.83	+1	1980342..1981595	-	417	147674854	proA	VC0395_A1863	-	gamma-glutamyl phosphate reductase
1813	 52.29	+1	1981604..1982737	-	377	162329621	proB	VC0395_A1864	-	gamma-glutamyl kinase
1814	 47.69	0	1982858..1983247	-	129	147673803	crl	VC0395_A1865	-	DNA-binding transcriptional regulator Crl
1815	 48.40	0	1983381..1984628	-	415	147675488	frsA	VC0395_A1866	-	fermentation/respiration switch protein
1816	 47.74	0	1984725..1985189	-	154	147675317	gpt	VC0395_A1867	-	xanthine-guanine phosphoribosyltransferase
1817	 49.34	0	1985227..1986519	-	430	147675075	-	VC0395_A1868	-	hypothetical protein
1818	 48.72	0	1987265..1988869	+	534	147674070	pepD	VC0395_A1869	-	aminoacyl-histidine dipeptidase
1819	 46.40	0	1989103..1989546	+	147	147673192	-	VC0395_A1870	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
