IslandPath Analysis: Vibrio cholerae O395

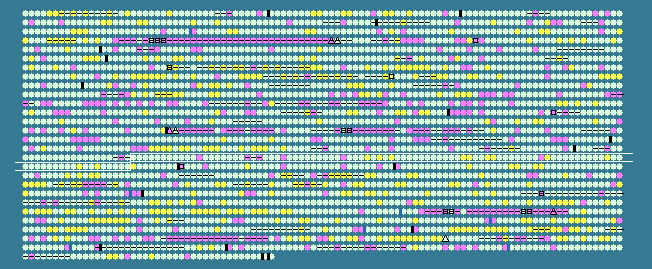

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1619	 47.77	0	1775000..1775941	-	313	147674338	-	VC0395_A1655	-	ParA family protein
1620	 50.27	0	1775901..1777388	-	495	147673602	flhF	VC0395_A1656	-	flagellar biosynthesis regulator FlhF
1621	 49.95	0	1777423..1779516	-	697	147675206	flhA	VC0395_A1657	-	flagellar biosynthesis protein FlhA
1622	 49.37	0	1779848..1780321	-	157	147674345	sixA	VC0395_A1658	-	phosphohistidine phosphatase
1623	 47.59	0	1780465..1783284	+	939	147675351	-	VC0395_A1660	-	peptidase insulinase family protein
1624	 49.41	0	1783281..1783877	-	198	147673572	-	VC0395_A1659	-	hypothetical protein
1625	 48.61	0	1784011..1785810	+	599	147673730	argS	VC0395_A1661	-	arginyl-tRNA synthetase
1626	 49.32	0	1785901..1786344	+	147	147673143	-	VC0395_A1662	-	histidine triad family protein
1627	 48.48	0	1786606..1786836	-	76	147673946	-	VC0395_A1663	-	hypothetical protein
1628	 46.90	0	1786833..1789109	-	758	147673265	feoB	VC0395_A1664	-	ferrous iron transport protein B
1629	 48.05	0	1789106..1789336	-	76	147675518	feoA	VC0395_A1665	-	ferrous iron transport protein A
1630	 44.15	0	1790108..1793473	-	1121	147674890	-	VC0395_A1666	-	AraC/XylS family transcriptional regulator
1631	 46.98	0	1793655..1794548	-	297	147674268	znuA	VC0395_A1667	-	zinc ABC transporter, periplasmic zinc-binding protein
1632	 46.26	0	1794623..1795411	+	262	147675307	znuC	VC0395_A1668	-	zinc ABC transporter, ATP-binding protein
1633	 49.81	0	1795404..1796186	+	260	147675495	znuB	VC0395_A1669	-	zinc ABC transporter, permease protein
1634	 48.45	0	1796293..1797165	-	290	147673983	sucD	VC0395_A1670	-	succinyl-CoA synthetase subunit alpha
1635	 47.47	0	1797165..1798331	-	388	147673132	sucC	VC0395_A1671	-	succinyl-CoA synthetase subunit beta
1636	 49.22	0	1798499..1799713	-	404	147675118	sucB	VC0395_A1672	-	dihydrolipoamide acetyltransferase
1637	 50.23	0	1799742..1802552	-	936	147675042	kgd	VC0395_A1673	-	alpha-ketoglutarate decarboxylase
1638	 44.30	0	1802641..1803351	-	236	147674178	sdhB	VC0395_A1674	-	succinate dehydrogenase iron-sulfur subunit
1639	 49.41	0	1803366..1805132	-	588	147673431	sdhA	VC0395_A1675	-	succinate dehydrogenase flavoprotein subunit
1640	 43.48	-1	1805133..1805477	-	114	147674183	sdhD	VC0395_A1676	-	succinate dehydrogenase, hydrophobic membrane anchor protein
1641	 48.09	0	1805471..1805863	-	130	147673409	sdhC	VC0395_A1677	-	succinate dehydrogenase cytochrome b556 large membrane subunit
1642	 46.76	0	1806253..1807548	+	431	147673936	gltA	VC0395_A1678	-	type II citrate synthase
1643	 45.65	0	1807600..1808370	-	256	147674477	-	VC0395_A1679	-	hypothetical protein
1644	 44.06	0	1808423..1809196	+	257	147673486	-	VC0395_A1680	-	hypothetical protein
1645	 48.94	0	1809246..1810892	-	548	147674240	pgm	VC0395_A1681	-	phosphoglucomutase
1646	 46.63	0	1811001..1811534	-	177	147674637	seqA	VC0395_A1682	-	replication initiation regulator SeqA
1647	 47.67	0	1811627..1812400	+	257	147675456	-	VC0395_A1683	-	hydrolase
1648	 45.50	0	1812496..1812717	+	73	147674606	-	VC0395_A1684	-	hypothetical protein
1649	 46.40	0	1812766..1813293	+	175	147675417	fldA	VC0395_A1685	-	flavodoxin FldA
1650	 50.29	0	1813367..1814056	-	229	147673045	-	VC0395_A1686	-	hypothetical protein
1651	 48.30	0	1814062..1814502	-	146	147673796	-	VC0395_A1687	-	hypothetical protein
1652	 50.51	0	1814618..1815496	+	292	147673570	-	VC0395_A1688	-	LysR family transcriptional regulator
1653	 47.11	0	1815500..1816000	-	166	147673832	-	VC0395_A1689	-	hypothetical protein
1654	 43.71	-1	1816366..1816818	+	150	147674743	fur	VC0395_A1690	-	ferric uptake regulator
1655	 48.87	0	1816900..1817916	-	338	147675308	-	VC0395_A1691	-	aspartate-semialdehyde dehydrogenase
1656	 49.91	0	1817897..1819060	-	387	147673968	pdxB	VC0395_A1692	-	erythronate-4-phosphate dehydrogenase
1657	 49.92	0	1819246..1820457	-	403	147674185	fabB	VC0395_A1693	-	3-oxoacyl-(acyl-carrier-protein) synthase I
1658	 51.65	0	1820575..1822599	+	674	147674806	mnmC	VC0395_A1694	-	5-methylaminomethyl-2-thiouridine methyltransferase
1659	 50.00	0	1822677..1823204	-	175	147675722	-	VC0395_A1695	-	hypothetical protein
1660	 51.89	+1	1823412..1823675	-	87	147675483	-	VC0395_A1696	-	hypothetical protein
1661	 47.46	0	1823714..1824244	-	176	147673720	-	VC0395_A1697	-	hypothetical protein
1662	 52.24	+1	1824608..1825231	+	207	147673621	-	VC0395_A1698	-	hypothetical protein
1663	 51.01	0	1825313..1826398	-	361	147675123	aroC	VC0395_A1699	-	chorismate synthase
1664	 49.31	0	1826628..1827572	-	314	147673603	-	VC0395_A1700	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1665	 50.09	0	1827627..1828187	+	186	147673917	-	VC0395_A1701	-	hypothetical protein
1666	 50.49	0	1828195..1829325	-	376	147674451	flhB	VC0395_A1702	-	flagellar biosynthesis protein FlhB
1667	 49.81	0	1829335..1830117	-	260	147673452	fliR	VC0395_A1703	-	flagellar biosynthesis protein FliR
1668	 45.19	0	1830126..1830395	-	89	147674176	fliQ	VC0395_A1704	-	flagellar biosynthesis protein FliQ
1669	 48.00	0	1830408..1831307	-	299	147674933	fliP	VC0395_A1705	-	flagellar biosynthesis protein FliP
1670	 46.34	0	1831174..1831296	+	40	147674950	-	VC0395_A1707	-	hypothetical protein
1671	 50.51	0	1831285..1831674	-	129	147675753	fliO	VC0395_A1706	-	flagellar protein FliO
1672	 50.36	0	1831678..1832094	-	138	147674715	fliN	VC0395_A1708	-	flagellar motor switch protein
1673	 49.05	0	1832159..1833208	-	349	147675314	fliM	VC0395_A1709	-	flagellar motor switch protein FliM
1674	 51.39	0	1833216..1833719	-	167	147673204	fliL	VC0395_A1710	-	flagellar basal body-associated protein FliL
1675	 53.04	+1	1833754..1835778	-	674	147675428	-	VC0395_A1711	-	putative flagellar hook-length control protein FliK
1676	 47.97	0	1835799..1835921	+	40	147673118	-	VC0395_A1712	-	hypothetical protein
1677	 45.95	0	1835942..1836385	-	147	147673876	fliJ	VC0395_A1713	-	flagellar biosynthesis chaperone
1678	 52.65	+1	1836400..1837719	-	439	147675718	fliI	VC0395_A1714	-	flagellum-specific ATP synthase
1679	 52.28	+1	1837723..1838535	-	270	147673698	fliH	VC0395_A1715	-	flagellar assembly protein H
1680	 49.46	0	1838616..1839632	-	338	147674147	fliG	VC0395_A1716	-	flagellar motor switch protein G
1681	 50.37	0	1839655..1841397	-	580	147674591	fliF	VC0395_A1717	-	flagellar MS-ring protein
1682	 45.45	0	1841413..1841742	-	109	147675704	fliE	VC0395_A1718	-	flagellar hook-basal body protein FliE
1683	 50.28	0	1841800..1843239	-	479	147673544	flrC	VC0395_A1719	-	flagellar regulatory protein C
1684	 50.85	0	1843236..1844291	-	351	147675650	flrB	VC0395_A1720	-	flagellar regulatory protein B
1685	 49.90	0	1844403..1845869	-	488	147675013	flrA	VC0395_A1721	-	flagellar regulatory protein A
1686	 46.23	0	1846101..1846511	-	136	147673727	fliS	VC0395_A1722	-	flagellar protein FliS
1687	 41.90	-1	1846522..1846836	-	104	147673154	-	VC0395_A1723	-	putative flagellar rod protein FlaI
1688	 51.52	0	1846829..1848829	-	666	147675440	fliD	VC0395_A1724	-	flagellar capping protein
1689	 48.27	0	1848851..1849312	-	153	147675482	flaG	VC0395_A1725	-	flagellar protein FlaG
1690	 50.40	0	1849386..1850516	-	376	147674837	flaB	VC0395_A1726	-	flagellin
1691	 48.68	0	1850752..1851885	-	377	147675484	flaD	VC0395_A1727	-	flagellin
1692	 49.52	0	1852175..1853311	-	378	147675318	flaE	VC0395_A1728	-	flagellin
1693	 48.95	0	1853435..1854343	-	302	147674932	-	VC0395_A1729	-	tyrA protein
1694	 48.39	0	1854409..1854873	-	154	147673816	-	VC0395_A1730	-	hypothetical protein
1695	 45.10	0	1855017..1855373	+	118	147673419	-	VC0395_A1731	-	hypothetical protein
1696	 49.31	0	1855440..1855727	-	95	147675761	-	VC0395_A1732	-	hypothetical protein
1697	 45.45	0	1855930..1856325	+	131	147673991	-	VC0395_A1733	-	hypothetical protein
1698	 51.68	0	1856356..1857489	+	377	147674209	dapE	VC0395_A1734	-	succinyl-diaminopimelate desuccinylase
1699	 49.04	0	1857492..1858166	+	224	147675325	-	VC0395_A1735	-	VanY family protein
1700	 46.22	0	1858156..1858380	+	74	147674432	-	VC0395_A1736	-	hypothetical protein
1701	 49.31	0	1858473..1859492	-	339	147674077	nlpB	VC0395_A1737	-	lipoprotein
1702	 48.92	0	1859550..1860428	-	292	147673601	dapA	VC0395_A1738	-	dihydrodipicolinate synthase
1703	 45.86	0	1860706..1861248	+	180	147675107	-	VC0395_A1739	-	putative glycine cleavage system transcriptional repressor
1704	 45.94	0	1861263..1861730	+	155	147674356	bcp	VC0395_A1740	-	thioredoxin-dependent thiol peroxidase
1705	 48.45	0	1861832..1863703	-	623	147673902	-	VC0395_A1741	-	methyl-accepting chemotaxis protein
1706	 47.70	0	1863894..1864958	-	354	147673150	-	VC0395_A1742	-	putative permease PerM
1707	 48.52	0	1864951..1865187	-	78	147675026	-	VC0395_A1743	-	hypothetical protein
1708	 50.03	0	1865371..1866825	+	484	147674253	-	VC0395_A1744	-	hypothetical protein
1709	 47.58	0	1866848..1867198	+	116	147673287	arsC	VC0395_A1745	-	arsenate reductase
1710	 51.87	+1	1867195..1867755	+	186	147675625	wrbA	VC0395_A1746	-	Trp repressor-binding protein
1711	 48.86	0	1867758..1868195	+	145	147674419	-	VC0395_A1747	-	hypothetical protein
1712	 49.96	0	1868402..1869550	-	382	147673837	-	VC0395_A1748	-	hypothetical protein
1713	 52.23	+1	1869771..1871024	+	417	147674252	uraA	VC0395_A1749	-	uracil permease
1714	 47.20	0	1871095..1871577	-	160	147675041	-	VC0395_A1750	-	hypothetical protein
1715	 48.26	0	1871711..1873372	-	553	147673600	ushA	VC0395_A1751	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
1716	 50.00	0	1873784..1874635	-	283	147674359	kdsA	VC0395_A1752	-	2-dehydro-3-deoxyphosphooctonate aldolase
1717	 47.60	0	1874655..1875467	-	270	147674484	-	VC0395_A1753	-	hypothetical protein
1718	 45.83	0	1875483..1875866	-	127	147675215	-	VC0395_A1754	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
