IslandPath Analysis: Vibrio cholerae O395

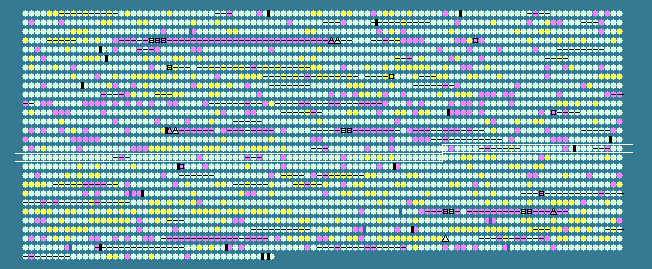

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1571	 50.12	0	1725867..1727111	-	414	147673369	fabF	VC0395_A1605	-	3-oxoacyl-(acyl carrier protein) synthase II
1572	 42.64	-1	1727200..1727532	-	110	147673387	acpP	VC0395_A1606	-	acyl carrier protein
1573	 50.47	0	1727672..1728418	-	248	147675453	fabG	VC0395_A1607	-	3-ketoacyl-(acyl-carrier-protein) reductase
1574	 48.99	0	1728434..1729372	-	312	147673966	fabD	VC0395_A1608	-	malonyl CoA-acyl carrier protein transacylase
1575	 49.53	0	1729427..1730377	-	316	147673193	fabH-1	VC0395_A1609	-	3-oxoacyl-(acyl carrier protein) synthase III
1576	 48.34	0	1730383..1731408	-	341	147675180	plsX	VC0395_A1610	-	putative glycerol-3-phosphate acyltransferase PlsX
1577	 48.54	0	1731418..1731588	-	56	147674886	rpmF	VC0395_A1611	-	50S ribosomal protein L32
1578	 41.90	-1	1731623..1732147	-	174	147675692	-	VC0395_A1612	-	hypothetical protein
1579	 45.02	0	1732295..1732876	+	193	147673643	-	VC0395_A1613	-	Maf-like protein
1580	 48.95	0	1732977..1733924	-	315	147673109	rluC	VC0395_A1614	-	ribosomal large subunit pseudouridine synthase C
1581	 48.48	0	1734545..1736611	+	688	147674453	-	VC0395_A1615	-	ribonuclease E
1582	 53.25	+1	1736986..1737693	+	235	147673238	rne	VC0395_A1616	-	ribonuclease E
1583	 49.30	0	1738041..1739606	+	521	147673538	-	VC0395_A1617	-	sulfate permease family protein
1584	 50.23	0	1739724..1740599	+	291	147674001	-	VC0395_A1618	-	hypothetical protein
1585	 48.72	0	1740709..1743393	-	894	147675521	adhE	VC0395_A1619	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1586	 48.51	0	1744020..1744658	+	212	147673533	-	VC0395_A1620	-	hypothetical protein
1587	 49.69	0	1744748..1745860	-	370	147673189	asd	VC0395_A1621	-	aspartate-semialdehyde dehydrogenase
1588	 47.51	0	1746285..1747730	+	481	147675315	yqkI	VC0395_A1622	-	Na+/H+ antiporter
1589	 46.77	0	1747765..1748970	-	401	147675464	-	VC0395_A1623	-	hypothetical protein
1590	 44.61	0	1749133..1750134	-	333	147674919	-	VC0395_A1624	-	nucleoid-associated protein NdpA
1591	 40.74	-1	1750219..1750434	+	71	147673537	-	VC0395_A1625	-	hypothetical protein
1592	 45.76	0	1750469..1752271	+	600	147674285	-	VC0395_A1626	-	hypothetical protein
1593	 49.73	0	1752729..1753649	-	306	147674598	-	VC0395_A1629	-	histone deacetylase/AcuC/AphA family protein
1594	 49.13	0	1753670..1755613	-	647	147675446	topB	VC0395_A1630	-	DNA topoisomerase III
1595	 48.05	0	1755698..1756030	-	110	147673099	-	VC0395_A1631	-	hypothetical protein
1596	 47.35	0	1756282..1756866	+	194	147673867	sodB	VC0395_A1632	-	superoxide dismutase, Fe
1597	 48.98	0	1756948..1757484	+	178	147674967	-	VC0395_A1633	-	hypothetical protein
1598	 38.76	-2	1757825..1757953	-	42	147675696	-	VC0395_A1634	-	hypothetical protein
1599	 46.70	0	1757853..1758533	+	226	147674021	-	VC0395_A1635	-	short chain dehydrogenase
1600	 47.32	0	1758546..1759310	-	254	147674073	vacJ	VC0395_A1636	-	vacJ lipoprotein
1601	 47.16	0	1759363..1760577	-	404	147675723	ccmH	VC0395_A1637	-	cytochrome c-type biogenesis protein CcmH
1602	 46.33	0	1760580..1761056	-	158	147675051	-	VC0395_A1638	-	cytochrome c-type biogenesis protein CcmH
1603	 45.05	0	1761053..1761607	-	184	147675010	dsbE	VC0395_A1639	-	thiol:disulfide interchange protein DsbE
1604	 49.85	0	1761608..1763563	-	651	147674378	ccmF	VC0395_A1640	-	cytochrome c-type biogenesis protein CcmF
1605	 47.83	0	1763560..1764042	-	160	147673770	ccmE	VC0395_A1641	-	cytochrome c-type biogenesis protein CcmE
1606	 46.38	0	1764039..1764245	-	68	147673210	ccmD	VC0395_A1642	-	heme exporter protein D
1607	 50.46	0	1764245..1764997	-	250	147674659	ccmC	VC0395_A1643	-	heme exporter protein C
1608	 49.48	0	1765088..1765756	-	222	147673754	ccmB	VC0395_A1644	-	heme exporter protein B
1609	 47.28	0	1765753..1766376	-	207	147673545	ccmA	VC0395_A1645	-	cytochrome c biogenesis protein CcmA
1610	 47.42	0	1766750..1767253	-	167	147675281	-	VC0395_A1646	-	hypothetical protein
1611	 45.90	0	1767229..1767753	-	174	147674307	cheW-1	VC0395_A1647	-	purine-binding chemotaxis protein CheW
1612	 46.80	0	1767762..1768778	-	338	147674008	-	VC0395_A1648	-	hypothetical protein
1613	 46.20	0	1768771..1769547	-	258	147675595	-	VC0395_A1649	-	ParA family protein
1614	 48.85	0	1769557..1770690	-	377	147674819	cheB-2	VC0395_A1650	-	chemotaxis-specific methylesterase
1615	 48.85	0	1770717..1773074	-	785	147674329	cheA-2	VC0395_A1651	-	chemotaxis protein CheA
1616	 45.28	0	1773084..1773803	-	239	147673688	cheZ	VC0395_A1652	-	chemotaxis protein CheZ
1617	 42.24	-1	1773859..1774251	-	130	147675594	cheY-3	VC0395_A1653	-	chemotaxis protein CheY
1618	 45.44	0	1774273..1775007	-	244	147674794	fliA	VC0395_A1654	-	flagellar biosynthesis sigma factor
1619	 47.77	0	1775000..1775941	-	313	147674338	-	VC0395_A1655	-	ParA family protein
1620	 50.27	0	1775901..1777388	-	495	147673602	flhF	VC0395_A1656	-	flagellar biosynthesis regulator FlhF
1621	 49.95	0	1777423..1779516	-	697	147675206	flhA	VC0395_A1657	-	flagellar biosynthesis protein FlhA
1622	 49.37	0	1779848..1780321	-	157	147674345	sixA	VC0395_A1658	-	phosphohistidine phosphatase
1623	 47.59	0	1780465..1783284	+	939	147675351	-	VC0395_A1660	-	peptidase insulinase family protein
1624	 49.41	0	1783281..1783877	-	198	147673572	-	VC0395_A1659	-	hypothetical protein
1625	 48.61	0	1784011..1785810	+	599	147673730	argS	VC0395_A1661	-	arginyl-tRNA synthetase
1626	 49.32	0	1785901..1786344	+	147	147673143	-	VC0395_A1662	-	histidine triad family protein
1627	 48.48	0	1786606..1786836	-	76	147673946	-	VC0395_A1663	-	hypothetical protein
1628	 46.90	0	1786833..1789109	-	758	147673265	feoB	VC0395_A1664	-	ferrous iron transport protein B
1629	 48.05	0	1789106..1789336	-	76	147675518	feoA	VC0395_A1665	-	ferrous iron transport protein A
1630	 44.15	0	1790108..1793473	-	1121	147674890	-	VC0395_A1666	-	AraC/XylS family transcriptional regulator
1631	 46.98	0	1793655..1794548	-	297	147674268	znuA	VC0395_A1667	-	zinc ABC transporter, periplasmic zinc-binding protein
1632	 46.26	0	1794623..1795411	+	262	147675307	znuC	VC0395_A1668	-	zinc ABC transporter, ATP-binding protein
1633	 49.81	0	1795404..1796186	+	260	147675495	znuB	VC0395_A1669	-	zinc ABC transporter, permease protein
1634	 48.45	0	1796293..1797165	-	290	147673983	sucD	VC0395_A1670	-	succinyl-CoA synthetase subunit alpha
1635	 47.47	0	1797165..1798331	-	388	147673132	sucC	VC0395_A1671	-	succinyl-CoA synthetase subunit beta
1636	 49.22	0	1798499..1799713	-	404	147675118	sucB	VC0395_A1672	-	dihydrolipoamide acetyltransferase
1637	 50.23	0	1799742..1802552	-	936	147675042	kgd	VC0395_A1673	-	alpha-ketoglutarate decarboxylase
1638	 44.30	0	1802641..1803351	-	236	147674178	sdhB	VC0395_A1674	-	succinate dehydrogenase iron-sulfur subunit
1639	 49.41	0	1803366..1805132	-	588	147673431	sdhA	VC0395_A1675	-	succinate dehydrogenase flavoprotein subunit
1640	 43.48	-1	1805133..1805477	-	114	147674183	sdhD	VC0395_A1676	-	succinate dehydrogenase, hydrophobic membrane anchor protein
1641	 48.09	0	1805471..1805863	-	130	147673409	sdhC	VC0395_A1677	-	succinate dehydrogenase cytochrome b556 large membrane subunit
1642	 46.76	0	1806253..1807548	+	431	147673936	gltA	VC0395_A1678	-	type II citrate synthase
1643	 45.65	0	1807600..1808370	-	256	147674477	-	VC0395_A1679	-	hypothetical protein
1644	 44.06	0	1808423..1809196	+	257	147673486	-	VC0395_A1680	-	hypothetical protein
1645	 48.94	0	1809246..1810892	-	548	147674240	pgm	VC0395_A1681	-	phosphoglucomutase
1646	 46.63	0	1811001..1811534	-	177	147674637	seqA	VC0395_A1682	-	replication initiation regulator SeqA
1647	 47.67	0	1811627..1812400	+	257	147675456	-	VC0395_A1683	-	hydrolase
1648	 45.50	0	1812496..1812717	+	73	147674606	-	VC0395_A1684	-	hypothetical protein
1649	 46.40	0	1812766..1813293	+	175	147675417	fldA	VC0395_A1685	-	flavodoxin FldA
1650	 50.29	0	1813367..1814056	-	229	147673045	-	VC0395_A1686	-	hypothetical protein
1651	 48.30	0	1814062..1814502	-	146	147673796	-	VC0395_A1687	-	hypothetical protein
1652	 50.51	0	1814618..1815496	+	292	147673570	-	VC0395_A1688	-	LysR family transcriptional regulator
1653	 47.11	0	1815500..1816000	-	166	147673832	-	VC0395_A1689	-	hypothetical protein
1654	 43.71	-1	1816366..1816818	+	150	147674743	fur	VC0395_A1690	-	ferric uptake regulator
1655	 48.87	0	1816900..1817916	-	338	147675308	-	VC0395_A1691	-	aspartate-semialdehyde dehydrogenase
1656	 49.91	0	1817897..1819060	-	387	147673968	pdxB	VC0395_A1692	-	erythronate-4-phosphate dehydrogenase
1657	 49.92	0	1819246..1820457	-	403	147674185	fabB	VC0395_A1693	-	3-oxoacyl-(acyl-carrier-protein) synthase I
1658	 51.65	0	1820575..1822599	+	674	147674806	mnmC	VC0395_A1694	-	5-methylaminomethyl-2-thiouridine methyltransferase
1659	 50.00	0	1822677..1823204	-	175	147675722	-	VC0395_A1695	-	hypothetical protein
1660	 51.89	+1	1823412..1823675	-	87	147675483	-	VC0395_A1696	-	hypothetical protein
1661	 47.46	0	1823714..1824244	-	176	147673720	-	VC0395_A1697	-	hypothetical protein
1662	 52.24	+1	1824608..1825231	+	207	147673621	-	VC0395_A1698	-	hypothetical protein
1663	 51.01	0	1825313..1826398	-	361	147675123	aroC	VC0395_A1699	-	chorismate synthase
1664	 49.31	0	1826628..1827572	-	314	147673603	-	VC0395_A1700	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1665	 50.09	0	1827627..1828187	+	186	147673917	-	VC0395_A1701	-	hypothetical protein
1666	 50.49	0	1828195..1829325	-	376	147674451	flhB	VC0395_A1702	-	flagellar biosynthesis protein FlhB
1667	 49.81	0	1829335..1830117	-	260	147673452	fliR	VC0395_A1703	-	flagellar biosynthesis protein FliR
1668	 45.19	0	1830126..1830395	-	89	147674176	fliQ	VC0395_A1704	-	flagellar biosynthesis protein FliQ
1669	 48.00	0	1830408..1831307	-	299	147674933	fliP	VC0395_A1705	-	flagellar biosynthesis protein FliP
1670	 46.34	0	1831174..1831296	+	40	147674950	-	VC0395_A1707	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
