IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O395

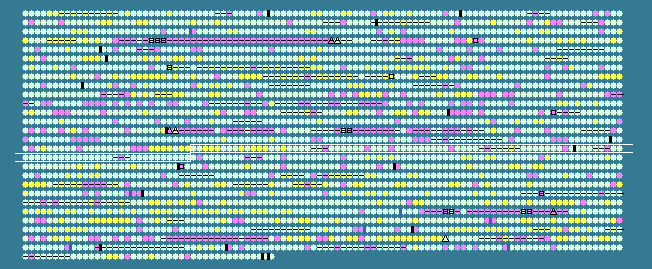

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1529	 49.88	0	1682343..1683557	+	404	147673982	-	VC0395_A1563	-	aminotransferase AlaT
1530	 49.29	0	1683593..1684294	+	233	147675646	-	VC0395_A1564	-	hypothetical protein
1531	 52.34	+1	1684351..1685676	+	441	147673736	dgt	VC0395_A1566	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1532	 51.58	0	1685670..1686272	-	200	147673475	-	VC0395_A1565	-	hypothetical protein
1533	 52.72	+1	1686276..1686827	+	183	147673155	-	VC0395_A1567	-	hypothetical protein
1534	 48.54	0	1686903..1688750	-	615	147674907	-	VC0395_A1568	-	putative peptidase
1535	 50.09	0	1688963..1690108	-	381	147675516	rnd	VC0395_A1569	-	ribonuclease D
1536	 50.56	0	1690194..1691894	-	566	147673701	fadD	VC0395_A1570	-	long-chain-fatty-acid--CoA ligase
1537	 52.16	+1	1692019..1692873	-	284	147674280	-	VC0395_A1571	-	hypothetical protein
1538	 50.57	0	1692870..1693478	-	202	147674501	-	VC0395_A1572	-	putative outer membrane lipoprotein Slp
1539	 52.29	+1	1693444..1693749	-	101	147675166	-	VC0395_A1573	-	hypothetical protein
1540	 53.64	+1	1693809..1694522	-	237	147673304	-	VC0395_A1574	-	hypothetical protein
1541	 51.83	+1	1694519..1696459	-	646	147673986	-	VC0395_A1575	-	putative ATP-dependent helicase
1542	 51.11	0	1696551..1696685	-	44	147675229	-	VC0395_A1576	-	hypothetical protein
1543	 46.28	0	1697024..1697857	+	277	147673084	purU	VC0395_A1577	-	formyltetrahydrofolate deformylase
1544	 51.44	0	1697931..1699985	-	684	147675393	fadH	VC0395_A1578	-	2,4-dienoyl-CoA reductase
1545	 48.84	0	1700161..1702011	+	616	147673256	sppA	VC0395_A1579	-	protease IV
1546	 49.51	0	1702128..1703141	+	337	147674874	ansA	VC0395_A1580	-	cytoplasmic asparaginase I
1547	 48.26	0	1703239..1703526	-	95	147675465	-	VC0395_A1581	-	hypothetical protein
1548	 45.58	0	1703630..1704454	+	274	147674256	-	VC0395_A1583	-	putative lipoprotein
1549	 50.39	0	1703675..1703803	-	42	147673659	-	VC0395_A1582	-	hypothetical protein
1550	 44.37	0	1704615..1705058	-	147	147674517	-	VC0395_A1584	-	methionine sulfoxide reductase B
1551	 36.05	-2	1705064..1705210	+	48	147675150	-	VC0395_A1585	-	hypothetical protein
1552	 47.09	0	1705358..1706353	+	331	147675025	gapA-1	VC0395_A1586	-	glyceraldehyde 3-phosphate dehydrogenase
1553	 49.38	0	1706501..1707391	+	296	147673288	-	VC0395_A1587	-	hypothetical protein
1554	 48.86	0	1707825..1708829	+	334	147673478	-	VC0395_A1588	-	hypothetical protein
1555	 48.03	0	1708966..1709802	+	278	147674072	rrmA	VC0395_A1589	-	23S rRNA methyltransferase A
1556	 48.36	0	1709823..1710800	+	325	147675034	-	VC0395_A1590	-	hypothetical protein
1557	 47.62	0	1710940..1711296	+	118	147675660	-	VC0395_A1591	-	hypothetical protein
1558	 43.17	-1	1711370..1712314	-	314	147674465	cheV-2	VC0395_A1592	-	chemotaxis protein CheV
1559	 46.06	0	1712419..1713636	-	405	147675300	-	VC0395_A1593	-	ROK family transcriptional regulator
1560	 48.76	0	1714081..1715526	+	481	147673494	pykA-1	VC0395_A1594	-	pyruvate kinase II
1561	 46.92	0	1715568..1716737	-	389	147674127	-	VC0395_A1595	-	hypothetical protein
1562	 40.48	-1	1716744..1716869	-	41	147675350	-	VC0395_A1596	-	hypothetical protein
1563	 45.18	0	1716969..1717559	+	196	147674007	-	VC0395_A1597	-	hypothetical protein
1564	 45.77	0	1717943..1719526	+	527	147673239	-	VC0395_A1598	-	sodium-dependent transporter
1565	 47.77	0	1719739..1721241	-	500	147675620	ptsG	VC0395_A1599	-	glucose-specific PTS system IIBC components
1566	 45.57	0	1721613..1722380	-	255	147674791	-	VC0395_A1600	-	hypothetical protein
1567	 47.90	0	1722371..1723345	-	324	147674380	holB	VC0395_A1601	-	DNA polymerase III subunit delta'
1568	 48.36	0	1723338..1723976	-	212	147673617	tdk	VC0395_A1602	-	thymidylate kinase
1569	 46.41	0	1723973..1724989	-	338	147674599	-	VC0395_A1603	-	hypothetical protein
1570	 47.60	0	1724986..1725819	-	277	147673849	pabC	VC0395_A1604	-	4-amino-4-deoxychorismate lyase
1571	 50.12	0	1725867..1727111	-	414	147673369	fabF	VC0395_A1605	-	3-oxoacyl-(acyl carrier protein) synthase II
1572	 42.64	-1	1727200..1727532	-	110	147673387	acpP	VC0395_A1606	-	acyl carrier protein
1573	 50.47	0	1727672..1728418	-	248	147675453	fabG	VC0395_A1607	-	3-ketoacyl-(acyl-carrier-protein) reductase
1574	 48.99	0	1728434..1729372	-	312	147673966	fabD	VC0395_A1608	-	malonyl CoA-acyl carrier protein transacylase
1575	 49.53	0	1729427..1730377	-	316	147673193	fabH-1	VC0395_A1609	-	3-oxoacyl-(acyl carrier protein) synthase III
1576	 48.34	0	1730383..1731408	-	341	147675180	plsX	VC0395_A1610	-	putative glycerol-3-phosphate acyltransferase PlsX
1577	 48.54	0	1731418..1731588	-	56	147674886	rpmF	VC0395_A1611	-	50S ribosomal protein L32
1578	 41.90	-1	1731623..1732147	-	174	147675692	-	VC0395_A1612	-	hypothetical protein
1579	 45.02	0	1732295..1732876	+	193	147673643	-	VC0395_A1613	-	Maf-like protein
1580	 48.95	0	1732977..1733924	-	315	147673109	rluC	VC0395_A1614	-	ribosomal large subunit pseudouridine synthase C
1581	 48.48	0	1734545..1736611	+	688	147674453	-	VC0395_A1615	-	ribonuclease E
1582	 53.25	+1	1736986..1737693	+	235	147673238	rne	VC0395_A1616	-	ribonuclease E
1583	 49.30	0	1738041..1739606	+	521	147673538	-	VC0395_A1617	-	sulfate permease family protein
1584	 50.23	0	1739724..1740599	+	291	147674001	-	VC0395_A1618	-	hypothetical protein
1585	 48.72	0	1740709..1743393	-	894	147675521	adhE	VC0395_A1619	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1586	 48.51	0	1744020..1744658	+	212	147673533	-	VC0395_A1620	-	hypothetical protein
1587	 49.69	0	1744748..1745860	-	370	147673189	asd	VC0395_A1621	-	aspartate-semialdehyde dehydrogenase
1588	 47.51	0	1746285..1747730	+	481	147675315	yqkI	VC0395_A1622	-	Na+/H+ antiporter
1589	 46.77	0	1747765..1748970	-	401	147675464	-	VC0395_A1623	-	hypothetical protein
1590	 44.61	0	1749133..1750134	-	333	147674919	-	VC0395_A1624	-	nucleoid-associated protein NdpA
1591	 40.74	-1	1750219..1750434	+	71	147673537	-	VC0395_A1625	-	hypothetical protein
1592	 45.76	0	1750469..1752271	+	600	147674285	-	VC0395_A1626	-	hypothetical protein
1593	 49.73	0	1752729..1753649	-	306	147674598	-	VC0395_A1629	-	histone deacetylase/AcuC/AphA family protein
1594	 49.13	0	1753670..1755613	-	647	147675446	topB	VC0395_A1630	-	DNA topoisomerase III
1595	 48.05	0	1755698..1756030	-	110	147673099	-	VC0395_A1631	-	hypothetical protein
1596	 47.35	0	1756282..1756866	+	194	147673867	sodB	VC0395_A1632	-	superoxide dismutase, Fe
1597	 48.98	0	1756948..1757484	+	178	147674967	-	VC0395_A1633	-	hypothetical protein
1598	 38.76	-2	1757825..1757953	-	42	147675696	-	VC0395_A1634	-	hypothetical protein
1599	 46.70	0	1757853..1758533	+	226	147674021	-	VC0395_A1635	-	short chain dehydrogenase
1600	 47.32	0	1758546..1759310	-	254	147674073	vacJ	VC0395_A1636	-	vacJ lipoprotein
1601	 47.16	0	1759363..1760577	-	404	147675723	ccmH	VC0395_A1637	-	cytochrome c-type biogenesis protein CcmH
1602	 46.33	0	1760580..1761056	-	158	147675051	-	VC0395_A1638	-	cytochrome c-type biogenesis protein CcmH
1603	 45.05	0	1761053..1761607	-	184	147675010	dsbE	VC0395_A1639	-	thiol:disulfide interchange protein DsbE
1604	 49.85	0	1761608..1763563	-	651	147674378	ccmF	VC0395_A1640	-	cytochrome c-type biogenesis protein CcmF
1605	 47.83	0	1763560..1764042	-	160	147673770	ccmE	VC0395_A1641	-	cytochrome c-type biogenesis protein CcmE
1606	 46.38	0	1764039..1764245	-	68	147673210	ccmD	VC0395_A1642	-	heme exporter protein D
1607	 50.46	0	1764245..1764997	-	250	147674659	ccmC	VC0395_A1643	-	heme exporter protein C
1608	 49.48	0	1765088..1765756	-	222	147673754	ccmB	VC0395_A1644	-	heme exporter protein B
1609	 47.28	0	1765753..1766376	-	207	147673545	ccmA	VC0395_A1645	-	cytochrome c biogenesis protein CcmA
1610	 47.42	0	1766750..1767253	-	167	147675281	-	VC0395_A1646	-	hypothetical protein
1611	 45.90	0	1767229..1767753	-	174	147674307	cheW-1	VC0395_A1647	-	purine-binding chemotaxis protein CheW
1612	 46.80	0	1767762..1768778	-	338	147674008	-	VC0395_A1648	-	hypothetical protein
1613	 46.20	0	1768771..1769547	-	258	147675595	-	VC0395_A1649	-	ParA family protein
1614	 48.85	0	1769557..1770690	-	377	147674819	cheB-2	VC0395_A1650	-	chemotaxis-specific methylesterase
1615	 48.85	0	1770717..1773074	-	785	147674329	cheA-2	VC0395_A1651	-	chemotaxis protein CheA
1616	 45.28	0	1773084..1773803	-	239	147673688	cheZ	VC0395_A1652	-	chemotaxis protein CheZ
1617	 42.24	-1	1773859..1774251	-	130	147675594	cheY-3	VC0395_A1653	-	chemotaxis protein CheY
1618	 45.44	0	1774273..1775007	-	244	147674794	fliA	VC0395_A1654	-	flagellar biosynthesis sigma factor
1619	 47.77	0	1775000..1775941	-	313	147674338	-	VC0395_A1655	-	ParA family protein
1620	 50.27	0	1775901..1777388	-	495	147673602	flhF	VC0395_A1656	-	flagellar biosynthesis regulator FlhF
1621	 49.95	0	1777423..1779516	-	697	147675206	flhA	VC0395_A1657	-	flagellar biosynthesis protein FlhA
1622	 49.37	0	1779848..1780321	-	157	147674345	sixA	VC0395_A1658	-	phosphohistidine phosphatase
1623	 47.59	0	1780465..1783284	+	939	147675351	-	VC0395_A1660	-	peptidase insulinase family protein
1624	 49.41	0	1783281..1783877	-	198	147673572	-	VC0395_A1659	-	hypothetical protein
1625	 48.61	0	1784011..1785810	+	599	147673730	argS	VC0395_A1661	-	arginyl-tRNA synthetase
1626	 49.32	0	1785901..1786344	+	147	147673143	-	VC0395_A1662	-	histidine triad family protein
1627	 48.48	0	1786606..1786836	-	76	147673946	-	VC0395_A1663	-	hypothetical protein
1628	 46.90	0	1786833..1789109	-	758	147673265	feoB	VC0395_A1664	-	ferrous iron transport protein B
47.83	MEAN

3.88	STD DEV
