IslandPath Analysis: Vibrio cholerae O395

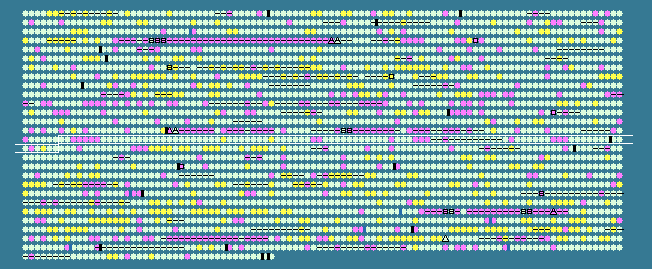

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1407	 46.59	0	1540378..1541757	-	459	147673703	cysS	VC0395_A1439	-	cysteinyl-tRNA synthetase
1408	 46.06	0	1541903..1542397	+	164	147675691	ppiB	VC0395_A1440	-	peptidyl-prolyl cis-trans isomerase B
1409	 43.32	-1	1542438..1543178	+	246	147674910	-	VC0395_A1441	-	UDP-2,3-diacylglucosamine hydrolase
1410	 43.62	-1	1543274..1544488	+	404	147675144	-	VC0395_A1442	-	hypothetical protein
1411	 43.42	-1	1544550..1545005	+	151	147674744	-	VC0395_A1443	-	hypothetical protein
1412	 37.04	-2	1545037..1545711	-	224	147673972	-	VC0395_A1444	-	hypothetical protein
1413	 41.92	-1	1545830..1546936	-	368	147675262	ompT	VC0395_A1445	-	ompT protein
1414	 46.64	0	1547337..1549448	+	703	147673160	dinG	VC0395_A1446	-	ATP-dependent DNA helicase DinG
1415	 50.00	0	1549486..1550265	+	259	147673887	-	VC0395_A1447	-	hypothetical protein
1416	 46.81	0	1550250..1550813	+	187	147674739	priC	VC0395_A1448	-	primosomal replication protein N``
1417	 47.89	0	1550814..1551026	+	70	147675268	-	VC0395_A1449	-	hypothetical protein
1418	 47.76	0	1551050..1553170	-	706	147673173	-	VC0395_A1450	-	methyl-accepting chemotaxis protein
1419	 46.10	0	1553368..1554174	+	268	147674047	xth	VC0395_A1451	-	exonuclease III
1420	 46.61	0	1554233..1554910	-	225	147674940	-	VC0395_A1452	-	amino acid ABC transporter, permease protein
1421	 48.40	0	1554913..1555695	-	260	147674527	-	VC0395_A1453	-	amino acid ABC transporter, permease protein
1422	 46.62	0	1555801..1556583	-	260	147673397	-	VC0395_A1454	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1423	 47.08	0	1556762..1557532	-	256	147674682	-	VC0395_A1455	-	amino acid ABC transporter, ATP-binding protein
1424	 49.94	0	1558237..1559790	+	517	147674888	-	VC0395_A1456	-	hypothetical protein
1425	 47.93	0	1559969..1562332	+	787	147673272	pflB	VC0395_A1457	-	formate acetyltransferase
1426	 48.01	0	1562468..1563496	+	342	147673190	-	VC0395_A1458	-	hypothetical protein
1427	 47.16	0	1563514..1565394	-	626	147673779	-	VC0395_A1459	-	methyl-accepting chemotaxis protein
1428	 46.15	0	1565727..1566467	+	246	147674120	pflA	VC0395_A1460	-	pyruvate formate lyase-activating enzyme 1
1429	 46.91	0	1566533..1567195	+	220	147675077	-	VC0395_A1461	-	hypothetical protein
1430	 47.37	0	1567304..1567816	+	170	147675296	-	VC0395_A1462	-	hypothetical protein
1431	 47.08	0	1568057..1569991	+	644	147673471	-	VC0395_A1463	-	hypothetical protein
1432	 47.64	0	1570136..1571407	+	423	147673749	-	VC0395_A1464	-	hypothetical protein
1433	 46.81	0	1571420..1572970	+	516	147675162	-	VC0395_A1465	-	hypothetical protein
1434	 52.57	+1	1573055..1573813	-	252	147673188	kdsB	VC0395_A1466	-	3-deoxy-manno-octulosonate cytidylyltransferase
1435	 48.33	0	1573813..1573992	-	59	147673931	-	VC0395_A1467	-	hypothetical protein
1436	 51.24	0	1573973..1574983	-	336	147674626	lpxK	VC0395_A1468	-	tetraacyldisaccharide 4'-kinase
1437	 49.17	0	1574983..1576731	-	582	147675578	msbA	VC0395_A1469	-	lipid transporter ATP-binding/permease protein
1438	 49.40	0	1576762..1579020	-	752	147673615	-	VC0395_A1470	-	ComEC/rec2 family protein
1439	 50.09	0	1579014..1579544	+	176	147674248	-	VC0395_A1471	-	hypothetical protein
1440	 51.08	0	1579659..1580903	-	414	147674975	-	VC0395_A1472	-	outer membrane-specific lipoprotein transporter subunit LolE
1441	 49.78	0	1580904..1581590	-	228	147675470	-	VC0395_A1473	-	ABC transporter, ATP-binding protein
1442	 51.60	0	1581583..1582803	-	406	147675143	-	VC0395_A1474	-	hypothetical protein
1443	 48.61	0	1582967..1583542	+	191	147674654	-	VC0395_A1475	-	hypothetical protein
1444	 51.01	0	1583545..1587012	+	1155	147674778	mfd	VC0395_A1476	-	transcription-repair coupling factor
1445	 48.31	0	1587152..1587952	+	266	147675587	-	VC0395_A1477	-	hypothetical protein
1446	 47.74	0	1588287..1590362	+	691	147675607	-	VC0395_A1478	-	hypothetical protein
1447	 46.37	0	1590647..1591183	+	178	147673417	-	VC0395_A1479	-	putative ribosomal-protein-serine acetyltransferase
1448	 48.89	0	1591296..1592600	-	434	147674696	ndh	VC0395_A1480	-	NADH dehydrogenase
1449	 39.72	-2	1592686..1592826	+	46	147675275	-	VC0395_A1481	-	hypothetical protein
1450	 43.52	-1	1592943..1593482	-	179	147673914	-	VC0395_A1482	-	hypothetical protein
1451	 49.25	0	1593662..1594522	-	286	147673327	-	VC0395_A1483	-	hypothetical protein
1452	 45.35	0	1594550..1595140	-	196	147673411	-	VC0395_A1484	-	putative lipoprotein
1453	 46.15	0	1595193..1595582	-	129	147673225	-	VC0395_A1485	-	putative lipoprotein
1454	 48.13	0	1595582..1597000	-	472	147674989	-	VC0395_A1486	-	hypothetical protein
1455	 47.86	0	1597013..1597363	-	116	147674459	-	VC0395_A1487	-	histidine triad family protein
1456	 48.59	0	1597596..1599614	+	672	147674132	-	VC0395_A1488	-	methyl-accepting chemotaxis protein
1457	 48.26	0	1599784..1600935	+	383	147673346	-	VC0395_A1489	-	hypothetical protein
1458	 44.88	0	1601170..1602009	-	279	147675341	fadR	VC0395_A1490	-	fatty acid metabolism regulator
1459	 46.96	0	1602654..1604246	+	530	147674405	nhaB	VC0395_A1491	-	sodium/proton antiporter
1460	 48.85	0	1604326..1604847	+	173	147674425	dsbB	VC0395_A1492	-	disulfide bond formation protein B
1461	 49.15	0	1604923..1607805	-	960	147673704	-	VC0395_A1493	-	putative cell division protein FtsK
1462	 42.83	-1	1607983..1608477	-	164	147675687	lrp	VC0395_A1494	-	leucine-responsive transcriptional regulator
1463	 48.18	0	1608634..1609758	+	374	147673741	ald	VC0395_A1495	-	alanine dehydrogenase
1464	 48.20	0	1609800..1610996	-	398	147674493	-	VC0395_A1496	-	hypothetical protein
1465	 46.46	0	1611058..1612032	-	324	147674603	cysB	VC0395_A1497	-	transcriptional regulator CysB
1466	 42.67	-1	1612118..1612267	-	49	147675397	-	VC0395_A1498	-	hypothetical protein
1467	 41.44	-1	1612297..1613085	+	262	147675621	-	VC0395_A1499	-	hypothetical protein
1468	 43.24	-1	1613147..1613923	+	258	147673611	miaE	VC0395_A1500	-	tRNA-(MS[2]IO[6]A)-hydroxylase
1469	 48.56	0	1613981..1614676	-	231	147674982	pyrF	VC0395_A1501	-	orotidine 5'-phosphate decarboxylase
1470	 45.47	0	1614749..1615918	-	389	147675765	-	VC0395_A1502	-	hypothetical protein
1471	 41.49	-1	1615930..1616211	-	93	147673081	-	VC0395_A1503	-	hypothetical protein
1472	 47.67	0	1616350..1616628	-	92	147673848	ihfB	VC0395_A1504	-	integration host factor subunit beta
1473	 46.44	0	1616916..1618586	-	556	147673739	rpsA	VC0395_A1505	-	30S ribosomal protein S1
1474	 49.13	0	1618695..1619384	-	229	147673554	cmk	VC0395_A1506	-	cytidylate kinase
1475	 46.79	0	1619555..1619866	-	103	147675214	-	VC0395_A1507	-	hypothetical protein
1476	 46.02	0	1620001..1621860	-	619	147674490	ppiD	VC0395_A1508	-	peptidyl-prolyl cis-trans isomerase D
1477	 48.72	0	1622013..1622285	-	90	147673385	hupB	VC0395_A1509	-	DNA-binding protein HU-beta
1478	 48.88	0	1622469..1624829	-	786	147673301	lon	VC0395_A1510	-	ATP-dependent protease LA
1479	 47.54	0	1624952..1626232	-	426	147674941	clpX	VC0395_A1511	-	ATP-dependent protease ATP-binding subunit
1480	 46.43	0	1626312..1626914	-	200	147674197	clpP	VC0395_A1512	-	ATP-dependent Clp protease proteolytic subunit
1481	 47.93	0	1627044..1628345	-	433	147673079	tig	VC0395_A1513	-	trigger factor
1482	 39.73	-2	1628636..1628854	-	72	147675226	-	VC0395_A1514	-	hypothetical protein
1483	 49.50	0	1628844..1630637	+	597	147675602	dctB	VC0395_A1515	-	C4-dicarboxylate transport sensor protein
1484	 49.81	0	1630640..1631980	+	446	147673614	dctD-1	VC0395_A1516	-	C4-dicarboxylate transport transcriptional regulatory protein
1485	 50.37	0	1632105..1633466	-	453	147674787	dctM	VC0395_A1517	-	C4-dicarboxylate transport protein
1486	 47.50	0	1633470..1634168	-	232	147675606	-	VC0395_A1518	-	putative C4-dicarboxylate transport protein DctQ
1487	 48.55	0	1634200..1635198	-	332	147675592	dctP-2	VC0395_A1519	-	C4-dicarboxylate-binding periplasmic protein
1488	 50.43	0	1635430..1636956	-	508	147674783	-	VC0395_A1520	-	hypothetical protein
1489	 41.52	-1	1637127..1637297	-	56	147675191	-	VC0395_A1521	-	hypothetical protein
1490	 43.31	-1	1637459..1637929	+	156	147673221	-	VC0395_A1522	-	hypothetical protein
1491	 43.24	-1	1637893..1639860	+	655	147673575	-	VC0395_A1523	-	GGDEF family protein
1492	 50.33	0	1639939..1640697	+	252	147674331	-	VC0395_A1524	-	hypothetical protein
1493	 45.45	0	1640700..1641623	+	307	147673088	-	VC0395_A1525	-	putative phosphatidate cytidylyltransferase
1494	 46.43	0	1641631..1642302	+	223	147673855	-	VC0395_A1526	-	hypothetical protein
1495	 46.00	0	1642392..1642841	+	149	147674814	-	VC0395_A1527	-	hypothetical protein
1496	 47.50	0	1643135..1643755	+	206	147675617	-	VC0395_A1528	-	hypothetical protein
1497	 47.96	0	1643802..1644464	-	220	147673644	-	VC0395_A1529	-	hypothetical protein
1498	 46.99	0	1644777..1646072	-	431	147674426	-	VC0395_A1530	-	hypothetical protein
1499	 49.79	0	1646627..1647562	+	311	147673213	folD	VC0395_A1533	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
1500	 47.80	0	1647845..1648708	+	287	147673976	pvcB	VC0395_A1534	-	PvcB protein
1501	 48.63	0	1648693..1650156	+	487	147674769	-	VC0395_A1535	-	hypothetical protein
1502	 43.12	-1	1650277..1651206	-	309	147675040	-	VC0395_A1536	-	LysR family transcriptional regulator
1503	 44.44	0	1651526..1653352	+	608	147675647	pvcA	VC0395_A1537	-	pvcA protein
1504	 52.33	+1	1653442..1655889	-	815	147673939	bisZ	VC0395_A1538	-	biotin sulfoxide reductase
1505	 49.86	0	1655912..1657018	-	368	147673410	yecK	VC0395_A1539	-	cytochrome c-type protein YecK
1506	 50.41	0	1657273..1659813	-	846	147675561	chiA-1	VC0395_A1540	-	chitinase
47.83	MEAN

3.88	STD DEV
