IslandPath Analysis: Vibrio cholerae O395

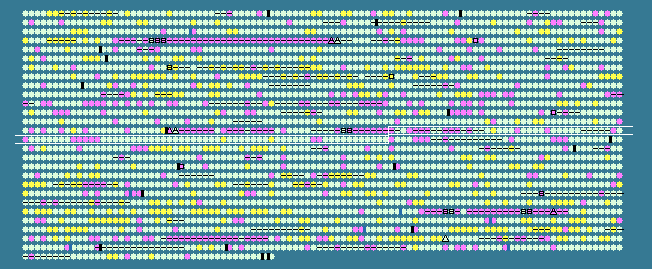

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.83   STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1362	 40.04	-2	1495945..1496406	-	153	147673501	-	VC0395_A1394	-	hypothetical protein
1363	 44.68	0	1496409..1497518	-	369	147675755	-	VC0395_A1395	-	hypothetical protein
1364	 47.61	0	1497490..1499247	-	585	147673618	-	VC0395_A1396	-	hypothetical protein
1365	 44.24	0	1499254..1500225	-	323	147674180	-	VC0395_A1397	-	hypothetical protein
1366	 38.33	-2	1500227..1500346	-	39	147674870	-	VC0395_A1398	-	hypothetical protein
1367	 38.82	-2	1500889..1501125	-	78	147675467	-	VC0395_A1399	-	hypothetical protein
1368	 40.48	-1	1501215..1501676	+	153	147674002	-	VC0395_A1400	-	hypothetical protein
1369	 48.25	0	1501903..1502217	+	104	147674565	-	VC0395_A1401	-	hypothetical protein
1370	 45.19	0	1502268..1502714	+	148	147674562	-	VC0395_A1402	-	hypothetical protein
1371	 43.36	-1	1502821..1503807	+	328	147673899	-	VC0395_A1403	-	hypothetical protein
1372	 33.79	-2	1503842..1504060	-	72	147673297	-	VC0395_A1404	-	hypothetical protein
1373	 29.08	-2	1504774..1505619	+	281	147675391	-	VC0395_A1405	-	hypothetical protein
1374	 47.19	0	1505734..1505964	-	76	147675012	-	VC0395_A1406	-	putative transcriptional regulator
1375	 43.63	-1	1506564..1506767	+	67	147675248	-	VC0395_A1408	-	hypothetical protein
1376	 47.05	0	1506759..1507232	-	157	147673789	-	VC0395_A1407	-	hypothetical protein
1377	 45.95	0	1507356..1507775	-	139	147674287	-	VC0395_A1409	-	hypothetical protein
1378	 50.58	0	1507892..1509277	+	461	147674040	cry1	VC0395_A1410	-	RNA-binding cryptochrome Cry1
1379	 52.82	+1	1509274..1509981	+	235	147673078	-	VC0395_A1411	-	C factor cell-cell signaling protein
1380	 45.37	0	1509992..1510207	-	71	147675532	-	VC0395_A1412	-	hypothetical protein
1381	 50.40	0	1510304..1512067	-	587	147674581	-	VC0395_A1413	-	sigma-54 dependent transcriptional regulator
1382	 49.51	0	1512348..1513868	+	506	147674305	aldA-2	VC0395_A1414	-	aldehyde dehydrogenase
1383	 37.41	-2	1514201..1514641	+	146	147674475	frvA	VC0395_A1415	-	PTS system, fructose-specific IIA component
1384	 49.79	0	1514653..1516056	+	467	147675511	frwBC	VC0395_A1416	-	PTS system, fructose-specific IIBC component
1385	 49.52	0	1516131..1517996	-	621	147673546	frwABC	VC0395_A1417	-	PTS system, fructose-specific IIABC component
1386	 49.33	0	1518213..1518512	+	99	147675767	frwB	VC0395_A1418	-	PTS system, fructose-specific IIB component
1387	 47.69	0	1518521..1519300	+	259	147674198	-	VC0395_A1420	-	putative PTS system, nitrogen regulatory IIA component
1388	 42.74	-1	1519292..1520131	-	279	147673124	-	VC0395_A1419	-	transcriptional regulator
1389	 50.37	0	1520503..1522404	+	633	147674929	fruA-1	VC0395_A1421	-	PTS system, fructose-specific IIABC component
1390	 46.10	0	1522520..1523686	+	388	147674804	manA-2	VC0395_A1422	-	mannose-6-phosphate isomerase
1391	 46.58	0	1523806..1524258	-	150	147675599	-	VC0395_A1423	-	hypothetical protein
1392	 45.05	0	1524594..1526804	-	736	147674034	-	VC0395_A1424	-	sensor histidine kinase
1393	 45.03	0	1527012..1527584	+	190	147674857	-	VC0395_A1425	-	hypothetical protein
1394	 46.70	0	1527658..1528719	-	353	147674242	nadA	VC0395_A1426	-	quinolinate synthetase
1395	 46.80	0	1528893..1529657	-	254	147673656	-	VC0395_A1427	-	hypothetical protein
1396	 47.40	0	1529673..1530191	-	172	147673661	pal	VC0395_A1428	-	peptidoglycan-associated lipoprotein
1397	 45.38	0	1530223..1531575	-	450	147674437	tolB	VC0395_A1429	-	translocation protein TolB
1398	 47.15	0	1531590..1532660	-	356	147673834	tolA	VC0395_A1430	-	tolA protein
1399	 43.08	-1	1532678..1533118	-	146	147673277	tolR	VC0395_A1431	-	tolR membrane protein
1400	 46.20	0	1533121..1533804	-	227	147674417	tolQ	VC0395_A1432	-	tolQ protein
1401	 41.03	-1	1533937..1534092	-	51	147673897	-	VC0395_A1433	-	short chain acyl-CoA thioesterase YbgC
1402	 47.05	0	1534799..1535935	-	378	147673360	cydB-1	VC0395_A1434	-	cytochrome d ubiquinol oxidase, subunit II
1403	 47.05	0	1535953..1537578	-	541	147674052	cydA-1	VC0395_A1435	-	cytochrome d ubiquinol oxidase, subunit I
1404	 47.06	0	1537998..1539002	-	334	147673267	ruvB	VC0395_A1436	-	Holliday junction DNA helicase B
1405	 48.29	0	1539058..1539672	-	204	147675231	ruvA	VC0395_A1437	-	Holliday junction DNA helicase motor protein
1406	 49.62	0	1539769..1540290	-	173	147673791	ruvC	VC0395_A1438	-	Holliday junction resolvase
1407	 46.59	0	1540378..1541757	-	459	147673703	cysS	VC0395_A1439	-	cysteinyl-tRNA synthetase
1408	 46.06	0	1541903..1542397	+	164	147675691	ppiB	VC0395_A1440	-	peptidyl-prolyl cis-trans isomerase B
1409	 43.32	-1	1542438..1543178	+	246	147674910	-	VC0395_A1441	-	UDP-2,3-diacylglucosamine hydrolase
1410	 43.62	-1	1543274..1544488	+	404	147675144	-	VC0395_A1442	-	hypothetical protein
1411	 43.42	-1	1544550..1545005	+	151	147674744	-	VC0395_A1443	-	hypothetical protein
1412	 37.04	-2	1545037..1545711	-	224	147673972	-	VC0395_A1444	-	hypothetical protein
1413	 41.92	-1	1545830..1546936	-	368	147675262	ompT	VC0395_A1445	-	ompT protein
1414	 46.64	0	1547337..1549448	+	703	147673160	dinG	VC0395_A1446	-	ATP-dependent DNA helicase DinG
1415	 50.00	0	1549486..1550265	+	259	147673887	-	VC0395_A1447	-	hypothetical protein
1416	 46.81	0	1550250..1550813	+	187	147674739	priC	VC0395_A1448	-	primosomal replication protein N``
1417	 47.89	0	1550814..1551026	+	70	147675268	-	VC0395_A1449	-	hypothetical protein
1418	 47.76	0	1551050..1553170	-	706	147673173	-	VC0395_A1450	-	methyl-accepting chemotaxis protein
1419	 46.10	0	1553368..1554174	+	268	147674047	xth	VC0395_A1451	-	exonuclease III
1420	 46.61	0	1554233..1554910	-	225	147674940	-	VC0395_A1452	-	amino acid ABC transporter, permease protein
1421	 48.40	0	1554913..1555695	-	260	147674527	-	VC0395_A1453	-	amino acid ABC transporter, permease protein
1422	 46.62	0	1555801..1556583	-	260	147673397	-	VC0395_A1454	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1423	 47.08	0	1556762..1557532	-	256	147674682	-	VC0395_A1455	-	amino acid ABC transporter, ATP-binding protein
1424	 49.94	0	1558237..1559790	+	517	147674888	-	VC0395_A1456	-	hypothetical protein
1425	 47.93	0	1559969..1562332	+	787	147673272	pflB	VC0395_A1457	-	formate acetyltransferase
1426	 48.01	0	1562468..1563496	+	342	147673190	-	VC0395_A1458	-	hypothetical protein
1427	 47.16	0	1563514..1565394	-	626	147673779	-	VC0395_A1459	-	methyl-accepting chemotaxis protein
1428	 46.15	0	1565727..1566467	+	246	147674120	pflA	VC0395_A1460	-	pyruvate formate lyase-activating enzyme 1
1429	 46.91	0	1566533..1567195	+	220	147675077	-	VC0395_A1461	-	hypothetical protein
1430	 47.37	0	1567304..1567816	+	170	147675296	-	VC0395_A1462	-	hypothetical protein
1431	 47.08	0	1568057..1569991	+	644	147673471	-	VC0395_A1463	-	hypothetical protein
1432	 47.64	0	1570136..1571407	+	423	147673749	-	VC0395_A1464	-	hypothetical protein
1433	 46.81	0	1571420..1572970	+	516	147675162	-	VC0395_A1465	-	hypothetical protein
1434	 52.57	+1	1573055..1573813	-	252	147673188	kdsB	VC0395_A1466	-	3-deoxy-manno-octulosonate cytidylyltransferase
1435	 48.33	0	1573813..1573992	-	59	147673931	-	VC0395_A1467	-	hypothetical protein
1436	 51.24	0	1573973..1574983	-	336	147674626	lpxK	VC0395_A1468	-	tetraacyldisaccharide 4'-kinase
1437	 49.17	0	1574983..1576731	-	582	147675578	msbA	VC0395_A1469	-	lipid transporter ATP-binding/permease protein
1438	 49.40	0	1576762..1579020	-	752	147673615	-	VC0395_A1470	-	ComEC/rec2 family protein
1439	 50.09	0	1579014..1579544	+	176	147674248	-	VC0395_A1471	-	hypothetical protein
1440	 51.08	0	1579659..1580903	-	414	147674975	-	VC0395_A1472	-	outer membrane-specific lipoprotein transporter subunit LolE
1441	 49.78	0	1580904..1581590	-	228	147675470	-	VC0395_A1473	-	ABC transporter, ATP-binding protein
1442	 51.60	0	1581583..1582803	-	406	147675143	-	VC0395_A1474	-	hypothetical protein
1443	 48.61	0	1582967..1583542	+	191	147674654	-	VC0395_A1475	-	hypothetical protein
1444	 51.01	0	1583545..1587012	+	1155	147674778	mfd	VC0395_A1476	-	transcription-repair coupling factor
1445	 48.31	0	1587152..1587952	+	266	147675587	-	VC0395_A1477	-	hypothetical protein
1446	 47.74	0	1588287..1590362	+	691	147675607	-	VC0395_A1478	-	hypothetical protein
1447	 46.37	0	1590647..1591183	+	178	147673417	-	VC0395_A1479	-	putative ribosomal-protein-serine acetyltransferase
1448	 48.89	0	1591296..1592600	-	434	147674696	ndh	VC0395_A1480	-	NADH dehydrogenase
1449	 39.72	-2	1592686..1592826	+	46	147675275	-	VC0395_A1481	-	hypothetical protein
1450	 43.52	-1	1592943..1593482	-	179	147673914	-	VC0395_A1482	-	hypothetical protein
1451	 49.25	0	1593662..1594522	-	286	147673327	-	VC0395_A1483	-	hypothetical protein
1452	 45.35	0	1594550..1595140	-	196	147673411	-	VC0395_A1484	-	putative lipoprotein
1453	 46.15	0	1595193..1595582	-	129	147673225	-	VC0395_A1485	-	putative lipoprotein
1454	 48.13	0	1595582..1597000	-	472	147674989	-	VC0395_A1486	-	hypothetical protein
1455	 47.86	0	1597013..1597363	-	116	147674459	-	VC0395_A1487	-	histidine triad family protein
1456	 48.59	0	1597596..1599614	+	672	147674132	-	VC0395_A1488	-	methyl-accepting chemotaxis protein
1457	 48.26	0	1599784..1600935	+	383	147673346	-	VC0395_A1489	-	hypothetical protein
1458	 44.88	0	1601170..1602009	-	279	147675341	fadR	VC0395_A1490	-	fatty acid metabolism regulator
1459	 46.96	0	1602654..1604246	+	530	147674405	nhaB	VC0395_A1491	-	sodium/proton antiporter
1460	 48.85	0	1604326..1604847	+	173	147674425	dsbB	VC0395_A1492	-	disulfide bond formation protein B
1461	 49.15	0	1604923..1607805	-	960	147673704	-	VC0395_A1493	-	putative cell division protein FtsK
47.83	MEAN

3.88	STD DEV
