IslandPath Analysis: Vibrio cholerae O395

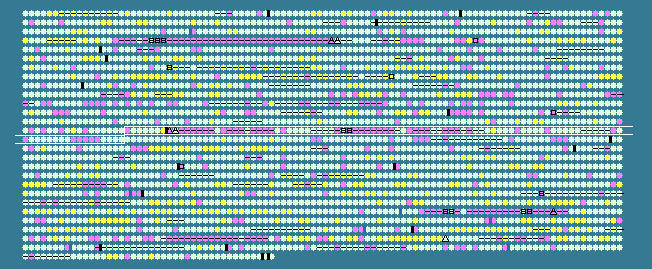

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.83   STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1318	 44.12	0	1437646..1438767	+	373	147674444	-	VC0395_A1349	-	hypothetical protein
1319	 45.39	0	1438783..1439661	-	292	147675699	-	VC0395_A1350	-	hypothetical protein
1320	 45.21	0	1440714..1442018	+	434	147675036	pqiA	VC0395_A1351	-	paraquat-inducible protein A
1321	 45.80	0	1442015..1443658	+	547	147675648	pqiB	VC0395_A1352	-	paraquat-inducible protein B
1322	 48.70	0	1443655..1444233	+	192	147673513	-	VC0395_A1353	-	putative lipoprotein
1323	 51.05	0	1444449..1445543	+	364	147675452	-	VC0395_A1354	-	HlyD family secretion protein
1324	 52.97	+1	1445543..1448593	+	1016	147673314	-	VC0395_A1355	-	AcrB/AcrD/AcrF family transporter
1325	 44.09	0	1449205..1450440	+	411	147675094	-	VC0395_A1357	-	phage family integrase
1326	 46.96	0	1450515..1450991	+	158	147675635	-	VC0395_A1358	-	integrase, truncation
1327	 40.92	-1	1451122..1454562	-	1146	147675032	-	VC0395_A1359	-	hypothetical protein
1328	 40.56	-1	1454553..1456004	-	483	147674089	-	VC0395_A1360	-	hypothetical protein
1329	 40.14	-1	1456001..1456735	-	244	147673520	-	VC0395_A1361	-	hypothetical protein
1330	 41.35	-1	1456728..1458848	-	706	147675323	-	VC0395_A1362	-	hypothetical protein
1331	 43.34	-1	1458893..1461961	-	1022	147674712	-	VC0395_A1363	-	putative type I restriction enzyme HsdR
1332	 43.22	-1	1461989..1463980	-	663	147675278	-	VC0395_A1364	-	hypothetical protein
1333	 44.94	0	1463973..1465385	-	470	147675030	-	VC0395_A1365	-	hypothetical protein
1334	 40.68	-1	1465386..1466774	-	462	147674628	-	VC0395_A1366	-	hypothetical protein
1335	 43.87	-1	1466731..1469112	-	793	147674983	-	VC0395_A1367	-	putative DNA methylase HsdM
1336	 41.67	-1	1469253..1471316	-	687	147674006	-	VC0395_A1368	-	hypothetical protein
1337	 41.82	-1	1471298..1474960	-	1220	147673329	-	VC0395_A1369	-	hypothetical protein
1338	 44.83	0	1474988..1475848	+	286	147675105	-	VC0395_A1370	-	hypothetical protein
1339	 36.13	-2	1475913..1476983	-	356	147674523	-	VC0395_A1371	-	hypothetical protein
1340	 41.65	-1	1476998..1478152	-	384	147673747	-	VC0395_A1372	-	hypothetical protein
1341	 43.61	-1	1478334..1479170	-	278	147675662	-	VC0395_A1373	-	hypothetical protein
1342	 43.14	-1	1479299..1480195	-	298	147675305	-	VC0395_A1374	-	dihydrodipicolinate synthetase family protein
1343	 45.33	0	1480233..1481516	-	427	147675054	-	VC0395_A1375	-	hypothetical protein
1344	 41.19	-1	1481524..1482045	-	173	147675211	-	VC0395_A1376	-	hypothetical protein
1345	 44.62	0	1482096..1483061	-	321	147673037	dctP-1	VC0395_A1377	-	C4-dicarboxylate-binding periplasmic protein
1346	 47.03	0	1483276..1483998	+	240	147674046	-	VC0395_A1378	-	N-acetylmannosamine-6-phosphate 2-epimerase
1347	 45.02	0	1483986..1484849	+	287	147674472	-	VC0395_A1379	-	N-acetylmannosamine kinase
1348	 44.94	0	1484853..1485989	+	378	147674908	nagA-2	VC0395_A1380	-	N-acetylglucosamine-6-phosphate deacetylase
1349	 45.17	0	1486334..1488757	+	807	147673281	nanH	VC0395_A1381	-	neuraminidase
1350	 44.44	0	1488904..1489110	-	68	147673587	-	VC0395_A1382	-	transcriptional regulator
1351	 48.85	0	1489224..1489700	+	158	147674352	-	VC0395_A1383	-	putative DNA repair protein RadC
1352	 46.97	0	1489703..1489834	+	43	147674468	-	VC0395_A1384	-	hypothetical protein
1353	 43.10	-1	1489930..1490625	-	231	147673665	-	VC0395_A1385	-	hypothetical protein
1354	 44.44	0	1490622..1491494	-	290	147675565	orfB	VC0395_A1386	-	transposase OrfAB, subunit B
1355	 43.19	-1	1491491..1491835	-	114	147674768	orfA	VC0395_A1387	-	transposase OrfAB, subunit A
1356	 44.00	0	1491842..1492882	-	346	147674028	-	VC0395_A1388	-	hypothetical protein
1357	 42.78	-1	1493017..1493376	-	119	147673269	-	VC0395_A1389	-	hypothetical protein
1358	 39.15	-2	1493425..1493802	-	125	147675221	-	VC0395_A1390	-	hypothetical protein
1359	 37.82	-2	1493857..1494435	-	192	147674482	-	VC0395_A1391	-	hypothetical protein
1360	 38.94	-2	1494454..1494774	-	106	147674980	-	VC0395_A1392	-	putative transcriptional regulator
1361	 39.73	-2	1494761..1495135	-	124	147673865	-	VC0395_A1393	-	putative transcriptional regulator
1362	 40.04	-2	1495945..1496406	-	153	147673501	-	VC0395_A1394	-	hypothetical protein
1363	 44.68	0	1496409..1497518	-	369	147675755	-	VC0395_A1395	-	hypothetical protein
1364	 47.61	0	1497490..1499247	-	585	147673618	-	VC0395_A1396	-	hypothetical protein
1365	 44.24	0	1499254..1500225	-	323	147674180	-	VC0395_A1397	-	hypothetical protein
1366	 38.33	-2	1500227..1500346	-	39	147674870	-	VC0395_A1398	-	hypothetical protein
1367	 38.82	-2	1500889..1501125	-	78	147675467	-	VC0395_A1399	-	hypothetical protein
1368	 40.48	-1	1501215..1501676	+	153	147674002	-	VC0395_A1400	-	hypothetical protein
1369	 48.25	0	1501903..1502217	+	104	147674565	-	VC0395_A1401	-	hypothetical protein
1370	 45.19	0	1502268..1502714	+	148	147674562	-	VC0395_A1402	-	hypothetical protein
1371	 43.36	-1	1502821..1503807	+	328	147673899	-	VC0395_A1403	-	hypothetical protein
1372	 33.79	-2	1503842..1504060	-	72	147673297	-	VC0395_A1404	-	hypothetical protein
1373	 29.08	-2	1504774..1505619	+	281	147675391	-	VC0395_A1405	-	hypothetical protein
1374	 47.19	0	1505734..1505964	-	76	147675012	-	VC0395_A1406	-	putative transcriptional regulator
1375	 43.63	-1	1506564..1506767	+	67	147675248	-	VC0395_A1408	-	hypothetical protein
1376	 47.05	0	1506759..1507232	-	157	147673789	-	VC0395_A1407	-	hypothetical protein
1377	 45.95	0	1507356..1507775	-	139	147674287	-	VC0395_A1409	-	hypothetical protein
1378	 50.58	0	1507892..1509277	+	461	147674040	cry1	VC0395_A1410	-	RNA-binding cryptochrome Cry1
1379	 52.82	+1	1509274..1509981	+	235	147673078	-	VC0395_A1411	-	C factor cell-cell signaling protein
1380	 45.37	0	1509992..1510207	-	71	147675532	-	VC0395_A1412	-	hypothetical protein
1381	 50.40	0	1510304..1512067	-	587	147674581	-	VC0395_A1413	-	sigma-54 dependent transcriptional regulator
1382	 49.51	0	1512348..1513868	+	506	147674305	aldA-2	VC0395_A1414	-	aldehyde dehydrogenase
1383	 37.41	-2	1514201..1514641	+	146	147674475	frvA	VC0395_A1415	-	PTS system, fructose-specific IIA component
1384	 49.79	0	1514653..1516056	+	467	147675511	frwBC	VC0395_A1416	-	PTS system, fructose-specific IIBC component
1385	 49.52	0	1516131..1517996	-	621	147673546	frwABC	VC0395_A1417	-	PTS system, fructose-specific IIABC component
1386	 49.33	0	1518213..1518512	+	99	147675767	frwB	VC0395_A1418	-	PTS system, fructose-specific IIB component
1387	 47.69	0	1518521..1519300	+	259	147674198	-	VC0395_A1420	-	putative PTS system, nitrogen regulatory IIA component
1388	 42.74	-1	1519292..1520131	-	279	147673124	-	VC0395_A1419	-	transcriptional regulator
1389	 50.37	0	1520503..1522404	+	633	147674929	fruA-1	VC0395_A1421	-	PTS system, fructose-specific IIABC component
1390	 46.10	0	1522520..1523686	+	388	147674804	manA-2	VC0395_A1422	-	mannose-6-phosphate isomerase
1391	 46.58	0	1523806..1524258	-	150	147675599	-	VC0395_A1423	-	hypothetical protein
1392	 45.05	0	1524594..1526804	-	736	147674034	-	VC0395_A1424	-	sensor histidine kinase
1393	 45.03	0	1527012..1527584	+	190	147674857	-	VC0395_A1425	-	hypothetical protein
1394	 46.70	0	1527658..1528719	-	353	147674242	nadA	VC0395_A1426	-	quinolinate synthetase
1395	 46.80	0	1528893..1529657	-	254	147673656	-	VC0395_A1427	-	hypothetical protein
1396	 47.40	0	1529673..1530191	-	172	147673661	pal	VC0395_A1428	-	peptidoglycan-associated lipoprotein
1397	 45.38	0	1530223..1531575	-	450	147674437	tolB	VC0395_A1429	-	translocation protein TolB
1398	 47.15	0	1531590..1532660	-	356	147673834	tolA	VC0395_A1430	-	tolA protein
1399	 43.08	-1	1532678..1533118	-	146	147673277	tolR	VC0395_A1431	-	tolR membrane protein
1400	 46.20	0	1533121..1533804	-	227	147674417	tolQ	VC0395_A1432	-	tolQ protein
1401	 41.03	-1	1533937..1534092	-	51	147673897	-	VC0395_A1433	-	short chain acyl-CoA thioesterase YbgC
1402	 47.05	0	1534799..1535935	-	378	147673360	cydB-1	VC0395_A1434	-	cytochrome d ubiquinol oxidase, subunit II
1403	 47.05	0	1535953..1537578	-	541	147674052	cydA-1	VC0395_A1435	-	cytochrome d ubiquinol oxidase, subunit I
1404	 47.06	0	1537998..1539002	-	334	147673267	ruvB	VC0395_A1436	-	Holliday junction DNA helicase B
1405	 48.29	0	1539058..1539672	-	204	147675231	ruvA	VC0395_A1437	-	Holliday junction DNA helicase motor protein
1406	 49.62	0	1539769..1540290	-	173	147673791	ruvC	VC0395_A1438	-	Holliday junction resolvase
1407	 46.59	0	1540378..1541757	-	459	147673703	cysS	VC0395_A1439	-	cysteinyl-tRNA synthetase
1408	 46.06	0	1541903..1542397	+	164	147675691	ppiB	VC0395_A1440	-	peptidyl-prolyl cis-trans isomerase B
1409	 43.32	-1	1542438..1543178	+	246	147674910	-	VC0395_A1441	-	UDP-2,3-diacylglucosamine hydrolase
1410	 43.62	-1	1543274..1544488	+	404	147675144	-	VC0395_A1442	-	hypothetical protein
1411	 43.42	-1	1544550..1545005	+	151	147674744	-	VC0395_A1443	-	hypothetical protein
1412	 37.04	-2	1545037..1545711	-	224	147673972	-	VC0395_A1444	-	hypothetical protein
1413	 41.92	-1	1545830..1546936	-	368	147675262	ompT	VC0395_A1445	-	ompT protein
1414	 46.64	0	1547337..1549448	+	703	147673160	dinG	VC0395_A1446	-	ATP-dependent DNA helicase DinG
1415	 50.00	0	1549486..1550265	+	259	147673887	-	VC0395_A1447	-	hypothetical protein
1416	 46.81	0	1550250..1550813	+	187	147674739	priC	VC0395_A1448	-	primosomal replication protein N``
1417	 47.89	0	1550814..1551026	+	70	147675268	-	VC0395_A1449	-	hypothetical protein
47.83	MEAN

3.88	STD DEV
