IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O395

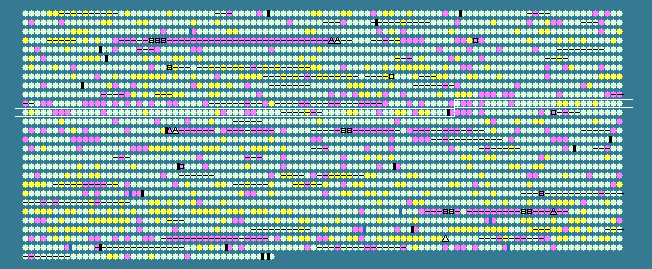

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1073	 47.72	0	1156567..1159173	-	868	147673795	pepN	VC0395_A1102	-	aminopeptidase N
1074	 43.24	-1	1159372..1160088	-	238	147675630	-	VC0395_A1103	-	hypothetical protein
1075	 44.09	0	1160197..1162194	-	665	147673268	prc	VC0395_A1104	-	carboxy-terminal protease
1076	 46.89	0	1162212..1162838	-	208	147674881	-	VC0395_A1105	-	putative solute/DNA competence effector
1077	 43.70	-1	1162939..1163517	-	192	147674457	-	VC0395_A1106	-	hypothetical protein
1078	 46.75	0	1163462..1165294	+	610	147674056	-	VC0395_A1107	-	ABC transporter, ATP-binding protein
1079	 48.17	0	1165328..1166587	+	419	147675189	-	VC0395_A1108	-	hypothetical protein
1080	 49.05	0	1166597..1169236	+	879	147674478	-	VC0395_A1109	-	hypothetical protein
1081	 48.74	0	1169267..1170778	+	503	147674343	yebU	VC0395_A1110	-	rRNA (cytosine-C(5)-)-methyltransferase RsmF
1082	 43.92	-1	1170960..1171856	-	298	147673626	-	VC0395_A1111	-	hypothetical protein
1083	 46.59	0	1171895..1173244	+	449	147674673	-	VC0395_A1113	-	hypothetical protein
1084	 47.80	0	1173237..1173713	-	158	147675310	-	VC0395_A1112	-	hypothetical protein
1085	 48.06	0	1173863..1175050	+	395	147675263	aroH	VC0395_A1114	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1086	 47.00	0	1175062..1175544	+	160	147674648	-	VC0395_A1115	-	nucleotide-binding protein
1087	 50.77	0	1175679..1176458	-	259	147673738	cobB	VC0395_A1116	-	NAD-dependent deacetylase
1088	 47.99	0	1176556..1176978	-	140	147673164	-	VC0395_A1117	-	hypothetical protein
1089	 49.53	0	1176965..1178038	-	357	147675698	fdnI	VC0395_A1118	-	formate dehydrogenase, cytochrome B556 subunit
1090	 53.04	+1	1178039..1178647	-	202	147675071	fdhB	VC0395_A1119	-	formate dehydrogenase, iron-sulfur subunit
1091	 51.33	0	1178659..1181514	-	951	147674130	-	VC0395_A1120	-	putative formate dehydrogenase, alpha subunit
1092	 50.00	0	1181526..1181723	-	65	147673386	-	VC0395_A1121	-	hypothetical protein
1093	 51.64	0	1181800..1182471	-	223	147674264	-	VC0395_A1122	-	putative chaperone, formate dehydrogenase-specific
1094	 50.42	0	1182497..1184158	-	553	147673441	-	VC0395_A1123	-	iron-sulfur cluster-binding protein
1095	 48.65	0	1184357..1185022	-	221	147673884	-	VC0395_A1124	-	hypothetical protein
1096	 53.46	+1	1184949..1185425	-	158	147673044	-	VC0395_A1125	-	hypothetical protein
1097	 48.92	0	1185470..1186483	+	337	147675414	fdhD	VC0395_A1126	-	formate dehydrogenase accessory protein
1098	 48.78	0	1186590..1188182	-	530	147674653	-	VC0395_A1127	-	ABC transporter, ATP-binding protein
1099	 47.64	0	1188394..1190427	-	677	147673472	-	VC0395_A1128	-	sensor histidine kinase
1100	 50.79	0	1190417..1191871	-	484	147675634	-	VC0395_A1129	-	sigma-54 dependent response regulator
1101	 46.62	0	1192163..1192990	+	275	147674726	-	VC0395_A1130	-	hypothetical protein
1102	 51.65	0	1192997..1193695	+	232	147674121	-	VC0395_A1131	-	ABC transporter, permease protein
1103	 48.96	0	1193704..1194426	+	240	147674476	-	VC0395_A1132	-	ABC transporter, ATP-binding protein
1104	 48.69	0	1194380..1194991	+	203	147675242	mobA	VC0395_A1133	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1105	 50.30	0	1194988..1196808	+	606	147674408	moeA-1	VC0395_A1134	-	molybdopterin biosynthesis MoeA protein
1106	 39.90	-2	1196898..1197278	-	126	147675216	-	VC0395_A1135	-	hypothetical protein
1107	 38.89	-2	1197688..1197849	-	53	147673565	-	VC0395_A1136	-	hypothetical protein
1108	 42.39	-1	1197893..1198168	+	91	147674385	-	VC0395_A1137	-	hypothetical protein
1109	 49.61	0	1198375..1199283	-	302	147674774	-	VC0395_A1138	-	N-acetyl-D-glucosamine kinase
1110	 47.29	0	1199446..1200183	-	245	147673302	-	VC0395_A1139	-	hypothetical protein
1111	 48.42	0	1200160..1201074	+	304	147673952	-	VC0395_A1140	-	hypothetical protein
1112	 47.68	0	1201076..1203097	-	673	147674542	-	VC0395_A1141	-	methyl-accepting chemotaxis protein
1113	 46.11	0	1203186..1203686	+	166	147673576	nlpC	VC0395_A1142	-	lipoprotein NlpC
1114	 43.29	-1	1203696..1204127	-	143	147675224	-	VC0395_A1143	-	hypothetical protein
1115	 44.87	0	1204556..1205422	+	288	147673857	-	VC0395_A1144	-	hypothetical protein
1116	 44.61	0	1205580..1205783	+	67	147673093	-	VC0395_A1145	-	hypothetical protein
1117	 48.99	0	1206026..1207411	+	461	147675290	-	VC0395_A1146	-	multidrug efflux protein
1118	 47.87	0	1207615..1208598	+	327	147675575	-	VC0395_A1147	-	putative lipoprotein
1119	 49.82	0	1208605..1209453	-	282	147674166	ligA-2	VC0395_A1148	-	DNA ligase
1120	 48.18	0	1209760..1210938	-	392	147673413	-	VC0395_A1149	-	hypothetical protein
1121	 52.33	+1	1210935..1211555	-	206	147675420	tonB2	VC0395_A1150	-	tonB2 protein
1122	 50.37	0	1211555..1211959	-	134	147674469	exbD2	VC0395_A1151	-	TonB system transport protein ExbD2
1123	 49.36	0	1211956..1212498	-	180	147675745	exbB2	VC0395_A1152	-	TonB system transport protein ExbB2
1124	 51.02	0	1212505..1213878	-	457	147673075	-	VC0395_A1153	-	MotA/TolQ/ExbB proton channel family protein
1125	 47.83	0	1213878..1214636	-	252	147673457	-	VC0395_A1154	-	hypothetical protein
1126	 48.51	0	1214955..1216259	+	434	147674211	ugpB	VC0395_A1155	-	glycerol-3-phosphate ABC transporter, periplasmic glycerol-3-phosphate-binding protein
1127	 50.57	0	1216335..1217216	+	293	147673846	ugpA	VC0395_A1156	-	glycerol-3-phosphate ABC transporter, permease protein
1128	 46.86	0	1217226..1218068	+	280	147674616	ugpE	VC0395_A1157	-	glycerol-3-phosphate ABC transporter, permease protein
1129	 49.96	0	1218121..1219239	+	372	147673046	ugpC	VC0395_A1158	-	glycerol-3-phosphate transporter ATP-binding subunit
1130	 48.82	0	1219264..1220025	+	253	147673808	glpR	VC0395_A1159	-	glycerol-3-phosphate regulon repressor
1131	 47.90	0	1220053..1220766	+	237	147674964	-	VC0395_A1160	-	putative glycerophosphoryl diester phosphodiesterase
1132	 50.74	0	1220842..1221312	-	156	147675741	-	VC0395_A1161	-	hypothetical protein
1133	 52.07	+1	1221323..1221685	-	120	147675253	-	VC0395_A1162	-	hypothetical protein
1134	 43.94	-1	1221642..1221773	+	43	147674455	-	VC0395_A1163	-	hypothetical protein
1135	 48.50	0	1221820..1222854	-	344	147675752	-	VC0395_A1164	-	LacI family transcription regulator
1136	 47.25	0	1222890..1224326	-	478	147673845	bglA	VC0395_A1165	-	6-phospho-beta-glucosidase
1137	 51.08	0	1224739..1226913	+	724	147674207	perA	VC0395_A1166	-	catalase/peroxidase
1138	 43.12	-1	1226978..1227907	-	309	147673422	-	VC0395_A1167	-	LysR family transcriptional regulator
1139	 44.16	0	1227971..1229143	+	390	147674576	-	VC0395_A1168	-	metallo-beta-lactamase superfamily protein
1140	 48.59	0	1229320..1230453	+	377	147674153	-	VC0395_A1169	-	membrane-fusion protein
1141	 48.89	0	1230446..1231705	+	419	147673121	-	VC0395_A1170	-	putative outer membrane protein TolC
1142	 50.70	0	1231705..1232919	+	404	147675384	-	VC0395_A1171	-	hypothetical protein
1143	 50.08	0	1232923..1234200	+	425	147675463	-	VC0395_A1172	-	hypothetical protein
1144	 50.00	0	1234200..1234901	+	233	147675008	-	VC0395_A1173	-	ABC transporter, ATP-binding protein
1145	 50.86	0	1234975..1235967	-	330	147673606	qxtB	VC0395_A1174	-	quinol oxidase, subunit II
1146	 50.75	0	1235964..1237301	-	445	147675651	qxtA	VC0395_A1175	-	quinol oxidase, subunit I
1147	 44.62	0	1237824..1238204	+	126	147675203	-	VC0395_A1176	-	hypothetical protein
1148	 52.09	+1	1238220..1239605	+	461	147674412	fumC	VC0395_A1177	-	fumarate hydratase
1149	 44.27	0	1239736..1240119	-	127	147673036	-	VC0395_A1178	-	hypothetical protein
1150	 45.97	0	1240164..1240622	-	152	147675386	-	VC0395_A1179	-	hypothetical protein
1151	 45.22	0	1240625..1240969	-	114	147674593	-	VC0395_A1180	-	hypothetical protein
1152	 46.84	0	1241125..1241946	-	273	147674196	-	VC0395_A1181	-	hypothetical protein
1153	 45.84	0	1242119..1243789	-	556	147674686	-	VC0395_A1182	-	enterobactin synthetase component F-related protein
1154	 48.57	0	1243853..1244764	-	303	147675267	-	VC0395_A1183	-	LysR family transcriptional regulator
1155	 52.74	+1	1244844..1246394	+	516	147673508	-	VC0395_A1184	-	NADH dehydrogenase subunit L
1156	 54.04	+1	1246319..1248907	+	862	147674092	-	VC0395_A1185	-	hypothetical protein
1157	 50.78	0	1248952..1249467	-	171	147674669	sodC	VC0395_A1186	-	superoxide dismutase, Cu-Zn
1158	 46.91	0	1249507..1250073	-	188	147675624	-	VC0395_A1187	-	ankyrin repeat-containing protein
1159	 45.07	0	1250137..1251840	-	567	147673445	katB	VC0395_A1188	-	catalase
1160	 40.14	-1	1252094..1252534	+	146	147674362	-	VC0395_A1189	-	hypothetical protein
1161	 48.58	0	1252723..1253601	-	292	147674953	-	VC0395_A1190	-	LysR family transcriptional regulator
1162	 48.47	0	1253710..1254495	+	261	147674500	aldC	VC0395_A1191	-	alpha-acetolactate decarboxylase
1163	 51.82	+1	1254634..1256337	+	567	147673632	alsS	VC0395_A1192	-	acetolactate synthase
1164	 52.17	+1	1256334..1257092	+	252	147673245	-	VC0395_A1193	-	short chain dehydrogenase/reductase family oxidoreductase
1165	 45.73	0	1257330..1258184	+	284	147674015	-	VC0395_A1194	-	hypothetical protein
1166	 42.79	-1	1258267..1259556	+	429	147675021	-	VC0395_A1195	-	GGDEF family protein
1167	 51.38	0	1259574..1260626	-	350	147675555	galM	VC0395_A1196	-	aldose 1-epimerase
1168	 51.97	+1	1260635..1261852	-	405	147673567	galK	VC0395_A1197	-	galactokinase
1169	 49.33	0	1261861..1262979	-	372	147674295	galT	VC0395_A1198	-	galactose-1-phosphate uridylyltransferase
1170	 49.02	0	1263369..1264802	-	477	147674445	-	VC0395_A1199	-	putative multidrug transporter
1171	 45.45	0	1264951..1265775	+	274	147675228	-	VC0395_A1200	-	hypothetical protein
1172	 42.72	-1	1266481..1266885	+	134	147673247	-	VC0395_A1203	-	GGDEF family protein
47.83	MEAN

3.88	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
