IslandPath Analysis: Vibrio cholerae O395

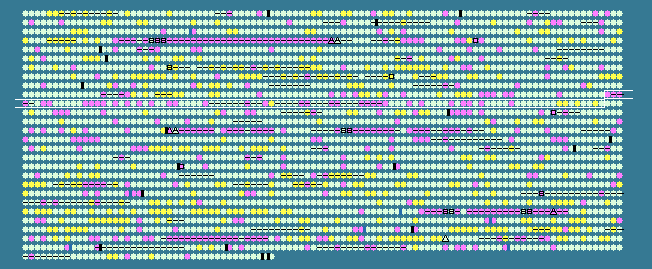

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
998	 42.86	-1	1072169..1073029	+	286	147674556	-	VC0395_A1027	-	hypothetical protein
999	 39.30	-2	1073032..1074957	+	641	147673623	-	VC0395_A1028	-	hypothetical protein
1000	 34.68	-2	1074954..1075697	+	247	147673058	-	VC0395_A1029	-	hypothetical protein
1001	 40.11	-1	1075842..1076579	+	245	147675173	-	VC0395_A1030	-	hypothetical protein
1002	 44.76	0	1076667..1077305	+	212	147674879	-	VC0395_A1031	-	hypothetical protein
1003	 49.82	0	1077378..1078748	-	456	147673881	-	VC0395_A1032	-	sodium/alanine symporter
1004	 42.14	-1	1079251..1079409	+	52	147675022	-	VC0395_A1033	-	hypothetical protein
1005	 42.99	-1	1079426..1080160	+	244	147675669	-	VC0395_A1034	-	hypothetical protein
1006	 45.09	0	1080309..1081346	-	345	147673534	potD-1	VC0395_A1035	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
1007	 45.14	0	1081457..1082557	-	366	147674149	potD-2	VC0395_A1036	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
1008	 44.75	0	1082591..1083361	-	256	147673527	potC	VC0395_A1037	-	spermidine/putrescine ABC transporter membrane protein
1009	 44.60	0	1083361..1084221	-	286	147675686	potB	VC0395_A1038	-	spermidine/putrescine ABC transporter membrane protein
1010	 44.89	0	1084202..1085335	-	377	147673678	potA	VC0395_A1039	-	putrescine/spermidine ABC transporter ATPase protein
1011	 43.14	-1	1085621..1086466	+	281	147673798	-	VC0395_A1040	-	hypothetical protein
1012	 42.91	-1	1086456..1087259	+	267	147674546	-	VC0395_A1041	-	putative bax protein
1013	 43.64	-1	1087261..1087920	+	219	147675006	-	VC0395_A1042	-	hypothetical protein
1014	 43.62	-1	1087996..1088928	-	310	147674407	-	VC0395_A1043	-	hypothetical protein
1015	 46.52	0	1089055..1090002	-	315	147675194	-	VC0395_A1044	-	universal stress protein UspE
1016	 43.69	-1	1090132..1090884	-	250	147674177	fnr	VC0395_A1045	-	fumarate/nitrate reduction transcriptional regulator
1017	 49.48	0	1090974..1091648	-	224	147673967	-	VC0395_A1046	-	hypothetical protein
1018	 41.82	-1	1091645..1091809	-	54	147673519	ccoS	VC0395_A1047	-	cytochrome oxidase maturation protein, cbb3-type
1019	 46.78	0	1091813..1094185	-	790	147674112	-	VC0395_A1048	-	cation transporter E1-E2 family ATPase
1020	 42.98	-1	1094190..1094666	-	158	147674935	-	VC0395_A1049	-	hypothetical protein
1021	 45.67	0	1094745..1095725	-	326	147675355	ccoP	VC0395_A1050	-	cytochrome c oxidase, subunit CcoP
1022	 43.64	-1	1095733..1095897	-	54	147675405	ccoQ	VC0395_A1051	-	cytochrome c oxidase, cbb3-type, CcoQ subunit
1023	 44.61	0	1095909..1096529	-	206	147673108	ccoO	VC0395_A1052	-	cytochrome c oxidase, subunit CcoO
1024	 47.70	0	1096543..1097976	-	477	147673393	ccoN	VC0395_A1053	-	cytochrome c oxidase, subunit CcoN
1025	 42.78	-1	1098654..1099871	+	405	147674313	-	VC0395_A1054	-	hypothetical protein
1026	 39.42	-2	1100035..1101579	+	514	147674610	-	VC0395_A1055	-	sensor histidine kinase/response regulator
1027	 49.54	0	1101640..1103799	-	719	147675517	-	VC0395_A1056	-	putative toxin secretion transporter
1028	 50.36	0	1103802..1105205	-	467	147674597	rtxD	VC0395_A1057	-	RTX toxin transporter
1029	 49.05	0	1105160..1106266	-	368	147675369	-	VC0395_A1058	-	RtxB protein
1030	 47.21	0	1106372..1114318	+	2648	147673063	-	VC0395_A1059	-	RTX protein
1031	 38.48	-2	1115147..1115923	-	258	147673805	ctxA	VC0395_A1060	-	cholera enterotoxin, A subunit
1032	 49.25	0	1116043..1117242	-	399	147674144	zot	VC0395_A1061	-	zona occludens toxin
1033	 45.24	0	1117239..1117532	-	97	147675552	ace	VC0395_A1062	-	accessory cholera enterotoxin
1034	 48.05	0	1117529..1118812	-	427	147673104	-	VC0395_A1063	-	hypothetical protein
1035	 46.59	0	1118823..1119071	-	82	147673551	cep	VC0395_A1064	-	colonization factor
1036	 45.14	0	1119207..1119587	-	126	147674635	rstB2	VC0395_A1065	-	RstB2 protein
1037	 45.37	0	1119565..1120644	-	359	147675447	rstA1	VC0395_A1066	-	RstA1 protein
1038	 34.52	-2	1120776..1121111	+	111	147673763	-	VC0395_A1067	-	cryptic phage CTXphi transcriptional repressor RstR
1039	 45.14	0	1121353..1121733	-	126	147674737	rstB2	VC0395_A1068	-	RstB2 protein
1040	 45.37	0	1121711..1122790	-	359	147675657	rstA1	VC0395_A1069	-	RstA1 protein
1041	 34.52	-2	1122922..1123257	+	111	147673183	-	VC0395_A1070	-	cryptic phage CTXphi transcriptional repressor RstR
1042	 54.90	+1	1123727..1123879	+	50	147675628	-	VC0395_A1072	-	hypothetical protein
1043	 48.21	0	1123876..1124460	-	194	147673717	-	VC0395_A1071	-	hypothetical protein
1044	 50.36	0	1124698..1125390	-	230	147675658	-	VC0395_A1073	-	hypothetical protein
1045	 46.67	0	1125520..1125804	-	94	147674091	-	VC0395_A1074	-	hypothetical protein
1046	 48.88	0	1125809..1127377	-	522	147673321	cri-1	VC0395_A1075	-	plasmid replication protein Cri
1047	 41.49	-1	1127554..1128105	+	183	147675271	tlcR-1	VC0395_A1076	-	tlcR protein
1048	 38.10	-2	1129144..1129311	-	55	147675604	-	VC0395_A1077	-	hypothetical protein
1049	 50.36	0	1129549..1130241	-	230	147673262	-	VC0395_A1078	-	hypothetical protein
1050	 46.67	0	1130371..1130655	-	94	147674025	-	VC0395_A1079	-	hypothetical protein
1051	 48.88	0	1130660..1132228	-	522	147674442	cri-1	VC0395_A1080	-	plasmid replication protein Cri
1052	 41.49	-1	1132405..1132956	+	183	147674410	tlcR-1	VC0395_A1081	-	tlcR protein
1053	 38.10	-2	1133995..1134162	-	55	147674627	-	VC0395_A1082	-	hypothetical protein
1054	 50.36	0	1134400..1135092	-	230	147674799	-	VC0395_A1083	-	hypothetical protein
1055	 46.67	0	1135222..1135506	-	94	147674344	-	VC0395_A1084	-	hypothetical protein
1056	 48.88	0	1135511..1137079	-	522	147673446	cri-1	VC0395_A1085	-	plasmid replication protein Cri
1057	 41.49	-1	1137256..1137807	+	183	147675257	tlcR-1	VC0395_A1086	-	tlcR protein
1058	 37.22	-2	1138977..1139336	-	119	147673241	-	VC0395_A1087	-	hypothetical protein
1059	 43.54	-1	1139447..1139779	-	110	147673500	-	VC0395_A1088	-	hypothetical protein
1060	 40.20	-1	1139784..1140293	-	169	147675509	-	VC0395_A1089	-	hypothetical protein
1061	 43.91	-1	1140250..1142046	+	598	147675072	-	VC0395_A1090	-	hypothetical protein
1062	 44.51	0	1142111..1142629	+	172	147674296	fabA	VC0395_A1091	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
1063	 45.72	0	1143052..1144746	-	564	147675149	-	VC0395_A1092	-	hypothetical protein
1064	 45.00	0	1144752..1146671	-	639	147673353	-	VC0395_A1093	-	ABC transporter ATPase component
1065	 41.15	-1	1146649..1146891	-	80	147675151	-	VC0395_A1094	-	hypothetical protein
1066	 46.26	0	1146900..1149026	-	708	147673350	-	VC0395_A1095	-	23S rRNA m(2)G2445 methyltransferase
1067	 35.61	-2	1148998..1149129	-	43	147673960	-	VC0395_A1096	-	hypothetical protein
1068	 44.75	0	1149486..1150028	-	180	147674895	-	VC0395_A1097	-	hypothetical protein
1069	 45.40	0	1150183..1151193	-	336	147675557	pyrD	VC0395_A1098	-	dihydroorotate dehydrogenase 2
1070	 47.24	0	1151267..1155415	-	1382	147673706	-	VC0395_A1099	-	hypothetical protein
1071	 44.89	0	1155512..1156108	-	198	147674485	-	VC0395_A1100	-	NAD-specific glutamate dehydrogenase
1072	 38.82	-2	1156297..1156533	-	78	147675090	-	VC0395_A1101	-	hypothetical protein
1073	 47.72	0	1156567..1159173	-	868	147673795	pepN	VC0395_A1102	-	aminopeptidase N
1074	 43.24	-1	1159372..1160088	-	238	147675630	-	VC0395_A1103	-	hypothetical protein
1075	 44.09	0	1160197..1162194	-	665	147673268	prc	VC0395_A1104	-	carboxy-terminal protease
1076	 46.89	0	1162212..1162838	-	208	147674881	-	VC0395_A1105	-	putative solute/DNA competence effector
1077	 43.70	-1	1162939..1163517	-	192	147674457	-	VC0395_A1106	-	hypothetical protein
1078	 46.75	0	1163462..1165294	+	610	147674056	-	VC0395_A1107	-	ABC transporter, ATP-binding protein
1079	 48.17	0	1165328..1166587	+	419	147675189	-	VC0395_A1108	-	hypothetical protein
1080	 49.05	0	1166597..1169236	+	879	147674478	-	VC0395_A1109	-	hypothetical protein
1081	 48.74	0	1169267..1170778	+	503	147674343	yebU	VC0395_A1110	-	rRNA (cytosine-C(5)-)-methyltransferase RsmF
1082	 43.92	-1	1170960..1171856	-	298	147673626	-	VC0395_A1111	-	hypothetical protein
1083	 46.59	0	1171895..1173244	+	449	147674673	-	VC0395_A1113	-	hypothetical protein
1084	 47.80	0	1173237..1173713	-	158	147675310	-	VC0395_A1112	-	hypothetical protein
1085	 48.06	0	1173863..1175050	+	395	147675263	aroH	VC0395_A1114	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1086	 47.00	0	1175062..1175544	+	160	147674648	-	VC0395_A1115	-	nucleotide-binding protein
1087	 50.77	0	1175679..1176458	-	259	147673738	cobB	VC0395_A1116	-	NAD-dependent deacetylase
1088	 47.99	0	1176556..1176978	-	140	147673164	-	VC0395_A1117	-	hypothetical protein
1089	 49.53	0	1176965..1178038	-	357	147675698	fdnI	VC0395_A1118	-	formate dehydrogenase, cytochrome B556 subunit
1090	 53.04	+1	1178039..1178647	-	202	147675071	fdhB	VC0395_A1119	-	formate dehydrogenase, iron-sulfur subunit
1091	 51.33	0	1178659..1181514	-	951	147674130	-	VC0395_A1120	-	putative formate dehydrogenase, alpha subunit
1092	 50.00	0	1181526..1181723	-	65	147673386	-	VC0395_A1121	-	hypothetical protein
1093	 51.64	0	1181800..1182471	-	223	147674264	-	VC0395_A1122	-	putative chaperone, formate dehydrogenase-specific
1094	 50.42	0	1182497..1184158	-	553	147673441	-	VC0395_A1123	-	iron-sulfur cluster-binding protein
1095	 48.65	0	1184357..1185022	-	221	147673884	-	VC0395_A1124	-	hypothetical protein
1096	 53.46	+1	1184949..1185425	-	158	147673044	-	VC0395_A1125	-	hypothetical protein
1097	 48.92	0	1185470..1186483	+	337	147675414	fdhD	VC0395_A1126	-	formate dehydrogenase accessory protein
47.83	MEAN

3.88	STD DEV
