IslandPath Analysis: Vibrio cholerae O395

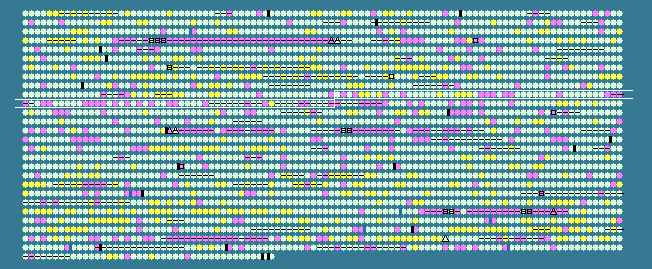

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.83 STD DEV: 3.88
Vibrio cholerae O395 chromosome 2, complete sequence - 1..3024069
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
953	 45.82	0	1017208..1018224	+	338	147675498	-	VC0395_A0982	-	hypothetical protein
954	 44.29	0	1018221..1019552	+	443	147675423	-	VC0395_A0983	-	GGDEF family protein
955	 44.64	0	1019603..1020283	-	226	147674690	-	VC0395_A0984	-	hypothetical protein
956	 43.77	-1	1020657..1021835	+	392	147673521	-	VC0395_A0985	-	GGDEF family protein
957	 51.53	0	1021947..1024793	-	948	147675195	-	VC0395_A0986	-	hypothetical protein
958	 53.05	+1	1024835..1026376	-	513	147674259	-	VC0395_A0987	-	hypothetical protein
959	 50.63	0	1026413..1026730	-	105	147674035	-	VC0395_A0988	-	heat shock protein 70
960	 52.38	+1	1026730..1027149	-	139	147673096	-	VC0395_A0989	-	hypothetical protein
961	 44.34	0	1027053..1027361	-	102	147675597	-	VC0395_A0990	-	hypothetical protein
962	 45.58	0	1027898..1029481	+	527	147674636	-	VC0395_A0991	-	GGDEF family protein
963	 47.83	0	1029499..1030029	+	176	147675170	-	VC0395_A0992	-	hypothetical protein
964	 42.62	-1	1030031..1030213	+	60	147673784	-	VC0395_A0993	-	hypothetical protein
965	 50.32	0	1030315..1030779	-	154	147673194	-	VC0395_A0994	-	hypothetical protein
966	 50.14	0	1030826..1031176	-	116	147675320	-	VC0395_A0995	-	hypothetical protein
967	 48.10	0	1031211..1031420	-	69	147674705	-	VC0395_A0996	-	hypothetical protein
968	 50.41	0	1031378..1035307	+	1309	147674840	hrpA	VC0395_A0997	-	ATP-dependent RNA helicase HrpA
969	 48.45	0	1035447..1035929	+	160	147675259	-	VC0395_A0998	-	hypothetical protein
970	 52.77	+1	1036146..1037498	+	450	147673298	-	VC0395_A0999	-	putative chaperone
971	 50.93	0	1037623..1038639	+	338	147673744	lplA	VC0395_A1000	-	lipoate-protein ligase A
972	 47.78	0	1038875..1039054	+	59	147674263	-	VC0395_A1002	-	hypothetical protein
973	 52.79	+1	1039032..1039982	-	316	147673870	-	VC0395_A1001	-	LysR family transcriptional regulator
974	 52.45	+1	1040069..1041475	+	468	147674152	-	VC0395_A1003	-	putative multidrug transporter
975	 53.14	+1	1041631..1043145	+	504	147673506	cry2	VC0395_A1004	-	cryptochrome Cry2
976	 48.89	0	1043291..1043605	+	104	147674676	sugE	VC0395_A1005	-	sugE protein
977	 42.72	-1	1043660..1044895	-	411	147673930	-	VC0395_A1006	-	methyl-accepting chemotaxis protein
978	 42.52	-1	1044903..1045283	-	126	147673810	cheY-1	VC0395_A1007	-	chemotaxis protein CheY
979	 43.04	-1	1045276..1045512	-	78	147673237	-	VC0395_A1008	-	hypothetical protein
980	 46.02	0	1045526..1047811	-	761	147675706	cheA-1	VC0395_A1009	-	chemotaxis protein CheA
981	 44.27	0	1047808..1048182	-	124	147674402	cheY-2	VC0395_A1010	-	chemotaxis protein CheY
982	 40.66	-1	1048179..1049024	-	281	147674925	cheR-1	VC0395_A1011	-	chemotaxis protein methyltransferase CheR
983	 45.21	0	1049035..1049691	-	218	147675588	-	VC0395_A1012	-	hypothetical protein
984	 48.38	0	1049678..1050754	-	358	147675091	cheB-1	VC0395_A1013	-	protein-glutamate methylesterase CheB
985	 45.04	0	1050775..1052337	-	520	147674323	-	VC0395_A1014	-	putative purine-binding chemotaxis protein CheW
986	 44.86	0	1052350..1054275	-	641	147673937	-	VC0395_A1015	-	methyl-accepting chemotaxis protein
987	 44.92	0	1054867..1056558	+	563	147673332	-	VC0395_A1016	-	methyl-accepting chemotaxis protein
988	 44.50	0	1056637..1057953	+	438	147675551	-	VC0395_A1017	-	methyl-accepting chemotaxis protein
989	 48.99	0	1058135..1059328	+	397	147674915	rhlE-1	VC0395_A1018	-	ATP-dependent RNA helicase RhlE
990	 43.95	-1	1059387..1059989	-	200	147674524	-	VC0395_A1019	-	TetR family transcriptional regulator
991	 48.87	0	1060096..1061550	+	484	147673563	-	VC0395_A1020	-	putative multidrug resistance protein
992	 50.42	0	1061564..1062751	+	395	147673357	vceA	VC0395_A1021	-	multidrug resistance protein VceA
993	 47.01	0	1062761..1064296	+	511	147673125	vceB	VC0395_A1022	-	multidrug resistance protein VceB
994	 44.67	0	1064371..1066107	-	578	147675234	-	VC0395_A1023	-	methyl-accepting chemotaxis protein
995	 48.19	0	1066329..1067903	-	524	147674997	-	VC0395_A1024	-	thermostable carboxypeptidase 1
996	 49.71	0	1068101..1068619	+	172	147674396	hcp-2	VC0395_A1025	-	hcp protein
997	 49.85	0	1068747..1072034	+	1095	147673444	vgrG-1	VC0395_A1026	-	vgrG protein
998	 42.86	-1	1072169..1073029	+	286	147674556	-	VC0395_A1027	-	hypothetical protein
999	 39.30	-2	1073032..1074957	+	641	147673623	-	VC0395_A1028	-	hypothetical protein
1000	 34.68	-2	1074954..1075697	+	247	147673058	-	VC0395_A1029	-	hypothetical protein
1001	 40.11	-1	1075842..1076579	+	245	147675173	-	VC0395_A1030	-	hypothetical protein
1002	 44.76	0	1076667..1077305	+	212	147674879	-	VC0395_A1031	-	hypothetical protein
1003	 49.82	0	1077378..1078748	-	456	147673881	-	VC0395_A1032	-	sodium/alanine symporter
1004	 42.14	-1	1079251..1079409	+	52	147675022	-	VC0395_A1033	-	hypothetical protein
1005	 42.99	-1	1079426..1080160	+	244	147675669	-	VC0395_A1034	-	hypothetical protein
1006	 45.09	0	1080309..1081346	-	345	147673534	potD-1	VC0395_A1035	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
1007	 45.14	0	1081457..1082557	-	366	147674149	potD-2	VC0395_A1036	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
1008	 44.75	0	1082591..1083361	-	256	147673527	potC	VC0395_A1037	-	spermidine/putrescine ABC transporter membrane protein
1009	 44.60	0	1083361..1084221	-	286	147675686	potB	VC0395_A1038	-	spermidine/putrescine ABC transporter membrane protein
1010	 44.89	0	1084202..1085335	-	377	147673678	potA	VC0395_A1039	-	putrescine/spermidine ABC transporter ATPase protein
1011	 43.14	-1	1085621..1086466	+	281	147673798	-	VC0395_A1040	-	hypothetical protein
1012	 42.91	-1	1086456..1087259	+	267	147674546	-	VC0395_A1041	-	putative bax protein
1013	 43.64	-1	1087261..1087920	+	219	147675006	-	VC0395_A1042	-	hypothetical protein
1014	 43.62	-1	1087996..1088928	-	310	147674407	-	VC0395_A1043	-	hypothetical protein
1015	 46.52	0	1089055..1090002	-	315	147675194	-	VC0395_A1044	-	universal stress protein UspE
1016	 43.69	-1	1090132..1090884	-	250	147674177	fnr	VC0395_A1045	-	fumarate/nitrate reduction transcriptional regulator
1017	 49.48	0	1090974..1091648	-	224	147673967	-	VC0395_A1046	-	hypothetical protein
1018	 41.82	-1	1091645..1091809	-	54	147673519	ccoS	VC0395_A1047	-	cytochrome oxidase maturation protein, cbb3-type
1019	 46.78	0	1091813..1094185	-	790	147674112	-	VC0395_A1048	-	cation transporter E1-E2 family ATPase
1020	 42.98	-1	1094190..1094666	-	158	147674935	-	VC0395_A1049	-	hypothetical protein
1021	 45.67	0	1094745..1095725	-	326	147675355	ccoP	VC0395_A1050	-	cytochrome c oxidase, subunit CcoP
1022	 43.64	-1	1095733..1095897	-	54	147675405	ccoQ	VC0395_A1051	-	cytochrome c oxidase, cbb3-type, CcoQ subunit
1023	 44.61	0	1095909..1096529	-	206	147673108	ccoO	VC0395_A1052	-	cytochrome c oxidase, subunit CcoO
1024	 47.70	0	1096543..1097976	-	477	147673393	ccoN	VC0395_A1053	-	cytochrome c oxidase, subunit CcoN
1025	 42.78	-1	1098654..1099871	+	405	147674313	-	VC0395_A1054	-	hypothetical protein
1026	 39.42	-2	1100035..1101579	+	514	147674610	-	VC0395_A1055	-	sensor histidine kinase/response regulator
1027	 49.54	0	1101640..1103799	-	719	147675517	-	VC0395_A1056	-	putative toxin secretion transporter
1028	 50.36	0	1103802..1105205	-	467	147674597	rtxD	VC0395_A1057	-	RTX toxin transporter
1029	 49.05	0	1105160..1106266	-	368	147675369	-	VC0395_A1058	-	RtxB protein
1030	 47.21	0	1106372..1114318	+	2648	147673063	-	VC0395_A1059	-	RTX protein
1031	 38.48	-2	1115147..1115923	-	258	147673805	ctxA	VC0395_A1060	-	cholera enterotoxin, A subunit
1032	 49.25	0	1116043..1117242	-	399	147674144	zot	VC0395_A1061	-	zona occludens toxin
1033	 45.24	0	1117239..1117532	-	97	147675552	ace	VC0395_A1062	-	accessory cholera enterotoxin
1034	 48.05	0	1117529..1118812	-	427	147673104	-	VC0395_A1063	-	hypothetical protein
1035	 46.59	0	1118823..1119071	-	82	147673551	cep	VC0395_A1064	-	colonization factor
1036	 45.14	0	1119207..1119587	-	126	147674635	rstB2	VC0395_A1065	-	RstB2 protein
1037	 45.37	0	1119565..1120644	-	359	147675447	rstA1	VC0395_A1066	-	RstA1 protein
1038	 34.52	-2	1120776..1121111	+	111	147673763	-	VC0395_A1067	-	cryptic phage CTXphi transcriptional repressor RstR
1039	 45.14	0	1121353..1121733	-	126	147674737	rstB2	VC0395_A1068	-	RstB2 protein
1040	 45.37	0	1121711..1122790	-	359	147675657	rstA1	VC0395_A1069	-	RstA1 protein
1041	 34.52	-2	1122922..1123257	+	111	147673183	-	VC0395_A1070	-	cryptic phage CTXphi transcriptional repressor RstR
1042	 54.90	+1	1123727..1123879	+	50	147675628	-	VC0395_A1072	-	hypothetical protein
1043	 48.21	0	1123876..1124460	-	194	147673717	-	VC0395_A1071	-	hypothetical protein
1044	 50.36	0	1124698..1125390	-	230	147675658	-	VC0395_A1073	-	hypothetical protein
1045	 46.67	0	1125520..1125804	-	94	147674091	-	VC0395_A1074	-	hypothetical protein
1046	 48.88	0	1125809..1127377	-	522	147673321	cri-1	VC0395_A1075	-	plasmid replication protein Cri
1047	 41.49	-1	1127554..1128105	+	183	147675271	tlcR-1	VC0395_A1076	-	tlcR protein
1048	 38.10	-2	1129144..1129311	-	55	147675604	-	VC0395_A1077	-	hypothetical protein
1049	 50.36	0	1129549..1130241	-	230	147673262	-	VC0395_A1078	-	hypothetical protein
1050	 46.67	0	1130371..1130655	-	94	147674025	-	VC0395_A1079	-	hypothetical protein
1051	 48.88	0	1130660..1132228	-	522	147674442	cri-1	VC0395_A1080	-	plasmid replication protein Cri
1052	 41.49	-1	1132405..1132956	+	183	147674410	tlcR-1	VC0395_A1081	-	tlcR protein
47.83	MEAN

3.88	STD DEV
