IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

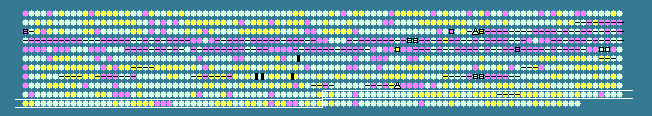

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
951	 43.75	0	915982..916077	+	31	15601721	-	VCA0968	-	hypothetical protein
952	 51.00	+1	916070..916918	+	282	15601722	-	VCA0969	-	pirin-related protein
953	 47.62	0	917056..917370	-	104	15601723	-	VCA0970	-	hypothetical protein
954	 45.12	0	917882..918322	+	146	15601724	-	VCA0971	-	hypothetical protein
955	 46.51	0	918331..919635	-	434	15601725	-	VCA0972	-	hypothetical protein
956	 33.33	-2	919692..919865	+	57	15601726	-	VCA0973	-	hypothetical protein
957	 48.81	0	919898..921583	-	561	15601727	-	VCA0974	-	methyl-accepting chemotaxis protein
958	 48.12	0	921798..924158	-	786	15601728	-	VCA0975	-	ATP-dependent protease LA-related protein
959	 47.07	0	924362..924856	+	164	15601729	-	VCA0976	-	hypothetical protein
960	 48.46	0	924885..926504	+	539	15601730	-	VCA0977	-	ABC transporter, ATP-binding protein
961	 44.40	0	926671..927402	-	243	15601731	-	VCA0978	-	amino acid ABC transporter, periplasmic amino acid-binding protein, putative
962	 47.46	0	927422..928306	-	294	15601732	-	VCA0979	-	methyl-accepting chemotaxis protein
963	 43.10	0	928326..928970	-	214	15601733	-	VCA0980	-	hypothetical protein
964	 45.83	0	929101..929844	-	247	15601734	-	VCA0981	-	hypothetical protein
965	 48.67	0	929998..930897	-	299	15601735	-	VCA0982	-	LysR family transcriptional regulator
966	 52.60	+1	931049..932797	+	582	15601736	-	VCA0983	-	L-lactate permease, putative
967	 54.00	+1	932920..934056	+	378	15601737	lldD	VCA0984	-	L-lactate dehydrogenase
968	 53.44	+1	934154..937033	+	959	15601738	-	VCA0985	-	oxidoreductase/iron-sulfur cluster-binding protein
969	 50.24	0	937117..937950	-	277	15601739	-	VCA0986	-	hypothetical protein
970	 51.91	+1	938085..940496	+	803	15601740	-	VCA0987	-	phosphoenolpyruvate synthase
971	 48.04	0	940679..942235	+	518	15601741	-	VCA0988	-	methyl-accepting chemotaxis protein
972	 50.64	0	942593..943927	+	444	15601742	-	VCA0989	-	hypothetical protein
973	 50.89	+1	944006..945292	-	428	15601743	-	VCA0990	-	DEAD-box ATP dependent DNA helicase
974	 49.30	0	945384..946310	-	308	15601744	-	VCA0991	-	LysR family transcriptional regulator
975	 46.12	0	946431..947087	+	218	15601745	-	VCA0992	-	glutaredoxin 2
976	 50.54	0	947097..948200	+	367	15601746	-	VCA0993	-	N-ethylmaleimide reductase
977	 49.64	0	948321..949301	-	326	15601747	-	VCA0994	-	hypothetical protein
978	 50.98	+1	949434..949535	+	33	15601748	-	VCA0995	-	hypothetical protein
979	 50.70	0	949658..951517	+	619	15601749	-	VCA0996	-	ABC transporter, ATP-binding protein
980	 49.17	0	951648..952373	+	241	15601750	-	VCA0997	-	hypothetical protein
981	 52.59	+1	952463..953506	-	347	15601751	-	VCA0998	-	Oye family NADH-dependent flavin oxidoreductase
982	 49.31	0	953656..954231	+	191	15601752	-	VCA0999	-	TetR family transcriptional regulator
983	 52.86	+1	954303..954932	-	209	15601753	-	VCA1000	-	hypothetical protein
984	 51.92	+1	955133..955966	+	277	15601754	-	VCA1001	-	AraC/XylS family transcriptional regulator
985	 52.22	+1	956118..956837	+	239	15601755	-	VCA1002	-	AzlC family protein
986	 51.26	+1	956834..957151	+	105	15601756	-	VCA1003	-	hypothetical protein
987	 48.62	0	957203..957817	-	204	15601757	-	VCA1004	-	hypothetical protein
988	 47.06	0	957933..958391	-	152	15601758	-	VCA1005	-	MarR family transcriptional regulator
989	 52.28	+1	958488..958925	+	145	15601759	-	VCA1006	-	organic hydroperoxide resistance protein, putative
990	 50.51	0	958939..959037	-	32	15601760	-	VCA1007	-	hypothetical protein
991	 47.29	0	959181..960176	+	331	15601761	-	VCA1008	-	outer membrane protein, putative
992	 43.33	0	960202..960321	+	39	15601762	-	VCA1009	-	hypothetical protein
993	 52.95	+1	960337..961233	+	298	15601763	-	VCA1010	-	hypothetical protein
994	 47.57	0	961260..961898	+	212	15601764	-	VCA1011	-	glutaredoxin-related protein
995	 48.08	0	962112..962579	-	155	15601765	-	VCA1012	-	hypothetical protein
996	 49.45	0	962576..963307	-	243	15601766	-	VCA1013	-	hypothetical protein
997	 37.25	-1	963470..963571	-	33	15601767	-	VCA1014	-	hypothetical protein
998	 49.30	0	963699..965132	+	477	15601768	-	VCA1015	-	Na+/H+ antiporter
999	 46.02	0	965198..965599	-	133	15601769	-	VCA1016	-	hypothetical protein
1000	 49.37	0	965610..966083	-	157	15601770	-	VCA1017	-	methylated-DNA--protein-cysteine S-methyltransferase
1001	 50.48	0	966084..967442	-	452	15601771	-	VCA1018	-	ada regulatory protein
1002	 50.34	0	967698..968144	+	148	15601772	-	VCA1019	-	hypothetical protein
1003	 48.43	0	968221..969141	-	306	15601773	-	VCA1020	-	LysR family transcriptional regulator
1004	 45.28	0	969256..969615	+	119	15601774	-	VCA1021	-	hypothetical protein
1005	 48.44	0	969661..969885	+	74	15601775	-	VCA1022	-	hypothetical protein
1006	 46.83	0	969825..971684	+	619	15601776	-	VCA1023	-	hypothetical protein
1007	 44.15	0	971811..972152	-	113	15601777	-	VCA1024	-	hypothetical protein
1008	 45.94	0	972427..973227	+	266	15601778	nagB	VCA1025	-	glucosamine-6-phosphate deaminase
1009	 47.84	0	973358..974515	-	385	15601779	-	VCA1026	-	hypothetical protein
1010	 46.24	0	974668..975504	-	278	15601780	-	VCA1027	-	maltose operon periplasmic protein, putative
1011	 44.04	0	975709..976959	-	416	15601781	lamB	VCA1028	-	maltoporin
1012	 47.29	0	977379..979349	+	656	15601782	-	VCA1029	-	glycogen operon protein GlgX
1013	 48.81	0	979484..979735	+	83	15601783	-	VCA1030	-	hypothetical protein
1014	 45.83	0	981942..982349	-	135	15601784	-	VCA1032	-	hypothetical protein
1015	 48.58	0	982617..983993	-	458	15601785	-	VCA1033	-	extracellular solute-binding protein, putative
1016	 50.12	0	984002..986002	-	666	15601786	-	VCA1034	-	methyl-accepting chemotaxis protein
1017	 45.60	0	986116..986433	+	105	15601787	-	VCA1035	-	hypothetical protein
1018	 48.89	0	987883..988602	+	239	15601788	-	VCA1037	-	amino acid ABC transporter, ATP-binding protein
1019	 51.81	+1	988599..989399	+	266	15601789	-	VCA1038	-	amino acid ABC transporter, permease protein
1020	 50.18	0	989435..990271	+	278	15601790	-	VCA1039	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1021	 51.62	+1	990272..991168	+	298	15601791	-	VCA1040	-	amino acid ABC transporter, permease protein
1022	 54.05	+1	991281..992984	+	567	15601792	-	VCA1041	-	phosphomannomutase, putative
1023	 40.30	-1	993043..993444	-	133	15601793	-	VCA1042	-	Ccm2-related protein
1024	 40.00	-1	993354..994298	-	314	15601794	-	VCA1043	-	tagE protein
1025	 26.39	-2	994599..994742	+	47	15601795	-	VCA1044	-	hypothetical protein
1026	 49.13	0	994881..996830	+	649	15601796	-	VCA1045	-	PTS system, mannitol-specific IIABC component
1027	 49.35	0	996931..998085	+	384	15601797	-	VCA1046	-	mannitol-1-phosphate 5-dehydrogenase
1028	 45.19	0	998134..998715	+	193	15601798	mtlR	VCA1047	-	mannitol repressor protein
1029	 49.25	0	998829..999764	+	311	15601799	-	VCA1048	-	Gfo/Idh/MocA family oxidoreductase
1030	 46.76	0	999865..1000743	-	292	15601800	-	VCA1049	-	hypothetical protein
1031	 49.24	0	1000877..1001800	+	307	15601801	-	VCA1050	-	hypothetical protein
1032	 48.15	0	1001797..1002228	-	143	15601802	-	VCA1051	-	hypothetical protein
1033	 52.84	+1	1002304..1003026	-	240	15601803	-	VCA1052	-	hypothetical protein
1034	 50.30	0	1003208..1003708	-	166	15601804	-	VCA1053	-	hypothetical protein
1035	 53.83	+1	1003730..1004368	-	212	15601805	-	VCA1054	-	hypothetical protein
1036	 49.35	0	1004468..1005391	+	307	15601806	-	VCA1055	-	LysR family transcriptional regulator
1037	 47.90	0	1005434..1007746	-	770	15601807	-	VCA1056	-	methyl-accepting chemotaxis protein
1038	 51.11	+1	1008136..1008855	-	239	15601808	-	VCA1057	-	short chain dehydrogenase/reductase family oxidoreductase
1039	 50.33	0	1009003..1009908	+	301	15601809	-	VCA1058	-	LysR family transcriptional regulator
1040	 48.71	0	1010002..1010619	+	205	15601810	-	VCA1059	-	hypothetical protein
1041	 51.60	+1	1010684..1011340	-	218	15601811	ribB	VCA1060	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1042	 41.48	0	1011647..1011781	+	44	15601812	-	VCA1061	-	hypothetical protein
1043	 50.76	0	1011799..1013118	-	439	15601813	-	VCA1062	-	putrescine transporter
1044	 49.93	0	1013186..1015348	-	720	15601814	-	VCA1063	-	ornithine decarboxylase
1045	 39.02	-1	1015489..1015611	+	40	15601815	-	VCA1064	-	hypothetical protein
1046	 40.65	-1	1015688..1015810	-	40	15601816	-	VCA1065	-	hypothetical protein
1047	 47.08	0	1016102..1016341	-	79	15601817	-	VCA1066	-	hypothetical protein
1048	 50.31	0	1016331..1017773	-	480	15601818	-	VCA1067	-	aldehyde dehydrogenase
1049	 46.79	0	1017946..1018428	-	160	15601819	-	VCA1068	-	AsnC family transcriptional regulator
1050	 51.04	+1	1018626..1020545	-	639	15601820	-	VCA1069	-	methyl-accepting chemotaxis protein
45.97	MEAN

4.79	STD DEV
