IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

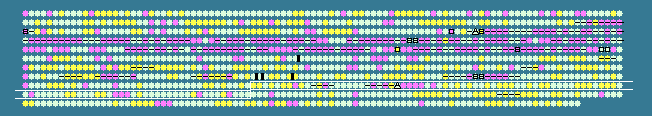

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
839	 51.11	+1	805131..806390	-	419	15601609	-	VCA0854	-	hypothetical protein
840	 50.15	0	806378..807061	-	227	15601610	-	VCA0855	-	ABC transporter, ATP-binding protein
841	 49.40	0	807070..807741	-	223	15601611	-	VCA0856	-	hypothetical protein
842	 49.63	0	807768..807902	+	44	15601612	-	VCA0857	-	hypothetical protein
843	 45.14	0	807903..808046	+	47	15601613	-	VCA0858	-	hypothetical protein
844	 50.32	0	808054..808977	-	307	15601614	-	VCA0859	-	aldo/keto reductase family oxidoreductase
845	 51.81	+1	809269..811341	+	690	15601615	malS	VCA0860	-	periplasmic alpha-amylase precursor
846	 42.31	0	811283..811516	+	77	15601616	-	VCA0861	-	hypothetical protein
847	 50.77	+1	811876..813114	+	412	15601617	-	VCA0862	-	long-chain fatty acid transport protein
848	 49.18	0	813130..815520	+	796	15601618	-	VCA0863	-	lipase, putative
849	 44.06	0	815881..817278	+	465	15601619	-	VCA0864	-	methyl-accepting chemotaxis protein
850	 50.00	0	817359..819188	-	609	15601620	-	VCA0865	-	hemagglutinin/protease
851	 36.67	-1	819174..819413	+	79	15601621	-	VCA0866	-	hypothetical protein
852	 42.97	0	819609..820262	-	217	15601622	-	VCA0867	-	outer membrane protein W
853	 48.72	0	820452..820685	+	77	15601623	-	VCA0868	-	hypothetical protein
854	 47.47	0	821082..821180	-	32	15601624	-	VCA0869	-	hypothetical protein
855	 46.16	0	821216..822166	+	316	15601625	pbpG	VCA0870	-	D-alanyl-D-alanine endopeptidase
856	 43.67	0	822401..823822	+	473	15601626	-	VCA0871	-	GntR family transcriptional regulator
857	 47.27	0	823951..825543	+	530	15601627	-	VCA0872	-	cytochrome d ubiquinol oxidase, subunit I
858	 44.24	0	825556..826692	+	378	15601628	-	VCA0873	-	cytochrome d ubiquinol oxidase, subunit II
859	 35.78	-2	827514..827717	+	67	15601629	-	VCA0874	-	hypothetical protein
860	 46.83	0	827934..829259	-	441	15601630	-	VCA0875	-	D-serine dehydratase
861	 38.31	-1	829467..830411	+	314	15601631	-	VCA0876	-	DNA-binding transcriptional regulator DsdC
862	 51.35	+1	830711..831787	+	358	15601632	-	VCA0877	-	hydrolase, putative
863	 45.68	0	831895..832056	+	53	15601633	-	VCA0878	-	integrase-related protein
864	 36.54	-1	832585..832740	-	51	15601634	-	VCA0879	-	hypothetical protein
865	 40.94	-1	832685..833065	+	126	15601635	-	VCA0880	-	hypothetical protein
866	 40.91	-1	833090..833485	+	131	15601636	-	VCA0881	-	hypothetical protein
867	 41.31	0	833497..834561	+	354	15601637	-	VCA0882	-	hypothetical protein
868	 43.60	0	834574..835683	+	369	15601638	-	VCA0883	-	hypothetical protein
869	 39.92	-1	835734..836795	+	353	15601639	-	VCA0884	-	hypothetical protein
870	 48.74	0	837892..838923	-	343	15601640	tdh	VCA0885	-	L-threonine 3-dehydrogenase
871	 50.59	0	838926..840119	-	397	15601641	-	VCA0886	-	2-amino-3-ketobutyrate coenzyme A ligase
872	 44.23	0	841276..842037	+	253	15601642	-	VCA0888	-	LuxR family transcriptional regulator
873	 50.27	0	842137..843075	+	312	15601643	-	VCA0889	-	LysR family transcriptional regulator
874	 47.92	0	843069..843452	+	127	15601644	-	VCA0890	-	glyoxylase I family protein
875	 51.03	+1	843530..844942	-	470	15601645	-	VCA0891	-	hypothetical protein
876	 46.62	0	845054..845452	-	132	15601646	-	VCA0892	-	hypothetical protein
877	 45.88	0	845558..846067	-	169	15601647	-	VCA0893	-	hypothetical protein
878	 50.60	0	846018..846764	-	248	15601648	-	VCA0894	-	putative hydrolase
879	 47.90	0	846932..849877	+	981	15601649	-	VCA0895	-	chemotactic transducer-related protein
880	 50.46	0	850221..851726	+	501	15601650	-	VCA0896	-	glucose-6-phosphate 1-dehydrogenase
881	 51.32	+1	851723..852439	+	238	15601651	-	VCA0897	-	6-phosphogluconolactonase
882	 50.59	0	852453..853901	+	482	15601652	-	VCA0898	-	6-phosphogluconate dehydrogenase
883	 42.75	0	854057..854194	+	45	15601653	-	VCA0899	-	hypothetical protein
884	 47.32	0	854462..855376	+	304	15601654	-	VCA0900	-	hypothetical protein
885	 50.32	0	855370..855999	+	209	15601655	-	VCA0901	-	hypothetical protein
886	 44.32	0	856032..856868	-	278	15601656	-	VCA0902	-	hypothetical protein
887	 52.82	+1	857004..858137	-	377	15601657	-	VCA0903	-	hypothetical protein
888	 49.52	0	858156..859508	-	450	15601658	-	VCA0904	-	permease
889	 47.28	0	859667..860806	-	379	15601659	-	VCA0905	-	hypothetical protein
890	 46.46	0	860947..862683	-	578	15601660	-	VCA0906	-	methyl-accepting chemotaxis protein
891	 47.08	0	862985..863515	-	176	15601661	-	VCA0907	-	hypothetical protein
892	 45.36	0	863540..864121	-	193	15601662	-	VCA0908	-	hypothetical protein
893	 49.49	0	864067..865434	-	455	15601663	-	VCA0909	-	coproporphyrinogen III oxidase
894	 50.13	0	865691..866440	+	249	15601664	-	VCA0910	-	tonB1 protein
895	 53.13	+1	866440..867126	+	228	15601665	-	VCA0911	-	TonB system transport protein ExbB1
896	 47.72	0	867123..867539	+	138	15601666	-	VCA0912	-	TonB system transport protein ExbD1
897	 49.88	0	867550..868383	+	277	15601667	-	VCA0913	-	hemin ABC transporter, periplasmic hemin-binding protein HutB
898	 52.52	+1	868395..869426	+	343	15601668	-	VCA0914	-	hemin ABC transporter, permease protein, putative
899	 52.04	+1	869494..870204	+	236	15601669	-	VCA0915	-	hemin importer ATP-binding subunit
900	 46.46	0	870279..870377	-	32	15601670	-	VCA0916	-	hypothetical protein
901	 45.47	0	870338..870823	-	161	15601671	-	VCA0917	-	TetR family transcriptional regulator
902	 39.58	-1	870792..870887	-	31	15601672	-	VCA0918	-	hypothetical protein
903	 44.22	0	871322..871624	+	100	15601673	-	VCA0919	-	hypothetical protein
904	 48.83	0	871827..872426	+	199	15601674	-	VCA0920	-	hypothetical protein
905	 46.29	0	872487..873605	-	372	15601675	-	VCA0921	-	hypothetical protein
906	 49.26	0	873771..874379	+	202	15601676	-	VCA0922	-	hypothetical protein
907	 47.52	0	874442..876400	+	652	15601677	-	VCA0923	-	methyl-accepting chemotaxis protein
908	 49.72	0	876463..878451	-	662	15601678	-	VCA0924	-	hypothetical protein
909	 52.80	+1	878819..879871	+	350	15601679	-	VCA0925	-	dihydroorotase
910	 47.18	0	879934..881031	-	365	15601680	-	VCA0926	-	AraC/XylS family transcriptional regulator
911	 46.44	0	881142..881492	+	116	15601681	-	VCA0927	-	hypothetical protein
912	 45.49	0	881489..881998	+	169	15601682	-	VCA0928	-	hypothetical protein
913	 51.42	+1	882048..883175	-	375	15601683	rumB	VCA0929	-	23S rRNA methyluridine methyltransferase
914	 49.81	0	883289..884314	-	341	15601684	-	VCA0930	-	hypothetical protein
915	 47.79	0	884337..885719	-	460	15601685	-	VCA0931	-	hypothetical protein
916	 40.58	-1	885705..885842	+	45	15601686	-	VCA0932	-	hypothetical protein
917	 39.44	-1	886068..886280	+	70	15601687	-	VCA0933	-	cold shock domain-contain protein
918	 36.27	-2	886377..886478	-	33	15601688	-	VCA0934	-	hypothetical protein
919	 43.98	0	886850..887206	+	118	15601689	-	VCA0935	-	hypothetical protein
920	 51.86	+1	887418..888356	+	312	15601690	-	VCA0936	-	hypothetical protein
921	 48.48	0	888345..889136	-	263	15601691	-	VCA0937	-	AraC/XylS family transcriptional regulator
922	 45.45	0	890253..891218	+	321	15601692	-	VCA0939	-	sensory box/GGDEF family protein
923	 48.03	0	891370..892131	+	253	15601693	-	VCA0940	-	DeoR family transcriptional regulator
924	 48.06	0	892283..892771	+	162	15601694	-	VCA0941	-	acyl-CoA thioester hydrolase-related protein
925	 46.95	0	892855..893133	+	92	15601695	-	VCA0942	-	hypothetical protein
926	 49.38	0	893457..894347	-	296	15601696	malG	VCA0943	-	maltose transporter permease
927	 48.19	0	894359..895933	-	524	15601697	malF	VCA0944	-	maltose transporter membrane protein
928	 47.26	0	896008..897228	-	406	15601698	malE	VCA0945	-	maltose ABC transporter periplasmic protein
929	 50.18	0	897862..898983	+	373	15601699	-	VCA0946	-	maltose/maltodextrin transporter ATP-binding protein
930	 41.76	0	899206..899727	+	173	15601700	-	VCA0947	-	spermidine n1-acetyltransferase
931	 43.09	0	899732..899977	+	81	15601701	-	VCA0948	-	hypothetical protein
932	 46.76	0	900115..900732	-	205	15601702	-	VCA0949	-	SM-20-related protein
933	 42.64	0	900851..900979	-	42	15601703	-	VCA0950	-	hypothetical protein
934	 49.53	0	900939..901259	+	106	15601704	-	VCA0951	-	hypothetical protein
935	 36.74	-1	901426..902100	-	224	15601705	-	VCA0952	-	LuxR family transcriptional regulator
936	 46.59	0	902678..902956	-	92	15601706	-	VCA0953	-	peptidyl-prolyl cis-trans isomerase C
937	 46.58	0	903131..904051	+	306	15601707	-	VCA0954	-	chemotaxis protein CheV, putative
938	 48.38	0	904127..904651	-	174	15601708	-	VCA0955	-	MarR family transcriptional regulator
45.97	MEAN

4.79	STD DEV
