IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

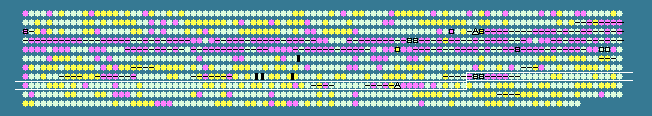

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
775	 39.57	-1	734399..735778	+	459	15601545	-	VCA0790	-	hypothetical protein
776	 44.44	0	735771..736643	-	290	15601546	-	VCA0791	-	transposase OrfAB, subunit B
777	 43.19	0	736640..736984	-	114	15601547	-	VCA0792	-	transposase OrfAB, subunit A
778	 41.82	0	737061..737543	+	160	15601548	-	VCA0793	-	hypothetical protein
779	 40.82	-1	737544..737837	+	97	15601549	-	VCA0794	-	hypothetical protein
780	 40.33	-1	738052..739008	+	318	15601550	-	VCA0795	-	resolvase, putative
781	 32.32	-2	739095..739193	+	32	15601551	-	VCA0796	-	hypothetical protein
782	 45.10	0	739159..739464	-	101	15601552	-	VCA0797	-	hypothetical protein
783	 49.19	0	739663..740343	-	226	15601553	-	VCA0798	-	CbbY family protein
784	 48.13	0	740482..740988	-	168	15601554	-	VCA0799	-	hypothetical protein
785	 44.31	0	741310..741792	+	160	15601555	-	VCA0800	-	creA protein
786	 48.97	0	741911..743215	+	434	15601556	-	VCA0801	-	inosine-guanosine kinase
787	 44.88	0	743300..745273	-	657	15601557	-	VCA0802	-	hypothetical protein
788	 46.02	0	745355..746347	-	330	15601558	-	VCA0803	-	serine protease, putative
789	 50.65	0	746491..748482	-	663	15601559	-	VCA0804	-	ATP-dependent RNA helicase DeaD
790	 50.71	0	748796..750832	+	678	15601560	-	VCA0805	-	exoribonuclease II
791	 47.47	0	750927..751400	-	157	15601561	-	VCA0806	-	hypothetical protein
792	 46.00	0	751488..752324	+	278	15601562	-	VCA0807	-	ABC transporter, periplasmic substrate-binding protein
793	 47.33	0	752470..753162	-	230	15601563	-	VCA0808	-	NodN-related protein
794	 47.97	0	753436..754986	-	516	15601564	-	VCA0809	-	hypothetical protein
795	 44.93	0	755312..755449	-	45	15601565	-	VCA0810	-	hypothetical protein
796	 50.14	0	755480..756937	+	485	15601566	-	VCA0811	-	N-acetylglucosamine-binding protein A
797	 47.10	0	757265..758695	+	476	15601567	-	VCA0812	-	leucine aminopeptidase-related protein
798	 49.14	0	758730..760235	+	501	15601568	-	VCA0813	-	aminopeptidase
799	 50.75	0	760423..761352	-	309	15601569	-	VCA0814	-	agmatinase
800	 48.64	0	761353..763338	-	661	15601570	-	VCA0815	-	arginine decarboxylase
801	 36.05	-2	763408..763554	-	48	15601571	-	VCA0816	-	hypothetical protein
802	 47.01	0	763686..764270	+	194	15601572	-	VCA0817	-	hypothetical protein
803	 48.94	0	764273..765637	+	454	15601573	-	VCA0818	-	magnesium transporter MgtE, putative
804	 45.70	0	765822..766112	+	96	15601574	groES	VCA0819	-	co-chaperonin GroES
805	 51.48	+1	766141..767733	+	530	15601575	groEL	VCA0820	-	chaperonin GroEL
806	 51.69	+1	767766..767972	+	68	15601576	-	VCA0821	-	hypothetical protein
807	 49.61	0	768053..769477	-	474	15601577	-	VCA0822	-	aspartate kinase
808	 46.04	0	769474..769890	-	138	15601578	ectC	VCA0823	-	L-ectoine synthase
809	 50.73	0	769955..771190	-	411	15601579	-	VCA0824	-	diaminobutyrate--2-oxoglutarate aminotransferase
810	 48.66	0	771214..771735	-	173	15601580	-	VCA0825	-	L-2,4-diaminobutyric acid acetyltransferase
811	 32.48	-2	771848..771964	-	38	15601581	-	VCA0826	-	hypothetical protein
812	 43.94	0	772435..772764	-	109	15601582	phhB	VCA0827	-	pterin-4-alpha-carbinolamine dehydratase
813	 47.13	0	772754..773623	-	289	15601583	phhA	VCA0828	-	phenylalanine 4-monooxygenase
814	 48.72	0	773782..775731	+	649	15601584	-	VCA0829	-	acetoacetyl-CoA synthetase
815	 47.90	0	775834..776808	+	324	15601585	-	VCA0830	-	LysR family transcriptional regulator
816	 38.97	-1	776810..777004	+	64	15601586	-	VCA0831	-	hypothetical protein
817	 48.66	0	777308..777940	-	210	15601587	-	VCA0832	-	methyltransferase, putative
818	 46.64	0	778082..778960	+	292	15601588	-	VCA0833	-	LysR family transcriptional regulator
819	 48.53	0	779097..780050	+	317	15601589	-	VCA0834	-	hypothetical protein
820	 51.37	+1	780082..781068	-	328	15601590	-	VCA0835	-	hypothetical protein
821	 48.88	0	781106..781684	-	192	15601591	-	VCA0836	-	hexapeptide repeat-containing acetyltransferase
822	 48.25	0	781822..783135	-	437	15601592	-	VCA0837	-	hemolysin, putative
823	 47.90	0	783290..783694	-	134	15601593	-	VCA0838	-	hypothetical protein
824	 46.97	0	783716..783847	+	43	15601594	-	VCA0839	-	hypothetical protein
825	 46.91	0	784587..785072	+	161	15601595	-	VCA0840	-	deoxycytidylate deaminase, putative
826	 43.94	0	785126..785257	-	43	15601596	-	VCA0841	-	hypothetical protein
827	 45.10	0	785502..785654	-	50	15601597	-	VCA0842	-	hypothetical protein
828	 49.02	0	785728..787257	+	509	15601598	-	VCA0843	-	glyceraldehyde-3-phosphate dehydrogenase
829	 44.90	0	787373..787519	+	48	15601599	-	VCA0844	-	hypothetical protein
830	 43.27	0	787471..787782	+	103	15601600	-	VCA0845	-	hypothetical protein
831	 51.06	+1	787831..788445	-	204	15601601	-	VCA0846	-	hypothetical protein
832	 50.44	0	788631..789875	+	414	161582038	-	VCA0847	-	inner membrane protein YjeH
833	 44.95	0	789918..790898	-	326	15601603	-	VCA0848	-	GGDEF family protein
834	 50.12	0	791029..800820	-	3263	15601604	-	VCA0849	-	hypothetical protein
835	 46.56	0	801121..801906	-	261	15601605	-	VCA0850	-	response regulator
836	 46.67	0	802066..803145	-	359	15601606	-	VCA0851	-	hypothetical protein
837	 50.12	0	803146..804390	-	414	15601607	-	VCA0852	-	hypothetical protein
838	 47.72	0	804395..805138	-	247	15601608	-	VCA0853	-	hypothetical protein
839	 51.11	+1	805131..806390	-	419	15601609	-	VCA0854	-	hypothetical protein
840	 50.15	0	806378..807061	-	227	15601610	-	VCA0855	-	ABC transporter, ATP-binding protein
841	 49.40	0	807070..807741	-	223	15601611	-	VCA0856	-	hypothetical protein
842	 49.63	0	807768..807902	+	44	15601612	-	VCA0857	-	hypothetical protein
843	 45.14	0	807903..808046	+	47	15601613	-	VCA0858	-	hypothetical protein
844	 50.32	0	808054..808977	-	307	15601614	-	VCA0859	-	aldo/keto reductase family oxidoreductase
845	 51.81	+1	809269..811341	+	690	15601615	malS	VCA0860	-	periplasmic alpha-amylase precursor
846	 42.31	0	811283..811516	+	77	15601616	-	VCA0861	-	hypothetical protein
847	 50.77	+1	811876..813114	+	412	15601617	-	VCA0862	-	long-chain fatty acid transport protein
848	 49.18	0	813130..815520	+	796	15601618	-	VCA0863	-	lipase, putative
849	 44.06	0	815881..817278	+	465	15601619	-	VCA0864	-	methyl-accepting chemotaxis protein
850	 50.00	0	817359..819188	-	609	15601620	-	VCA0865	-	hemagglutinin/protease
851	 36.67	-1	819174..819413	+	79	15601621	-	VCA0866	-	hypothetical protein
852	 42.97	0	819609..820262	-	217	15601622	-	VCA0867	-	outer membrane protein W
853	 48.72	0	820452..820685	+	77	15601623	-	VCA0868	-	hypothetical protein
854	 47.47	0	821082..821180	-	32	15601624	-	VCA0869	-	hypothetical protein
855	 46.16	0	821216..822166	+	316	15601625	pbpG	VCA0870	-	D-alanyl-D-alanine endopeptidase
856	 43.67	0	822401..823822	+	473	15601626	-	VCA0871	-	GntR family transcriptional regulator
857	 47.27	0	823951..825543	+	530	15601627	-	VCA0872	-	cytochrome d ubiquinol oxidase, subunit I
858	 44.24	0	825556..826692	+	378	15601628	-	VCA0873	-	cytochrome d ubiquinol oxidase, subunit II
859	 35.78	-2	827514..827717	+	67	15601629	-	VCA0874	-	hypothetical protein
860	 46.83	0	827934..829259	-	441	15601630	-	VCA0875	-	D-serine dehydratase
861	 38.31	-1	829467..830411	+	314	15601631	-	VCA0876	-	DNA-binding transcriptional regulator DsdC
862	 51.35	+1	830711..831787	+	358	15601632	-	VCA0877	-	hydrolase, putative
863	 45.68	0	831895..832056	+	53	15601633	-	VCA0878	-	integrase-related protein
864	 36.54	-1	832585..832740	-	51	15601634	-	VCA0879	-	hypothetical protein
865	 40.94	-1	832685..833065	+	126	15601635	-	VCA0880	-	hypothetical protein
866	 40.91	-1	833090..833485	+	131	15601636	-	VCA0881	-	hypothetical protein
867	 41.31	0	833497..834561	+	354	15601637	-	VCA0882	-	hypothetical protein
868	 43.60	0	834574..835683	+	369	15601638	-	VCA0883	-	hypothetical protein
869	 39.92	-1	835734..836795	+	353	15601639	-	VCA0884	-	hypothetical protein
870	 48.74	0	837892..838923	-	343	15601640	tdh	VCA0885	-	L-threonine 3-dehydrogenase
871	 50.59	0	838926..840119	-	397	15601641	-	VCA0886	-	2-amino-3-ketobutyrate coenzyme A ligase
872	 44.23	0	841276..842037	+	253	15601642	-	VCA0888	-	LuxR family transcriptional regulator
873	 50.27	0	842137..843075	+	312	15601643	-	VCA0889	-	LysR family transcriptional regulator
874	 47.92	0	843069..843452	+	127	15601644	-	VCA0890	-	glyoxylase I family protein
45.97	MEAN

4.79	STD DEV
