IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

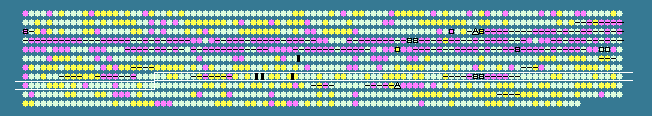

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
723	 46.48	0	683063..684157	-	364	15601493	-	VCA0737	-	luxP protein
724	 48.66	0	684369..685529	-	386	161582041	-	VCA0738	-	hypothetical protein
725	 50.33	0	685631..685936	-	101	15601495	-	VCA0739	-	hypothetical protein
726	 50.69	0	685953..686603	-	216	15601496	-	VCA0740	-	hypothetical protein
727	 43.30	0	687029..687349	+	106	15601497	-	VCA0741	-	hypothetical protein
728	 42.67	0	687349..687498	+	49	15601498	-	VCA0742	-	hypothetical protein
729	 44.84	0	687762..688013	+	83	15601499	-	VCA0743	-	hypothetical protein
730	 51.91	+1	688094..689611	-	505	15601500	glpK	VCA0744	-	glycerol kinase
731	 35.19	-2	690934..691095	-	53	15601501	-	VCA0746	-	hypothetical protein
732	 52.19	+1	691251..692894	+	547	15601502	glpA	VCA0747	-	sn-glycerol-3-phosphate dehydrogenase subunit A
733	 52.33	+1	692891..694201	+	436	15601503	-	VCA0748	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
734	 49.68	0	694198..695439	+	413	15601504	glpC	VCA0749	-	sn-glycerol-3-phosphate dehydrogenase subunit C
735	 38.89	-1	695487..695612	-	41	15601505	-	VCA0750	-	hypothetical protein
736	 51.06	+1	695581..696669	-	362	161582040	-	VCA0751	-	3-oxoacyl-(acyl carrier protein) synthase III
737	 47.82	0	696838..697272	+	144	15601507	-	VCA0752	-	thioredoxin 2
738	 51.08	+1	697461..698615	+	384	15601508	-	VCA0753	-	hypothetical protein
739	 47.89	0	698700..699530	+	276	15601509	-	VCA0754	-	lipase-related protein
740	 44.57	0	699722..700264	+	180	15601510	-	VCA0755	-	hypothetical protein
741	 46.69	0	700580..701545	+	321	15601511	-	VCA0756	-	LysR family transcriptional regulator
742	 51.72	+1	701598..702266	-	222	15601512	artM	VCA0757	-	arginine transporter permease subunit ArtM
743	 50.14	0	702263..702952	-	229	15601513	-	VCA0758	-	arginine transporter permease subunit ArtQ
744	 48.36	0	702954..703685	-	243	15601514	-	VCA0759	-	arginine ABC transporter, periplasmic arginine-binding protein
745	 50.21	0	703759..704487	-	242	161582039	artP	VCA0760	-	arginine transporter ATP-binding subunit
746	 49.49	0	704941..705039	+	32	15601516	-	VCA0761	-	hypothetical protein
747	 48.34	0	705080..706525	-	481	15601517	yieM	VCA0762	-	hypothetical protein
748	 47.44	0	706534..708192	-	552	15601518	-	VCA0763	-	hypothetical protein
749	 48.03	0	708502..709059	+	185	15601519	-	VCA0764	-	MutT/nudix family protein
750	 52.13	+1	709044..710075	+	343	15601520	-	VCA0765	-	L-allo-threonine aldolase
751	 48.75	0	710072..710512	+	146	15601521	-	VCA0766	-	cytochrome c554
752	 47.07	0	710616..711350	+	244	15601522	-	VCA0767	-	TetR family transcriptional regulator
753	 49.96	0	711450..712718	-	422	15601523	-	VCA0768	-	DEAD-box ATP dependent DNA helicase
754	 49.83	0	712755..713336	-	193	15601524	-	VCA0769	-	hypothetical protein
755	 45.83	0	713373..713492	-	39	15601525	-	VCA0770	-	hypothetical protein
756	 46.08	0	713520..713621	-	33	15601526	-	VCA0771	-	hypothetical protein
757	 49.38	0	713856..715058	+	400	15601527	-	VCA0772	-	tyrosine-specific transport protein
758	 50.63	0	715286..716707	+	473	15601528	-	VCA0773	-	methyl-accepting chemotaxis protein
759	 48.77	0	716793..717809	-	338	15601529	-	VCA0774	-	UDP-glucose 4-epimerase
760	 43.84	0	717822..718040	-	72	15601530	-	VCA0775	-	hypothetical protein
761	 50.61	0	718129..718869	+	246	15601531	-	VCA0776	-	hypothetical protein
762	 52.18	+1	718873..719583	+	236	15601532	-	VCA0777	-	hypothetical protein
763	 54.30	+1	719693..720622	+	309	15601533	-	VCA0778	-	hypothetical protein
764	 53.07	+1	720674..722107	-	477	15601534	-	VCA0779	-	hypothetical protein
765	 47.56	0	722216..723382	-	388	15601535	-	VCA0780	-	UDP-glucose 6-dehydrogenase
766	 51.80	+1	723771..726218	-	815	15601536	-	VCA0781	-	hypothetical protein
767	 50.59	0	726215..726892	-	225	15601537	-	VCA0782	-	ABC transporter, ATP-binding protein
768	 47.99	0	726843..727490	+	215	15601538	-	VCA0783	-	arylesterase
769	 48.06	0	727580..728788	+	402	15601539	-	VCA0784	-	trans-2-enoyl-CoA reductase
770	 49.15	0	728957..730840	+	627	15601540	-	VCA0785	-	GGDEF family protein
771	 49.82	0	730966..732615	+	549	15601541	-	VCA0786	-	hypothetical protein
772	 47.62	0	732612..732716	-	34	15601542	-	VCA0787	-	hypothetical protein
773	 46.98	0	732773..733402	-	209	15601543	-	VCA0788	-	DnaJ-related protein
774	 49.32	0	733638..734225	+	195	15601544	-	VCA0789	-	hypothetical protein
775	 39.57	-1	734399..735778	+	459	15601545	-	VCA0790	-	hypothetical protein
776	 44.44	0	735771..736643	-	290	15601546	-	VCA0791	-	transposase OrfAB, subunit B
777	 43.19	0	736640..736984	-	114	15601547	-	VCA0792	-	transposase OrfAB, subunit A
778	 41.82	0	737061..737543	+	160	15601548	-	VCA0793	-	hypothetical protein
779	 40.82	-1	737544..737837	+	97	15601549	-	VCA0794	-	hypothetical protein
780	 40.33	-1	738052..739008	+	318	15601550	-	VCA0795	-	resolvase, putative
781	 32.32	-2	739095..739193	+	32	15601551	-	VCA0796	-	hypothetical protein
782	 45.10	0	739159..739464	-	101	15601552	-	VCA0797	-	hypothetical protein
783	 49.19	0	739663..740343	-	226	15601553	-	VCA0798	-	CbbY family protein
784	 48.13	0	740482..740988	-	168	15601554	-	VCA0799	-	hypothetical protein
785	 44.31	0	741310..741792	+	160	15601555	-	VCA0800	-	creA protein
786	 48.97	0	741911..743215	+	434	15601556	-	VCA0801	-	inosine-guanosine kinase
787	 44.88	0	743300..745273	-	657	15601557	-	VCA0802	-	hypothetical protein
788	 46.02	0	745355..746347	-	330	15601558	-	VCA0803	-	serine protease, putative
789	 50.65	0	746491..748482	-	663	15601559	-	VCA0804	-	ATP-dependent RNA helicase DeaD
790	 50.71	0	748796..750832	+	678	15601560	-	VCA0805	-	exoribonuclease II
791	 47.47	0	750927..751400	-	157	15601561	-	VCA0806	-	hypothetical protein
792	 46.00	0	751488..752324	+	278	15601562	-	VCA0807	-	ABC transporter, periplasmic substrate-binding protein
793	 47.33	0	752470..753162	-	230	15601563	-	VCA0808	-	NodN-related protein
794	 47.97	0	753436..754986	-	516	15601564	-	VCA0809	-	hypothetical protein
795	 44.93	0	755312..755449	-	45	15601565	-	VCA0810	-	hypothetical protein
796	 50.14	0	755480..756937	+	485	15601566	-	VCA0811	-	N-acetylglucosamine-binding protein A
797	 47.10	0	757265..758695	+	476	15601567	-	VCA0812	-	leucine aminopeptidase-related protein
798	 49.14	0	758730..760235	+	501	15601568	-	VCA0813	-	aminopeptidase
799	 50.75	0	760423..761352	-	309	15601569	-	VCA0814	-	agmatinase
800	 48.64	0	761353..763338	-	661	15601570	-	VCA0815	-	arginine decarboxylase
801	 36.05	-2	763408..763554	-	48	15601571	-	VCA0816	-	hypothetical protein
802	 47.01	0	763686..764270	+	194	15601572	-	VCA0817	-	hypothetical protein
803	 48.94	0	764273..765637	+	454	15601573	-	VCA0818	-	magnesium transporter MgtE, putative
804	 45.70	0	765822..766112	+	96	15601574	groES	VCA0819	-	co-chaperonin GroES
805	 51.48	+1	766141..767733	+	530	15601575	groEL	VCA0820	-	chaperonin GroEL
806	 51.69	+1	767766..767972	+	68	15601576	-	VCA0821	-	hypothetical protein
807	 49.61	0	768053..769477	-	474	15601577	-	VCA0822	-	aspartate kinase
808	 46.04	0	769474..769890	-	138	15601578	ectC	VCA0823	-	L-ectoine synthase
809	 50.73	0	769955..771190	-	411	15601579	-	VCA0824	-	diaminobutyrate--2-oxoglutarate aminotransferase
810	 48.66	0	771214..771735	-	173	15601580	-	VCA0825	-	L-2,4-diaminobutyric acid acetyltransferase
811	 32.48	-2	771848..771964	-	38	15601581	-	VCA0826	-	hypothetical protein
812	 43.94	0	772435..772764	-	109	15601582	phhB	VCA0827	-	pterin-4-alpha-carbinolamine dehydratase
813	 47.13	0	772754..773623	-	289	15601583	phhA	VCA0828	-	phenylalanine 4-monooxygenase
814	 48.72	0	773782..775731	+	649	15601584	-	VCA0829	-	acetoacetyl-CoA synthetase
815	 47.90	0	775834..776808	+	324	15601585	-	VCA0830	-	LysR family transcriptional regulator
816	 38.97	-1	776810..777004	+	64	15601586	-	VCA0831	-	hypothetical protein
817	 48.66	0	777308..777940	-	210	15601587	-	VCA0832	-	methyltransferase, putative
818	 46.64	0	778082..778960	+	292	15601588	-	VCA0833	-	LysR family transcriptional regulator
819	 48.53	0	779097..780050	+	317	15601589	-	VCA0834	-	hypothetical protein
820	 51.37	+1	780082..781068	-	328	15601590	-	VCA0835	-	hypothetical protein
821	 48.88	0	781106..781684	-	192	15601591	-	VCA0836	-	hexapeptide repeat-containing acetyltransferase
822	 48.25	0	781822..783135	-	437	15601592	-	VCA0837	-	hemolysin, putative
45.97	MEAN

4.79	STD DEV
