IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

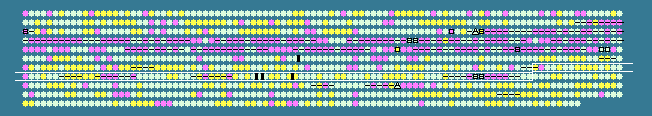

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
686	 51.08	+1	638828..641983	-	1051	15601456	-	VCA0700	-	chitodextrinase
687	 34.09	-2	642017..642148	-	43	15601457	-	VCA0701	-	hypothetical protein
688	 49.09	0	642655..643803	+	382	15601458	-	VCA0702	-	iron-containing alcohol dehydrogenase
689	 48.70	0	643882..644571	+	229	15601459	-	VCA0703	-	hypothetical protein
690	 49.77	0	644568..645887	-	439	15601460	-	VCA0704	-	phosphoglycerate transport system transcriptional regulatory protein PgtA
691	 48.78	0	645805..648174	-	789	15601461	-	VCA0705	-	phosphoglycerate transport regulatory protein PgtB, putative
692	 49.43	0	648171..649493	-	440	15601462	-	VCA0706	-	phosphoglycerate transport regulatory protein PgtC, putative
693	 50.51	0	649740..651119	+	459	15601463	-	VCA0707	-	regulatory protein UhpC, putative
694	 51.68	+1	651241..652701	+	486	15601464	-	VCA0708	-	pyruvate kinase
695	 50.87	+1	652820..655882	-	1020	15601465	-	VCA0709	-	sensor protein TorS
696	 50.95	+1	655805..656854	+	349	15601466	-	VCA0710	-	periplasmic sensory protein associated with the TorRS two-component regulatory system
697	 49.12	0	656909..657364	+	151	15601467	mgsA	VCA0711	-	methylglyoxal synthase
698	 49.60	0	657433..658053	-	206	15601468	-	VCA0712	-	pyrazinamidase/nicotinamidase
699	 45.30	0	658175..658291	-	38	15601469	-	VCA0713	-	hypothetical protein
700	 47.06	0	658358..658714	+	118	15601470	-	VCA0714	-	diacylglycerol kinase
701	 40.25	-1	658854..659171	+	105	15601471	-	VCA0715	-	hypothetical protein
702	 46.00	0	659164..659700	+	178	15601472	-	VCA0716	-	hypothetical protein
703	 48.06	0	659756..661819	-	687	161582042	helD	VCA0717	-	DNA helicase IV
704	 51.01	+1	662006..664183	+	725	15601474	-	VCA0718	-	hypothetical protein
705	 48.63	0	664193..665140	-	315	15601475	-	VCA0719	-	sensor histide kinase
706	 46.18	0	665137..665712	-	191	15601476	-	VCA0720	-	guanylate cyclase-related protein
707	 48.08	0	665840..666151	+	103	15601477	-	VCA0721	-	hypothetical protein
708	 50.17	0	666208..666498	+	96	15601478	-	VCA0722	-	hypothetical protein
709	 54.54	+1	666528..667838	+	436	15601479	-	VCA0723	-	3-hydroxy-3-methylglutaryl CoA reductase
710	 54.04	+1	667937..669037	-	366	15601480	modC	VCA0724	-	molybdate transporter ATP-binding protein
711	 54.36	+1	669051..669749	-	232	15601481	modB	VCA0725	-	molybdate ABC transporter permease protein
712	 56.47	+2	669750..670514	-	254	15601482	-	VCA0726	-	molybdenum ABC transporter, periplasmic molybdenum-binding protein
713	 53.33	+1	670520..671974	-	484	15601483	-	VCA0727	-	cobyric acid synthase
714	 41.94	0	672577..674748	-	723	15601484	-	VCA0728	-	hypothetical protein
715	 42.31	0	674741..675364	-	207	15601485	-	VCA0729	-	hypothetical protein
716	 42.13	0	675367..677196	-	609	15601486	-	VCA0730	-	hypothetical protein
717	 45.42	0	677895..678200	-	101	15601487	-	VCA0731	-	hypothetical protein
718	 48.62	0	678403..678801	+	132	15601488	-	VCA0732	-	hypothetical protein
719	 39.87	-1	678842..678994	+	50	15601489	-	VCA0733	-	hypothetical protein
720	 47.22	0	679032..679571	+	179	15601490	-	VCA0734	-	hypothetical protein
721	 44.30	0	679770..680480	+	236	15601491	-	VCA0735	-	hypothetical protein
722	 47.16	0	680472..683045	-	857	15601492	-	VCA0736	-	sensor histidine kinase LuxQ
723	 46.48	0	683063..684157	-	364	15601493	-	VCA0737	-	luxP protein
724	 48.66	0	684369..685529	-	386	161582041	-	VCA0738	-	hypothetical protein
725	 50.33	0	685631..685936	-	101	15601495	-	VCA0739	-	hypothetical protein
726	 50.69	0	685953..686603	-	216	15601496	-	VCA0740	-	hypothetical protein
727	 43.30	0	687029..687349	+	106	15601497	-	VCA0741	-	hypothetical protein
728	 42.67	0	687349..687498	+	49	15601498	-	VCA0742	-	hypothetical protein
729	 44.84	0	687762..688013	+	83	15601499	-	VCA0743	-	hypothetical protein
730	 51.91	+1	688094..689611	-	505	15601500	glpK	VCA0744	-	glycerol kinase
731	 35.19	-2	690934..691095	-	53	15601501	-	VCA0746	-	hypothetical protein
732	 52.19	+1	691251..692894	+	547	15601502	glpA	VCA0747	-	sn-glycerol-3-phosphate dehydrogenase subunit A
733	 52.33	+1	692891..694201	+	436	15601503	-	VCA0748	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
734	 49.68	0	694198..695439	+	413	15601504	glpC	VCA0749	-	sn-glycerol-3-phosphate dehydrogenase subunit C
735	 38.89	-1	695487..695612	-	41	15601505	-	VCA0750	-	hypothetical protein
736	 51.06	+1	695581..696669	-	362	161582040	-	VCA0751	-	3-oxoacyl-(acyl carrier protein) synthase III
737	 47.82	0	696838..697272	+	144	15601507	-	VCA0752	-	thioredoxin 2
738	 51.08	+1	697461..698615	+	384	15601508	-	VCA0753	-	hypothetical protein
739	 47.89	0	698700..699530	+	276	15601509	-	VCA0754	-	lipase-related protein
740	 44.57	0	699722..700264	+	180	15601510	-	VCA0755	-	hypothetical protein
741	 46.69	0	700580..701545	+	321	15601511	-	VCA0756	-	LysR family transcriptional regulator
742	 51.72	+1	701598..702266	-	222	15601512	artM	VCA0757	-	arginine transporter permease subunit ArtM
743	 50.14	0	702263..702952	-	229	15601513	-	VCA0758	-	arginine transporter permease subunit ArtQ
744	 48.36	0	702954..703685	-	243	15601514	-	VCA0759	-	arginine ABC transporter, periplasmic arginine-binding protein
745	 50.21	0	703759..704487	-	242	161582039	artP	VCA0760	-	arginine transporter ATP-binding subunit
746	 49.49	0	704941..705039	+	32	15601516	-	VCA0761	-	hypothetical protein
747	 48.34	0	705080..706525	-	481	15601517	yieM	VCA0762	-	hypothetical protein
748	 47.44	0	706534..708192	-	552	15601518	-	VCA0763	-	hypothetical protein
749	 48.03	0	708502..709059	+	185	15601519	-	VCA0764	-	MutT/nudix family protein
750	 52.13	+1	709044..710075	+	343	15601520	-	VCA0765	-	L-allo-threonine aldolase
751	 48.75	0	710072..710512	+	146	15601521	-	VCA0766	-	cytochrome c554
752	 47.07	0	710616..711350	+	244	15601522	-	VCA0767	-	TetR family transcriptional regulator
753	 49.96	0	711450..712718	-	422	15601523	-	VCA0768	-	DEAD-box ATP dependent DNA helicase
754	 49.83	0	712755..713336	-	193	15601524	-	VCA0769	-	hypothetical protein
755	 45.83	0	713373..713492	-	39	15601525	-	VCA0770	-	hypothetical protein
756	 46.08	0	713520..713621	-	33	15601526	-	VCA0771	-	hypothetical protein
757	 49.38	0	713856..715058	+	400	15601527	-	VCA0772	-	tyrosine-specific transport protein
758	 50.63	0	715286..716707	+	473	15601528	-	VCA0773	-	methyl-accepting chemotaxis protein
759	 48.77	0	716793..717809	-	338	15601529	-	VCA0774	-	UDP-glucose 4-epimerase
760	 43.84	0	717822..718040	-	72	15601530	-	VCA0775	-	hypothetical protein
761	 50.61	0	718129..718869	+	246	15601531	-	VCA0776	-	hypothetical protein
762	 52.18	+1	718873..719583	+	236	15601532	-	VCA0777	-	hypothetical protein
763	 54.30	+1	719693..720622	+	309	15601533	-	VCA0778	-	hypothetical protein
764	 53.07	+1	720674..722107	-	477	15601534	-	VCA0779	-	hypothetical protein
765	 47.56	0	722216..723382	-	388	15601535	-	VCA0780	-	UDP-glucose 6-dehydrogenase
766	 51.80	+1	723771..726218	-	815	15601536	-	VCA0781	-	hypothetical protein
767	 50.59	0	726215..726892	-	225	15601537	-	VCA0782	-	ABC transporter, ATP-binding protein
768	 47.99	0	726843..727490	+	215	15601538	-	VCA0783	-	arylesterase
769	 48.06	0	727580..728788	+	402	15601539	-	VCA0784	-	trans-2-enoyl-CoA reductase
770	 49.15	0	728957..730840	+	627	15601540	-	VCA0785	-	GGDEF family protein
771	 49.82	0	730966..732615	+	549	15601541	-	VCA0786	-	hypothetical protein
772	 47.62	0	732612..732716	-	34	15601542	-	VCA0787	-	hypothetical protein
773	 46.98	0	732773..733402	-	209	15601543	-	VCA0788	-	DnaJ-related protein
774	 49.32	0	733638..734225	+	195	15601544	-	VCA0789	-	hypothetical protein
775	 39.57	-1	734399..735778	+	459	15601545	-	VCA0790	-	hypothetical protein
776	 44.44	0	735771..736643	-	290	15601546	-	VCA0791	-	transposase OrfAB, subunit B
777	 43.19	0	736640..736984	-	114	15601547	-	VCA0792	-	transposase OrfAB, subunit A
778	 41.82	0	737061..737543	+	160	15601548	-	VCA0793	-	hypothetical protein
779	 40.82	-1	737544..737837	+	97	15601549	-	VCA0794	-	hypothetical protein
780	 40.33	-1	738052..739008	+	318	15601550	-	VCA0795	-	resolvase, putative
781	 32.32	-2	739095..739193	+	32	15601551	-	VCA0796	-	hypothetical protein
782	 45.10	0	739159..739464	-	101	15601552	-	VCA0797	-	hypothetical protein
783	 49.19	0	739663..740343	-	226	15601553	-	VCA0798	-	CbbY family protein
784	 48.13	0	740482..740988	-	168	15601554	-	VCA0799	-	hypothetical protein
785	 44.31	0	741310..741792	+	160	15601555	-	VCA0800	-	creA protein
45.97	MEAN

4.79	STD DEV
