IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

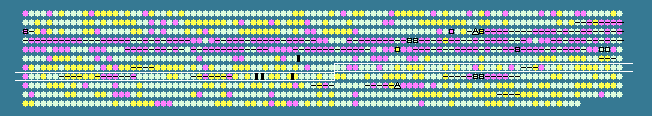

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
653	 49.06	0	600714..602093	+	459	15601423	dcuC	VCA0665	-	C4-dicarboxylate transporter DcuC
654	 48.99	0	602191..603621	-	476	15601424	-	VCA0666	-	L-serine dehydratase 1
655	 42.09	0	603572..605113	-	513	15601425	-	VCA0667	-	sodium/solute symporter
656	 37.04	-1	605152..605259	-	35	15601426	-	VCA0668	-	hypothetical protein
657	 46.84	0	605452..606747	+	431	15601427	-	VCA0669	-	sugar transporter family protein
658	 43.59	0	606706..606861	-	51	15601428	-	VCA0670	-	hypothetical protein
659	 44.84	0	606844..607860	+	338	15601429	-	VCA0671	-	hypothetical protein
660	 34.23	-2	607960..608070	+	36	15601430	-	VCA0672	-	hypothetical protein
661	 43.70	0	608100..609131	+	343	15601431	-	VCA0673	-	LacI family transcription regulator
662	 47.60	0	609797..611548	-	583	15601432	-	VCA0675	-	nitrate/nitrite sensor protein NarQ
663	 53.65	+1	611706..612212	+	168	15601433	-	VCA0676	-	iron-sulfur cluster-binding protein NapF
664	 45.32	0	612218..612559	+	113	15601434	-	VCA0677	-	napD protein
665	 51.49	+1	612556..615045	+	829	15601435	-	VCA0678	-	nitrate reductase
666	 50.58	0	615052..615567	+	171	15601436	-	VCA0679	-	periplasmic nitrate reductase, cytochrome c-type protein
667	 50.69	0	615585..616160	+	191	15601437	-	VCA0680	-	periplasmic nitrate reductase, cytochrome c-type protein
668	 47.76	0	616344..617639	-	431	15601438	-	VCA0681	-	hypothetical protein
669	 47.05	0	617798..618424	+	208	15601439	-	VCA0682	-	transcriptional regulator UhpA
670	 48.80	0	618427..620010	+	527	15601440	-	VCA0683	-	sensor protein UhpB
671	 49.66	0	620078..621388	+	436	15601441	-	VCA0684	-	regulatory protein UhpC
672	 48.50	0	621501..622535	+	344	15601442	-	VCA0685	-	iron(III) ABC transporter, periplasmic iron-compound-binding protein
673	 49.55	0	622639..624741	+	700	15601443	-	VCA0686	-	iron(III) ABC transporter, permease protein
674	 47.16	0	624753..625808	+	351	15601444	fbpC	VCA0687	-	ferric transporter ATP-binding subunit
675	 46.85	0	625894..627669	-	591	15601445	-	VCA0688	-	polyhydroxyalkanoic acid synthase
676	 41.09	-1	627727..628074	-	115	15601446	-	VCA0689	-	hypothetical protein
677	 49.75	0	628104..629309	-	401	15601447	-	VCA0690	-	acetyl-CoA acetyltransferase
678	 46.69	0	629322..630062	-	246	15601448	-	VCA0691	-	acetoacetyl-CoA reductase
679	 47.96	0	631637..633475	-	612	15601449	secD	VCA0693	-	preprotein translocase subunit SecD
680	 49.78	0	633547..634002	-	151	15601450	-	VCA0694	-	hypothetical protein
681	 46.58	0	634079..634750	-	223	15601451	-	VCA0695	-	hypothetical protein
682	 31.53	-2	634785..634895	-	36	15601452	-	VCA0696	-	hypothetical protein
683	 45.26	0	635108..637036	+	642	15601453	-	VCA0697	-	sensory box/GGDEF family protein
684	 43.01	0	637033..637125	+	30	15601454	-	VCA0698	-	hypothetical protein
685	 47.22	0	637339..638562	+	407	15601455	glgC	VCA0699	-	glucose-1-phosphate adenylyltransferase
686	 51.08	+1	638828..641983	-	1051	15601456	-	VCA0700	-	chitodextrinase
687	 34.09	-2	642017..642148	-	43	15601457	-	VCA0701	-	hypothetical protein
688	 49.09	0	642655..643803	+	382	15601458	-	VCA0702	-	iron-containing alcohol dehydrogenase
689	 48.70	0	643882..644571	+	229	15601459	-	VCA0703	-	hypothetical protein
690	 49.77	0	644568..645887	-	439	15601460	-	VCA0704	-	phosphoglycerate transport system transcriptional regulatory protein PgtA
691	 48.78	0	645805..648174	-	789	15601461	-	VCA0705	-	phosphoglycerate transport regulatory protein PgtB, putative
692	 49.43	0	648171..649493	-	440	15601462	-	VCA0706	-	phosphoglycerate transport regulatory protein PgtC, putative
693	 50.51	0	649740..651119	+	459	15601463	-	VCA0707	-	regulatory protein UhpC, putative
694	 51.68	+1	651241..652701	+	486	15601464	-	VCA0708	-	pyruvate kinase
695	 50.87	+1	652820..655882	-	1020	15601465	-	VCA0709	-	sensor protein TorS
696	 50.95	+1	655805..656854	+	349	15601466	-	VCA0710	-	periplasmic sensory protein associated with the TorRS two-component regulatory system
697	 49.12	0	656909..657364	+	151	15601467	mgsA	VCA0711	-	methylglyoxal synthase
698	 49.60	0	657433..658053	-	206	15601468	-	VCA0712	-	pyrazinamidase/nicotinamidase
699	 45.30	0	658175..658291	-	38	15601469	-	VCA0713	-	hypothetical protein
700	 47.06	0	658358..658714	+	118	15601470	-	VCA0714	-	diacylglycerol kinase
701	 40.25	-1	658854..659171	+	105	15601471	-	VCA0715	-	hypothetical protein
702	 46.00	0	659164..659700	+	178	15601472	-	VCA0716	-	hypothetical protein
703	 48.06	0	659756..661819	-	687	161582042	helD	VCA0717	-	DNA helicase IV
704	 51.01	+1	662006..664183	+	725	15601474	-	VCA0718	-	hypothetical protein
705	 48.63	0	664193..665140	-	315	15601475	-	VCA0719	-	sensor histide kinase
706	 46.18	0	665137..665712	-	191	15601476	-	VCA0720	-	guanylate cyclase-related protein
707	 48.08	0	665840..666151	+	103	15601477	-	VCA0721	-	hypothetical protein
708	 50.17	0	666208..666498	+	96	15601478	-	VCA0722	-	hypothetical protein
709	 54.54	+1	666528..667838	+	436	15601479	-	VCA0723	-	3-hydroxy-3-methylglutaryl CoA reductase
710	 54.04	+1	667937..669037	-	366	15601480	modC	VCA0724	-	molybdate transporter ATP-binding protein
711	 54.36	+1	669051..669749	-	232	15601481	modB	VCA0725	-	molybdate ABC transporter permease protein
712	 56.47	+2	669750..670514	-	254	15601482	-	VCA0726	-	molybdenum ABC transporter, periplasmic molybdenum-binding protein
713	 53.33	+1	670520..671974	-	484	15601483	-	VCA0727	-	cobyric acid synthase
714	 41.94	0	672577..674748	-	723	15601484	-	VCA0728	-	hypothetical protein
715	 42.31	0	674741..675364	-	207	15601485	-	VCA0729	-	hypothetical protein
716	 42.13	0	675367..677196	-	609	15601486	-	VCA0730	-	hypothetical protein
717	 45.42	0	677895..678200	-	101	15601487	-	VCA0731	-	hypothetical protein
718	 48.62	0	678403..678801	+	132	15601488	-	VCA0732	-	hypothetical protein
719	 39.87	-1	678842..678994	+	50	15601489	-	VCA0733	-	hypothetical protein
720	 47.22	0	679032..679571	+	179	15601490	-	VCA0734	-	hypothetical protein
721	 44.30	0	679770..680480	+	236	15601491	-	VCA0735	-	hypothetical protein
722	 47.16	0	680472..683045	-	857	15601492	-	VCA0736	-	sensor histidine kinase LuxQ
723	 46.48	0	683063..684157	-	364	15601493	-	VCA0737	-	luxP protein
724	 48.66	0	684369..685529	-	386	161582041	-	VCA0738	-	hypothetical protein
725	 50.33	0	685631..685936	-	101	15601495	-	VCA0739	-	hypothetical protein
726	 50.69	0	685953..686603	-	216	15601496	-	VCA0740	-	hypothetical protein
727	 43.30	0	687029..687349	+	106	15601497	-	VCA0741	-	hypothetical protein
728	 42.67	0	687349..687498	+	49	15601498	-	VCA0742	-	hypothetical protein
729	 44.84	0	687762..688013	+	83	15601499	-	VCA0743	-	hypothetical protein
730	 51.91	+1	688094..689611	-	505	15601500	glpK	VCA0744	-	glycerol kinase
731	 35.19	-2	690934..691095	-	53	15601501	-	VCA0746	-	hypothetical protein
732	 52.19	+1	691251..692894	+	547	15601502	glpA	VCA0747	-	sn-glycerol-3-phosphate dehydrogenase subunit A
733	 52.33	+1	692891..694201	+	436	15601503	-	VCA0748	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
734	 49.68	0	694198..695439	+	413	15601504	glpC	VCA0749	-	sn-glycerol-3-phosphate dehydrogenase subunit C
735	 38.89	-1	695487..695612	-	41	15601505	-	VCA0750	-	hypothetical protein
736	 51.06	+1	695581..696669	-	362	161582040	-	VCA0751	-	3-oxoacyl-(acyl carrier protein) synthase III
737	 47.82	0	696838..697272	+	144	15601507	-	VCA0752	-	thioredoxin 2
738	 51.08	+1	697461..698615	+	384	15601508	-	VCA0753	-	hypothetical protein
739	 47.89	0	698700..699530	+	276	15601509	-	VCA0754	-	lipase-related protein
740	 44.57	0	699722..700264	+	180	15601510	-	VCA0755	-	hypothetical protein
741	 46.69	0	700580..701545	+	321	15601511	-	VCA0756	-	LysR family transcriptional regulator
742	 51.72	+1	701598..702266	-	222	15601512	artM	VCA0757	-	arginine transporter permease subunit ArtM
743	 50.14	0	702263..702952	-	229	15601513	-	VCA0758	-	arginine transporter permease subunit ArtQ
744	 48.36	0	702954..703685	-	243	15601514	-	VCA0759	-	arginine ABC transporter, periplasmic arginine-binding protein
745	 50.21	0	703759..704487	-	242	161582039	artP	VCA0760	-	arginine transporter ATP-binding subunit
746	 49.49	0	704941..705039	+	32	15601516	-	VCA0761	-	hypothetical protein
747	 48.34	0	705080..706525	-	481	15601517	yieM	VCA0762	-	hypothetical protein
748	 47.44	0	706534..708192	-	552	15601518	-	VCA0763	-	hypothetical protein
749	 48.03	0	708502..709059	+	185	15601519	-	VCA0764	-	MutT/nudix family protein
750	 52.13	+1	709044..710075	+	343	15601520	-	VCA0765	-	L-allo-threonine aldolase
751	 48.75	0	710072..710512	+	146	15601521	-	VCA0766	-	cytochrome c554
752	 47.07	0	710616..711350	+	244	15601522	-	VCA0767	-	TetR family transcriptional regulator
45.97	MEAN

4.79	STD DEV
