IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

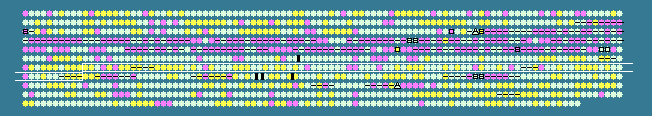

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
611	 49.74	0	557117..558067	+	316	15601381	-	VCA0623	-	transaldolase B
612	 52.86	+1	558116..560158	+	680	15601382	-	VCA0624	-	transketolase
613	 47.52	0	560275..562629	-	784	15601383	-	VCA0625	-	TonB receptor-related protein
614	 39.05	-1	562599..562703	+	34	15601384	-	VCA0626	-	hypothetical protein
615	 50.88	+1	562843..563355	+	170	15601385	-	VCA0627	-	rRNA methylase, putative
616	 32.41	-2	563793..565967	+	724	15601386	-	VCA0628	-	SecA-related protein
617	 52.64	+1	566238..567278	-	346	15601387	-	VCA0629	-	hypothetical protein
618	 51.23	+1	567291..568262	-	323	15601388	-	VCA0630	-	D-3-phosphoglycerate dehydrogenase-related protein
619	 50.39	0	568278..568793	-	171	15601389	-	VCA0631	-	hypothetical protein
620	 51.78	+1	568826..569275	-	149	15601390	-	VCA0632	-	MutT/nudix family protein
621	 49.29	0	569315..569665	-	116	15601391	-	VCA0633	-	glpM protein
622	 52.20	+1	569857..570582	+	241	15601392	-	VCA0634	-	hypothetical protein
623	 51.38	+1	570592..571533	+	313	15601393	-	VCA0635	-	LysR family transcriptional regulator
624	 49.48	0	571530..571820	-	96	15601394	-	VCA0636	-	hypothetical protein
625	 49.69	0	571824..572477	-	217	15601395	-	VCA0637	-	dihydropteridine reductase
626	 51.53	+1	572693..575896	-	1067	15601396	-	VCA0638	-	AcrB/AcrD/AcrF family transporter
627	 52.34	+1	575853..576857	-	334	15601397	-	VCA0639	-	AcrA/AcrE family protein
628	 47.53	0	576967..577431	-	154	15601398	-	VCA0640	-	hypothetical protein
629	 51.19	+1	577436..577855	-	139	15601399	-	VCA0641	-	hypothetical protein
630	 47.80	0	577872..578189	-	105	15601400	-	VCA0642	-	ArsR family transcriptional regulator
631	 40.45	-1	578263..578529	+	88	15601401	-	VCA0643	-	hypothetical protein
632	 50.47	0	578595..580298	+	567	15601402	-	VCA0644	-	NADH oxidase, putative
633	 45.14	0	580391..580771	-	126	15601403	-	VCA0645	-	hypothetical protein
634	 49.23	0	580887..582704	-	605	15601404	-	VCA0646	-	hemolysin, putative
635	 47.87	0	582629..583075	-	148	15601405	-	VCA0647	-	hypothetical protein
636	 50.07	0	583086..583832	-	248	15601406	-	VCA0648	-	hypothetical protein
637	 50.09	0	583832..584374	-	180	15601407	-	VCA0649	-	hypothetical protein
638	 51.45	+1	584463..585599	-	378	15601408	-	VCA0650	-	hypothetical protein
639	 48.80	0	585596..586177	-	193	15601409	-	VCA0651	-	hypothetical protein
640	 46.80	0	586449..586886	+	145	15601410	-	VCA0652	-	hypothetical protein
641	 49.58	0	587052..588491	-	479	15601411	-	VCA0653	-	PTS system, sucrose-specific IIBC component
642	 47.03	0	588792..589784	+	330	15601412	-	VCA0654	-	sucrose operon repressor ScrR, putative
643	 50.58	0	589860..591506	+	548	15601413	-	VCA0655	-	sucrose-6-phosphate dehydrogenase
644	 50.62	0	591628..592599	-	323	15601414	-	VCA0656	-	aminoimidazole riboside kinase
645	 48.41	0	592946..594484	+	512	15601415	glpD	VCA0657	-	glycerol-3-phosphate dehydrogenase
646	 50.03	0	594586..596196	-	536	15601416	-	VCA0658	-	methyl-accepting chemotaxis protein
647	 49.04	0	596382..597005	-	207	15601417	-	VCA0659	-	protein F-related protein
648	 34.15	-2	597006..597128	-	40	15601418	-	VCA0660	-	hypothetical protein
649	 47.26	0	597218..597691	+	157	15601419	-	VCA0661	-	peptidyl-prolyl cis-trans isomerase-related protein
650	 48.36	0	597772..598410	-	212	15601420	-	VCA0662	-	CbbY family protein
651	 46.15	0	598557..600320	+	587	15601421	-	VCA0663	-	methyl-accepting chemotaxis protein
652	 48.68	0	600261..600449	-	62	15601422	-	VCA0664	-	hypothetical protein
653	 49.06	0	600714..602093	+	459	15601423	dcuC	VCA0665	-	C4-dicarboxylate transporter DcuC
654	 48.99	0	602191..603621	-	476	15601424	-	VCA0666	-	L-serine dehydratase 1
655	 42.09	0	603572..605113	-	513	15601425	-	VCA0667	-	sodium/solute symporter
656	 37.04	-1	605152..605259	-	35	15601426	-	VCA0668	-	hypothetical protein
657	 46.84	0	605452..606747	+	431	15601427	-	VCA0669	-	sugar transporter family protein
658	 43.59	0	606706..606861	-	51	15601428	-	VCA0670	-	hypothetical protein
659	 44.84	0	606844..607860	+	338	15601429	-	VCA0671	-	hypothetical protein
660	 34.23	-2	607960..608070	+	36	15601430	-	VCA0672	-	hypothetical protein
661	 43.70	0	608100..609131	+	343	15601431	-	VCA0673	-	LacI family transcription regulator
662	 47.60	0	609797..611548	-	583	15601432	-	VCA0675	-	nitrate/nitrite sensor protein NarQ
663	 53.65	+1	611706..612212	+	168	15601433	-	VCA0676	-	iron-sulfur cluster-binding protein NapF
664	 45.32	0	612218..612559	+	113	15601434	-	VCA0677	-	napD protein
665	 51.49	+1	612556..615045	+	829	15601435	-	VCA0678	-	nitrate reductase
666	 50.58	0	615052..615567	+	171	15601436	-	VCA0679	-	periplasmic nitrate reductase, cytochrome c-type protein
667	 50.69	0	615585..616160	+	191	15601437	-	VCA0680	-	periplasmic nitrate reductase, cytochrome c-type protein
668	 47.76	0	616344..617639	-	431	15601438	-	VCA0681	-	hypothetical protein
669	 47.05	0	617798..618424	+	208	15601439	-	VCA0682	-	transcriptional regulator UhpA
670	 48.80	0	618427..620010	+	527	15601440	-	VCA0683	-	sensor protein UhpB
671	 49.66	0	620078..621388	+	436	15601441	-	VCA0684	-	regulatory protein UhpC
672	 48.50	0	621501..622535	+	344	15601442	-	VCA0685	-	iron(III) ABC transporter, periplasmic iron-compound-binding protein
673	 49.55	0	622639..624741	+	700	15601443	-	VCA0686	-	iron(III) ABC transporter, permease protein
674	 47.16	0	624753..625808	+	351	15601444	fbpC	VCA0687	-	ferric transporter ATP-binding subunit
675	 46.85	0	625894..627669	-	591	15601445	-	VCA0688	-	polyhydroxyalkanoic acid synthase
676	 41.09	-1	627727..628074	-	115	15601446	-	VCA0689	-	hypothetical protein
677	 49.75	0	628104..629309	-	401	15601447	-	VCA0690	-	acetyl-CoA acetyltransferase
678	 46.69	0	629322..630062	-	246	15601448	-	VCA0691	-	acetoacetyl-CoA reductase
679	 47.96	0	631637..633475	-	612	15601449	secD	VCA0693	-	preprotein translocase subunit SecD
680	 49.78	0	633547..634002	-	151	15601450	-	VCA0694	-	hypothetical protein
681	 46.58	0	634079..634750	-	223	15601451	-	VCA0695	-	hypothetical protein
682	 31.53	-2	634785..634895	-	36	15601452	-	VCA0696	-	hypothetical protein
683	 45.26	0	635108..637036	+	642	15601453	-	VCA0697	-	sensory box/GGDEF family protein
684	 43.01	0	637033..637125	+	30	15601454	-	VCA0698	-	hypothetical protein
685	 47.22	0	637339..638562	+	407	15601455	glgC	VCA0699	-	glucose-1-phosphate adenylyltransferase
686	 51.08	+1	638828..641983	-	1051	15601456	-	VCA0700	-	chitodextrinase
687	 34.09	-2	642017..642148	-	43	15601457	-	VCA0701	-	hypothetical protein
688	 49.09	0	642655..643803	+	382	15601458	-	VCA0702	-	iron-containing alcohol dehydrogenase
689	 48.70	0	643882..644571	+	229	15601459	-	VCA0703	-	hypothetical protein
690	 49.77	0	644568..645887	-	439	15601460	-	VCA0704	-	phosphoglycerate transport system transcriptional regulatory protein PgtA
691	 48.78	0	645805..648174	-	789	15601461	-	VCA0705	-	phosphoglycerate transport regulatory protein PgtB, putative
692	 49.43	0	648171..649493	-	440	15601462	-	VCA0706	-	phosphoglycerate transport regulatory protein PgtC, putative
693	 50.51	0	649740..651119	+	459	15601463	-	VCA0707	-	regulatory protein UhpC, putative
694	 51.68	+1	651241..652701	+	486	15601464	-	VCA0708	-	pyruvate kinase
695	 50.87	+1	652820..655882	-	1020	15601465	-	VCA0709	-	sensor protein TorS
696	 50.95	+1	655805..656854	+	349	15601466	-	VCA0710	-	periplasmic sensory protein associated with the TorRS two-component regulatory system
697	 49.12	0	656909..657364	+	151	15601467	mgsA	VCA0711	-	methylglyoxal synthase
698	 49.60	0	657433..658053	-	206	15601468	-	VCA0712	-	pyrazinamidase/nicotinamidase
699	 45.30	0	658175..658291	-	38	15601469	-	VCA0713	-	hypothetical protein
700	 47.06	0	658358..658714	+	118	15601470	-	VCA0714	-	diacylglycerol kinase
701	 40.25	-1	658854..659171	+	105	15601471	-	VCA0715	-	hypothetical protein
702	 46.00	0	659164..659700	+	178	15601472	-	VCA0716	-	hypothetical protein
703	 48.06	0	659756..661819	-	687	161582042	helD	VCA0717	-	DNA helicase IV
704	 51.01	+1	662006..664183	+	725	15601474	-	VCA0718	-	hypothetical protein
705	 48.63	0	664193..665140	-	315	15601475	-	VCA0719	-	sensor histide kinase
706	 46.18	0	665137..665712	-	191	15601476	-	VCA0720	-	guanylate cyclase-related protein
707	 48.08	0	665840..666151	+	103	15601477	-	VCA0721	-	hypothetical protein
708	 50.17	0	666208..666498	+	96	15601478	-	VCA0722	-	hypothetical protein
709	 54.54	+1	666528..667838	+	436	15601479	-	VCA0723	-	3-hydroxy-3-methylglutaryl CoA reductase
710	 54.04	+1	667937..669037	-	366	15601480	modC	VCA0724	-	molybdate transporter ATP-binding protein
45.97	MEAN

4.79	STD DEV
