IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

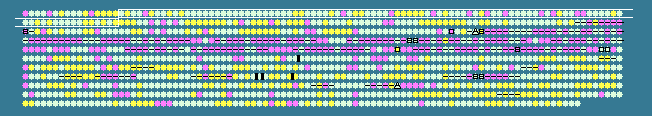

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
17	 49.13	0	19781..20299	+	172	15600788	-	VCA0017	-	hcp protein
18	 53.14	+1	20427..22511	+	694	15600789	-	VCA0018	-	vgrG protein
19	 46.73	0	22511..23398	+	295	15600790	-	VCA0019	-	hypothetical protein
20	 46.38	0	23395..26652	+	1085	15600791	-	VCA0020	-	hypothetical protein
21	 41.43	0	26653..27381	+	242	15600792	-	VCA0021	-	hypothetical protein
22	 50.00	0	27484..27885	+	133	15600793	-	VCA0022	-	glutathione S-transfersae-related protein
23	 46.88	0	28058..29098	-	346	15600794	-	VCA0023	-	hypothetical protein
24	 47.53	0	29214..30206	-	330	15600795	-	VCA0024	-	hypothetical protein
25	 49.46	0	30484..31872	+	462	15600796	-	VCA0025	-	NadC family protein
26	 45.60	0	31968..32603	-	211	15600797	-	VCA0026	-	hypothetical protein
27	 49.53	0	33035..35584	+	849	15600798	-	VCA0027	-	chitinase
28	 45.10	0	35606..35860	-	84	15600799	-	VCA0028	-	hypothetical protein
29	 47.89	0	35950..36684	+	244	15600800	-	VCA0029	-	transcriptional regulator, putative
30	 46.14	0	36685..37527	+	280	15600801	-	VCA0030	-	hypothetical protein
31	 45.53	0	37648..39213	-	521	15600802	-	VCA0031	-	methyl-accepting chemotaxis protein
32	 44.21	0	39311..39871	-	186	15600803	-	VCA0032	-	hypothetical protein
33	 48.53	0	40280..42154	+	624	15600804	-	VCA0033	-	hypothetical protein
34	 46.85	0	42214..43086	-	290	15600805	-	VCA0034	-	hypothetical protein
35	 47.52	0	43202..44026	+	274	15600806	-	VCA0035	-	phosphatidylglycerophosphatase B, putative
36	 48.85	0	44080..45297	-	405	15600807	-	VCA0036	-	serine/threonine transporter SstT
37	 47.24	0	45638..46090	-	150	15600808	-	VCA0037	-	hypothetical protein
38	 45.70	0	46104..46685	-	193	15600809	-	VCA0038	-	Sco1-related protein
39	 49.41	0	46682..47104	-	140	15600810	-	VCA0039	-	hypothetical protein
40	 48.11	0	47303..48229	-	308	15600811	-	VCA0040	-	hypothetical protein
41	 46.13	0	48768..49994	+	408	15600812	-	VCA0041	-	sodium/glutamate symporter
42	 46.64	0	50073..50831	-	252	15600813	-	VCA0042	-	hypothetical protein
43	 48.42	0	50963..51247	+	94	15600814	-	VCA0043	-	hypothetical protein
44	 48.95	0	51480..53624	+	714	15600815	-	VCA0044	-	hypothetical protein
45	 48.44	0	53551..54735	+	394	15600816	-	VCA0045	-	protease-related protein
46	 50.41	0	54727..54849	-	40	15600817	-	VCA0046	-	hypothetical protein
47	 49.51	0	54930..56060	-	376	15600818	-	VCA0047	-	hypothetical protein
48	 43.33	0	56060..56449	-	129	15600819	-	VCA0048	-	hypothetical protein
49	 47.05	0	56584..57465	-	293	15600820	-	VCA0049	-	GGDEF family protein
50	 49.38	0	57462..58190	-	242	15600821	-	VCA0050	-	hypothetical protein
51	 48.69	0	58144..59667	-	507	15600822	-	VCA0051	-	hypothetical protein
52	 49.84	0	59786..61348	-	520	15600823	-	VCA0052	-	hypothetical protein
53	 47.68	0	61320..62030	-	236	161582046	-	VCA0053	-	purine nucleoside phosphorylase
54	 35.56	-2	62116..62295	-	59	15600825	-	VCA0054	-	hypothetical protein
55	 47.88	0	62337..63305	+	322	15600826	-	VCA0055	-	hypothetical protein
56	 51.00	+1	63295..64092	+	265	15600827	-	VCA0056	-	MerR family transcriptional regulator
57	 50.78	+1	64102..65511	+	469	15600828	-	VCA0057	-	deoxyribodipyrimidine photolyase
58	 47.88	0	65520..66440	+	306	15600829	-	VCA0058	-	hypothetical protein
59	 45.00	0	66526..66885	-	119	15600830	-	VCA0059	-	major outer membrane lipoprotein
60	 44.07	0	67082..67258	+	58	15600831	-	VCA0060	-	hypothetical protein
61	 47.98	0	67304..68662	+	452	15600832	-	VCA0061	-	DEAD-box ATP dependent DNA helicase
62	 42.34	0	68659..68769	-	36	15600833	-	VCA0062	-	hypothetical protein
63	 51.05	+1	68875..70872	+	665	15600834	-	VCA0063	-	protease II
64	 50.56	0	70872..73013	+	713	15600835	-	VCA0064	-	TonB system receptor, putative
65	 50.33	0	73023..75329	+	768	15600836	-	VCA0065	-	hypothetical protein
66	 50.59	0	75326..76768	+	480	15600837	-	VCA0066	-	hypothetical protein
67	 52.41	+1	76765..77325	+	186	15600838	-	VCA0067	-	hypothetical protein
68	 48.48	0	77459..79102	-	547	15600839	-	VCA0068	-	methyl-accepting chemotaxis protein
69	 38.38	-1	79249..79347	+	32	15600840	-	VCA0069	-	hypothetical protein
70	 46.44	0	79395..80294	+	299	15600841	-	VCA0070	-	phosphate ABC transporter, periplasmic phosphate-binding protein
71	 50.20	0	80309..81292	+	327	15600842	-	VCA0071	-	phosphate ABC transporter, permease protein
72	 48.16	0	81292..82161	+	289	15600843	-	VCA0072	-	phosphate ABC transporter, permease protein
73	 47.62	0	82190..82945	+	251	15600844	-	VCA0073	-	phosphate ABC transporter, ATP-binding protein
74	 45.14	0	82992..84092	-	366	15600845	-	VCA0074	-	GGDEF family protein
75	 41.88	0	84089..84556	-	155	15600846	-	VCA0075	-	hypothetical protein
76	 48.95	0	84847..86223	-	458	15600847	-	VCA0076	-	hypothetical protein
77	 49.58	0	86658..88319	-	553	15600848	-	VCA0077	-	sulfate permease family protein
78	 40.84	-1	88624..88956	+	110	15600849	-	VCA0078	-	hypothetical protein
79	 47.80	0	89148..90440	+	430	15600850	-	VCA0079	-	hypothetical protein
80	 42.65	0	90558..92381	-	607	15600851	-	VCA0080	-	GGDEF family protein
81	 36.19	-2	92442..92546	+	34	15600852	-	VCA0081	-	hypothetical protein
82	 48.87	0	92604..93491	-	295	15600853	-	VCA0082	-	LysR family transcriptional regulator
83	 48.84	0	93581..94792	+	403	15600854	-	VCA0083	-	multidrug resistance protein D
84	 47.43	0	94834..95280	-	148	15600855	-	VCA0084	-	soxR protein
85	 46.63	0	95459..96661	+	400	15600856	-	VCA0085	-	hypothetical protein
86	 45.67	0	96762..97142	+	126	15600857	-	VCA0086	-	hypothetical protein
87	 38.18	-1	97216..97380	+	54	15600858	-	VCA0087	-	hypothetical protein
88	 49.41	0	97546..98820	-	424	15600859	-	VCA0088	-	proton/glutamate symporter
89	 37.98	-1	98848..98976	+	42	15600860	-	VCA0089	-	hypothetical protein
90	 51.34	+1	99076..99969	-	297	15600861	-	VCA0090	-	hypothetical protein
91	 46.13	0	100199..100495	+	98	15600862	-	VCA0091	-	hypothetical protein
92	 45.40	0	100666..101295	-	209	15600863	-	VCA0092	-	hypothetical protein
93	 41.38	0	101395..101568	+	57	15600864	-	VCA0093	-	hypothetical protein
94	 42.02	0	101796..102152	+	118	15600865	-	VCA0094	-	hypothetical protein
95	 47.07	0	102421..103119	+	232	15600866	-	VCA0095	-	hypothetical protein
96	 46.41	0	103162..104385	+	407	15600867	-	VCA0096	-	hypothetical protein
97	 49.09	0	104398..105114	-	238	15600868	-	VCA0097	-	hypothetical protein
98	 47.78	0	105513..106820	+	435	15600869	-	VCA0098	-	nicotinate phosphoribosyltransferase
99	 49.76	0	106851..107891	+	346	15600870	-	VCA0099	-	Gfo/Idh/MocA family oxidoreductase
100	 49.19	0	107928..108299	-	123	15600871	-	VCA0100	-	phage shock protein E
101	 44.51	0	108299..109855	-	518	15600872	-	VCA0101	-	hypothetical protein
102	 48.33	0	110031..110690	-	219	15600873	-	VCA0102	-	CbbY family protein
103	 51.04	+1	110871..112649	+	592	15600874	-	VCA0103	-	sulfate permease family protein
104	 47.45	0	112691..113356	-	221	15600875	-	VCA0104	-	ribosomal large subunit pseudouridine synthase A
105	 54.74	+1	115142..115426	+	94	15600876	-	VCA0105	-	hypothetical protein
106	 46.00	0	115341..116414	+	357	15600877	-	VCA0106	-	hypothetical protein
107	 47.73	0	116846..117352	+	168	15600878	-	VCA0107	-	hypothetical protein
108	 47.19	0	117393..118871	+	492	15600879	-	VCA0108	-	hypothetical protein
109	 47.49	0	118874..119311	+	145	15600880	-	VCA0109	-	hypothetical protein
110	 48.02	0	119317..121086	+	589	15600881	-	VCA0110	-	hypothetical protein
111	 51.33	+1	121050..122066	+	338	15600882	-	VCA0111	-	hypothetical protein
112	 49.66	0	122069..123556	+	495	15600883	-	VCA0112	-	hypothetical protein
113	 46.75	0	123559..124035	+	158	15600884	-	VCA0113	-	hypothetical protein
114	 52.13	+1	124042..125376	+	444	15600885	-	VCA0114	-	hypothetical protein
115	 48.58	0	125379..126152	+	257	15600886	-	VCA0115	-	hypothetical protein
116	 50.96	+1	126178..128787	+	869	15600887	-	VCA0116	-	clpB protein
45.97	MEAN

4.79	STD DEV
