IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

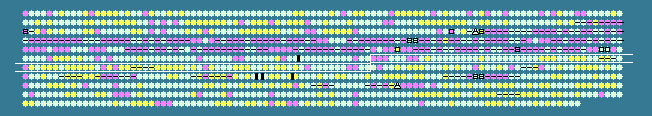

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
559	 41.99	0	508285..508596	-	103	15601329	-	VCA0570	-	translation initiation factor Sui1
560	 41.67	0	508604..508987	-	127	15601330	-	VCA0571	-	hypothetical protein
561	 42.49	0	509159..510163	-	334	15601331	ddl	VCA0572	-	D-alanyl-alanine synthetase A
562	 45.75	0	510314..510901	-	195	15601332	-	VCA0573	-	DamX-related protein
563	 46.20	0	511108..513789	+	893	15601333	-	VCA0574	-	hypothetical protein
564	 48.09	0	513839..514726	-	295	15601334	-	VCA0575	-	LysR family transcriptional regulator
565	 37.77	-1	514944..517040	+	698	15601335	-	VCA0576	-	heme transport protein HutA
566	 38.89	-1	517156..517263	+	35	15601336	-	VCA0577	-	hypothetical protein
567	 48.00	0	517364..519061	-	565	15601337	-	VCA0578	-	hypothetical protein
568	 49.57	0	519142..519375	-	77	15601338	-	VCA0579	-	hypothetical protein
569	 46.09	0	519376..519963	-	195	15601339	-	VCA0580	-	hypothetical protein
570	 48.36	0	519996..520787	+	263	15601340	-	VCA0581	-	hypothetical protein
571	 44.10	0	520899..521381	-	160	15601341	-	VCA0582	-	hypothetical protein
572	 47.58	0	521497..522282	+	261	15601342	-	VCA0583	-	hypothetical protein
573	 48.28	0	522368..523036	-	222	15601343	-	VCA0584	-	glutathione S-transferase, putative
574	 45.10	0	523048..523659	-	203	15601344	-	VCA0585	-	glutathione S-transferase, putative
575	 47.24	0	523761..524357	+	198	15601345	-	VCA0586	-	hypothetical protein
576	 48.85	0	524354..524746	+	130	15601346	-	VCA0587	-	hypothetical protein
577	 50.60	0	524830..526422	-	530	15601347	-	VCA0588	-	peptide ABC transporter, ATP-binding protein, putative
578	 48.73	0	526419..527477	-	352	15601348	-	VCA0589	-	peptide ABC transporter, permease protein, putative
579	 47.37	0	527474..528556	-	360	15601349	-	VCA0590	-	peptide ABC transporter, permease protein, putative
580	 48.53	0	528565..530400	-	611	15601350	-	VCA0591	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
581	 47.24	0	530597..531157	-	186	15601351	-	VCA0592	-	MutT/nudix family protein
582	 45.87	0	531211..532143	-	310	15601352	-	VCA0593	-	hypothetical protein
583	 46.81	0	532353..532634	+	93	15601353	-	VCA0594	-	hemolysin
584	 48.22	0	532716..533669	-	317	15601354	-	VCA0595	-	hypothetical protein
585	 49.29	0	535080..535361	+	93	15601355	-	VCA0597	-	hypothetical protein
586	 47.97	0	535373..535495	-	40	15601356	-	VCA0598	-	hypothetical protein
587	 50.11	0	535461..536366	-	301	15601357	-	VCA0599	-	hypothetical protein
588	 49.93	0	536432..537136	-	234	15601358	-	VCA0600	-	repressor protein PhnR, putative
589	 51.43	+1	537161..538939	-	592	15601359	-	VCA0601	-	ABC transporter, permease protein
590	 48.76	0	538872..540083	-	403	15601360	-	VCA0602	-	ABC transporter, ATP-binding protein
591	 48.53	0	540239..541258	-	339	15601361	-	VCA0603	-	ABC transporter, periplasmic substrate-binding protein
592	 50.45	0	541490..542593	+	367	15601362	-	VCA0604	-	2-aminoethylphosphonate--pyruvate transaminase
593	 50.21	0	542611..544008	+	465	15601363	-	VCA0605	-	4-aminobutyrate aminotransferase
594	 52.82	+1	544015..544830	+	271	15601364	-	VCA0606	-	phosphonoacetaldehyde hydrolase
595	 48.77	0	544995..545402	+	135	15601365	-	VCA0607	-	nucleoside diphosphate kinase regulator
596	 46.96	0	545462..546136	-	224	15601366	-	VCA0608	-	nucleotidase
597	 49.73	0	546331..546513	+	60	15601367	-	VCA0609	-	hypothetical protein
598	 51.15	+1	546518..547168	+	216	15601368	-	VCA0610	-	isoprenoid biosynthesis protein
599	 42.75	0	547305..547442	+	45	15601369	-	VCA0611	-	hypothetical protein
600	 44.28	0	547439..547849	+	136	15601370	mscL	VCA0612	-	large-conductance mechanosensitive channel
601	 41.23	0	547882..547995	+	37	15601371	-	VCA0613	-	hypothetical protein
602	 51.89	+1	548029..549828	+	599	15601372	-	VCA0614	-	formate--tetrahydrofolate ligase
603	 47.09	0	549956..551140	+	394	15601373	-	VCA0615	-	bifunctional methionine sulfoxide reductase A/B protein
604	 50.36	0	551233..551925	-	230	15601374	folE	VCA0616	-	GTP cyclohydrolase I
605	 53.21	+1	551966..553273	+	435	15601375	-	VCA0617	-	molybdopterin biosynthesis MoeA protein
606	 51.90	+1	553276..554040	+	254	15601376	-	VCA0618	-	molybdopterin biosynthesis protein MoeB
607	 43.90	0	554224..554592	+	122	15601377	-	VCA0619	-	hypothetical protein
608	 51.14	+1	554614..555444	+	276	15601378	-	VCA0620	-	thiosulfate sulfurtransferase SseA, putative
609	 51.00	+1	555529..556524	-	331	15601379	-	VCA0621	-	SorC family transcriptional regulator
610	 52.25	+1	556523..556633	+	36	15601380	-	VCA0622	-	hypothetical protein
611	 49.74	0	557117..558067	+	316	15601381	-	VCA0623	-	transaldolase B
612	 52.86	+1	558116..560158	+	680	15601382	-	VCA0624	-	transketolase
613	 47.52	0	560275..562629	-	784	15601383	-	VCA0625	-	TonB receptor-related protein
614	 39.05	-1	562599..562703	+	34	15601384	-	VCA0626	-	hypothetical protein
615	 50.88	+1	562843..563355	+	170	15601385	-	VCA0627	-	rRNA methylase, putative
616	 32.41	-2	563793..565967	+	724	15601386	-	VCA0628	-	SecA-related protein
617	 52.64	+1	566238..567278	-	346	15601387	-	VCA0629	-	hypothetical protein
618	 51.23	+1	567291..568262	-	323	15601388	-	VCA0630	-	D-3-phosphoglycerate dehydrogenase-related protein
619	 50.39	0	568278..568793	-	171	15601389	-	VCA0631	-	hypothetical protein
620	 51.78	+1	568826..569275	-	149	15601390	-	VCA0632	-	MutT/nudix family protein
621	 49.29	0	569315..569665	-	116	15601391	-	VCA0633	-	glpM protein
622	 52.20	+1	569857..570582	+	241	15601392	-	VCA0634	-	hypothetical protein
623	 51.38	+1	570592..571533	+	313	15601393	-	VCA0635	-	LysR family transcriptional regulator
624	 49.48	0	571530..571820	-	96	15601394	-	VCA0636	-	hypothetical protein
625	 49.69	0	571824..572477	-	217	15601395	-	VCA0637	-	dihydropteridine reductase
626	 51.53	+1	572693..575896	-	1067	15601396	-	VCA0638	-	AcrB/AcrD/AcrF family transporter
627	 52.34	+1	575853..576857	-	334	15601397	-	VCA0639	-	AcrA/AcrE family protein
628	 47.53	0	576967..577431	-	154	15601398	-	VCA0640	-	hypothetical protein
629	 51.19	+1	577436..577855	-	139	15601399	-	VCA0641	-	hypothetical protein
630	 47.80	0	577872..578189	-	105	15601400	-	VCA0642	-	ArsR family transcriptional regulator
631	 40.45	-1	578263..578529	+	88	15601401	-	VCA0643	-	hypothetical protein
632	 50.47	0	578595..580298	+	567	15601402	-	VCA0644	-	NADH oxidase, putative
633	 45.14	0	580391..580771	-	126	15601403	-	VCA0645	-	hypothetical protein
634	 49.23	0	580887..582704	-	605	15601404	-	VCA0646	-	hemolysin, putative
635	 47.87	0	582629..583075	-	148	15601405	-	VCA0647	-	hypothetical protein
636	 50.07	0	583086..583832	-	248	15601406	-	VCA0648	-	hypothetical protein
637	 50.09	0	583832..584374	-	180	15601407	-	VCA0649	-	hypothetical protein
638	 51.45	+1	584463..585599	-	378	15601408	-	VCA0650	-	hypothetical protein
639	 48.80	0	585596..586177	-	193	15601409	-	VCA0651	-	hypothetical protein
640	 46.80	0	586449..586886	+	145	15601410	-	VCA0652	-	hypothetical protein
641	 49.58	0	587052..588491	-	479	15601411	-	VCA0653	-	PTS system, sucrose-specific IIBC component
642	 47.03	0	588792..589784	+	330	15601412	-	VCA0654	-	sucrose operon repressor ScrR, putative
643	 50.58	0	589860..591506	+	548	15601413	-	VCA0655	-	sucrose-6-phosphate dehydrogenase
644	 50.62	0	591628..592599	-	323	15601414	-	VCA0656	-	aminoimidazole riboside kinase
645	 48.41	0	592946..594484	+	512	15601415	glpD	VCA0657	-	glycerol-3-phosphate dehydrogenase
646	 50.03	0	594586..596196	-	536	15601416	-	VCA0658	-	methyl-accepting chemotaxis protein
647	 49.04	0	596382..597005	-	207	15601417	-	VCA0659	-	protein F-related protein
648	 34.15	-2	597006..597128	-	40	15601418	-	VCA0660	-	hypothetical protein
649	 47.26	0	597218..597691	+	157	15601419	-	VCA0661	-	peptidyl-prolyl cis-trans isomerase-related protein
650	 48.36	0	597772..598410	-	212	15601420	-	VCA0662	-	CbbY family protein
651	 46.15	0	598557..600320	+	587	15601421	-	VCA0663	-	methyl-accepting chemotaxis protein
652	 48.68	0	600261..600449	-	62	15601422	-	VCA0664	-	hypothetical protein
653	 49.06	0	600714..602093	+	459	15601423	dcuC	VCA0665	-	C4-dicarboxylate transporter DcuC
654	 48.99	0	602191..603621	-	476	15601424	-	VCA0666	-	L-serine dehydratase 1
655	 42.09	0	603572..605113	-	513	15601425	-	VCA0667	-	sodium/solute symporter
656	 37.04	-1	605152..605259	-	35	15601426	-	VCA0668	-	hypothetical protein
657	 46.84	0	605452..606747	+	431	15601427	-	VCA0669	-	sugar transporter family protein
658	 43.59	0	606706..606861	-	51	15601428	-	VCA0670	-	hypothetical protein
45.97	MEAN

4.79	STD DEV
