IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

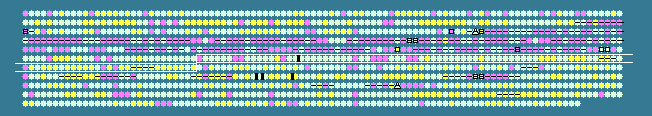

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
530	 33.33	-2	478160..478255	+	31	15601300	-	VCA0541	-	hypothetical protein
531	 46.91	0	478273..479178	+	301	15601301	-	VCA0542	-	LysR family transcriptional regulator
532	 47.37	0	479340..479852	+	170	15601302	-	VCA0543	-	hypothetical protein
533	 49.07	0	480084..481748	-	554	15601303	-	VCA0544	-	hypothetical protein
534	 48.54	0	481978..483720	+	580	15601304	-	VCA0545	-	5`-nucleotidase, putative
535	 47.34	0	484280..485236	+	318	15601305	-	VCA0546	-	hypothetical protein
536	 40.74	-1	485540..485728	+	62	15601306	-	VCA0547	-	hypothetical protein
537	 36.00	-2	485757..485906	+	49	15601307	-	VCA0548	-	hypothetical protein
538	 47.57	0	485878..486453	-	191	15601308	-	VCA0549	-	phnA protein
539	 46.72	0	486637..487719	+	360	15601309	-	VCA0550	-	hypothetical protein
540	 48.92	0	487773..488003	-	76	15601310	-	VCA0551	-	hypothetical protein
541	 47.59	0	488171..490471	-	766	15601311	-	VCA0552	-	fatty acid cis/trans isomerase
542	 47.13	0	490560..490733	-	57	15601312	-	VCA0553	-	hypothetical protein
543	 49.64	0	490884..492116	-	410	15601313	-	VCA0554	-	oxalate/formate antiporter, putative
544	 33.33	-2	492174..492293	-	39	15601314	-	VCA0555	-	hypothetical protein
545	 43.96	0	492527..493081	+	184	15601315	-	VCA0556	-	hypothetical protein
546	 43.69	0	493351..494760	+	469	15601316	-	VCA0557	-	GGDEF family protein
547	 48.76	0	495055..496623	+	522	15601317	-	VCA0558	-	gamma-glutamyltranspeptidase, putative
548	 44.21	0	496698..497681	+	327	15601318	-	VCA0559	-	hypothetical protein
549	 44.79	0	497678..498916	-	412	15601319	-	VCA0560	-	GGDEF family protein
550	 44.27	0	499272..499646	+	124	15601320	-	VCA0561	-	hypothetical protein
551	 42.65	0	499656..499934	+	92	15601321	-	VCA0562	-	hypothetical protein
552	 48.28	0	500227..501765	+	512	15601322	pntA	VCA0563	-	NAD(P) transhydrogenase subunit alpha
553	 47.13	0	501777..503153	+	458	15601323	pntB	VCA0564	-	pyridine nucleotide transhydrogenase
554	 44.73	0	503254..504753	+	499	15601324	-	VCA0565	-	sensor histidine kinase
555	 45.12	0	504647..505384	+	245	15601325	-	VCA0566	-	transcriptional regulator
556	 41.64	0	505381..506271	+	296	15601326	-	VCA0567	-	hypothetical protein
557	 43.53	0	506332..507498	+	388	15601327	-	VCA0568	-	hypothetical protein
558	 44.44	0	507539..507700	+	53	15601328	-	VCA0569	-	hypothetical protein
559	 41.99	0	508285..508596	-	103	15601329	-	VCA0570	-	translation initiation factor Sui1
560	 41.67	0	508604..508987	-	127	15601330	-	VCA0571	-	hypothetical protein
561	 42.49	0	509159..510163	-	334	15601331	ddl	VCA0572	-	D-alanyl-alanine synthetase A
562	 45.75	0	510314..510901	-	195	15601332	-	VCA0573	-	DamX-related protein
563	 46.20	0	511108..513789	+	893	15601333	-	VCA0574	-	hypothetical protein
564	 48.09	0	513839..514726	-	295	15601334	-	VCA0575	-	LysR family transcriptional regulator
565	 37.77	-1	514944..517040	+	698	15601335	-	VCA0576	-	heme transport protein HutA
566	 38.89	-1	517156..517263	+	35	15601336	-	VCA0577	-	hypothetical protein
567	 48.00	0	517364..519061	-	565	15601337	-	VCA0578	-	hypothetical protein
568	 49.57	0	519142..519375	-	77	15601338	-	VCA0579	-	hypothetical protein
569	 46.09	0	519376..519963	-	195	15601339	-	VCA0580	-	hypothetical protein
570	 48.36	0	519996..520787	+	263	15601340	-	VCA0581	-	hypothetical protein
571	 44.10	0	520899..521381	-	160	15601341	-	VCA0582	-	hypothetical protein
572	 47.58	0	521497..522282	+	261	15601342	-	VCA0583	-	hypothetical protein
573	 48.28	0	522368..523036	-	222	15601343	-	VCA0584	-	glutathione S-transferase, putative
574	 45.10	0	523048..523659	-	203	15601344	-	VCA0585	-	glutathione S-transferase, putative
575	 47.24	0	523761..524357	+	198	15601345	-	VCA0586	-	hypothetical protein
576	 48.85	0	524354..524746	+	130	15601346	-	VCA0587	-	hypothetical protein
577	 50.60	0	524830..526422	-	530	15601347	-	VCA0588	-	peptide ABC transporter, ATP-binding protein, putative
578	 48.73	0	526419..527477	-	352	15601348	-	VCA0589	-	peptide ABC transporter, permease protein, putative
579	 47.37	0	527474..528556	-	360	15601349	-	VCA0590	-	peptide ABC transporter, permease protein, putative
580	 48.53	0	528565..530400	-	611	15601350	-	VCA0591	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
581	 47.24	0	530597..531157	-	186	15601351	-	VCA0592	-	MutT/nudix family protein
582	 45.87	0	531211..532143	-	310	15601352	-	VCA0593	-	hypothetical protein
583	 46.81	0	532353..532634	+	93	15601353	-	VCA0594	-	hemolysin
584	 48.22	0	532716..533669	-	317	15601354	-	VCA0595	-	hypothetical protein
585	 49.29	0	535080..535361	+	93	15601355	-	VCA0597	-	hypothetical protein
586	 47.97	0	535373..535495	-	40	15601356	-	VCA0598	-	hypothetical protein
587	 50.11	0	535461..536366	-	301	15601357	-	VCA0599	-	hypothetical protein
588	 49.93	0	536432..537136	-	234	15601358	-	VCA0600	-	repressor protein PhnR, putative
589	 51.43	+1	537161..538939	-	592	15601359	-	VCA0601	-	ABC transporter, permease protein
590	 48.76	0	538872..540083	-	403	15601360	-	VCA0602	-	ABC transporter, ATP-binding protein
591	 48.53	0	540239..541258	-	339	15601361	-	VCA0603	-	ABC transporter, periplasmic substrate-binding protein
592	 50.45	0	541490..542593	+	367	15601362	-	VCA0604	-	2-aminoethylphosphonate--pyruvate transaminase
593	 50.21	0	542611..544008	+	465	15601363	-	VCA0605	-	4-aminobutyrate aminotransferase
594	 52.82	+1	544015..544830	+	271	15601364	-	VCA0606	-	phosphonoacetaldehyde hydrolase
595	 48.77	0	544995..545402	+	135	15601365	-	VCA0607	-	nucleoside diphosphate kinase regulator
596	 46.96	0	545462..546136	-	224	15601366	-	VCA0608	-	nucleotidase
597	 49.73	0	546331..546513	+	60	15601367	-	VCA0609	-	hypothetical protein
598	 51.15	+1	546518..547168	+	216	15601368	-	VCA0610	-	isoprenoid biosynthesis protein
599	 42.75	0	547305..547442	+	45	15601369	-	VCA0611	-	hypothetical protein
600	 44.28	0	547439..547849	+	136	15601370	mscL	VCA0612	-	large-conductance mechanosensitive channel
601	 41.23	0	547882..547995	+	37	15601371	-	VCA0613	-	hypothetical protein
602	 51.89	+1	548029..549828	+	599	15601372	-	VCA0614	-	formate--tetrahydrofolate ligase
603	 47.09	0	549956..551140	+	394	15601373	-	VCA0615	-	bifunctional methionine sulfoxide reductase A/B protein
604	 50.36	0	551233..551925	-	230	15601374	folE	VCA0616	-	GTP cyclohydrolase I
605	 53.21	+1	551966..553273	+	435	15601375	-	VCA0617	-	molybdopterin biosynthesis MoeA protein
606	 51.90	+1	553276..554040	+	254	15601376	-	VCA0618	-	molybdopterin biosynthesis protein MoeB
607	 43.90	0	554224..554592	+	122	15601377	-	VCA0619	-	hypothetical protein
608	 51.14	+1	554614..555444	+	276	15601378	-	VCA0620	-	thiosulfate sulfurtransferase SseA, putative
609	 51.00	+1	555529..556524	-	331	15601379	-	VCA0621	-	SorC family transcriptional regulator
610	 52.25	+1	556523..556633	+	36	15601380	-	VCA0622	-	hypothetical protein
611	 49.74	0	557117..558067	+	316	15601381	-	VCA0623	-	transaldolase B
612	 52.86	+1	558116..560158	+	680	15601382	-	VCA0624	-	transketolase
613	 47.52	0	560275..562629	-	784	15601383	-	VCA0625	-	TonB receptor-related protein
614	 39.05	-1	562599..562703	+	34	15601384	-	VCA0626	-	hypothetical protein
615	 50.88	+1	562843..563355	+	170	15601385	-	VCA0627	-	rRNA methylase, putative
616	 32.41	-2	563793..565967	+	724	15601386	-	VCA0628	-	SecA-related protein
617	 52.64	+1	566238..567278	-	346	15601387	-	VCA0629	-	hypothetical protein
618	 51.23	+1	567291..568262	-	323	15601388	-	VCA0630	-	D-3-phosphoglycerate dehydrogenase-related protein
619	 50.39	0	568278..568793	-	171	15601389	-	VCA0631	-	hypothetical protein
620	 51.78	+1	568826..569275	-	149	15601390	-	VCA0632	-	MutT/nudix family protein
621	 49.29	0	569315..569665	-	116	15601391	-	VCA0633	-	glpM protein
622	 52.20	+1	569857..570582	+	241	15601392	-	VCA0634	-	hypothetical protein
623	 51.38	+1	570592..571533	+	313	15601393	-	VCA0635	-	LysR family transcriptional regulator
624	 49.48	0	571530..571820	-	96	15601394	-	VCA0636	-	hypothetical protein
625	 49.69	0	571824..572477	-	217	15601395	-	VCA0637	-	dihydropteridine reductase
626	 51.53	+1	572693..575896	-	1067	15601396	-	VCA0638	-	AcrB/AcrD/AcrF family transporter
627	 52.34	+1	575853..576857	-	334	15601397	-	VCA0639	-	AcrA/AcrE family protein
628	 47.53	0	576967..577431	-	154	15601398	-	VCA0640	-	hypothetical protein
629	 51.19	+1	577436..577855	-	139	15601399	-	VCA0641	-	hypothetical protein
45.97	MEAN

4.79	STD DEV
