IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

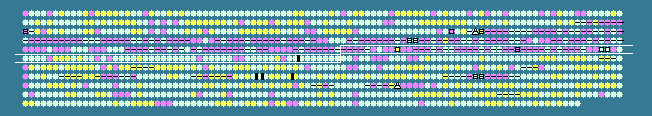

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
454	 41.35	0	412362..412760	+	132	15601224	-	VCA0463	-	biphenyl-2,3-diol 1,2-dioxygenase III-related protein
455	 41.27	0	412827..413204	+	125	15601225	-	VCA0464	-	hypothetical protein
456	 39.75	-1	413348..413752	+	134	15601226	-	VCA0465	-	hypothetical protein
457	 40.88	-1	414129..414287	-	52	15601227	-	VCA0466	-	hypothetical protein
458	 42.77	0	414638..414796	-	52	15601228	-	VCA0467	-	hypothetical protein
459	 40.84	-1	414949..415281	+	110	15601229	-	VCA0468	-	hypothetical protein
460	 45.08	0	415268..415582	+	104	15601230	-	VCA0469	-	hypothetical protein
461	 42.07	0	415719..416153	+	144	15601231	-	VCA0470	-	acetyltransferase, putative
462	 35.26	-2	416321..416476	+	51	15601232	-	VCA0471	-	hypothetical protein
463	 51.89	+1	416601..417581	-	326	15601233	-	VCA0472	-	IS5 transposase
464	 40.57	-1	417604..417921	+	105	15601234	-	VCA0473	-	acetyltransferase, putative
465	 40.12	-1	418092..418784	+	230	15601235	-	VCA0474	-	acetyltransferase, putative
466	 41.04	-1	418784..419185	+	133	15601236	-	VCA0475	-	doc protein
467	 40.82	-1	419373..419786	+	137	15601237	-	VCA0476	-	hypothetical protein
468	 41.03	-1	419979..420251	+	90	15601238	-	VCA0477	-	hypothetical protein
469	 42.96	0	420238..420528	+	96	15601239	-	VCA0478	-	hypothetical protein
470	 39.25	-1	420656..421111	+	151	15601240	-	VCA0479	-	acetyltransferase, putative
471	 43.14	0	421433..421585	+	50	15601241	-	VCA0480	-	hypothetical protein
472	 43.37	0	421787..422284	-	165	15601242	-	VCA0481	-	hypothetical protein
473	 42.49	0	422281..422553	-	90	15601243	-	VCA0482	-	hypothetical protein
474	 38.12	-1	422784..423452	+	222	15601244	-	VCA0483	-	hypothetical protein
475	 34.38	-2	423604..423891	+	95	15601245	-	VCA0484	-	hypothetical protein
476	 39.25	-1	424032..424403	+	123	15601246	-	VCA0485	-	mazG-related protein
477	 42.72	0	424470..424895	+	141	15601247	-	VCA0486	-	hypothetical protein
478	 42.13	0	424892..425425	+	177	15601248	-	VCA0487	-	hypothetical protein
479	 42.64	0	425627..425884	+	85	15601249	-	VCA0488	-	hypothetical protein
480	 43.89	0	425872..426174	+	100	15601250	-	VCA0489	-	hypothetical protein
481	 40.53	-1	426312..427325	+	337	15601251	-	VCA0490	-	GDXG family lipase
482	 38.19	-1	427398..427871	+	157	15601252	-	VCA0491	-	hypothetical protein
483	 39.04	-1	428335..428772	+	145	15601253	-	VCA0493	-	IS1004 transposase
484	 38.98	-1	428878..429054	+	58	15601254	-	VCA0494	-	hypothetical protein
485	 40.78	-1	429229..430101	+	290	15601255	-	VCA0495	-	hypothetical protein
486	 40.53	-1	430170..430850	+	226	15601256	-	VCA0496	-	glutathione S-transferase, putative
487	 38.04	-1	431036..431311	+	91	15601257	-	VCA0497	-	hypothetical protein
488	 44.44	0	431305..431826	+	173	15601258	-	VCA0498	-	hypothetical protein
489	 37.58	-1	431958..432122	-	54	15601259	-	VCA0499	-	hypothetical protein
490	 49.02	0	432119..432220	-	33	15601260	-	VCA0500	-	hypothetical protein
491	 38.64	-1	432501..432896	+	131	15601261	-	VCA0501	-	hypothetical protein
492	 42.03	0	432953..433090	+	45	15601262	-	VCA0502	-	hypothetical protein
493	 38.71	-1	433035..433313	-	92	15601263	-	VCA0503	-	hypothetical protein
494	 44.72	0	433310..433678	-	122	15601264	-	VCA0504	-	relB protein
495	 40.07	-1	433710..434303	+	197	15601265	-	VCA0505	-	acetyltransferase, putative
496	 41.55	0	434487..434900	+	137	15601266	-	VCA0506	-	hypothetical protein
497	 43.19	0	435419..435763	+	114	15601267	-	VCA0507	-	transposase OrfAB, subunit A
498	 44.44	0	435760..436632	+	290	15601268	-	VCA0508	-	transposase OrfAB, subunit B
499	 41.67	0	436670..436789	-	39	15601269	-	VCA0509	-	hypothetical protein
500	 44.86	0	436922..439828	+	968	15601270	-	VCA0510	-	hypothetical protein
501	 46.39	0	440291..442411	+	706	15601271	-	VCA0511	-	anaerobic ribonucleoside triphosphate reductase
502	 48.08	0	442416..442883	+	155	15601272	nrdG	VCA0512	-	anaerobic ribonucleotide reductase-activating protein
503	 48.31	0	443005..444186	+	393	161582043	-	VCA0513	-	aromatic amino acid aminotransferase
504	 48.25	0	444244..444927	+	227	15601274	-	VCA0514	-	hypothetical protein
505	 37.61	-1	445007..445123	-	38	15601275	-	VCA0515	-	hypothetical protein
506	 51.29	+1	445161..446903	-	580	15601276	-	VCA0516	-	PTS system, fructose-specific IIBC component
507	 50.42	0	446916..447869	-	317	15601277	-	VCA0517	-	1-phosphofructokinase
508	 50.37	0	447880..449082	-	400	15601278	-	VCA0518	-	bifunctional fructose-specific PTS IIA/HPr protein
509	 49.44	0	449421..450401	+	326	15601279	-	VCA0519	-	DNA-binding transcriptional regulator FruR
510	 50.09	0	450455..451594	+	379	15601280	-	VCA0520	-	exonuclease SbcD, putative
511	 49.38	0	451596..454637	+	1013	15601281	-	VCA0521	-	exonuclease SbcC, putative
512	 43.72	0	454734..456794	+	686	15601282	-	VCA0522	-	sensor histidine kinase/response regulator LuxN
513	 40.60	-1	457023..458192	-	389	15601283	-	VCA0523	-	hypothetical protein
514	 47.35	0	458389..459351	-	320	15601284	-	VCA0524	-	hypothetical protein
515	 37.14	-1	459328..459432	+	34	15601285	-	VCA0525	-	hypothetical protein
516	 48.26	0	459498..460904	-	468	15601286	-	VCA0526	-	chloride channel protein
517	 47.58	0	461371..462360	+	329	15601287	-	VCA0527	-	hypothetical protein
518	 48.78	0	462424..463368	-	314	15601288	rbgA	VCA0528	-	ribosomal biogenesis GTPase
519	 48.95	0	463691..465553	+	620	15601289	-	VCA0529	-	potassium uptake protein, Kup system
520	 51.67	+1	465651..468890	-	1079	15601290	-	VCA0530	-	pyruvate-flavoredoxin oxidoreductase
521	 49.06	0	468993..470486	+	497	15601291	-	VCA0531	-	sensor histidine kinase
522	 47.19	0	470476..471168	+	230	15601292	-	VCA0532	-	DNA-binding response regulator
523	 48.95	0	471368..471604	+	78	15601293	-	VCA0533	-	tatA protein
524	 44.88	0	472658..473038	-	126	15601294	-	VCA0535	-	hypothetical protein
525	 46.71	0	473172..474038	-	288	15601295	-	VCA0536	-	hypothetical protein
526	 46.23	0	474496..474999	-	167	15601296	-	VCA0537	-	hypothetical protein
527	 45.97	0	475386..475931	+	181	15601297	-	VCA0538	-	cytochrome b561, putative
528	 45.61	0	475928..476497	+	189	15601298	-	VCA0539	-	hypothetical protein
529	 48.21	0	476605..478056	-	483	15601299	-	VCA0540	-	formate transporter 1, putative
530	 33.33	-2	478160..478255	+	31	15601300	-	VCA0541	-	hypothetical protein
531	 46.91	0	478273..479178	+	301	15601301	-	VCA0542	-	LysR family transcriptional regulator
532	 47.37	0	479340..479852	+	170	15601302	-	VCA0543	-	hypothetical protein
533	 49.07	0	480084..481748	-	554	15601303	-	VCA0544	-	hypothetical protein
534	 48.54	0	481978..483720	+	580	15601304	-	VCA0545	-	5`-nucleotidase, putative
535	 47.34	0	484280..485236	+	318	15601305	-	VCA0546	-	hypothetical protein
536	 40.74	-1	485540..485728	+	62	15601306	-	VCA0547	-	hypothetical protein
537	 36.00	-2	485757..485906	+	49	15601307	-	VCA0548	-	hypothetical protein
538	 47.57	0	485878..486453	-	191	15601308	-	VCA0549	-	phnA protein
539	 46.72	0	486637..487719	+	360	15601309	-	VCA0550	-	hypothetical protein
540	 48.92	0	487773..488003	-	76	15601310	-	VCA0551	-	hypothetical protein
541	 47.59	0	488171..490471	-	766	15601311	-	VCA0552	-	fatty acid cis/trans isomerase
542	 47.13	0	490560..490733	-	57	15601312	-	VCA0553	-	hypothetical protein
543	 49.64	0	490884..492116	-	410	15601313	-	VCA0554	-	oxalate/formate antiporter, putative
544	 33.33	-2	492174..492293	-	39	15601314	-	VCA0555	-	hypothetical protein
545	 43.96	0	492527..493081	+	184	15601315	-	VCA0556	-	hypothetical protein
546	 43.69	0	493351..494760	+	469	15601316	-	VCA0557	-	GGDEF family protein
547	 48.76	0	495055..496623	+	522	15601317	-	VCA0558	-	gamma-glutamyltranspeptidase, putative
548	 44.21	0	496698..497681	+	327	15601318	-	VCA0559	-	hypothetical protein
549	 44.79	0	497678..498916	-	412	15601319	-	VCA0560	-	GGDEF family protein
550	 44.27	0	499272..499646	+	124	15601320	-	VCA0561	-	hypothetical protein
551	 42.65	0	499656..499934	+	92	15601321	-	VCA0562	-	hypothetical protein
552	 48.28	0	500227..501765	+	512	15601322	pntA	VCA0563	-	NAD(P) transhydrogenase subunit alpha
553	 47.13	0	501777..503153	+	458	15601323	pntB	VCA0564	-	pyridine nucleotide transhydrogenase
45.97	MEAN

4.79	STD DEV
