IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

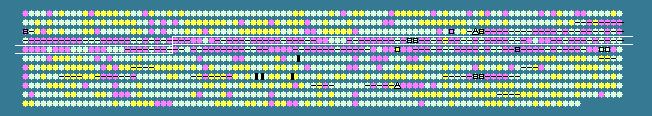

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
326	 36.05	-2	333106..333768	+	220	15601096	-	VCA0331	-	hypothetical protein
327	 41.20	0	333953..334219	+	88	15601097	-	VCA0332	-	hypothetical protein
328	 41.46	0	334206..334451	+	81	15601098	-	VCA0333	-	hypothetical protein
329	 29.99	-2	334535..335341	+	268	15601099	-	VCA0334	-	hypothetical protein
330	 40.20	-1	335550..335651	-	33	15601100	-	VCA0335	-	hypothetical protein
331	 44.81	0	335633..335815	+	60	15601101	-	VCA0336	-	hypothetical protein
332	 41.89	0	336031..337035	+	334	15601102	-	VCA0337	-	microcin immunity protein MccF
333	 40.28	-1	337188..337547	+	119	15601103	-	VCA0338	-	hypothetical protein
334	 45.73	0	337820..338053	+	77	15601104	-	VCA0339	-	hypothetical protein
335	 38.86	-1	338321..338827	+	168	15601105	-	VCA0340	-	hypothetical protein
336	 41.35	0	338972..339370	+	132	15601106	-	VCA0341	-	biphenyl-2,3-diol 1,2-dioxygenase III-related protein
337	 40.26	-1	339528..339830	+	100	15601107	-	VCA0342	-	hypothetical protein
338	 44.84	0	340025..340276	+	83	15601108	-	VCA0343	-	hypothetical protein
339	 37.32	-1	340545..340970	+	141	15601109	-	VCA0344	-	hypothetical protein
340	 38.25	-1	341170..341799	+	209	15601110	-	VCA0345	-	hypothetical protein
341	 41.46	0	342012..342491	+	159	15601111	-	VCA0346	-	H-REV 107-related protein
342	 41.55	0	342679..343092	+	137	15601112	-	VCA0347	-	hypothetical protein
343	 38.71	-1	343243..343521	-	92	15601113	-	VCA0348	-	hypothetical protein
344	 44.72	0	343518..343886	-	122	15601114	-	VCA0349	-	relB protein
345	 41.67	0	343997..344512	+	171	15601115	-	VCA0350	-	lipoprotein Blc
346	 39.20	-1	344577..345173	+	198	15601116	-	VCA0351	-	hypothetical protein
347	 40.20	-1	345481..345582	-	33	15601117	-	VCA0352	-	hypothetical protein
348	 44.81	0	345564..345746	+	60	15601118	-	VCA0353	-	hypothetical protein
349	 41.80	0	345853..346419	+	188	15601119	-	VCA0354	-	hypothetical protein
350	 42.26	0	346568..347194	+	208	15601120	-	VCA0355	-	hypothetical protein
351	 37.01	-1	347308..348015	+	235	15601121	-	VCA0356	-	hypothetical protein
352	 45.00	0	348713..348892	+	59	15601122	-	VCA0357	-	hypothetical protein
353	 42.67	0	349629..349928	-	99	15601123	-	VCA0359	-	plasmid stabilization element ParE, putative
354	 44.59	0	349915..350376	-	153	15601124	-	VCA0360	-	hypothetical protein
355	 35.06	-2	350396..350974	+	192	15601125	-	VCA0361	-	hypothetical protein
356	 43.04	0	351085..351393	-	102	15601126	-	VCA0362	-	hypothetical protein
357	 30.12	-2	351512..352195	+	227	15601127	-	VCA0363	-	hypothetical protein
358	 38.20	-1	352409..352675	+	88	15601128	-	VCA0364	-	hypothetical protein
359	 39.71	-1	352830..353237	+	135	15601129	-	VCA0365	-	hypothetical protein
360	 37.50	-1	353709..354644	+	311	15601130	-	VCA0366	-	hypothetical protein
361	 37.83	-1	354862..355884	+	340	15601131	-	VCA0367	-	hypothetical protein
362	 36.91	-1	355817..356431	+	204	15601132	-	VCA0368	-	hypothetical protein
363	 43.10	0	356492..357187	-	231	15601133	-	VCA0370	-	hypothetical protein
364	 42.13	0	356492..356866	-	124	15601134	-	VCA0369	-	hypothetical protein
365	 44.44	0	357184..358056	-	290	15601135	-	VCA0371	-	transposase OrfAB, subunit B
366	 43.19	0	358053..358397	-	114	15601136	-	VCA0372	-	transposase OrfAB, subunit A
367	 35.14	-2	358508..358618	+	36	15601137	-	VCA0373	-	hypothetical protein
368	 34.87	-2	358749..359786	+	345	15601138	-	VCA0374	-	hypothetical protein
369	 43.21	0	359966..360289	+	107	15601139	-	VCA0375	-	hypothetical protein
370	 40.66	-1	360542..360937	+	131	15601140	-	VCA0376	-	hypothetical protein
371	 53.97	+1	360954..361079	-	41	15601141	-	VCA0377	-	hypothetical protein
372	 40.91	-1	361598..361993	+	131	15601142	-	VCA0379	-	hypothetical protein
373	 42.24	0	362068..362673	+	201	15601143	-	VCA0380	-	hypothetical protein
374	 46.67	0	362970..363149	+	59	15601144	-	VCA0381	-	hypothetical protein
375	 42.72	0	363345..363770	+	141	15601145	-	VCA0382	-	hypothetical protein
376	 41.44	0	364895..365005	-	36	15601146	-	VCA0383	-	hypothetical protein
377	 47.92	0	365062..365157	+	31	15601147	-	VCA0384	-	hypothetical protein
378	 39.58	-1	365351..365686	-	111	15601148	-	VCA0385	-	hypothetical protein
379	 39.92	-1	365687..365929	-	80	15601149	-	VCA0386	-	hypothetical protein
380	 40.98	-1	366171..366680	+	169	15601150	-	VCA0387	-	toxin resistance protein
381	 36.09	-2	366737..367390	+	217	15601151	-	VCA0388	-	hypothetical protein
382	 47.44	0	367685..367918	+	77	15601152	-	VCA0389	-	hypothetical protein
383	 44.44	0	368195..368293	+	32	15601153	-	VCA0390	-	hypothetical protein
384	 38.14	-1	369360..369713	+	117	15601154	-	VCA0391	-	killer protein, putative
385	 42.14	0	369724..370041	+	105	15601155	-	VCA0392	-	antidote protein, putative
386	 42.86	0	370325..370450	+	41	15601156	-	VCA0393	-	hypothetical protein
387	 41.03	-1	370413..370529	+	38	15601157	-	VCA0394	-	hypothetical protein
388	 42.38	0	370629..371468	+	279	15601158	-	VCA0395	-	hypothetical protein
389	 42.12	0	371673..372503	+	276	15601159	-	VCA0396	-	hypothetical protein
390	 39.96	-1	372560..373042	+	160	15601160	-	VCA0397	-	hypothetical protein
391	 42.86	0	373206..373373	+	55	15601161	-	VCA0398	-	hypothetical protein
392	 35.96	-2	373489..374364	+	291	15601162	-	VCA0399	-	hypothetical protein
393	 39.25	-1	374494..374949	+	151	15601163	-	VCA0400	-	acetyltransferase, putative
394	 40.82	-1	375133..375546	+	137	15601164	-	VCA0401	-	hypothetical protein
395	 43.35	0	375613..376131	+	172	15601165	-	VCA0402	-	acetyltransferase, putative
396	 41.09	-1	376324..376581	+	85	15601166	-	VCA0403	-	hypothetical protein
397	 43.70	0	376904..377038	-	44	15601167	-	VCA0404	-	hypothetical protein
398	 35.10	-2	377315..377935	+	206	15601168	-	VCA0405	-	hypothetical protein
399	 42.64	0	378083..378598	+	171	15601169	-	VCA0406	-	lipoprotein Blc
400	 43.17	0	378901..379083	+	60	15601170	-	VCA0407	-	hypothetical protein
401	 37.36	-1	379262..379609	+	115	15601171	-	VCA0408	-	hypothetical protein
402	 37.25	-1	379771..380229	+	152	15601172	-	VCA0409	-	hypothetical protein
403	 41.32	0	380380..380742	+	120	15601173	-	VCA0410	-	hypothetical protein
404	 41.13	-1	380926..381066	-	46	15601174	-	VCA0411	-	hypothetical protein
405	 43.89	0	381045..381224	+	59	15601175	-	VCA0412	-	hypothetical protein
406	 34.40	-2	381420..382073	+	217	15601176	-	VCA0413	-	hypothetical protein
407	 42.02	0	382198..382623	+	141	15601177	-	VCA0414	-	hypothetical protein
408	 40.28	-1	382786..383145	+	119	15601178	-	VCA0415	-	hypothetical protein
409	 45.68	0	383328..383651	+	107	15601179	-	VCA0416	-	hypothetical protein
410	 43.02	0	383932..384468	+	178	15601180	-	VCA0417	-	acetyltransferase, putative
411	 45.36	0	385229..385411	+	60	15601181	-	VCA0418	-	hypothetical protein
412	 41.22	0	385530..386315	+	261	15601182	-	VCA0419	-	hypothetical protein
413	 41.67	0	386384..386779	+	131	15601183	-	VCA0420	-	hypothetical protein
414	 39.44	-1	387025..387450	+	141	15601184	-	VCA0421	-	hypothetical protein
415	 43.54	0	387652..387945	+	97	15601185	-	VCA0422	-	hypothetical protein
416	 46.39	0	387942..388301	+	119	15601186	-	VCA0423	-	hypothetical protein
417	 44.97	0	388283..388729	+	148	15601187	-	VCA0424	-	hypothetical protein
418	 41.08	-1	388985..389410	+	141	15601188	-	VCA0425	-	hypothetical protein
419	 38.46	-1	389588..389821	+	77	15601189	-	VCA0426	-	hypothetical protein
420	 41.51	0	389797..389955	-	52	15601190	-	VCA0427	-	hypothetical protein
421	 37.56	-1	390185..390610	+	141	15601191	-	VCA0428	-	hypothetical protein
422	 48.57	0	391044..391148	-	34	15601192	-	VCA0429	-	hypothetical protein
423	 38.38	-1	391166..391264	+	32	15601193	-	VCA0430	-	hypothetical protein
424	 41.16	-1	391358..391753	+	131	15601194	-	VCA0431	-	hypothetical protein
425	 42.99	0	391927..392361	+	144	15601195	-	VCA0432	-	hypothetical protein
45.97	MEAN

4.79	STD DEV
