IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

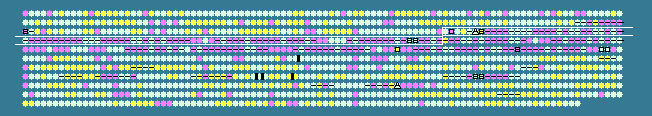

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
271	 49.17	0	291259..291978	+	239	15601042	-	VCA0274	-	carbonic anhydrase
272	 38.81	-1	292265..292702	-	145	15601043	-	VCA0275	-	IS1004 transposase
273	 47.51	0	295889..296269	-	126	15601044	-	VCA0277	-	glycine cleavage system protein H
274	 51.22	+1	296306..297613	-	435	15601045	-	VCA0278	-	serine hydroxymethyltransferase
275	 49.36	0	298001..298624	+	207	15601046	-	VCA0279	-	transcriptional regulator
276	 45.85	0	300467..301624	+	385	15601047	-	VCA0281	-	integrase, putative
277	 51.89	+1	301670..302650	+	326	15601048	-	VCA0282	-	IS5 transposase
278	 37.75	-1	302926..304149	+	407	15601049	-	VCA0283	-	hypothetical protein
279	 41.05	-1	304670..305200	+	176	15601050	-	VCA0284	-	hypothetical protein
280	 39.43	-1	305200..305871	+	223	15601051	-	VCA0285	-	hypothetical protein
281	 37.61	-1	305873..306223	+	116	15601052	-	VCA0286	-	hypothetical protein
282	 45.67	0	306492..308420	+	642	15601053	-	VCA0287	-	threonyl-tRNA synthetase
283	 46.67	0	308586..308975	+	129	15601864	infC	VCA0288	-	initiation factor IF3
284	 45.13	0	309079..309273	+	64	15601054	rpmI	VCA0289	-	50S ribosomal protein L35
285	 46.05	0	309315..309668	+	117	15601055	rplT	VCA0290	-	50S ribosomal protein L20
286	 42.26	0	309750..310712	-	320	15601056	-	VCA0291	-	site-specific recombinase IntI4
287	 38.20	-1	311034..311300	+	88	15601057	-	VCA0292	-	hypothetical protein
288	 40.50	-1	311455..312054	+	199	15601058	-	VCA0293	-	hypothetical protein
289	 42.40	0	312716..313090	+	124	15601059	-	VCA0294	-	hypothetical protein
290	 44.97	0	313335..313523	+	62	15601060	-	VCA0295	-	hypothetical protein
291	 40.20	-1	313804..313905	-	33	15601061	-	VCA0296	-	hypothetical protein
292	 44.81	0	313887..314069	+	60	15601062	-	VCA0297	-	hypothetical protein
293	 44.84	0	314325..314576	+	83	15601063	-	VCA0298	-	hypothetical protein
294	 40.09	-1	314717..315160	+	147	15601064	-	VCA0299	-	hypothetical protein
295	 40.63	-1	315311..315940	+	209	15601065	-	VCA0300	-	chloramphenicol acetyltransferase
296	 42.63	0	316096..316848	+	250	15601066	-	VCA0301	-	short chain dehydrogenase/reductase family oxidoreductase
297	 43.72	0	317150..317332	+	60	15601067	-	VCA0302	-	hypothetical protein
298	 40.00	-1	317510..317914	+	134	15601068	-	VCA0303	-	hypothetical protein
299	 45.36	0	318210..318392	+	60	15601069	-	VCA0304	-	hypothetical protein
300	 39.32	-1	318630..318746	-	38	15601070	-	VCA0305	-	hypothetical protein
301	 44.26	0	318746..318928	+	60	15601071	-	VCA0306	-	hypothetical protein
302	 35.99	-2	319123..319800	+	225	15601072	-	VCA0307	-	hypothetical protein
303	 38.71	-1	319962..321170	+	402	15601073	-	VCA0308	-	deoxyguanosinetriphosphate triphosphohydrolase-related protein
304	 38.16	-1	321332..322036	+	234	15601074	-	VCA0309	-	hypothetical protein
305	 39.34	-1	322167..322532	+	121	15601075	-	VCA0310	-	hypothetical protein
306	 39.58	-1	322686..323021	-	111	15601076	-	VCA0311	-	hypothetical protein
307	 39.92	-1	323022..323264	-	80	15601077	-	VCA0312	-	hypothetical protein
308	 41.09	-1	323508..323894	+	128	15601078	-	VCA0313	-	MutT/nudix family protein
309	 35.46	-2	324013..324294	+	93	15601079	-	VCA0314	-	hypothetical protein
310	 41.51	0	324270..324428	-	52	15601080	-	VCA0315	-	hypothetical protein
311	 43.02	0	324552..325088	+	178	15601081	-	VCA0316	-	acetyltransferase, putative
312	 42.83	0	325225..325740	+	171	15601082	-	VCA0317	-	lipoprotein Blc
313	 43.37	0	325890..326387	-	165	15601083	-	VCA0318	-	hypothetical protein
314	 42.49	0	326384..326656	-	90	15601084	-	VCA0319	-	hypothetical protein
315	 37.58	-1	326882..327046	-	54	15601085	-	VCA0320	-	hypothetical protein
316	 36.94	-1	327161..327271	-	36	15601086	-	VCA0321	-	hypothetical protein
317	 34.66	-2	327418..327870	+	150	15601087	-	VCA0322	-	hypothetical protein
318	 38.72	-1	328018..328314	-	98	15601088	-	VCA0323	-	hypothetical protein
319	 43.01	0	328280..328558	-	92	15601089	-	VCA0324	-	DNA-damage-inducible protein J
320	 44.44	0	328799..329122	+	107	15601090	-	VCA0325	-	hypothetical protein
321	 31.37	-2	329165..329266	-	33	15601091	-	VCA0326	-	hypothetical protein
322	 45.83	0	329437..329580	+	47	15601092	-	VCA0327	-	hypothetical protein
323	 41.35	0	329859..330257	+	132	15601093	-	VCA0328	-	biphenyl-2,3-diol 1,2-dioxygenase III-related protein
324	 44.84	0	330452..330703	+	83	15601094	-	VCA0329	-	hypothetical protein
325	 41.31	0	332490..332978	+	162	15601095	-	VCA0330	-	hypothetical protein
326	 36.05	-2	333106..333768	+	220	15601096	-	VCA0331	-	hypothetical protein
327	 41.20	0	333953..334219	+	88	15601097	-	VCA0332	-	hypothetical protein
328	 41.46	0	334206..334451	+	81	15601098	-	VCA0333	-	hypothetical protein
329	 29.99	-2	334535..335341	+	268	15601099	-	VCA0334	-	hypothetical protein
330	 40.20	-1	335550..335651	-	33	15601100	-	VCA0335	-	hypothetical protein
331	 44.81	0	335633..335815	+	60	15601101	-	VCA0336	-	hypothetical protein
332	 41.89	0	336031..337035	+	334	15601102	-	VCA0337	-	microcin immunity protein MccF
333	 40.28	-1	337188..337547	+	119	15601103	-	VCA0338	-	hypothetical protein
334	 45.73	0	337820..338053	+	77	15601104	-	VCA0339	-	hypothetical protein
335	 38.86	-1	338321..338827	+	168	15601105	-	VCA0340	-	hypothetical protein
336	 41.35	0	338972..339370	+	132	15601106	-	VCA0341	-	biphenyl-2,3-diol 1,2-dioxygenase III-related protein
337	 40.26	-1	339528..339830	+	100	15601107	-	VCA0342	-	hypothetical protein
338	 44.84	0	340025..340276	+	83	15601108	-	VCA0343	-	hypothetical protein
339	 37.32	-1	340545..340970	+	141	15601109	-	VCA0344	-	hypothetical protein
340	 38.25	-1	341170..341799	+	209	15601110	-	VCA0345	-	hypothetical protein
341	 41.46	0	342012..342491	+	159	15601111	-	VCA0346	-	H-REV 107-related protein
342	 41.55	0	342679..343092	+	137	15601112	-	VCA0347	-	hypothetical protein
343	 38.71	-1	343243..343521	-	92	15601113	-	VCA0348	-	hypothetical protein
344	 44.72	0	343518..343886	-	122	15601114	-	VCA0349	-	relB protein
345	 41.67	0	343997..344512	+	171	15601115	-	VCA0350	-	lipoprotein Blc
346	 39.20	-1	344577..345173	+	198	15601116	-	VCA0351	-	hypothetical protein
347	 40.20	-1	345481..345582	-	33	15601117	-	VCA0352	-	hypothetical protein
348	 44.81	0	345564..345746	+	60	15601118	-	VCA0353	-	hypothetical protein
349	 41.80	0	345853..346419	+	188	15601119	-	VCA0354	-	hypothetical protein
350	 42.26	0	346568..347194	+	208	15601120	-	VCA0355	-	hypothetical protein
351	 37.01	-1	347308..348015	+	235	15601121	-	VCA0356	-	hypothetical protein
352	 45.00	0	348713..348892	+	59	15601122	-	VCA0357	-	hypothetical protein
353	 42.67	0	349629..349928	-	99	15601123	-	VCA0359	-	plasmid stabilization element ParE, putative
354	 44.59	0	349915..350376	-	153	15601124	-	VCA0360	-	hypothetical protein
355	 35.06	-2	350396..350974	+	192	15601125	-	VCA0361	-	hypothetical protein
356	 43.04	0	351085..351393	-	102	15601126	-	VCA0362	-	hypothetical protein
357	 30.12	-2	351512..352195	+	227	15601127	-	VCA0363	-	hypothetical protein
358	 38.20	-1	352409..352675	+	88	15601128	-	VCA0364	-	hypothetical protein
359	 39.71	-1	352830..353237	+	135	15601129	-	VCA0365	-	hypothetical protein
360	 37.50	-1	353709..354644	+	311	15601130	-	VCA0366	-	hypothetical protein
361	 37.83	-1	354862..355884	+	340	15601131	-	VCA0367	-	hypothetical protein
362	 36.91	-1	355817..356431	+	204	15601132	-	VCA0368	-	hypothetical protein
363	 43.10	0	356492..357187	-	231	15601133	-	VCA0370	-	hypothetical protein
364	 42.13	0	356492..356866	-	124	15601134	-	VCA0369	-	hypothetical protein
365	 44.44	0	357184..358056	-	290	15601135	-	VCA0371	-	transposase OrfAB, subunit B
366	 43.19	0	358053..358397	-	114	15601136	-	VCA0372	-	transposase OrfAB, subunit A
367	 35.14	-2	358508..358618	+	36	15601137	-	VCA0373	-	hypothetical protein
368	 34.87	-2	358749..359786	+	345	15601138	-	VCA0374	-	hypothetical protein
369	 43.21	0	359966..360289	+	107	15601139	-	VCA0375	-	hypothetical protein
370	 40.66	-1	360542..360937	+	131	15601140	-	VCA0376	-	hypothetical protein
45.97	MEAN

4.79	STD DEV
