IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

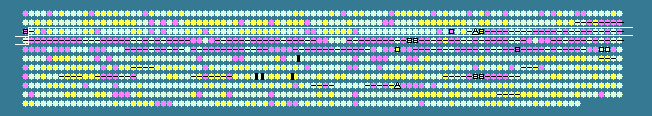

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
202	 48.89	0	220767..222122	-	451	15600973	-	VCA0204	-	ATP-dependent RNA helicase RhlE
203	 50.94	+1	222312..223640	-	442	15600974	-	VCA0205	-	anaerobic C4-dicarboxylate transporter
204	 41.67	0	223751..223882	-	43	15600975	-	VCA0206	-	hypothetical protein
205	 50.90	+1	223891..224721	-	276	15600976	nadE	VCA0207	-	NAD synthetase
206	 48.67	0	224824..225351	+	175	15600977	-	VCA0208	-	nicotinic acid mononucleotide adenylyltransferase
207	 50.82	+1	225302..225484	+	60	15600978	-	VCA0209	-	hypothetical protein
208	 46.34	0	225591..227159	+	522	15600979	-	VCA0210	-	response regulator, putative
209	 46.53	0	227217..229163	-	648	15600980	-	VCA0211	-	sensory box sensor histidine kinase
210	 46.29	0	229338..230387	+	349	15600981	-	VCA0212	-	hypothetical protein
211	 52.39	+1	230465..232054	-	529	15600982	-	VCA0213	-	hypothetical protein
212	 49.88	0	232449..233693	-	414	15600983	emrD	VCA0214	-	multidrug resistance protein D
213	 35.22	-2	233694..233852	-	52	15600984	-	VCA0215	-	hypothetical protein
214	 44.19	0	233907..234173	+	88	15600985	-	VCA0216	-	hypothetical protein
215	 45.28	0	234164..235243	-	359	15600986	-	VCA0217	-	GGDEF family protein
216	 47.97	0	235364..236620	-	418	15600987	-	VCA0218	-	thermolabile hemolysin
217	 47.75	0	237590..239815	+	741	15600988	-	VCA0219	-	haemolysin
218	 48.57	0	240114..241760	+	548	15600989	-	VCA0220	-	hemolysin secretion protein HylB
219	 51.08	+1	242027..243046	+	339	15600990	-	VCA0221	-	lactonizing lipase
220	 52.98	+1	243056..243910	+	284	15600991	-	VCA0222	-	lipase chaperone
221	 49.37	0	243986..246742	-	918	15600992	-	VCA0223	-	protease
222	 38.24	-1	246827..247132	-	101	15600993	-	VCA0224	-	hypothetical protein
223	 49.02	0	247686..248450	+	254	15600994	-	VCA0225	-	hypothetical protein
224	 39.02	-1	248610..248732	-	40	15600995	-	VCA0226	-	hypothetical protein
225	 44.71	0	248766..249767	+	333	15600996	-	VCA0227	-	iron(III) ABC transporter, periplasmic iron-compound-binding protein
226	 46.33	0	249820..250758	+	312	15600997	-	VCA0228	-	iron(III) ABC transporter, permease protein
227	 49.11	0	250748..251698	+	316	15600998	-	VCA0229	-	iron(III) ABC transporter, permease protein
228	 49.93	0	251701..252465	+	254	15600999	-	VCA0230	-	iron(III) ABC transporter, ATP-binding protein
229	 47.45	0	252511..253587	-	358	15601000	-	VCA0231	-	AraC/XylS family transcriptional regulator
230	 49.84	0	255650..255970	+	106	15601001	-	VCA0233	-	hypothetical protein
231	 41.03	-1	255986..256102	+	38	15601002	-	VCA0234	-	hypothetical protein
232	 50.34	0	256240..257433	+	397	15601003	-	VCA0235	-	acetate kinase
233	 45.12	0	257514..257810	+	98	15601004	-	VCA0236	-	hypothetical protein
234	 47.54	0	257928..258497	-	189	15601005	-	VCA0237	-	hypothetical protein
235	 48.24	0	258742..260391	+	549	15601006	-	VCA0238	-	sensor histidine kinase
236	 48.44	0	260372..261046	+	224	15601007	-	VCA0239	-	transcriptional regulator
237	 50.00	0	261049..261678	-	209	15601008	-	VCA0240	-	hypothetical protein
238	 52.09	+1	261638..262522	-	294	15601009	-	VCA0241	-	putative L-xylulose 5-phosphate 3-epimerase
239	 51.85	+1	262534..263181	-	215	15601010	ulaD	VCA0242	-	3-keto-L-gulonate-6-phosphate decarboxylase
240	 52.80	+1	263187..264008	-	273	15601011	-	VCA0243	-	hypothetical protein
241	 53.82	+1	264014..264706	-	230	15601012	araD	VCA0244	-	L-ribulose-5-phosphate 4-epimerase
242	 52.86	+1	264715..265221	-	168	15601013	-	VCA0245	-	PTS system, IIA component
243	 51.05	+1	265319..267079	-	586	15601014	ulaA	VCA0246	-	ascorbate-specific PTS system enzyme IIC/IIB
244	 47.62	0	267445..268200	+	251	15601015	-	VCA0247	-	transcriptional repressor UlaR
245	 48.41	0	268327..269394	+	355	15601016	-	VCA0248	-	putative L-ascorbate 6-phosphate lactonase
246	 50.75	0	269494..270027	-	177	15601017	-	VCA0249	-	cytochrome b561, putative
247	 45.04	0	270200..271600	-	466	15601018	-	VCA0250	-	alpha-amylase
248	 41.88	0	271740..271856	+	38	15601019	-	VCA0251	-	hypothetical protein
249	 37.84	-1	271816..271926	+	36	15601020	-	VCA0252	-	hypothetical protein
250	 48.93	0	271933..272631	+	232	15601021	-	VCA0253	-	antibiotic acetyltransferase
251	 51.73	+1	273253..275421	-	722	15601022	-	VCA0254	-	hypothetical protein
252	 56.20	+2	275510..276340	-	276	15601023	-	VCA0255	-	hypothetical protein
253	 51.34	+1	276337..277008	-	223	15601024	-	VCA0256	-	transcriptional regulator
254	 53.54	+1	276984..278438	-	484	15601025	-	VCA0257	-	sensor histidine kinase
255	 53.61	+1	278541..279053	-	170	15601026	-	VCA0258	-	hypothetical protein
256	 39.53	-1	279096..279224	-	42	15601027	-	VCA0259	-	hypothetical protein
257	 49.23	0	279248..279442	-	64	15601028	-	VCA0260	-	hypothetical protein
258	 46.18	0	279430..279756	-	108	15601029	-	VCA0261	-	hypothetical protein
259	 46.96	0	279866..280276	-	136	15601030	-	VCA0262	-	hypothetical protein
260	 44.75	0	280382..280924	-	180	15601031	-	VCA0263	-	acetyltransferase, putative
261	 45.38	0	280935..282113	-	392	15601032	-	VCA0264	-	transcriptional regulator, putative
262	 43.31	0	282297..282677	+	126	15601033	-	VCA0265	-	hypothetical protein
263	 46.64	0	282737..283510	-	257	15601034	-	VCA0266	-	AraC/XylS family transcriptional regulator
264	 46.67	0	283612..284751	+	379	15601035	-	VCA0267	-	multidrug resistance protein D
265	 47.41	0	285034..286965	+	643	15601036	-	VCA0268	-	methyl-accepting chemotaxis protein
266	 49.04	0	286981..288654	+	557	15601037	-	VCA0269	-	decarboxylase, group II
267	 48.72	0	288819..289988	+	389	15601038	-	VCA0270	-	D-alanyl-D-alanine carboxypeptidase
268	 48.28	0	290166..290513	+	115	15601039	-	VCA0271	-	hypothetical protein
269	 45.31	0	290571..290954	+	127	15601040	-	VCA0272	-	hypothetical protein
270	 36.30	-2	291097..291231	+	44	15601041	-	VCA0273	-	hypothetical protein
271	 49.17	0	291259..291978	+	239	15601042	-	VCA0274	-	carbonic anhydrase
272	 38.81	-1	292265..292702	-	145	15601043	-	VCA0275	-	IS1004 transposase
273	 47.51	0	295889..296269	-	126	15601044	-	VCA0277	-	glycine cleavage system protein H
274	 51.22	+1	296306..297613	-	435	15601045	-	VCA0278	-	serine hydroxymethyltransferase
275	 49.36	0	298001..298624	+	207	15601046	-	VCA0279	-	transcriptional regulator
276	 45.85	0	300467..301624	+	385	15601047	-	VCA0281	-	integrase, putative
277	 51.89	+1	301670..302650	+	326	15601048	-	VCA0282	-	IS5 transposase
278	 37.75	-1	302926..304149	+	407	15601049	-	VCA0283	-	hypothetical protein
279	 41.05	-1	304670..305200	+	176	15601050	-	VCA0284	-	hypothetical protein
280	 39.43	-1	305200..305871	+	223	15601051	-	VCA0285	-	hypothetical protein
281	 37.61	-1	305873..306223	+	116	15601052	-	VCA0286	-	hypothetical protein
282	 45.67	0	306492..308420	+	642	15601053	-	VCA0287	-	threonyl-tRNA synthetase
283	 46.67	0	308586..308975	+	129	15601864	infC	VCA0288	-	initiation factor IF3
284	 45.13	0	309079..309273	+	64	15601054	rpmI	VCA0289	-	50S ribosomal protein L35
285	 46.05	0	309315..309668	+	117	15601055	rplT	VCA0290	-	50S ribosomal protein L20
286	 42.26	0	309750..310712	-	320	15601056	-	VCA0291	-	site-specific recombinase IntI4
287	 38.20	-1	311034..311300	+	88	15601057	-	VCA0292	-	hypothetical protein
288	 40.50	-1	311455..312054	+	199	15601058	-	VCA0293	-	hypothetical protein
289	 42.40	0	312716..313090	+	124	15601059	-	VCA0294	-	hypothetical protein
290	 44.97	0	313335..313523	+	62	15601060	-	VCA0295	-	hypothetical protein
291	 40.20	-1	313804..313905	-	33	15601061	-	VCA0296	-	hypothetical protein
292	 44.81	0	313887..314069	+	60	15601062	-	VCA0297	-	hypothetical protein
293	 44.84	0	314325..314576	+	83	15601063	-	VCA0298	-	hypothetical protein
294	 40.09	-1	314717..315160	+	147	15601064	-	VCA0299	-	hypothetical protein
295	 40.63	-1	315311..315940	+	209	15601065	-	VCA0300	-	chloramphenicol acetyltransferase
296	 42.63	0	316096..316848	+	250	15601066	-	VCA0301	-	short chain dehydrogenase/reductase family oxidoreductase
297	 43.72	0	317150..317332	+	60	15601067	-	VCA0302	-	hypothetical protein
298	 40.00	-1	317510..317914	+	134	15601068	-	VCA0303	-	hypothetical protein
299	 45.36	0	318210..318392	+	60	15601069	-	VCA0304	-	hypothetical protein
300	 39.32	-1	318630..318746	-	38	15601070	-	VCA0305	-	hypothetical protein
301	 44.26	0	318746..318928	+	60	15601071	-	VCA0306	-	hypothetical protein
45.97	MEAN

4.79	STD DEV
