IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

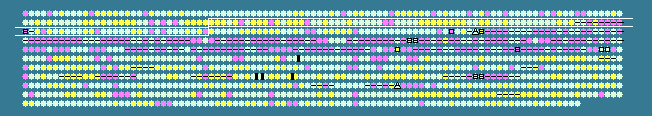

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
132	 49.75	0	146647..147651	+	334	15600903	-	VCA0132	-	ribose operon repressor
133	 51.50	+1	148508..149239	+	243	15600904	-	VCA0134	-	uridine phosphorylase
134	 50.07	0	149379..150059	+	226	15600905	-	VCA0135	-	cyclic nucleotide binding protein, putative
135	 47.66	0	150112..151179	-	355	161582045	glpQ	VCA0136	-	glycerophosphodiester phosphodiesterase
136	 50.48	0	151333..152691	-	452	161582044	glpT	VCA0137	-	sn-glycerol-3-phosphate transporter
137	 27.78	-2	152838..152945	-	35	15600908	-	VCA0138	-	hypothetical protein
138	 44.25	0	153117..153464	-	115	15600909	-	VCA0139	-	hypothetical protein
139	 50.70	0	153872..155080	+	402	15600910	-	VCA0140	-	spindolin-related protein
140	 50.95	+1	155195..157249	-	684	15600911	-	VCA0141	-	C4-dicarboxylate transport sensor protein, putative
141	 54.25	+1	157539..158891	+	450	15600912	-	VCA0142	-	C4-dicarboxylate transport transcriptional regulatory protein
142	 41.44	0	158957..159067	+	36	15600913	-	VCA0143	-	hypothetical protein
143	 51.61	+1	159145..160200	+	351	15600914	-	VCA0144	-	immunogenic protein
144	 46.51	0	160169..160297	-	42	15600915	-	VCA0145	-	hypothetical protein
145	 52.72	+1	160350..162515	+	721	15600916	-	VCA0146	-	hypothetical protein
146	 50.00	0	162512..163723	+	403	15600917	-	VCA0147	-	hypothetical protein
147	 50.22	0	163832..167839	+	1335	15600918	-	VCA0148	-	TagA-related protein
148	 37.04	-1	167864..167971	+	35	15600919	-	VCA0149	-	hypothetical protein
149	 48.72	0	167987..168493	+	168	15600920	def	VCA0150	-	peptide deformylase
150	 46.93	0	168622..169974	+	450	15600921	-	VCA0151	-	oxidoreductase, putative
151	 51.54	+1	170049..170372	-	107	15600922	-	VCA0152	-	putative monovalent cation/H+ antiporter subunit G
152	 44.87	0	170372..170683	-	103	15600923	-	VCA0153	-	putative monovalent cation/H+ antiporter subunit F
153	 47.38	0	170643..171119	-	158	15600924	-	VCA0154	-	hypothetical protein
154	 48.96	0	171116..172612	-	498	15600925	-	VCA0155	-	NADH dehydrogenase, putative
155	 50.56	0	172609..172962	-	117	15600926	-	VCA0156	-	putative monovalent cation/H+ antiporter subunit C
156	 49.40	0	172962..175637	-	891	15600927	-	VCA0157	-	NADH dehydrogenase, putative
157	 48.76	0	175784..175984	-	66	15600928	-	VCA0158	-	hypothetical protein
158	 46.50	0	176056..176997	-	313	15600929	-	VCA0159	-	hypothetical protein
159	 47.90	0	177193..178428	-	411	15600930	-	VCA0160	-	tryptophan-specific transport protein
160	 47.92	0	178507..179925	-	472	15600931	tnaA	VCA0161	-	tryptophanase
161	 36.71	-1	180491..180697	-	68	15600932	-	VCA0162	-	hypothetical protein
162	 37.56	-1	180706..180918	+	70	15600933	-	VCA0163	-	hypothetical protein
163	 45.64	0	180988..181572	-	194	15600934	-	VCA0164	-	hypothetical protein
164	 46.41	0	181879..184011	+	710	15600935	-	VCA0165	-	GGDEF family protein
165	 45.07	0	184257..184469	+	70	15600936	-	VCA0166	-	cold shock transcriptional regulator CspA
166	 46.51	0	184758..185546	-	262	15600937	-	VCA0167	-	hypothetical protein
167	 52.12	+1	185635..186177	-	180	15600938	-	VCA0168	-	hypothetical protein
168	 49.84	0	186129..186740	-	203	15600939	-	VCA0169	-	hypothetical protein
169	 49.69	0	186643..187290	-	215	15600940	-	VCA0170	-	hypothetical protein
170	 52.70	+1	187284..189224	-	646	15600941	-	VCA0171	-	hypothetical protein
171	 50.05	0	189226..190182	-	318	15600942	-	VCA0172	-	hypothetical protein
172	 50.10	0	190169..190657	-	162	15600943	-	VCA0173	-	hypothetical protein
173	 50.11	0	190654..191589	-	311	15600944	-	VCA0174	-	hypothetical protein
174	 50.78	+1	191593..192549	-	318	15600945	-	VCA0175	-	MoxR-related protein
175	 48.63	0	192834..194768	+	644	15600946	-	VCA0176	-	methyl-accepting chemotaxis protein
176	 45.10	0	194825..195028	+	67	15600947	-	VCA0177	-	hypothetical protein
177	 51.53	+1	195304..195957	-	217	15600948	-	VCA0178	-	frnE protein
178	 49.71	0	196603..197811	+	402	15600949	-	VCA0179	-	NupC family protein
179	 48.01	0	198062..199294	+	410	15600950	-	VCA0180	-	peptidase T
180	 48.63	0	199466..200341	+	291	15600951	-	VCA0181	-	hypothetical protein
181	 52.10	+1	200338..201930	-	530	15600952	-	VCA0182	-	anaerobic nitric oxide reductase transcription regulator
182	 48.10	0	202121..203305	+	394	15600953	-	VCA0183	-	nitric oxide dioxygenase
183	 45.24	0	203449..203658	-	69	15600954	-	VCA0184	-	cold shock DNA-binding domain-containing protein
184	 43.86	0	204017..204244	+	75	15600955	-	VCA0185	-	hypothetical protein
185	 46.03	0	204632..205009	+	125	15600956	-	VCA0186	-	hypothetical protein
186	 44.70	0	205035..205166	-	43	15600957	-	VCA0187	-	hypothetical protein
187	 43.01	0	205244..205522	+	92	15600958	-	VCA0188	-	hypothetical protein
188	 46.87	0	205609..206613	+	334	15600959	-	VCA0189	-	response regulator
189	 43.62	0	206613..207059	+	148	15600960	-	VCA0190	-	hypothetical protein
190	 51.52	+1	207097..208581	+	494	15600961	-	VCA0191	-	hypothetical protein
191	 48.59	0	208570..209565	-	331	15600962	-	VCA0192	-	D-lactate dehydrogenase
192	 50.97	+1	209748..211091	+	447	15600963	-	VCA0193	-	Na+/H+ antiporter, putative
193	 47.45	0	211093..211935	-	280	15600964	-	VCA0194	-	potassium channel protein, putative
194	 44.44	0	212001..212549	-	182	15600965	-	VCA0195	-	hypothetical protein
195	 37.83	-1	212665..213042	-	125	15600966	-	VCA0196	-	hypothetical protein
196	 51.05	+1	213207..214250	+	347	15600967	-	VCA0197	-	guanosine 5'-monophosphate oxidoreductase
197	 39.06	-1	214574..215725	+	383	15600968	-	VCA0198	-	site-specific DNA-methyltransferase, putative
198	 34.74	-2	215849..217765	+	638	15600969	-	VCA0199	-	hypothetical protein
199	 38.13	-1	217758..218882	+	374	15600970	-	VCA0200	-	hypothetical protein
200	 31.74	-2	218879..219757	+	292	15600971	-	VCA0201	-	hypothetical protein
201	 38.81	-1	219825..220262	-	145	15600972	-	VCA0202	-	IS1004 transposase
202	 48.89	0	220767..222122	-	451	15600973	-	VCA0204	-	ATP-dependent RNA helicase RhlE
203	 50.94	+1	222312..223640	-	442	15600974	-	VCA0205	-	anaerobic C4-dicarboxylate transporter
204	 41.67	0	223751..223882	-	43	15600975	-	VCA0206	-	hypothetical protein
205	 50.90	+1	223891..224721	-	276	15600976	nadE	VCA0207	-	NAD synthetase
206	 48.67	0	224824..225351	+	175	15600977	-	VCA0208	-	nicotinic acid mononucleotide adenylyltransferase
207	 50.82	+1	225302..225484	+	60	15600978	-	VCA0209	-	hypothetical protein
208	 46.34	0	225591..227159	+	522	15600979	-	VCA0210	-	response regulator, putative
209	 46.53	0	227217..229163	-	648	15600980	-	VCA0211	-	sensory box sensor histidine kinase
210	 46.29	0	229338..230387	+	349	15600981	-	VCA0212	-	hypothetical protein
211	 52.39	+1	230465..232054	-	529	15600982	-	VCA0213	-	hypothetical protein
212	 49.88	0	232449..233693	-	414	15600983	emrD	VCA0214	-	multidrug resistance protein D
213	 35.22	-2	233694..233852	-	52	15600984	-	VCA0215	-	hypothetical protein
214	 44.19	0	233907..234173	+	88	15600985	-	VCA0216	-	hypothetical protein
215	 45.28	0	234164..235243	-	359	15600986	-	VCA0217	-	GGDEF family protein
216	 47.97	0	235364..236620	-	418	15600987	-	VCA0218	-	thermolabile hemolysin
217	 47.75	0	237590..239815	+	741	15600988	-	VCA0219	-	haemolysin
218	 48.57	0	240114..241760	+	548	15600989	-	VCA0220	-	hemolysin secretion protein HylB
219	 51.08	+1	242027..243046	+	339	15600990	-	VCA0221	-	lactonizing lipase
220	 52.98	+1	243056..243910	+	284	15600991	-	VCA0222	-	lipase chaperone
221	 49.37	0	243986..246742	-	918	15600992	-	VCA0223	-	protease
222	 38.24	-1	246827..247132	-	101	15600993	-	VCA0224	-	hypothetical protein
223	 49.02	0	247686..248450	+	254	15600994	-	VCA0225	-	hypothetical protein
224	 39.02	-1	248610..248732	-	40	15600995	-	VCA0226	-	hypothetical protein
225	 44.71	0	248766..249767	+	333	15600996	-	VCA0227	-	iron(III) ABC transporter, periplasmic iron-compound-binding protein
226	 46.33	0	249820..250758	+	312	15600997	-	VCA0228	-	iron(III) ABC transporter, permease protein
227	 49.11	0	250748..251698	+	316	15600998	-	VCA0229	-	iron(III) ABC transporter, permease protein
228	 49.93	0	251701..252465	+	254	15600999	-	VCA0230	-	iron(III) ABC transporter, ATP-binding protein
229	 47.45	0	252511..253587	-	358	15601000	-	VCA0231	-	AraC/XylS family transcriptional regulator
230	 49.84	0	255650..255970	+	106	15601001	-	VCA0233	-	hypothetical protein
231	 41.03	-1	255986..256102	+	38	15601002	-	VCA0234	-	hypothetical protein
45.97	MEAN

4.79	STD DEV
