IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

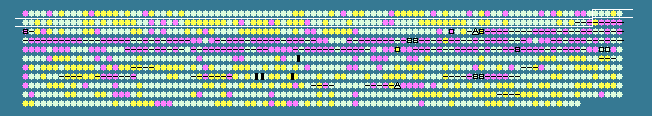

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.97   STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
96	 46.41	0	103162..104385	+	407	15600867	-	VCA0096	-	hypothetical protein
97	 49.09	0	104398..105114	-	238	15600868	-	VCA0097	-	hypothetical protein
98	 47.78	0	105513..106820	+	435	15600869	-	VCA0098	-	nicotinate phosphoribosyltransferase
99	 49.76	0	106851..107891	+	346	15600870	-	VCA0099	-	Gfo/Idh/MocA family oxidoreductase
100	 49.19	0	107928..108299	-	123	15600871	-	VCA0100	-	phage shock protein E
101	 44.51	0	108299..109855	-	518	15600872	-	VCA0101	-	hypothetical protein
102	 48.33	0	110031..110690	-	219	15600873	-	VCA0102	-	CbbY family protein
103	 51.04	+1	110871..112649	+	592	15600874	-	VCA0103	-	sulfate permease family protein
104	 47.45	0	112691..113356	-	221	15600875	-	VCA0104	-	ribosomal large subunit pseudouridine synthase A
105	 54.74	+1	115142..115426	+	94	15600876	-	VCA0105	-	hypothetical protein
106	 46.00	0	115341..116414	+	357	15600877	-	VCA0106	-	hypothetical protein
107	 47.73	0	116846..117352	+	168	15600878	-	VCA0107	-	hypothetical protein
108	 47.19	0	117393..118871	+	492	15600879	-	VCA0108	-	hypothetical protein
109	 47.49	0	118874..119311	+	145	15600880	-	VCA0109	-	hypothetical protein
110	 48.02	0	119317..121086	+	589	15600881	-	VCA0110	-	hypothetical protein
111	 51.33	+1	121050..122066	+	338	15600882	-	VCA0111	-	hypothetical protein
112	 49.66	0	122069..123556	+	495	15600883	-	VCA0112	-	hypothetical protein
113	 46.75	0	123559..124035	+	158	15600884	-	VCA0113	-	hypothetical protein
114	 52.13	+1	124042..125376	+	444	15600885	-	VCA0114	-	hypothetical protein
115	 48.58	0	125379..126152	+	257	15600886	-	VCA0115	-	hypothetical protein
116	 50.96	+1	126178..128787	+	869	15600887	-	VCA0116	-	clpB protein
117	 51.10	+1	128790..130382	+	530	15600888	-	VCA0117	-	sigma-54 dependent transcriptional regulator
118	 54.39	+1	130352..131035	+	227	15600889	-	VCA0118	-	hypothetical protein
119	 51.42	+1	131045..132454	+	469	15600890	-	VCA0119	-	hypothetical protein
120	 48.34	0	132470..136015	+	1181	15600891	-	VCA0120	-	IcmF-related protein
121	 49.29	0	136063..137328	+	421	15600892	-	VCA0121	-	hypothetical protein
122	 41.98	0	137379..137621	+	80	15600893	-	VCA0122	-	hypothetical protein
123	 47.09	0	137581..140634	+	1017	15600894	-	VCA0123	-	vgrG protein
124	 34.15	-2	140631..140999	+	122	15600895	-	VCA0124	-	hypothetical protein
125	 45.59	0	141147..141407	-	86	15600896	-	VCA0125	-	hypothetical protein
126	 40.48	-1	141382..141591	+	69	15600897	-	VCA0126	-	hypothetical protein
127	 47.13	0	141640..142110	+	156	15600898	-	VCA0127	-	D-ribose pyranase
128	 49.90	0	142137..143639	+	500	15600899	-	VCA0128	-	D-ribose transporter ATP binding protein
129	 50.35	0	143636..144634	+	332	15600900	rbsC	VCA0129	-	ribose ABC transporter permease protein
130	 51.07	+1	144693..145577	+	294	15600901	-	VCA0130	-	D-ribose transporter subunit RbsB
131	 50.49	0	145716..146636	+	306	15600902	-	VCA0131	-	ribokinase
132	 49.75	0	146647..147651	+	334	15600903	-	VCA0132	-	ribose operon repressor
133	 51.50	+1	148508..149239	+	243	15600904	-	VCA0134	-	uridine phosphorylase
134	 50.07	0	149379..150059	+	226	15600905	-	VCA0135	-	cyclic nucleotide binding protein, putative
135	 47.66	0	150112..151179	-	355	161582045	glpQ	VCA0136	-	glycerophosphodiester phosphodiesterase
136	 50.48	0	151333..152691	-	452	161582044	glpT	VCA0137	-	sn-glycerol-3-phosphate transporter
137	 27.78	-2	152838..152945	-	35	15600908	-	VCA0138	-	hypothetical protein
138	 44.25	0	153117..153464	-	115	15600909	-	VCA0139	-	hypothetical protein
139	 50.70	0	153872..155080	+	402	15600910	-	VCA0140	-	spindolin-related protein
140	 50.95	+1	155195..157249	-	684	15600911	-	VCA0141	-	C4-dicarboxylate transport sensor protein, putative
141	 54.25	+1	157539..158891	+	450	15600912	-	VCA0142	-	C4-dicarboxylate transport transcriptional regulatory protein
142	 41.44	0	158957..159067	+	36	15600913	-	VCA0143	-	hypothetical protein
143	 51.61	+1	159145..160200	+	351	15600914	-	VCA0144	-	immunogenic protein
144	 46.51	0	160169..160297	-	42	15600915	-	VCA0145	-	hypothetical protein
145	 52.72	+1	160350..162515	+	721	15600916	-	VCA0146	-	hypothetical protein
146	 50.00	0	162512..163723	+	403	15600917	-	VCA0147	-	hypothetical protein
147	 50.22	0	163832..167839	+	1335	15600918	-	VCA0148	-	TagA-related protein
148	 37.04	-1	167864..167971	+	35	15600919	-	VCA0149	-	hypothetical protein
149	 48.72	0	167987..168493	+	168	15600920	def	VCA0150	-	peptide deformylase
150	 46.93	0	168622..169974	+	450	15600921	-	VCA0151	-	oxidoreductase, putative
151	 51.54	+1	170049..170372	-	107	15600922	-	VCA0152	-	putative monovalent cation/H+ antiporter subunit G
152	 44.87	0	170372..170683	-	103	15600923	-	VCA0153	-	putative monovalent cation/H+ antiporter subunit F
153	 47.38	0	170643..171119	-	158	15600924	-	VCA0154	-	hypothetical protein
154	 48.96	0	171116..172612	-	498	15600925	-	VCA0155	-	NADH dehydrogenase, putative
155	 50.56	0	172609..172962	-	117	15600926	-	VCA0156	-	putative monovalent cation/H+ antiporter subunit C
156	 49.40	0	172962..175637	-	891	15600927	-	VCA0157	-	NADH dehydrogenase, putative
157	 48.76	0	175784..175984	-	66	15600928	-	VCA0158	-	hypothetical protein
158	 46.50	0	176056..176997	-	313	15600929	-	VCA0159	-	hypothetical protein
159	 47.90	0	177193..178428	-	411	15600930	-	VCA0160	-	tryptophan-specific transport protein
160	 47.92	0	178507..179925	-	472	15600931	tnaA	VCA0161	-	tryptophanase
161	 36.71	-1	180491..180697	-	68	15600932	-	VCA0162	-	hypothetical protein
162	 37.56	-1	180706..180918	+	70	15600933	-	VCA0163	-	hypothetical protein
163	 45.64	0	180988..181572	-	194	15600934	-	VCA0164	-	hypothetical protein
164	 46.41	0	181879..184011	+	710	15600935	-	VCA0165	-	GGDEF family protein
165	 45.07	0	184257..184469	+	70	15600936	-	VCA0166	-	cold shock transcriptional regulator CspA
166	 46.51	0	184758..185546	-	262	15600937	-	VCA0167	-	hypothetical protein
167	 52.12	+1	185635..186177	-	180	15600938	-	VCA0168	-	hypothetical protein
168	 49.84	0	186129..186740	-	203	15600939	-	VCA0169	-	hypothetical protein
169	 49.69	0	186643..187290	-	215	15600940	-	VCA0170	-	hypothetical protein
170	 52.70	+1	187284..189224	-	646	15600941	-	VCA0171	-	hypothetical protein
171	 50.05	0	189226..190182	-	318	15600942	-	VCA0172	-	hypothetical protein
172	 50.10	0	190169..190657	-	162	15600943	-	VCA0173	-	hypothetical protein
173	 50.11	0	190654..191589	-	311	15600944	-	VCA0174	-	hypothetical protein
174	 50.78	+1	191593..192549	-	318	15600945	-	VCA0175	-	MoxR-related protein
175	 48.63	0	192834..194768	+	644	15600946	-	VCA0176	-	methyl-accepting chemotaxis protein
176	 45.10	0	194825..195028	+	67	15600947	-	VCA0177	-	hypothetical protein
177	 51.53	+1	195304..195957	-	217	15600948	-	VCA0178	-	frnE protein
178	 49.71	0	196603..197811	+	402	15600949	-	VCA0179	-	NupC family protein
179	 48.01	0	198062..199294	+	410	15600950	-	VCA0180	-	peptidase T
180	 48.63	0	199466..200341	+	291	15600951	-	VCA0181	-	hypothetical protein
181	 52.10	+1	200338..201930	-	530	15600952	-	VCA0182	-	anaerobic nitric oxide reductase transcription regulator
182	 48.10	0	202121..203305	+	394	15600953	-	VCA0183	-	nitric oxide dioxygenase
183	 45.24	0	203449..203658	-	69	15600954	-	VCA0184	-	cold shock DNA-binding domain-containing protein
184	 43.86	0	204017..204244	+	75	15600955	-	VCA0185	-	hypothetical protein
185	 46.03	0	204632..205009	+	125	15600956	-	VCA0186	-	hypothetical protein
186	 44.70	0	205035..205166	-	43	15600957	-	VCA0187	-	hypothetical protein
187	 43.01	0	205244..205522	+	92	15600958	-	VCA0188	-	hypothetical protein
188	 46.87	0	205609..206613	+	334	15600959	-	VCA0189	-	response regulator
189	 43.62	0	206613..207059	+	148	15600960	-	VCA0190	-	hypothetical protein
190	 51.52	+1	207097..208581	+	494	15600961	-	VCA0191	-	hypothetical protein
191	 48.59	0	208570..209565	-	331	15600962	-	VCA0192	-	D-lactate dehydrogenase
192	 50.97	+1	209748..211091	+	447	15600963	-	VCA0193	-	Na+/H+ antiporter, putative
193	 47.45	0	211093..211935	-	280	15600964	-	VCA0194	-	potassium channel protein, putative
194	 44.44	0	212001..212549	-	182	15600965	-	VCA0195	-	hypothetical protein
195	 37.83	-1	212665..213042	-	125	15600966	-	VCA0196	-	hypothetical protein
45.97	MEAN

4.79	STD DEV
