IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

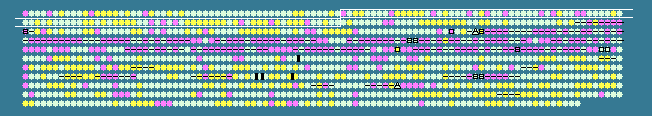

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.97 STD DEV: 4.79
Vibrio cholerae O1 biovar eltor str. N16961 chromosome II, complete sequence - 1..1072315
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
54	 35.56	-2	62116..62295	-	59	15600825	-	VCA0054	-	hypothetical protein
55	 47.88	0	62337..63305	+	322	15600826	-	VCA0055	-	hypothetical protein
56	 51.00	+1	63295..64092	+	265	15600827	-	VCA0056	-	MerR family transcriptional regulator
57	 50.78	+1	64102..65511	+	469	15600828	-	VCA0057	-	deoxyribodipyrimidine photolyase
58	 47.88	0	65520..66440	+	306	15600829	-	VCA0058	-	hypothetical protein
59	 45.00	0	66526..66885	-	119	15600830	-	VCA0059	-	major outer membrane lipoprotein
60	 44.07	0	67082..67258	+	58	15600831	-	VCA0060	-	hypothetical protein
61	 47.98	0	67304..68662	+	452	15600832	-	VCA0061	-	DEAD-box ATP dependent DNA helicase
62	 42.34	0	68659..68769	-	36	15600833	-	VCA0062	-	hypothetical protein
63	 51.05	+1	68875..70872	+	665	15600834	-	VCA0063	-	protease II
64	 50.56	0	70872..73013	+	713	15600835	-	VCA0064	-	TonB system receptor, putative
65	 50.33	0	73023..75329	+	768	15600836	-	VCA0065	-	hypothetical protein
66	 50.59	0	75326..76768	+	480	15600837	-	VCA0066	-	hypothetical protein
67	 52.41	+1	76765..77325	+	186	15600838	-	VCA0067	-	hypothetical protein
68	 48.48	0	77459..79102	-	547	15600839	-	VCA0068	-	methyl-accepting chemotaxis protein
69	 38.38	-1	79249..79347	+	32	15600840	-	VCA0069	-	hypothetical protein
70	 46.44	0	79395..80294	+	299	15600841	-	VCA0070	-	phosphate ABC transporter, periplasmic phosphate-binding protein
71	 50.20	0	80309..81292	+	327	15600842	-	VCA0071	-	phosphate ABC transporter, permease protein
72	 48.16	0	81292..82161	+	289	15600843	-	VCA0072	-	phosphate ABC transporter, permease protein
73	 47.62	0	82190..82945	+	251	15600844	-	VCA0073	-	phosphate ABC transporter, ATP-binding protein
74	 45.14	0	82992..84092	-	366	15600845	-	VCA0074	-	GGDEF family protein
75	 41.88	0	84089..84556	-	155	15600846	-	VCA0075	-	hypothetical protein
76	 48.95	0	84847..86223	-	458	15600847	-	VCA0076	-	hypothetical protein
77	 49.58	0	86658..88319	-	553	15600848	-	VCA0077	-	sulfate permease family protein
78	 40.84	-1	88624..88956	+	110	15600849	-	VCA0078	-	hypothetical protein
79	 47.80	0	89148..90440	+	430	15600850	-	VCA0079	-	hypothetical protein
80	 42.65	0	90558..92381	-	607	15600851	-	VCA0080	-	GGDEF family protein
81	 36.19	-2	92442..92546	+	34	15600852	-	VCA0081	-	hypothetical protein
82	 48.87	0	92604..93491	-	295	15600853	-	VCA0082	-	LysR family transcriptional regulator
83	 48.84	0	93581..94792	+	403	15600854	-	VCA0083	-	multidrug resistance protein D
84	 47.43	0	94834..95280	-	148	15600855	-	VCA0084	-	soxR protein
85	 46.63	0	95459..96661	+	400	15600856	-	VCA0085	-	hypothetical protein
86	 45.67	0	96762..97142	+	126	15600857	-	VCA0086	-	hypothetical protein
87	 38.18	-1	97216..97380	+	54	15600858	-	VCA0087	-	hypothetical protein
88	 49.41	0	97546..98820	-	424	15600859	-	VCA0088	-	proton/glutamate symporter
89	 37.98	-1	98848..98976	+	42	15600860	-	VCA0089	-	hypothetical protein
90	 51.34	+1	99076..99969	-	297	15600861	-	VCA0090	-	hypothetical protein
91	 46.13	0	100199..100495	+	98	15600862	-	VCA0091	-	hypothetical protein
92	 45.40	0	100666..101295	-	209	15600863	-	VCA0092	-	hypothetical protein
93	 41.38	0	101395..101568	+	57	15600864	-	VCA0093	-	hypothetical protein
94	 42.02	0	101796..102152	+	118	15600865	-	VCA0094	-	hypothetical protein
95	 47.07	0	102421..103119	+	232	15600866	-	VCA0095	-	hypothetical protein
96	 46.41	0	103162..104385	+	407	15600867	-	VCA0096	-	hypothetical protein
97	 49.09	0	104398..105114	-	238	15600868	-	VCA0097	-	hypothetical protein
98	 47.78	0	105513..106820	+	435	15600869	-	VCA0098	-	nicotinate phosphoribosyltransferase
99	 49.76	0	106851..107891	+	346	15600870	-	VCA0099	-	Gfo/Idh/MocA family oxidoreductase
100	 49.19	0	107928..108299	-	123	15600871	-	VCA0100	-	phage shock protein E
101	 44.51	0	108299..109855	-	518	15600872	-	VCA0101	-	hypothetical protein
102	 48.33	0	110031..110690	-	219	15600873	-	VCA0102	-	CbbY family protein
103	 51.04	+1	110871..112649	+	592	15600874	-	VCA0103	-	sulfate permease family protein
104	 47.45	0	112691..113356	-	221	15600875	-	VCA0104	-	ribosomal large subunit pseudouridine synthase A
105	 54.74	+1	115142..115426	+	94	15600876	-	VCA0105	-	hypothetical protein
106	 46.00	0	115341..116414	+	357	15600877	-	VCA0106	-	hypothetical protein
107	 47.73	0	116846..117352	+	168	15600878	-	VCA0107	-	hypothetical protein
108	 47.19	0	117393..118871	+	492	15600879	-	VCA0108	-	hypothetical protein
109	 47.49	0	118874..119311	+	145	15600880	-	VCA0109	-	hypothetical protein
110	 48.02	0	119317..121086	+	589	15600881	-	VCA0110	-	hypothetical protein
111	 51.33	+1	121050..122066	+	338	15600882	-	VCA0111	-	hypothetical protein
112	 49.66	0	122069..123556	+	495	15600883	-	VCA0112	-	hypothetical protein
113	 46.75	0	123559..124035	+	158	15600884	-	VCA0113	-	hypothetical protein
114	 52.13	+1	124042..125376	+	444	15600885	-	VCA0114	-	hypothetical protein
115	 48.58	0	125379..126152	+	257	15600886	-	VCA0115	-	hypothetical protein
116	 50.96	+1	126178..128787	+	869	15600887	-	VCA0116	-	clpB protein
117	 51.10	+1	128790..130382	+	530	15600888	-	VCA0117	-	sigma-54 dependent transcriptional regulator
118	 54.39	+1	130352..131035	+	227	15600889	-	VCA0118	-	hypothetical protein
119	 51.42	+1	131045..132454	+	469	15600890	-	VCA0119	-	hypothetical protein
120	 48.34	0	132470..136015	+	1181	15600891	-	VCA0120	-	IcmF-related protein
121	 49.29	0	136063..137328	+	421	15600892	-	VCA0121	-	hypothetical protein
122	 41.98	0	137379..137621	+	80	15600893	-	VCA0122	-	hypothetical protein
123	 47.09	0	137581..140634	+	1017	15600894	-	VCA0123	-	vgrG protein
124	 34.15	-2	140631..140999	+	122	15600895	-	VCA0124	-	hypothetical protein
125	 45.59	0	141147..141407	-	86	15600896	-	VCA0125	-	hypothetical protein
126	 40.48	-1	141382..141591	+	69	15600897	-	VCA0126	-	hypothetical protein
127	 47.13	0	141640..142110	+	156	15600898	-	VCA0127	-	D-ribose pyranase
128	 49.90	0	142137..143639	+	500	15600899	-	VCA0128	-	D-ribose transporter ATP binding protein
129	 50.35	0	143636..144634	+	332	15600900	rbsC	VCA0129	-	ribose ABC transporter permease protein
130	 51.07	+1	144693..145577	+	294	15600901	-	VCA0130	-	D-ribose transporter subunit RbsB
131	 50.49	0	145716..146636	+	306	15600902	-	VCA0131	-	ribokinase
132	 49.75	0	146647..147651	+	334	15600903	-	VCA0132	-	ribose operon repressor
133	 51.50	+1	148508..149239	+	243	15600904	-	VCA0134	-	uridine phosphorylase
134	 50.07	0	149379..150059	+	226	15600905	-	VCA0135	-	cyclic nucleotide binding protein, putative
135	 47.66	0	150112..151179	-	355	161582045	glpQ	VCA0136	-	glycerophosphodiester phosphodiesterase
136	 50.48	0	151333..152691	-	452	161582044	glpT	VCA0137	-	sn-glycerol-3-phosphate transporter
137	 27.78	-2	152838..152945	-	35	15600908	-	VCA0138	-	hypothetical protein
138	 44.25	0	153117..153464	-	115	15600909	-	VCA0139	-	hypothetical protein
139	 50.70	0	153872..155080	+	402	15600910	-	VCA0140	-	spindolin-related protein
140	 50.95	+1	155195..157249	-	684	15600911	-	VCA0141	-	C4-dicarboxylate transport sensor protein, putative
141	 54.25	+1	157539..158891	+	450	15600912	-	VCA0142	-	C4-dicarboxylate transport transcriptional regulatory protein
142	 41.44	0	158957..159067	+	36	15600913	-	VCA0143	-	hypothetical protein
143	 51.61	+1	159145..160200	+	351	15600914	-	VCA0144	-	immunogenic protein
144	 46.51	0	160169..160297	-	42	15600915	-	VCA0145	-	hypothetical protein
145	 52.72	+1	160350..162515	+	721	15600916	-	VCA0146	-	hypothetical protein
146	 50.00	0	162512..163723	+	403	15600917	-	VCA0147	-	hypothetical protein
147	 50.22	0	163832..167839	+	1335	15600918	-	VCA0148	-	TagA-related protein
148	 37.04	-1	167864..167971	+	35	15600919	-	VCA0149	-	hypothetical protein
149	 48.72	0	167987..168493	+	168	15600920	def	VCA0150	-	peptide deformylase
150	 46.93	0	168622..169974	+	450	15600921	-	VCA0151	-	oxidoreductase, putative
151	 51.54	+1	170049..170372	-	107	15600922	-	VCA0152	-	putative monovalent cation/H+ antiporter subunit G
152	 44.87	0	170372..170683	-	103	15600923	-	VCA0153	-	putative monovalent cation/H+ antiporter subunit F
153	 47.38	0	170643..171119	-	158	15600924	-	VCA0154	-	hypothetical protein
45.97	MEAN

4.79	STD DEV
