IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

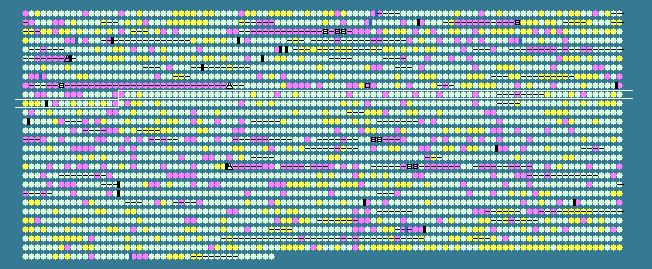

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
917	 35.04	-2	992138..993364	-	408	15640945	-	VC0929	-	hypothetical protein
918	 47.11	0	993628..996501	+	957	15640946	-	VC0930	-	hemolysin-related protein
919	 45.03	0	996656..997972	-	438	15640947	-	VC0931	-	hypothetical protein
920	 54.17	+1	998148..998435	-	95	15640948	-	VC0932	-	hypothetical protein
921	 45.93	0	998348..998752	-	134	15640949	-	VC0933	-	hypothetical protein
922	 45.06	0	999242..1000639	+	465	15640950	-	VC0934	-	capsular polysaccharide biosynthesis glycosyltransferase, putative
923	 47.54	0	1000710..1001906	+	398	15640951	-	VC0935	-	hypothetical protein
924	 46.02	0	1001910..1002437	+	175	15640952	-	VC0936	-	polysaccharide export-related protein
925	 47.47	0	1002462..1004675	+	737	15640953	-	VC0937	-	exopolysaccharide biosynthesis protein, putative
926	 50.71	0	1004672..1005379	+	235	15640954	-	VC0938	-	hypothetical protein
927	 47.13	0	1005358..1005792	+	144	15640955	-	VC0939	-	hypothetical protein
928	 46.06	0	1005943..1006539	-	198	15640956	-	VC0940	-	hypothetical protein
929	 49.40	0	1006880..1008130	+	416	161582016	glyA	VC0941	-	serine hydroxymethyltransferase
930	 44.07	0	1008294..1008647	-	117	15640958	-	VC0942	-	hypothetical protein
931	 48.96	0	1008816..1009781	-	321	15640959	-	VC0943	-	lipoyl synthase
932	 46.21	0	1009774..1010433	-	219	15640960	lipB	VC0944	-	lipoyltransferase
933	 46.95	0	1010612..1010890	-	92	15640961	-	VC0945	-	hypothetical protein
934	 44.64	0	1010912..1011079	+	55	15640962	-	VC0946	-	hypothetical protein
935	 47.19	0	1011038..1012213	-	391	15640963	-	VC0947	-	D-alanyl-D-alanine carboxypeptidase
936	 46.09	0	1012305..1013096	-	263	15640964	-	VC0948	-	rare lipoprotein A, putative
937	 48.84	0	1013096..1014217	-	373	15640965	-	VC0949	-	rod shape-determining protein RodA
938	 48.88	0	1014214..1016130	-	638	15640966	-	VC0950	-	penicillin-binding protein 2
939	 51.38	0	1016137..1016607	-	156	15640967	-	VC0951	-	SPOUT methyltransferase superfamily protein
940	 45.60	0	1016610..1016927	-	105	15640968	-	VC0952	-	hypothetical protein
941	 49.47	0	1016996..1018024	-	342	15640969	holA	VC0953	-	DNA polymerase III subunit delta
942	 47.82	0	1018030..1018671	-	213	15640970	-	VC0954	-	rare lipoprotein B
943	 43.81	0	1018687..1018791	-	34	15640971	-	VC0955	-	hypothetical protein
944	 49.16	0	1018821..1021505	-	894	15640972	leuS	VC0956	-	leucyl-tRNA synthetase
945	 46.28	0	1021527..1021997	+	156	15640973	-	VC0957	-	hypothetical protein
946	 51.19	0	1022053..1023570	-	505	15640974	lnt	VC0958	-	apolipoprotein N-acyltransferase
947	 49.77	0	1023611..1024486	-	291	15640975	-	VC0959	-	hemolysin, putative
948	 47.10	0	1024556..1025020	-	154	15640976	-	VC0960	-	putative metalloprotease
949	 48.73	0	1025017..1026120	-	367	15640977	-	VC0961	-	phoH family protein
950	 50.04	0	1026188..1027612	-	474	15640978	-	VC0962	-	hypothetical protein
951	 50.42	0	1027836..1029029	+	397	15640979	-	VC0963	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
952	 45.49	0	1029142..1029651	-	169	15640980	-	VC0964	-	glucose-specific PTS system component
953	 46.17	0	1029760..1031481	-	573	15640981	-	VC0965	-	phosphoenolpyruvate-protein phosphotransferase
954	 46.51	0	1031615..1031872	-	85	15640982	-	VC0966	-	phosphocarrier protein HPr
955	 36.67	-2	1031957..1032166	-	69	15640983	-	VC0967	-	hypothetical protein
956	 46.13	0	1032170..1033138	-	322	15640984	-	VC0968	-	cysteine synthase A
957	 47.28	0	1033261..1034013	-	250	15640985	-	VC0969	-	putative sulfate transport protein CysZ
958	 48.17	0	1034243..1035118	+	291	15640986	-	VC0970	-	cell division protein ZipA
959	 48.21	0	1035251..1037260	+	669	15640987	ligA	VC0971	-	NAD-dependent DNA ligase LigA
960	 45.14	0	1037891..1038940	+	349	15640988	-	VC0972	-	porin, putative
961	 39.58	-1	1039017..1039832	+	271	15640989	-	VC0973	-	hypothetical protein
962	 49.05	0	1039893..1040312	+	139	15640990	-	VC0974	-	MerR family transcriptional regulator
963	 48.25	0	1040356..1040925	-	189	15640991	-	VC0975	-	hypothetical protein
964	 45.49	0	1040813..1041733	-	306	15640992	-	VC0976	-	hypothetical protein
965	 45.60	0	1042164..1043084	-	306	15640993	-	VC0977	-	hypothetical protein
966	 36.75	-2	1043256..1043372	-	38	15640994	-	VC0978	-	hypothetical protein
967	 48.07	0	1043447..1044274	-	275	15640995	-	VC0979	-	short chain dehydrogenase
968	 48.25	0	1045625..1046194	+	189	15640996	-	VC0981	-	phosphodiesterase
969	 49.66	0	1046275..1046568	-	97	15640997	-	VC0982	-	selenoprotein W-related protein
970	 42.72	-1	1046609..1047130	-	173	15640998	-	VC0983	-	regulatory protein ToxS
971	 45.42	0	1047140..1048024	-	294	15640999	-	VC0984	-	cholera toxin transcriptional activator
972	 45.75	0	1048252..1050159	+	635	15641000	-	VC0985	-	heat shock protein 90
973	 46.98	0	1050494..1051138	+	214	15641001	adk	VC0986	-	adenylate kinase
974	 47.18	0	1051253..1052227	+	324	15641002	hemH	VC0987	-	ferrochelatase
975	 46.41	0	1052327..1053871	-	514	15641003	tppB	VC0988	-	putative tripeptide transporter permease
976	 38.67	-2	1054133..1054282	+	49	15641004	-	VC0989	-	hypothetical protein
977	 45.18	0	1054316..1054813	+	165	15641005	rfaH	VC0990	-	transcriptional activator RfaH
978	 46.49	0	1054961..1056625	-	554	15641006	asnB	VC0991	-	asparagine synthetase B
979	 47.51	0	1056821..1058407	-	528	15641007	-	VC0992	-	glutathione-regulated potassium-efflux system protein KefB, putative
980	 46.91	0	1058502..1059716	-	404	15641008	-	VC0993	-	N-acetylglucosamine repressor
981	 45.82	0	1059719..1060855	-	378	15641009	nagA	VC0994	-	N-acetylglucosamine-6-phosphate deacetylase
982	 48.98	0	1061324..1062895	+	523	15641010	-	VC0995	-	PTS system, N-acetylglucosamine-specific IIABC component
983	 40.20	-1	1063024..1063125	+	33	15641011	-	VC0996	-	hypothetical protein
984	 46.56	0	1063143..1064813	+	556	15641012	-	VC0997	-	glutaminyl-tRNA synthetase
985	 49.49	0	1064978..1069843	+	1621	15641013	-	VC0998	-	hypothetical protein
986	 50.82	0	1069965..1070759	+	264	15641014	truA	VC0999	-	tRNA pseudouridine synthase A
987	 49.84	0	1070933..1071859	+	308	15641015	-	VC1000	-	acetyl-CoA carboxylase subunit beta
988	 50.95	0	1071904..1073169	+	421	15641016	-	VC1001	-	folylpolyglutamate synthase/dihydrofolate synthase
989	 47.07	0	1073170..1073766	+	198	15641017	-	VC1002	-	dedD protein
990	 46.75	0	1073829..1074320	+	163	15641018	-	VC1003	-	bacteriocin production protein
991	 48.65	0	1074353..1075867	+	504	15641019	-	VC1004	-	amidophosphoribosyltransferase
992	 51.13	0	1075995..1077320	-	441	15641020	-	VC1005	-	hypothetical protein
993	 46.58	0	1077421..1078152	-	243	15641021	-	VC1006	-	ribonuclease T
994	 43.06	-1	1078165..1078308	-	47	15641022	-	VC1007	-	hypothetical protein
995	 48.14	0	1078369..1079253	+	294	15641023	-	VC1008	-	sodium-type flagellar protein MotY
996	 48.07	0	1079302..1079742	-	146	15641024	-	VC1009	-	hypothetical protein
997	 46.85	0	1079901..1080455	-	184	15641025	-	VC1010	-	lactoylglutathione lyase
998	 47.35	0	1080358..1080999	-	213	15641026	-	VC1011	-	endonuclease III
999	 51.37	0	1081026..1081718	-	230	15641027	-	VC1012	-	SoxR-reducing system protein RsxE
1000	 48.73	0	1081720..1082349	-	209	15641028	-	VC1013	-	electron transport complex protein RnfG
1001	 53.39	+1	1082361..1083407	-	348	15641029	rnfD	VC1014	-	electron transport complex protein RnfD
1002	 52.91	+1	1083407..1085812	-	801	15641030	-	VC1015	-	electron transport complex protein RnfC
1003	 52.21	+1	1085740..1086327	-	195	15641031	-	VC1016	-	electron transport complex protein RnfB
1004	 48.28	0	1086327..1086908	-	193	161582015	-	VC1017	-	Na(+)-translocating NADH-quinone reductase subunit E
1005	 48.08	0	1087790..1089819	+	676	15642773	uvrB	VC1018	-	excinuclease ABC subunit B
1006	 41.29	-1	1089757..1089957	-	66	15641033	-	VC1020	-	hypothetical protein
1007	 49.85	0	1090250..1091617	+	455	15641034	-	VC1021	-	LuxO repressor protein
1008	 46.49	0	1091621..1091962	+	113	15641035	-	VC1022	-	phosphorelay protein
1009	 51.18	0	1091951..1092841	-	296	15641036	-	VC1023	-	hypothetical protein
1010	 47.76	0	1093132..1094136	+	334	15641037	moaA	VC1024	-	molybdenum cofactor biosynthesis protein A
1011	 49.71	0	1094196..1094708	+	170	15641038	-	VC1025	-	molybdenum cofactor biosynthesis protein B
1012	 51.55	0	1094716..1095198	+	160	15641039	moaC	VC1026	-	molybdenum cofactor biosynthesis protein C
1013	 50.41	0	1095195..1095440	+	81	15641040	moaD	VC1027	-	molybdopterin synthase small subunit
1014	 52.32	+1	1095442..1095894	+	150	15641041	-	VC1028	-	molybdenum cofactor biosynthesis protein E
1015	 47.59	0	1095909..1096883	-	324	15641042	-	VC1029	-	GGDEF family protein
1016	 40.86	-1	1096938..1097030	-	30	15641043	-	VC1030	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
