IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

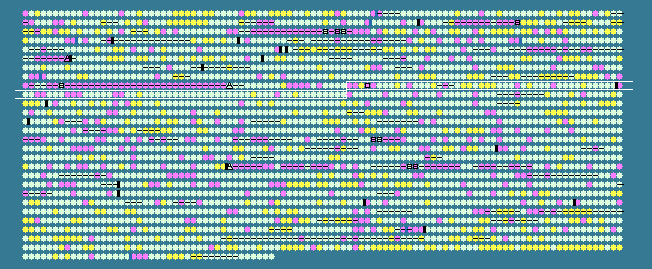

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
855	 41.46	-1	931539..931661	-	40	15640883	-	VC0867	-	hypothetical protein
856	 38.03	-2	931640..931852	+	70	15640884	-	VC0868	-	hypothetical protein
857	 52.62	+1	931849..935742	+	1297	15640885	-	VC0869	-	phosphoribosylformylglycinamidine synthase
858	 38.81	-2	935917..936354	+	145	15640886	-	VC0870	-	IS1004 transposase
859	 43.23	0	936465..936656	-	63	15640887	-	VC0871	-	hypothetical protein
860	 48.04	0	936662..936865	-	67	15640888	-	VC0872	-	hypothetical protein
861	 47.29	0	936968..937612	-	214	15640889	-	VC0873	-	hypothetical protein
862	 44.27	0	937645..937836	+	63	15640890	-	VC0874	-	hypothetical protein
863	 50.99	0	937854..939569	-	571	15640891	-	VC0875	-	prolyl-tRNA synthetase
864	 48.71	0	939795..940490	-	231	15640892	-	VC0876	-	hypothetical protein
865	 28.28	-2	940506..940604	-	32	15640893	-	VC0877	-	hypothetical protein
866	 45.35	0	940625..940882	+	85	15640894	rpmE2	VC0878	-	50S ribosomal protein L31 type B
867	 46.03	0	940879..941004	+	41	15640895	rpmJ	VC0879	-	50S ribosomal protein L36
868	 49.72	0	941187..942791	+	534	15640896	-	VC0880	-	hypothetical protein
869	 54.22	+1	942857..943306	-	149	15640897	-	VC0881	-	hypothetical protein
870	 49.67	0	943303..943602	-	99	15640898	-	VC0882	-	hypothetical protein
871	 34.21	-2	944215..944328	-	37	15640899	-	VC0883	-	hypothetical protein
872	 48.08	0	944367..944990	+	207	15640900	-	VC0884	-	acetyltransferase-related protein
873	 48.84	0	944947..945249	-	100	15640901	-	VC0885	-	hypothetical protein
874	 50.96	0	945253..946290	-	345	15640902	-	VC0886	-	hypothetical protein
875	 52.88	+1	946379..946690	+	103	15640903	-	VC0887	-	hypothetical protein
876	 50.48	0	946691..947425	+	244	15640904	-	VC0888	-	tRNA pseudouridine synthase C
877	 51.83	+1	947523..949403	-	626	15640905	-	VC0889	-	1-deoxy-D-xylulose-5-phosphate synthase
878	 51.41	0	949423..950307	-	294	15640906	-	VC0890	-	geranyltranstransferase
879	 51.85	+1	950349..950591	-	80	15640907	-	VC0891	-	exodeoxyribonuclease VII small subunit
880	 49.41	0	950906..951670	+	254	15640908	-	VC0892	-	flagellar motor protein PomA
881	 50.26	0	951682..952638	+	318	15640909	motB	VC0893	-	flagellar motor protein MotB
882	 48.13	0	952846..954393	+	515	15640910	-	VC0894	-	thiamine biosynthesis protein ThiI
883	 38.98	-1	954684..954860	-	58	15640911	-	VC0895	-	hypothetical protein
884	 47.01	0	955014..955934	+	306	15640912	-	VC0896	-	DNA-binding transcriptional activator GcvA
885	 51.42	0	955956..956342	+	128	15640913	-	VC0897	-	hypothetical protein
886	 48.47	0	956372..957223	-	283	15640914	xni	VC0898	-	exonuclease IX
887	 49.49	0	957262..958635	-	457	15640915	-	VC0899	-	hypothetical protein
888	 47.49	0	958840..960414	-	524	15640916	-	VC0900	-	GGDEF family protein
889	 42.93	-1	960516..962777	-	753	15640917	-	VC0901	-	hypothetical protein
890	 49.41	0	962792..963637	-	281	161582018	queF	VC0902	-	7-cyano-7-deazaguanine reductase
891	 50.25	0	963686..964282	+	198	15640919	-	VC0903	-	SecY interacting protein Syd
892	 50.71	0	964284..965060	+	258	15640920	-	VC0904	-	hypothetical protein
893	 47.28	0	965193..966002	-	269	161582017	metQ	VC0905	-	DL-methionine transporter substrate-binding subunit
894	 53.39	+1	966039..966716	-	225	15640922	-	VC0906	-	ABC transporter, permease protein
895	 48.89	0	966706..967740	-	344	15640923	metN	VC0907	-	DL-methionine transporter ATP-binding subunit
896	 49.02	0	967976..968536	+	186	15640924	-	VC0908	-	D,D-heptose 1,7-bisphosphate phosphatase
897	 49.21	0	968601..969551	+	316	15640925	treR	VC0909	-	trehalose repressor
898	 49.97	0	969788..971224	+	478	15640926	-	VC0910	-	trehalose(maltose)-specific PTS system components IIBC
899	 47.07	0	971304..972992	+	562	15640927	-	VC0911	-	trehalose-6-phosphate hydrolase
900	 40.62	-1	973767..973862	+	31	15640928	-	VC0912	-	hypothetical protein
901	 49.29	0	974049..975107	+	352	15640929	-	VC0913	-	hypothetical protein
902	 49.69	0	975107..978217	+	1036	15640930	-	VC0914	-	multidrug resistance protein, putative
903	 36.04	-2	978272..978382	+	36	15640931	-	VC0915	-	hypothetical protein
904	 41.32	-1	978644..979144	+	166	15640932	-	VC0916	-	phosphotyrosine protein phosphatase
905	 48.44	0	979457..980575	+	372	15640933	-	VC0917	-	UDP-N-acetylglucosamine 2-epimerase
906	 47.83	0	980595..981836	+	413	15640934	wecC	VC0918	-	UDP-N-acetyl-D-mannosamine dehydrogenase
907	 48.29	0	981833..982387	+	184	15640935	-	VC0919	-	serine acetyltransferase-related protein
908	 42.99	-1	982384..983532	+	382	15640936	-	VC0920	-	exopolysaccharide biosynthesis protein EpsF, putative
909	 43.62	0	983529..984938	+	469	15640937	-	VC0921	-	polysaccharide export protein, putative
910	 42.42	-1	984935..986155	+	406	15640938	-	VC0922	-	hypothetical protein
911	 44.91	0	986166..986597	+	143	15640939	-	VC0923	-	serine acetyltransferase-related protein
912	 46.01	0	986597..987937	+	446	15640940	-	VC0924	-	capK protein, putative
913	 46.81	0	987913..989010	+	365	15640941	-	VC0925	-	polysaccharide biosynthesis protein, putative
914	 47.57	0	989007..990179	+	390	15640942	-	VC0926	-	hypothetical protein
915	 46.48	0	990169..990921	+	250	15640943	-	VC0927	-	UDP-N-acetyl-D-mannosamine transferase
916	 40.20	-1	991117..991932	+	271	15640944	-	VC0928	-	hypothetical protein
917	 35.04	-2	992138..993364	-	408	15640945	-	VC0929	-	hypothetical protein
918	 47.11	0	993628..996501	+	957	15640946	-	VC0930	-	hemolysin-related protein
919	 45.03	0	996656..997972	-	438	15640947	-	VC0931	-	hypothetical protein
920	 54.17	+1	998148..998435	-	95	15640948	-	VC0932	-	hypothetical protein
921	 45.93	0	998348..998752	-	134	15640949	-	VC0933	-	hypothetical protein
922	 45.06	0	999242..1000639	+	465	15640950	-	VC0934	-	capsular polysaccharide biosynthesis glycosyltransferase, putative
923	 47.54	0	1000710..1001906	+	398	15640951	-	VC0935	-	hypothetical protein
924	 46.02	0	1001910..1002437	+	175	15640952	-	VC0936	-	polysaccharide export-related protein
925	 47.47	0	1002462..1004675	+	737	15640953	-	VC0937	-	exopolysaccharide biosynthesis protein, putative
926	 50.71	0	1004672..1005379	+	235	15640954	-	VC0938	-	hypothetical protein
927	 47.13	0	1005358..1005792	+	144	15640955	-	VC0939	-	hypothetical protein
928	 46.06	0	1005943..1006539	-	198	15640956	-	VC0940	-	hypothetical protein
929	 49.40	0	1006880..1008130	+	416	161582016	glyA	VC0941	-	serine hydroxymethyltransferase
930	 44.07	0	1008294..1008647	-	117	15640958	-	VC0942	-	hypothetical protein
931	 48.96	0	1008816..1009781	-	321	15640959	-	VC0943	-	lipoyl synthase
932	 46.21	0	1009774..1010433	-	219	15640960	lipB	VC0944	-	lipoyltransferase
933	 46.95	0	1010612..1010890	-	92	15640961	-	VC0945	-	hypothetical protein
934	 44.64	0	1010912..1011079	+	55	15640962	-	VC0946	-	hypothetical protein
935	 47.19	0	1011038..1012213	-	391	15640963	-	VC0947	-	D-alanyl-D-alanine carboxypeptidase
936	 46.09	0	1012305..1013096	-	263	15640964	-	VC0948	-	rare lipoprotein A, putative
937	 48.84	0	1013096..1014217	-	373	15640965	-	VC0949	-	rod shape-determining protein RodA
938	 48.88	0	1014214..1016130	-	638	15640966	-	VC0950	-	penicillin-binding protein 2
939	 51.38	0	1016137..1016607	-	156	15640967	-	VC0951	-	SPOUT methyltransferase superfamily protein
940	 45.60	0	1016610..1016927	-	105	15640968	-	VC0952	-	hypothetical protein
941	 49.47	0	1016996..1018024	-	342	15640969	holA	VC0953	-	DNA polymerase III subunit delta
942	 47.82	0	1018030..1018671	-	213	15640970	-	VC0954	-	rare lipoprotein B
943	 43.81	0	1018687..1018791	-	34	15640971	-	VC0955	-	hypothetical protein
944	 49.16	0	1018821..1021505	-	894	15640972	leuS	VC0956	-	leucyl-tRNA synthetase
945	 46.28	0	1021527..1021997	+	156	15640973	-	VC0957	-	hypothetical protein
946	 51.19	0	1022053..1023570	-	505	15640974	lnt	VC0958	-	apolipoprotein N-acyltransferase
947	 49.77	0	1023611..1024486	-	291	15640975	-	VC0959	-	hemolysin, putative
948	 47.10	0	1024556..1025020	-	154	15640976	-	VC0960	-	putative metalloprotease
949	 48.73	0	1025017..1026120	-	367	15640977	-	VC0961	-	phoH family protein
950	 50.04	0	1026188..1027612	-	474	15640978	-	VC0962	-	hypothetical protein
951	 50.42	0	1027836..1029029	+	397	15640979	-	VC0963	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
952	 45.49	0	1029142..1029651	-	169	15640980	-	VC0964	-	glucose-specific PTS system component
953	 46.17	0	1029760..1031481	-	573	15640981	-	VC0965	-	phosphoenolpyruvate-protein phosphotransferase
954	 46.51	0	1031615..1031872	-	85	15640982	-	VC0966	-	phosphocarrier protein HPr
47.43	MEAN

4.26	STD DEV
