IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

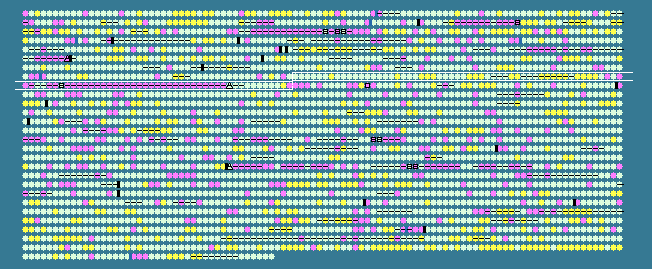

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
746	 48.25	0	807964..808392	+	142	15640775	ndk	VC0756	-	nucleoside diphosphate kinase
747	 47.86	0	808566..809687	+	373	15640776	-	VC0757	-	hypothetical protein
748	 48.90	0	809902..811083	+	393	15640777	-	VC0758	-	hypothetical protein
749	 50.04	0	811088..812218	+	376	15640778	ispG	VC0759	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
750	 49.65	0	812244..813512	+	422	15640779	hisS	VC0760	-	histidyl-tRNA synthetase
751	 49.11	0	813549..814163	+	204	15640780	-	VC0761	-	hypothetical protein
752	 51.59	0	814176..815336	+	386	15640781	-	VC0762	-	outer membrane protein assembly complex subunit YfgL
753	 49.23	0	815529..817013	+	494	15640782	engA	VC0763	-	GTP-binding protein EngA
754	 46.30	0	817034..817951	+	305	15640783	-	VC0764	-	hypothetical protein
755	 44.44	0	818256..818489	+	77	15640784	-	VC0765	-	hypothetical protein
756	 49.59	0	818470..819810	-	446	15640785	xseA	VC0766	-	exodeoxyribonuclease VII large subunit
757	 49.80	0	820012..821481	+	489	15640786	-	VC0767	-	inositol-5-monophosphate dehydrogenase
758	 48.78	0	821588..823141	+	517	15640787	guaA	VC0768	-	bifunctional GMP synthase/glutamine amidotransferase protein
759	 49.80	0	823377..825101	+	574	15640788	-	VC0769	-	chitinase, putative
760	 49.16	0	825292..825885	+	197	15640789	-	VC0770	-	hypothetical protein
761	 48.41	0	826197..827078	+	293	15640790	-	VC0771	-	vibriobactin-specific isochorismatase
762	 50.67	0	827179..828810	-	543	15640791	-	VC0772	-	vibriobactin-specific 2,3-dihydroxybenzoate-AMP ligase
763	 51.85	+1	828821..830008	-	395	15640792	-	VC0773	-	vibriobactin-specific isochorismate synthase
764	 50.44	0	830176..830964	+	262	15640793	-	VC0774	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
765	 50.80	0	830976..832292	-	438	15640794	-	VC0775	-	vibriobactin synthesis protein, putative
766	 49.59	0	832470..833447	+	325	15640795	-	VC0776	-	iron-enterobactin transporter periplasmic binding protein
767	 52.80	+1	833444..834496	+	350	15640796	-	VC0777	-	ferric vibriobactin ABC transporter, permease protein
768	 52.27	+1	834475..835551	+	358	15640797	-	VC0778	-	ferric vibriobactin ABC transporter, permease protein
769	 50.95	0	835668..836507	+	279	15640798	-	VC0779	-	ferric vibriobactin ABC transporter, ATP-binding protein
770	 49.75	0	836438..837223	+	261	15640799	-	VC0780	-	vibriobactin synthase component D
771	 47.03	0	837233..838159	+	308	15640800	-	VC0781	-	LysR family transcriptional regulator
772	 47.75	0	838152..838262	-	36	15640801	-	VC0782	-	hypothetical protein
773	 48.56	0	838377..840359	+	660	15640802	-	VC0783	-	hypothetical protein
774	 50.42	0	840439..841989	-	516	15640803	-	VC0784	-	sodium/alanine symporter
775	 55.56	+1	842268..842366	-	32	15640804	-	VC0785	-	hypothetical protein
776	 51.18	0	842367..843632	-	421	15640805	-	VC0786	-	D-amino acid dehydrogenase small subunit
777	 51.02	0	843733..844665	+	310	15640806	-	VC0787	-	LysR family transcriptional regulator
778	 50.61	0	844790..845119	+	109	15640807	-	VC0788	-	DOPA-dioxygenase-related protein
779	 43.96	0	845285..845557	+	90	15640808	-	VC0789	-	hypothetical protein
780	 47.95	0	845591..846274	-	227	15640809	-	VC0790	-	transcriptional regulator CitB
781	 49.76	0	846288..847985	-	565	15640810	-	VC0791	-	sensor kinase citA
782	 52.53	+1	848056..849357	-	433	15640811	-	VC0792	-	oxaloacetate decarboxylase, beta subunit
783	 52.42	+1	849373..851171	-	599	15642772	oadA-2	VC0793m	-	pyruvate carboxylase subunit B
784	 48.57	0	851190..851609	-	139	15640812	-	VC0794	-	hypothetical protein
785	 49.29	0	851557..852903	-	448	15640813	-	VC0795	-	citrate/sodium symporter
786	 45.28	0	853165..854235	+	356	15640814	-	VC0796	-	citrate (pro-3S)-lyase ligase
787	 53.87	+1	854287..854583	+	98	15640815	-	VC0797	-	citrate lyase subunit gamma
788	 54.77	+1	854565..855455	+	296	15640816	-	VC0798	-	citrate lyase, beta subunit
789	 52.59	+1	855391..856995	+	534	15640817	-	VC0799	-	citrate lyase, alpha subunit
790	 53.82	+1	856992..857528	+	178	15640818	-	VC0800	-	citX protein
791	 51.91	+1	857506..858447	+	313	15640819	-	VC0801	-	citG protein
792	 49.12	0	858794..859192	+	132	15640820	-	VC0802	-	hypothetical protein
793	 52.33	+1	859267..860040	+	257	15640821	-	VC0803	-	RNA methyltransferase
794	 51.23	0	860219..860542	-	107	15640822	-	VC0804	-	ferredoxin
795	 51.04	0	860584..860679	+	31	15640823	-	VC0805	-	hypothetical protein
796	 52.38	+1	860789..862405	+	538	15640824	-	VC0806	-	hypothetical protein
797	 47.66	0	862473..863156	-	227	15640825	-	VC0807	-	hypothetical protein
798	 43.14	-1	863128..863280	-	50	15640826	-	VC0808	-	hypothetical protein
799	 48.64	0	863289..865058	+	589	15640827	-	VC0809	-	hypothetical protein
800	 34.50	-2	865250..865765	+	171	15640828	-	VC0810	-	hypothetical protein
801	 32.91	-2	866099..866803	-	234	15640829	-	VC0811	-	hypothetical protein
802	 43.64	0	866873..869812	-	979	15640830	-	VC0812	-	helicase-related protein
803	 44.21	0	869813..870391	-	192	15640831	-	VC0813	-	tellurite resistance protein-related protein
804	 44.58	0	870819..871298	-	159	15640832	-	VC0814	-	transcriptional regulator, putative
805	 42.30	-1	871283..872653	-	456	15640833	-	VC0815	-	hypothetical protein
806	 38.80	-2	872764..872946	-	60	15640834	-	VC0816	-	hypothetical protein
807	 45.02	0	873242..874225	+	327	15640835	-	VC0817	-	transposase, putative
808	 35.73	-2	875273..876898	-	541	15640836	-	VC0819	-	aldehyde dehydrogenase
809	 31.99	-2	876974..880015	+	1013	15640837	-	VC0820	-	ToxR-activated gene A protein
810	 28.51	-2	880128..881267	+	379	15640838	-	VC0821	-	hypothetical protein
811	 32.88	-2	881390..884728	+	1112	15640839	-	VC0822	-	inner membrane protein, putative
812	 35.78	-2	884725..885663	+	312	15640840	-	VC0823	-	hypothetical protein
813	 39.19	-1	885773..886267	+	164	15640841	-	VC0824	-	tagD protein
814	 38.11	-2	886543..888405	-	620	15640842	-	VC0825	-	toxin co-regulated pilus biosynthesis protein I
815	 36.64	-2	888846..889511	+	221	15640843	-	VC0826	-	toxin co-regulated pilus biosynthesis protein P
816	 41.61	-1	889496..889906	+	136	15640844	-	VC0827	-	toxin co-regulated pilus biosynthesis protein H
817	 43.26	0	890449..891123	+	224	15640845	-	VC0828	-	toxin co-regulated pilin
818	 40.60	-1	891203..892495	+	430	15640846	-	VC0829	-	toxin co-regulated pilus biosynthesis protein B
819	 35.76	-2	892495..892947	+	150	15640847	-	VC0830	-	toxin co-regulated pilus biosynthesis protein Q
820	 35.71	-2	892950..894419	+	489	15640848	-	VC0831	-	toxin co-regulated pilus biosynthesis outer membrane protein C
821	 28.07	-2	894412..894867	+	151	15640849	-	VC0832	-	toxin co-regulated pilus biosynthesis protein R
822	 30.35	-2	894855..895691	+	278	15640850	-	VC0833	-	toxin co-regulated pilus biosynthesis protein D
823	 31.15	-2	895707..896165	+	152	15640851	-	VC0834	-	toxin co-regulated pilus biosynthesis protein S
824	 36.18	-2	896155..897666	+	503	15640852	-	VC0835	-	toxin co-regulated pilus biosynthesis protein T
825	 35.58	-2	897641..898663	+	340	15640853	-	VC0836	-	toxin co-regulated pilus biosynthesis protein E
826	 34.91	-2	898673..899689	+	338	15640854	-	VC0837	-	toxin co-regulated pilus biosynthesis protein F
827	 28.28	-2	899896..900726	+	276	15640855	-	VC0838	-	TCP pilus virulence regulatory protein
828	 31.50	-2	900726..901487	+	253	15640856	-	VC0839	-	leader peptidase TcpJ
829	 34.29	-2	901494..903374	+	626	15640857	-	VC0840	-	accessory colonization factor AcfB
830	 36.32	-2	903380..904150	+	256	15640858	-	VC0841	-	accessory colonization factor AcfC
831	 30.17	-2	904166..904639	+	157	15640859	-	VC0842	-	hypothetical protein
832	 34.76	-2	904648..905556	+	302	15640860	-	VC0843	-	tagE protein
833	 31.33	-2	905559..906206	-	215	15640861	-	VC0844	-	accessory colonization factor AcfA
834	 38.51	-2	906379..910941	+	1520	15640862	-	VC0845	-	hypothetical protein
835	 46.34	0	912856..914124	-	422	15640863	-	VC0847	-	phage family integrase
836	 48.35	0	914726..915211	-	161	15640864	smpB	VC0848	-	SsrA-binding protein
837	 47.62	0	915389..915829	+	146	15640865	-	VC0849	-	hypothetical protein
838	 48.08	0	915826..916137	+	103	15640866	-	VC0850	-	hypothetical protein
839	 45.01	0	916215..916625	-	136	15640867	-	VC0851	-	small protein A
840	 48.17	0	916733..918397	-	554	15640868	-	VC0852	-	recombination and repair protein
841	 46.89	0	918527..919411	-	294	15640869	ppnK	VC0853	-	inorganic polyphosphate/ATP-NAD kinase
842	 49.42	0	919557..920159	+	200	15640870	-	VC0854	-	heat shock protein GrpE
843	 48.38	0	920423..922330	+	635	15640871	dnaK	VC0855	-	molecular chaperone DnaK
844	 51.66	0	922531..923676	+	381	15640872	-	VC0856	-	dnaJ protein
845	 43.92	0	923726..924169	-	147	15640873	-	VC0857	-	fimbrial assembly protein PilE, putative
47.43	MEAN

4.26	STD DEV
