IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

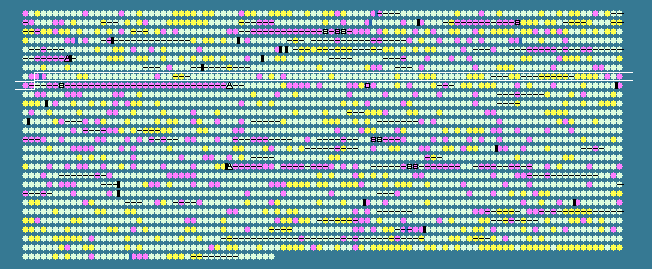

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
703	 34.85	-2	762602..762799	+	65	15640732	-	VC0713	-	hypothetical protein
704	 43.83	0	768218..768541	+	107	15640733	-	VC0714	-	hypothetical protein
705	 45.50	0	768551..769273	+	240	15640734	-	VC0715	-	nitroreductase A
706	 48.24	0	769308..769562	-	84	15640735	-	VC0716	-	ferredoxin
707	 49.54	0	769565..770965	-	466	15640736	-	VC0717	-	protease, putative
708	 49.51	0	771116..772030	-	304	15640737	rdgC	VC0718	-	recombination associated protein
709	 49.86	0	772267..772956	+	229	15640738	-	VC0719	-	DNA-binding response regulator PhoB
710	 51.31	0	772978..774279	+	433	15640739	phoR	VC0720	-	phosphate regulon sensor protein
711	 52.45	+1	774276..775253	+	325	15640740	-	VC0721	-	phosphate ABC transporter, periplasmic phosphate-binding protein, putative
712	 47.39	0	775321..776892	-	523	15640741	-	VC0722	-	exopolyphosphatase
713	 46.87	0	776804..778909	-	701	15640742	-	VC0723	-	polyphosphate kinase
714	 50.14	0	779108..781303	+	731	15640743	-	VC0724	-	phosphate ABC transporter, permease protein
715	 49.36	0	781313..782959	+	548	15640744	-	VC0725	-	phosphate ABC transporter, permease protein
716	 48.42	0	782962..783783	+	273	15640745	-	VC0726	-	phosphate ABC transporter, ATP-binding protein
717	 47.82	0	783817..784527	+	236	15640746	-	VC0727	-	transcriptional regulator PhoU
718	 50.06	0	784588..785364	-	258	15640747	-	VC0728	-	hypothetical protein
719	 49.02	0	785417..785518	+	33	15640748	-	VC0729	-	hypothetical protein
720	 50.85	0	785567..786331	-	254	15640749	-	VC0730	-	copper homeostasis protein
721	 46.15	0	786666..787289	-	207	15640750	-	VC0731	-	anti-oxidant AhpCTSA family protein
722	 47.57	0	787493..788398	+	301	15640751	-	VC0732	-	LysR family transcriptional regulator
723	 30.00	-2	788633..788752	-	39	15640752	-	VC0733	-	hypothetical protein
724	 49.67	0	788949..790619	+	556	15640753	-	VC0734	-	malate synthase
725	 46.08	0	790624..790725	-	33	15640754	-	VC0735	-	hypothetical protein
726	 51.52	0	790749..792062	+	437	15640755	-	VC0736	-	isocitrate lyase
727	 51.76	+1	792215..792724	-	169	15640756	-	VC0737	-	acetoin utilization protein AcuB, putative
728	 48.57	0	792788..792892	+	34	15640757	-	VC0738	-	hypothetical protein
729	 50.05	0	792954..794012	+	352	15640758	queA	VC0739	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
730	 47.73	0	793967..794230	-	87	15640759	-	VC0740	-	hypothetical protein
731	 47.54	0	794241..795380	+	379	15640760	tgt	VC0741	-	queuine tRNA-ribosyltransferase
732	 45.65	0	795485..795817	+	110	15640761	yajC	VC0742	-	preprotein translocase subunit YajC
733	 49.95	0	795839..797692	+	617	15640762	secD	VC0743	-	preprotein translocase subunit SecD
734	 49.26	0	797707..798654	+	315	15640763	secF	VC0744	-	preprotein translocase subunit SecF
735	 47.87	0	798822..799688	-	288	15640764	-	VC0745	-	inositol monophosphate family protein
736	 50.88	0	799804..800538	+	244	15640765	-	VC0746	-	RNA methyltransferase
737	 48.85	0	800608..801174	+	188	15640766	-	VC0747	-	hypothetical protein
738	 49.30	0	801201..802415	+	404	15640767	-	VC0748	-	cysteine desulfurase
739	 47.14	0	802452..802835	+	127	15640768	-	VC0749	-	scaffold protein
740	 43.21	0	802896..803219	+	107	15640769	-	VC0750	-	hesB family protein
741	 48.26	0	803268..803783	+	171	15640770	hscB	VC0751	-	co-chaperone HscB
742	 52.57	+1	803807..805657	+	616	15640771	hscA	VC0752	-	chaperone protein HscA
743	 48.81	0	805590..806009	+	139	15640772	-	VC0753	-	ferredoxin
744	 43.08	-1	806058..806252	+	64	15640773	-	VC0754	-	hypothetical protein
745	 50.70	0	806472..807761	+	429	161582019	-	VC0755	-	aminopeptidase B
746	 48.25	0	807964..808392	+	142	15640775	ndk	VC0756	-	nucleoside diphosphate kinase
747	 47.86	0	808566..809687	+	373	15640776	-	VC0757	-	hypothetical protein
748	 48.90	0	809902..811083	+	393	15640777	-	VC0758	-	hypothetical protein
749	 50.04	0	811088..812218	+	376	15640778	ispG	VC0759	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
750	 49.65	0	812244..813512	+	422	15640779	hisS	VC0760	-	histidyl-tRNA synthetase
751	 49.11	0	813549..814163	+	204	15640780	-	VC0761	-	hypothetical protein
752	 51.59	0	814176..815336	+	386	15640781	-	VC0762	-	outer membrane protein assembly complex subunit YfgL
753	 49.23	0	815529..817013	+	494	15640782	engA	VC0763	-	GTP-binding protein EngA
754	 46.30	0	817034..817951	+	305	15640783	-	VC0764	-	hypothetical protein
755	 44.44	0	818256..818489	+	77	15640784	-	VC0765	-	hypothetical protein
756	 49.59	0	818470..819810	-	446	15640785	xseA	VC0766	-	exodeoxyribonuclease VII large subunit
757	 49.80	0	820012..821481	+	489	15640786	-	VC0767	-	inositol-5-monophosphate dehydrogenase
758	 48.78	0	821588..823141	+	517	15640787	guaA	VC0768	-	bifunctional GMP synthase/glutamine amidotransferase protein
759	 49.80	0	823377..825101	+	574	15640788	-	VC0769	-	chitinase, putative
760	 49.16	0	825292..825885	+	197	15640789	-	VC0770	-	hypothetical protein
761	 48.41	0	826197..827078	+	293	15640790	-	VC0771	-	vibriobactin-specific isochorismatase
762	 50.67	0	827179..828810	-	543	15640791	-	VC0772	-	vibriobactin-specific 2,3-dihydroxybenzoate-AMP ligase
763	 51.85	+1	828821..830008	-	395	15640792	-	VC0773	-	vibriobactin-specific isochorismate synthase
764	 50.44	0	830176..830964	+	262	15640793	-	VC0774	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
765	 50.80	0	830976..832292	-	438	15640794	-	VC0775	-	vibriobactin synthesis protein, putative
766	 49.59	0	832470..833447	+	325	15640795	-	VC0776	-	iron-enterobactin transporter periplasmic binding protein
767	 52.80	+1	833444..834496	+	350	15640796	-	VC0777	-	ferric vibriobactin ABC transporter, permease protein
768	 52.27	+1	834475..835551	+	358	15640797	-	VC0778	-	ferric vibriobactin ABC transporter, permease protein
769	 50.95	0	835668..836507	+	279	15640798	-	VC0779	-	ferric vibriobactin ABC transporter, ATP-binding protein
770	 49.75	0	836438..837223	+	261	15640799	-	VC0780	-	vibriobactin synthase component D
771	 47.03	0	837233..838159	+	308	15640800	-	VC0781	-	LysR family transcriptional regulator
772	 47.75	0	838152..838262	-	36	15640801	-	VC0782	-	hypothetical protein
773	 48.56	0	838377..840359	+	660	15640802	-	VC0783	-	hypothetical protein
774	 50.42	0	840439..841989	-	516	15640803	-	VC0784	-	sodium/alanine symporter
775	 55.56	+1	842268..842366	-	32	15640804	-	VC0785	-	hypothetical protein
776	 51.18	0	842367..843632	-	421	15640805	-	VC0786	-	D-amino acid dehydrogenase small subunit
777	 51.02	0	843733..844665	+	310	15640806	-	VC0787	-	LysR family transcriptional regulator
778	 50.61	0	844790..845119	+	109	15640807	-	VC0788	-	DOPA-dioxygenase-related protein
779	 43.96	0	845285..845557	+	90	15640808	-	VC0789	-	hypothetical protein
780	 47.95	0	845591..846274	-	227	15640809	-	VC0790	-	transcriptional regulator CitB
781	 49.76	0	846288..847985	-	565	15640810	-	VC0791	-	sensor kinase citA
782	 52.53	+1	848056..849357	-	433	15640811	-	VC0792	-	oxaloacetate decarboxylase, beta subunit
783	 52.42	+1	849373..851171	-	599	15642772	oadA-2	VC0793m	-	pyruvate carboxylase subunit B
784	 48.57	0	851190..851609	-	139	15640812	-	VC0794	-	hypothetical protein
785	 49.29	0	851557..852903	-	448	15640813	-	VC0795	-	citrate/sodium symporter
786	 45.28	0	853165..854235	+	356	15640814	-	VC0796	-	citrate (pro-3S)-lyase ligase
787	 53.87	+1	854287..854583	+	98	15640815	-	VC0797	-	citrate lyase subunit gamma
788	 54.77	+1	854565..855455	+	296	15640816	-	VC0798	-	citrate lyase, beta subunit
789	 52.59	+1	855391..856995	+	534	15640817	-	VC0799	-	citrate lyase, alpha subunit
790	 53.82	+1	856992..857528	+	178	15640818	-	VC0800	-	citX protein
791	 51.91	+1	857506..858447	+	313	15640819	-	VC0801	-	citG protein
792	 49.12	0	858794..859192	+	132	15640820	-	VC0802	-	hypothetical protein
793	 52.33	+1	859267..860040	+	257	15640821	-	VC0803	-	RNA methyltransferase
794	 51.23	0	860219..860542	-	107	15640822	-	VC0804	-	ferredoxin
795	 51.04	0	860584..860679	+	31	15640823	-	VC0805	-	hypothetical protein
796	 52.38	+1	860789..862405	+	538	15640824	-	VC0806	-	hypothetical protein
797	 47.66	0	862473..863156	-	227	15640825	-	VC0807	-	hypothetical protein
798	 43.14	-1	863128..863280	-	50	15640826	-	VC0808	-	hypothetical protein
799	 48.64	0	863289..865058	+	589	15640827	-	VC0809	-	hypothetical protein
800	 34.50	-2	865250..865765	+	171	15640828	-	VC0810	-	hypothetical protein
801	 32.91	-2	866099..866803	-	234	15640829	-	VC0811	-	hypothetical protein
802	 43.64	0	866873..869812	-	979	15640830	-	VC0812	-	helicase-related protein
47.43	MEAN

4.26	STD DEV
