IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

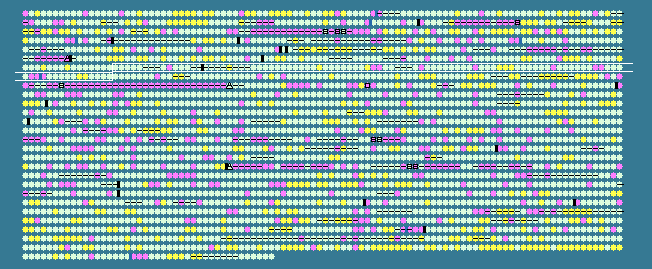

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
616	 50.42	0	664265..665563	-	432	15640646	-	VC0626	-	glutamate-1-semialdehyde aminotransferase
617	 45.32	0	665847..666188	+	113	15640647	-	VC0627	-	iron-sulfur cluster insertion protein ErpA
618	 49.14	0	666286..667386	+	366	15640648	-	VC0628	-	hypothetical protein
619	 49.04	0	667295..670516	+	1073	15640649	-	VC0629	-	multidrug resistance protein, putative
620	 45.62	0	670598..671899	-	433	15640650	-	VC0630	-	hypothetical protein
621	 47.56	0	672030..673217	+	395	15640651	-	VC0631	-	tyrosyl-tRNA synthetase
622	 47.68	0	673285..674748	-	487	15640652	-	VC0632	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
623	 45.96	0	674828..675880	-	350	15640653	-	VC0633	-	outer membrane protein OmpU
624	 44.65	0	676405..676881	+	158	15640654	greA	VC0634	-	transcription elongation factor GreA
625	 43.43	0	676958..677254	-	98	15640655	-	VC0635	-	hypothetical protein
626	 44.92	0	677374..678003	+	209	15640656	rrmJ	VC0636	-	23S rRNA methyltransferase J
627	 47.85	0	678104..680059	+	651	15640657	-	VC0637	-	cell division protein FtsH
628	 45.88	0	680126..680962	+	278	15640658	-	VC0638	-	dihydropteroate synthase
629	 47.80	0	680988..682328	+	446	15640659	-	VC0639	-	phosphoglucomutase/phosphomannomutase family protein MrsA
630	 45.24	0	682585..682920	+	111	15640660	secG	VC0640	-	preprotein translocase subunit SecG
631	 44.96	0	683351..683806	+	151	15640661	-	VC0641	-	hypothetical protein
632	 47.98	0	683825..685312	+	495	15640662	nusA	VC0642	-	transcription elongation factor NusA
633	 49.35	0	685337..688033	+	898	15640663	infB	VC0643	-	translation initiation factor IF-2
634	 48.87	0	688135..688533	+	132	161582021	rbfA	VC0644	-	ribosome-binding factor A
635	 51.86	+1	688533..689471	+	312	15640665	truB	VC0645	-	tRNA pseudouridine synthase B
636	 47.78	0	689613..689882	+	89	15640666	rpsO	VC0646	-	30S ribosomal protein S15
637	 49.77	0	690245..692374	+	709	15640667	-	VC0647	-	polynucleotide phosphorylase/polyadenylase
638	 49.89	0	692490..693401	+	303	15640668	-	VC0648	-	lipoprotein NlpI
639	 45.00	0	693488..693907	+	139	15640669	-	VC0649	-	MarR family transcriptional regulator
640	 50.60	0	693954..695291	+	445	15640670	vmrA	VC0650	-	multidrug efflux pump VmrA
641	 48.45	0	695344..696309	-	321	15640671	-	VC0651	-	hypothetical protein
642	 50.10	0	696234..697247	-	337	15640672	-	VC0652	-	protease, putative
643	 47.49	0	697355..699409	-	684	15640673	-	VC0653	-	c-di-GMP phosphodiesterase A-related protein
644	 44.13	0	699642..700169	+	175	15640674	-	VC0654	-	hypothetical protein
645	 50.36	0	700105..700656	+	183	15640675	-	VC0655	-	acetyltransferase, putative
646	 50.49	0	700767..701174	+	135	15640676	-	VC0656	-	DNA polymerase III subunit psi
647	 47.33	0	701135..701620	+	161	15640677	-	VC0657	-	ribosomal-protein-alanine acetyltransferase
648	 47.23	0	701609..703666	-	685	15640678	-	VC0658	-	c-di-GMP phosphodiesterase A-related protein
649	 50.19	0	703870..705465	+	531	15640679	prfC	VC0659	-	peptide chain release factor 3
650	 51.65	0	705587..706858	-	423	15640680	-	VC0660	-	ATP-dependent RNA helicase SrmB
651	 48.82	0	706946..707668	-	240	15640681	-	VC0661	-	hypothetical protein
652	 49.70	0	707977..709290	+	437	15640682	-	VC0662	-	branched chain amino acid transport system II carrier protein
653	 48.59	0	709460..710558	+	365	15642771	prfB	VC0663	-	peptide chain release factor 2
654	 49.71	0	710583..712121	+	512	15640683	lysS	VC0664	-	lysyl-tRNA synthetase
655	 48.69	0	712395..713729	+	444	15640684	-	VC0665	-	sigma-54 dependent transcriptional regulator
656	 47.94	0	714244..714558	+	104	15640685	-	VC0666	-	hypothetical protein
657	 47.31	0	714596..715654	-	352	15640686	-	VC0667	-	aldo/keto reductase family oxidoreductase TAS
658	 53.45	+1	715847..716512	-	221	15640687	-	VC0668	-	DNA mismatch repair protein
659	 38.71	-2	716899..716991	-	30	15640688	-	VC0669	-	hypothetical protein
660	 35.37	-2	716974..717120	+	48	15640689	-	VC0670	-	hypothetical protein
661	 46.56	0	717080..717661	+	193	15640690	-	VC0671	-	dinucleoside polyphosphate hydrolase
662	 48.73	0	717664..719910	+	748	15640691	-	VC0672	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain-containing protein
663	 47.04	0	719920..720714	+	264	15640692	-	VC0673	-	hypothetical protein
664	 48.90	0	720743..721558	+	271	15640693	-	VC0674	-	prolipoprotein diacylglyceryl transferase
665	 46.13	0	721568..722419	+	283	15640694	thyA	VC0675	-	thymidylate synthase
666	 47.87	0	722512..723660	-	382	15640695	-	VC0676	-	nptA protein
667	 43.77	0	724055..724945	+	296	15640696	nhaR	VC0677	-	transcriptional activator NhaR
668	 44.34	0	725144..725470	+	108	15640697	-	VC0678	-	transcriptional activator HlyU
669	 47.51	0	725539..725799	-	86	15640698	rpsT	VC0679	-	30S ribosomal protein S20
670	 48.23	0	726042..727619	+	525	15640699	-	VC0680	-	MviN protein
671	 50.67	0	727688..728656	+	322	15640700	-	VC0681	-	bifunctional riboflavin kinase/FMN adenylyltransferase
672	 50.32	0	728687..731536	+	949	15640701	ileS	VC0682	-	isoleucyl-tRNA synthetase
673	 49.22	0	731552..732067	+	171	15640702	lspA	VC0683	-	lipoprotein signal peptidase
674	 50.34	0	732230..732664	+	144	15640703	-	VC0684	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
675	 50.89	0	732711..733661	+	316	161582020	ispH	VC0685	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
676	 37.50	-2	733692..733787	+	31	15640705	-	VC0686	-	hypothetical protein
677	 50.10	0	733798..735282	-	494	15640706	-	VC0687	-	carbon starvation protein A, putative
678	 46.20	0	735535..735876	+	113	15640707	-	VC0688	-	hypothetical protein
679	 50.89	0	735892..737691	+	599	15640708	-	VC0689	-	hypothetical protein
680	 53.46	+1	737715..738638	-	307	15640709	-	VC0690	-	N-acetylmuramic acid-6-phosphate etherase
681	 53.73	+1	738656..739768	-	370	15640710	anmK	VC0691	-	anhydro-N-acetylmuramic acid kinase
682	 52.37	+1	739874..740866	+	330	15640711	-	VC0692	-	beta-hexosaminidase
683	 48.46	0	740893..741606	-	237	15640712	-	VC0693	-	putative two-component response-regulatory protein YehT
684	 49.25	0	741616..743292	-	558	15640713	-	VC0694	-	hypothetical protein
685	 48.79	0	743534..744607	+	357	15640714	-	VC0695	-	phospho-2-dehydro-3-deoxyheptonate aldolase
686	 49.91	0	744620..745747	+	375	15640715	tyrA	VC0696	-	bifunctional chorismate mutase/prephenate dehydrogenase
687	 46.06	0	745814..746245	-	143	15640716	-	VC0697	-	hypothetical protein
688	 50.66	0	746356..748023	-	555	15640717	-	VC0698	-	putative ABC transporter ATP-binding protein
689	 29.17	-2	748208..748303	+	31	15640718	-	VC0699	-	hypothetical protein
690	 47.30	0	748385..750331	+	648	15640719	-	VC0700	-	soluble lytic murein transglycosylase
691	 50.42	0	750341..750697	+	118	15640720	-	VC0701	-	Trp operon repressor
692	 47.28	0	750775..751326	-	183	15640721	-	VC0702	-	NTPase
693	 45.24	0	751247..753622	-	791	15640722	-	VC0703	-	c-di-GMP phosphodiesterase A-related protein
694	 46.76	0	753606..754685	-	359	15640723	-	VC0704	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein, putative
695	 47.36	0	754828..756003	-	391	15640724	-	VC0705	-	chorismate mutase/prephenate dehydratase
696	 43.12	-1	756243..756569	-	108	15640725	-	VC0706	-	sigma-54 modulation protein, putative
697	 40.31	-1	756848..756976	+	42	15640726	-	VC0707	-	hypothetical protein
698	 47.64	0	756971..757732	-	253	15640727	-	VC0708	-	hypothetical protein
699	 50.36	0	757851..758825	+	324	15640728	rluD	VC0709	-	23S rRNA pseudouridine synthase D
700	 50.90	0	758828..759550	+	240	15640729	-	VC0710	-	hypothetical protein
701	 49.61	0	759675..762248	+	857	15640730	-	VC0711	-	clpB protein
702	 37.63	-2	762497..762589	+	30	15640731	-	VC0712	-	hypothetical protein
703	 34.85	-2	762602..762799	+	65	15640732	-	VC0713	-	hypothetical protein
704	 43.83	0	768218..768541	+	107	15640733	-	VC0714	-	hypothetical protein
705	 45.50	0	768551..769273	+	240	15640734	-	VC0715	-	nitroreductase A
706	 48.24	0	769308..769562	-	84	15640735	-	VC0716	-	ferredoxin
707	 49.54	0	769565..770965	-	466	15640736	-	VC0717	-	protease, putative
708	 49.51	0	771116..772030	-	304	15640737	rdgC	VC0718	-	recombination associated protein
709	 49.86	0	772267..772956	+	229	15640738	-	VC0719	-	DNA-binding response regulator PhoB
710	 51.31	0	772978..774279	+	433	15640739	phoR	VC0720	-	phosphate regulon sensor protein
711	 52.45	+1	774276..775253	+	325	15640740	-	VC0721	-	phosphate ABC transporter, periplasmic phosphate-binding protein, putative
712	 47.39	0	775321..776892	-	523	15640741	-	VC0722	-	exopolyphosphatase
713	 46.87	0	776804..778909	-	701	15640742	-	VC0723	-	polyphosphate kinase
714	 50.14	0	779108..781303	+	731	15640743	-	VC0724	-	phosphate ABC transporter, permease protein
715	 49.36	0	781313..782959	+	548	15640744	-	VC0725	-	phosphate ABC transporter, permease protein
47.43	MEAN

4.26	STD DEV
