IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

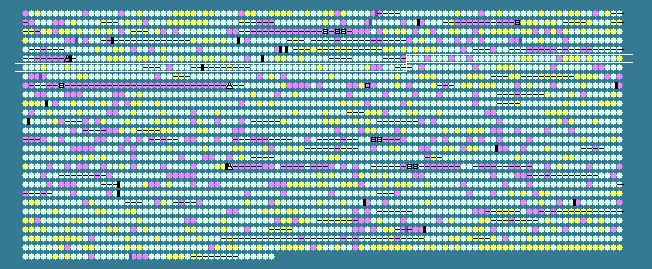

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
565	 47.81	0	604219..604812	+	197	15640595	-	VC0573	-	ubiquinol--cytochrome c reductase, iron-sulfur subunit
566	 44.23	0	604812..606077	+	421	15640596	-	VC0574	-	ubiquinol--cytochrome c reductase, cytochrome B
567	 44.44	0	606074..606811	+	245	15640597	-	VC0575	-	ubiquinol--cytochrome c reductase, cytochrome c1
568	 43.55	0	606911..607546	+	211	15640598	sspA	VC0576	-	stringent starvation protein A
569	 46.96	0	607546..608022	+	158	15640599	-	VC0577	-	ClpXP protease specificity-enhancing factor
570	 46.49	0	608090..608659	-	189	15640600	-	VC0578	-	hemolysin, putative
571	 47.55	0	608662..609252	-	196	15640601	-	VC0579	-	phosphoheptose isomerase, putative
572	 43.36	0	609256..609624	-	122	15640602	-	VC0580	-	hypothetical protein
573	 47.09	0	609611..611572	-	653	15640603	-	VC0581	-	putative lipoprotein
574	 45.56	0	611486..612352	+	288	15640604	-	VC0582	-	hypothetical protein
575	 43.59	0	613391..613507	-	38	15640605	-	VC0584	-	hypothetical protein
576	 44.01	0	613472..614005	+	177	15640606	-	VC0585	-	hypoxanthine-guanine phosphoribosyltransferase
577	 46.79	0	614080..614748	-	222	15640607	-	VC0586	-	carbonic anhydrase, putative
578	 50.15	0	614896..616542	+	548	15640608	-	VC0587	-	sulfate permease family protein
579	 46.08	0	616650..616751	+	33	15640609	-	VC0588	-	hypothetical protein
580	 48.37	0	616926..617843	+	305	15640610	-	VC0589	-	ABC transporter, ATP-binding protein
581	 46.69	0	617849..618619	+	256	15640611	-	VC0590	-	permease, putative
582	 49.89	0	618683..619564	-	293	15640612	panC	VC0591	-	pantoate--beta-alanine ligase
583	 48.93	0	619575..620369	-	264	15640613	panB	VC0592	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
584	 51.98	+1	620372..620875	-	167	15640614	-	VC0593	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
585	 51.82	+1	620872..622245	-	457	15640615	-	VC0594	-	polyA polymerase
586	 50.49	0	622336..623250	-	304	15640616	-	VC0595	-	glutamyl-Q tRNA(Asp) synthetase
587	 47.65	0	623299..623745	-	148	15640617	-	VC0596	-	dnaK suppressor protein
588	 48.25	0	623870..624640	-	256	15640618	-	VC0597	-	sugar fermentation stimulation protein A
589	 45.10	0	624628..624729	+	33	15640619	-	VC0598	-	hypothetical protein
590	 42.11	-1	624766..624879	-	37	15640620	-	VC0599	-	hypothetical protein
591	 51.44	0	624851..626203	+	450	15640621	-	VC0600	-	hypothetical protein
592	 55.30	+1	626302..628764	+	820	15640622	-	VC0601	-	ATP-dependent RNA helicase HrpB
593	 51.54	0	628761..631094	+	777	15640623	-	VC0602	-	penicillin-binding protein 1B
594	 49.80	0	631331..633625	+	764	15640624	-	VC0603	-	hypothetical protein
595	 51.27	0	633890..636487	+	865	15640625	-	VC0604	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
596	 44.88	0	636642..637022	+	126	15640626	-	VC0605	-	hypothetical protein
597	 45.90	0	637173..637538	+	121	15640627	-	VC0606	-	nitrogen regulatory protein P-II
598	 45.70	0	638885..639943	+	352	15640628	-	VC0608	-	iron(III) ABC transporter, periplasmic iron-compound-binding protein
599	 49.14	0	640027..641652	+	541	15640629	-	VC0609	-	iron(III) ABC transporter, permease protein
600	 51.94	+1	641652..642683	+	343	15640630	-	VC0610	-	iron(III) ABC transporter, ATP-binding protein
601	 49.19	0	642814..644226	-	470	15640631	-	VC0611	-	phosphoglucomutase/phosphomannomutase, putative
602	 50.50	0	644349..646754	-	801	15640632	-	VC0612	-	cellobiose/cellodextrin-phosphorylase, putative
603	 50.21	0	646873..648786	-	637	15640633	-	VC0613	-	beta-N-acetylhexosaminidase
604	 52.76	+1	648783..649760	-	325	15640634	-	VC0614	-	hypothetical protein
605	 50.14	0	649664..651388	-	574	15640635	-	VC0615	-	endoglucanase-related protein
606	 49.30	0	651445..652440	-	331	15640636	-	VC0616	-	peptide ABC transporter, ATP-binding protein
607	 48.58	0	652483..653466	-	327	15640637	-	VC0617	-	peptide ABC transporter, ATP-binding protein
608	 51.27	0	653469..654494	-	341	15640638	-	VC0618	-	peptide ABC transporter, permease protein
609	 48.33	0	654497..655483	-	328	15640639	-	VC0619	-	peptide ABC transporter, permease protein
610	 47.82	0	655653..657323	-	556	15640640	-	VC0620	-	peptide ABC transporter, periplasmic peptide-binding protein
611	 44.87	0	657896..658285	+	129	15640641	-	VC0621	-	hypothetical protein
612	 47.71	0	658234..661767	-	1177	15640642	-	VC0622	-	sensory box sensor histidine kinase/response regulator
613	 47.90	0	661831..662853	-	340	15640643	-	VC0623	-	hypothetical protein
614	 46.78	0	662926..664011	-	361	15640644	-	VC0624	-	hypothetical protein
615	 45.51	0	664048..664203	+	51	15640645	-	VC0625	-	hypothetical protein
616	 50.42	0	664265..665563	-	432	15640646	-	VC0626	-	glutamate-1-semialdehyde aminotransferase
617	 45.32	0	665847..666188	+	113	15640647	-	VC0627	-	iron-sulfur cluster insertion protein ErpA
618	 49.14	0	666286..667386	+	366	15640648	-	VC0628	-	hypothetical protein
619	 49.04	0	667295..670516	+	1073	15640649	-	VC0629	-	multidrug resistance protein, putative
620	 45.62	0	670598..671899	-	433	15640650	-	VC0630	-	hypothetical protein
621	 47.56	0	672030..673217	+	395	15640651	-	VC0631	-	tyrosyl-tRNA synthetase
622	 47.68	0	673285..674748	-	487	15640652	-	VC0632	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
623	 45.96	0	674828..675880	-	350	15640653	-	VC0633	-	outer membrane protein OmpU
624	 44.65	0	676405..676881	+	158	15640654	greA	VC0634	-	transcription elongation factor GreA
625	 43.43	0	676958..677254	-	98	15640655	-	VC0635	-	hypothetical protein
626	 44.92	0	677374..678003	+	209	15640656	rrmJ	VC0636	-	23S rRNA methyltransferase J
627	 47.85	0	678104..680059	+	651	15640657	-	VC0637	-	cell division protein FtsH
628	 45.88	0	680126..680962	+	278	15640658	-	VC0638	-	dihydropteroate synthase
629	 47.80	0	680988..682328	+	446	15640659	-	VC0639	-	phosphoglucomutase/phosphomannomutase family protein MrsA
630	 45.24	0	682585..682920	+	111	15640660	secG	VC0640	-	preprotein translocase subunit SecG
631	 44.96	0	683351..683806	+	151	15640661	-	VC0641	-	hypothetical protein
632	 47.98	0	683825..685312	+	495	15640662	nusA	VC0642	-	transcription elongation factor NusA
633	 49.35	0	685337..688033	+	898	15640663	infB	VC0643	-	translation initiation factor IF-2
634	 48.87	0	688135..688533	+	132	161582021	rbfA	VC0644	-	ribosome-binding factor A
635	 51.86	+1	688533..689471	+	312	15640665	truB	VC0645	-	tRNA pseudouridine synthase B
636	 47.78	0	689613..689882	+	89	15640666	rpsO	VC0646	-	30S ribosomal protein S15
637	 49.77	0	690245..692374	+	709	15640667	-	VC0647	-	polynucleotide phosphorylase/polyadenylase
638	 49.89	0	692490..693401	+	303	15640668	-	VC0648	-	lipoprotein NlpI
639	 45.00	0	693488..693907	+	139	15640669	-	VC0649	-	MarR family transcriptional regulator
640	 50.60	0	693954..695291	+	445	15640670	vmrA	VC0650	-	multidrug efflux pump VmrA
641	 48.45	0	695344..696309	-	321	15640671	-	VC0651	-	hypothetical protein
642	 50.10	0	696234..697247	-	337	15640672	-	VC0652	-	protease, putative
643	 47.49	0	697355..699409	-	684	15640673	-	VC0653	-	c-di-GMP phosphodiesterase A-related protein
644	 44.13	0	699642..700169	+	175	15640674	-	VC0654	-	hypothetical protein
645	 50.36	0	700105..700656	+	183	15640675	-	VC0655	-	acetyltransferase, putative
646	 50.49	0	700767..701174	+	135	15640676	-	VC0656	-	DNA polymerase III subunit psi
647	 47.33	0	701135..701620	+	161	15640677	-	VC0657	-	ribosomal-protein-alanine acetyltransferase
648	 47.23	0	701609..703666	-	685	15640678	-	VC0658	-	c-di-GMP phosphodiesterase A-related protein
649	 50.19	0	703870..705465	+	531	15640679	prfC	VC0659	-	peptide chain release factor 3
650	 51.65	0	705587..706858	-	423	15640680	-	VC0660	-	ATP-dependent RNA helicase SrmB
651	 48.82	0	706946..707668	-	240	15640681	-	VC0661	-	hypothetical protein
652	 49.70	0	707977..709290	+	437	15640682	-	VC0662	-	branched chain amino acid transport system II carrier protein
653	 48.59	0	709460..710558	+	365	15642771	prfB	VC0663	-	peptide chain release factor 2
654	 49.71	0	710583..712121	+	512	15640683	lysS	VC0664	-	lysyl-tRNA synthetase
655	 48.69	0	712395..713729	+	444	15640684	-	VC0665	-	sigma-54 dependent transcriptional regulator
656	 47.94	0	714244..714558	+	104	15640685	-	VC0666	-	hypothetical protein
657	 47.31	0	714596..715654	-	352	15640686	-	VC0667	-	aldo/keto reductase family oxidoreductase TAS
658	 53.45	+1	715847..716512	-	221	15640687	-	VC0668	-	DNA mismatch repair protein
659	 38.71	-2	716899..716991	-	30	15640688	-	VC0669	-	hypothetical protein
660	 35.37	-2	716974..717120	+	48	15640689	-	VC0670	-	hypothetical protein
661	 46.56	0	717080..717661	+	193	15640690	-	VC0671	-	dinucleoside polyphosphate hydrolase
662	 48.73	0	717664..719910	+	748	15640691	-	VC0672	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain-containing protein
663	 47.04	0	719920..720714	+	264	15640692	-	VC0673	-	hypothetical protein
664	 48.90	0	720743..721558	+	271	15640693	-	VC0674	-	prolipoprotein diacylglyceryl transferase
47.43	MEAN

4.26	STD DEV
