IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

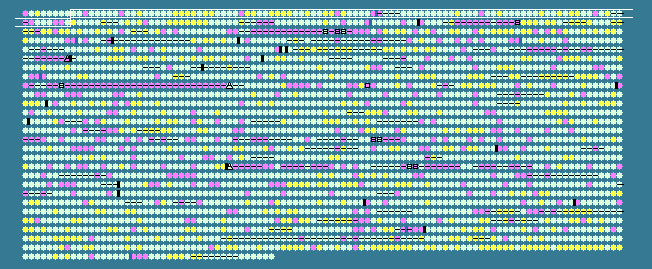

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
9	 50.30	0	5605..6276	-	223	15640041	-	VC0009	-	amino acid ABC transproter, permease protein
10	 47.52	0	6354..7100	-	248	15640042	-	VC0010	-	amino acid ABC transporter, periplasmic amino acid-binding portion
11	 41.86	-1	7224..7352	+	42	15640043	-	VC0011	-	hypothetical protein
12	 50.67	0	7397..8815	+	472	15640044	dnaA	VC0012	-	chromosomal replication initiation protein
13	 49.77	0	8873..9973	+	366	15640045	-	VC0013	-	DNA polymerase III subunit beta
14	 47.53	0	9991..11082	+	363	15640046	recF	VC0014	-	recombination protein F
15	 50.50	0	11103..13520	+	805	15640047	gyrB	VC0015	-	DNA gyrase subunit B
16	 49.59	0	13876..14367	+	163	15640048	-	VC0016	-	hypothetical protein
17	 43.59	0	14377..14493	+	38	15640049	-	VC0017	-	hypothetical protein
18	 45.66	0	14769..15206	+	145	15640050	-	VC0018	-	16 kDa heat shock protein A
19	 49.88	0	15294..16550	-	418	15640051	avtA	VC0019	-	valine--pyruvate transaminase
20	 52.06	+1	16869..18935	-	688	15640052	glyS	VC0020	-	glycyl-tRNA synthetase subunit beta
21	 49.95	0	18950..19942	-	330	15640053	glyQ	VC0021	-	glycyl-tRNA synthetase subunit alpha
22	 47.10	0	20235..20837	+	200	15640054	-	VC0022	-	hypothetical protein
23	 47.67	0	20943..21200	+	85	15640055	-	VC0023	-	NADH dehydrogenase subunit II-related protein
24	 49.00	0	21287..21535	-	82	15640056	-	VC0024	-	cell developmental protein SirA
25	 46.27	0	21656..21856	+	66	15640057	-	VC0025	-	hypothetical protein
26	 52.09	+1	22028..23008	-	326	15640058	-	VC0026	-	zinc-binding alcohol dehydrogenase
27	 52.32	+1	23256..24788	-	510	15640059	-	VC0027	-	threonine dehydratase
28	 54.72	+1	24792..26633	-	613	15640060	-	VC0028	-	dihydroxy-acid dehydratase
29	 53.65	+1	26643..27602	-	319	15640061	-	VC0029	-	branched-chain amino acid aminotransferase
30	 45.61	0	27593..27877	-	94	15640062	ilvM	VC0030	-	acetolactate synthase 2 regulatory subunit
31	 55.31	+1	27889..29535	-	548	15640063	-	VC0031	-	acetolactate synthase 2 catalytic subunit
32	 53.61	+1	30069..31592	+	507	15640064	-	VC0032	-	ComM-related protein
33	 49.94	0	31682..32566	+	294	15640065	-	VC0033	-	hypothetical protein
34	 46.10	0	32644..33246	-	200	15640066	-	VC0034	-	thiol:disulfide interchange protein
35	 49.75	0	33277..34263	-	328	161582037	-	VC0035	-	serine/threonine protein kinase
36	 49.06	0	34311..35798	-	495	15640068	-	VC0036	-	FixG-related protein
37	 42.29	-1	36152..36430	-	92	15640069	-	VC0037	-	hypothetical protein
38	 52.38	+1	36527..36694	-	55	15640070	-	VC0038	-	hypothetical protein
39	 51.25	0	36928..37770	+	280	15640071	-	VC0039	-	SpoOM-related protein
40	 47.22	0	37848..38495	+	215	15640072	-	VC0040	-	hemolysin, putative
41	 50.08	0	38534..39190	-	218	15640073	-	VC0041	-	hypothetical protein
42	 51.31	0	39103..40548	-	481	15640074	-	VC0042	-	potassium uptake protein TrkH
43	 52.21	+1	40560..41936	-	458	15640075	trkA	VC0043	-	potassium transporter peripheral membrane component
44	 54.41	+1	41998..43302	-	434	15640076	-	VC0044	-	sun protein
45	 51.48	0	43334..44281	-	315	15640077	fmt	VC0045	-	methionyl-tRNA formyltransferase
46	 48.04	0	44299..44808	-	169	15640078	def	VC0046	-	peptide deformylase
47	 50.17	0	44900..46075	+	391	15640079	-	VC0047	-	hypothetical protein
48	 51.34	0	46075..47190	+	371	15640080	-	VC0048	-	smf protein
49	 46.54	0	47193..47669	+	158	15640081	-	VC0049	-	hypothetical protein
50	 49.04	0	47679..48251	+	190	15640082	-	VC0050	-	DNA topoisomerase I-related protein
51	 51.23	0	48324..49457	-	377	15640083	-	VC0051	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
52	 52.67	+1	49461..49946	-	161	15640084	-	VC0052	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
53	 43.65	0	49961..50086	+	41	15640085	-	VC0053	-	hypothetical protein
54	 53.62	+1	50104..50670	+	188	15640086	-	VC0054	-	Sua5/YciO/YrdC family protein
55	 49.89	0	50689..51606	+	305	15640087	-	VC0055	-	coproporphyrinogen III oxidase
56	 50.06	0	51668..52504	+	278	15640088	aroE	VC0056	-	shikimate 5-dehydrogenase
57	 44.93	0	52501..52776	+	91	15640089	-	VC0057	-	hypothetical protein
58	 47.75	0	52757..53311	-	184	15640090	-	VC0058	-	carbonic anhydrase
59	 40.43	-1	53497..53637	+	46	15640091	-	VC0059	-	hypothetical protein
60	 43.31	0	59356..59736	+	126	15640092	ccrB	VC0060	-	camphor resistance protein CrcB
61	 47.57	0	59988..61925	+	645	15640093	-	VC0061	-	thiamine biosynthesis protein ThiC
62	 46.41	0	61929..63251	+	440	15640094	thiE	VC0062	-	thiamine-phosphate pyrophosphorylase
63	 50.32	0	63238..64014	+	258	15640095	-	VC0063	-	thiF protein
64	 48.45	0	63957..64214	+	85	15640096	-	VC0064	-	sulfur carrier protein ThiS
65	 50.45	0	64220..64990	+	256	15640097	thiG	VC0065	-	thiazole synthase
66	 47.80	0	64987..66099	+	370	15640098	thiH	VC0066	-	thiamine biosynthesis protein ThiH
67	 50.56	0	66324..68117	-	597	15640099	-	VC0067	-	aminopeptidase P
68	 47.46	0	68250..69233	-	327	15640100	-	VC0068	-	LysR family transcriptional regulator
69	 50.12	0	69296..70498	+	400	15640101	-	VC0069	-	multidrug resistance protein, putative
70	 46.67	0	70602..70886	+	94	15640102	-	VC0070	-	hypothetical protein
71	 45.45	0	70975..71436	-	153	15640103	-	VC0071	-	DNA-binding transcriptional regulator AsnC
72	 50.11	0	71512..73818	+	768	15640104	-	VC0072	-	sensory box/GGDEF family protein
73	 52.22	+1	73785..74663	+	292	15640105	-	VC0073	-	hypothetical protein
74	 50.77	0	74781..75170	+	129	15640106	-	VC0074	-	hypothetical protein
75	 48.31	0	75266..76153	-	295	15640107	-	VC0075	-	MadN protein
76	 48.59	0	76210..76635	-	141	15640108	-	VC0076	-	universal stress protein A
77	 43.75	0	76681..76776	+	31	15640109	-	VC0077	-	hypothetical protein
78	 44.51	0	76782..77327	+	181	15640110	-	VC0078	-	ferritin
79	 47.53	0	77403..77726	+	107	15640111	-	VC0079	-	universal stress protein UspB
80	 51.96	+1	77859..79055	+	398	15640112	-	VC0080	-	hypothetical protein
81	 50.66	0	79052..79963	-	303	15640113	-	VC0081	-	hypothetical protein
82	 50.58	0	80077..81618	+	513	15640114	-	VC0082	-	hypothetical protein
83	 49.55	0	81663..82445	+	260	15640115	ubiE	VC0083	-	ubiquinone/menaquinone biosynthesis methyltransferase
84	 50.80	0	82454..83077	+	207	15640116	-	VC0084	-	hypothetical protein
85	 49.17	0	83074..84708	+	544	15640117	ubiB	VC0085	-	putative ubiquinone biosynthesis protein UbiB
86	 44.58	0	84768..85016	+	82	15640118	tatA	VC0086	-	twin argininte translocase protein A
87	 52.99	+1	85020..85421	+	133	15640119	-	VC0087	-	sec-independent translocase
88	 48.47	0	85510..86262	+	250	15640120	-	VC0088	-	hypothetical protein
89	 47.70	0	86574..87575	+	333	15640121	-	VC0089	-	cytochrome c551 peroxidase
90	 51.28	0	87681..89045	-	454	15640122	-	VC0090	-	DNA-damage-inducible protein F
91	 50.34	0	89116..89985	-	289	15640123	-	VC0091	-	O-methyltransferase-related protein
92	 52.70	+1	90013..90642	-	209	15640124	-	VC0092	-	LexA repressor
93	 51.79	+1	90962..93388	+	808	161582036	-	VC0093	-	glycerol-3-phosphate acyltransferase
94	 49.59	0	93464..94318	-	284	15640126	ubiA	VC0094	-	4-hydroxybenzoate octaprenyltransferase
95	 46.74	0	94319..94870	-	183	15640127	-	VC0095	-	chorismate--pyruvate lyase
96	 39.39	-1	94893..94991	-	32	15640128	-	VC0096	-	hypothetical protein
97	 45.74	0	95062..95472	+	136	15640129	-	VC0097	-	flagellar basal body-associated protein FliL-like protein
98	 51.67	0	95592..97571	-	659	15640130	-	VC0098	-	methyl-accepting chemotaxis protein
99	 48.32	0	97946..98779	-	277	15640131	-	VC0099	-	glpG protein
100	 46.11	0	98786..99106	-	106	15640132	glpE	VC0100	-	thiosulfate sulfurtransferase
101	 36.57	-2	99187..99402	-	71	15640133	-	VC0101	-	hypothetical protein
102	 38.30	-2	99635..99775	-	46	15640134	-	VC0102	-	hypothetical protein
103	 45.96	0	99867..100634	-	255	15640135	-	VC0103	-	hypothetical protein
104	 47.41	0	100690..100824	-	44	15640136	-	VC0104	-	hypothetical protein
105	 49.62	0	100811..101854	+	347	15640137	-	VC0105	-	delta-aminolevulinic acid dehydratase
106	 43.06	-1	101958..102389	+	143	15640138	-	VC0106	-	hypothetical protein
107	 36.23	-2	102908..103045	-	45	15640139	-	VC0107	-	hypothetical protein
108	 50.20	0	103098..105902	+	934	15640140	-	VC0108	-	DNA polymerase I
47.43	MEAN

4.26	STD DEV
