IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

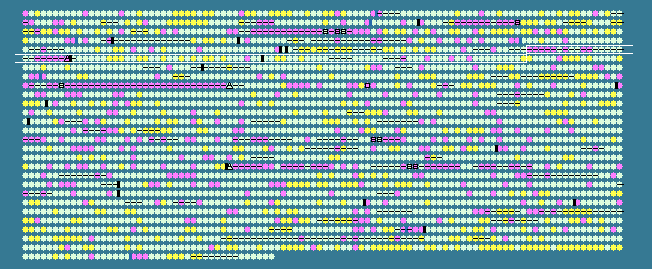

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
485	 37.36	-2	523156..525117	-	653	15640517	-	VC0490	-	hypothetical protein
486	 34.45	-2	525118..525654	-	178	15640518	-	VC0491	-	hypothetical protein
487	 37.53	-2	525623..526789	-	388	15640519	-	VC0492	-	hypothetical protein
488	 39.27	-1	527045..527920	-	291	15640520	-	VC0493	-	hypothetical protein
489	 43.41	0	528305..528949	+	214	15640521	-	VC0494	-	hypothetical protein
490	 45.19	0	529011..529685	+	224	15640522	-	VC0495	-	hypothetical protein
491	 41.83	-1	529739..530338	+	199	15640523	-	VC0496	-	hypothetical protein
492	 44.78	0	530402..530602	+	66	15640524	-	VC0497	-	transcriptional regulator
493	 46.49	0	530684..531124	+	146	15640525	-	VC0498	-	ribonuclease H
494	 41.33	-1	534198..534722	-	174	15640526	-	VC0502	-	type IV pilin, putative
495	 43.79	0	535418..536698	+	426	15640527	-	VC0503	-	hypothetical protein
496	 45.18	0	536876..537103	-	75	15640528	-	VC0504	-	hypothetical protein
497	 49.32	0	537151..537519	-	122	15640529	-	VC0505	-	hypothetical protein
498	 48.03	0	537550..538284	-	244	15640530	-	VC0506	-	hypothetical protein
499	 44.07	0	538423..538599	-	58	15640531	-	VC0507	-	hypothetical protein
500	 46.40	0	538603..539046	-	147	15640532	-	VC0508	-	hypothetical protein
501	 46.62	0	539097..539540	-	147	15640533	-	VC0509	-	hypothetical protein
502	 47.89	0	539531..540004	-	157	15640534	-	VC0510	-	DNA repair protein RadC-related protein
503	 32.50	-2	540216..540335	+	39	15640535	-	VC0511	-	hypothetical protein
504	 43.65	0	541319..542908	+	529	15640536	-	VC0512	-	methyl-accepting chemotaxis protein
505	 27.45	-2	544362..545177	+	271	15640537	-	VC0513	-	AraC/XylS family transcriptional regulator
506	 35.25	-2	545174..547054	+	626	15640538	-	VC0514	-	methyl-accepting chemotaxis protein
507	 33.90	-2	547158..548390	+	410	15640539	-	VC0515	-	hypothetical protein
508	 40.34	-1	548780..550021	-	413	15640540	-	VC0516	-	phage integrase
509	 47.39	0	550407..552284	-	625	15640541	-	VC0517	-	RNA polymerase sigma factor RpoD
510	 46.40	0	552383..554145	-	587	15642769	dnaG	VC0518	-	DNA primase
511	 49.32	0	554235..554678	-	147	15640542	-	VC0519	-	hypothetical protein
512	 50.46	0	554708..554923	-	71	15640543	rpsU	VC0520	-	30S ribosomal protein S21
513	 50.05	0	555164..556182	+	339	66473506	gcp	VC0521	-	O-sialoglycoprotein endopeptidase
514	 49.94	0	556336..557148	+	270	15640544	-	VC0522	-	beta-ketoadipate enol-lactone hydrolase, putative
515	 52.31	+1	557197..557823	-	208	15640545	-	VC0523	-	putative glycerol-3-phosphate acyltransferase PlsY
516	 53.33	+1	557976..558365	+	129	15640546	-	VC0524	-	dihydroneopterin aldolase FolB, putative
517	 51.19	0	558281..558868	+	195	15640547	-	VC0525	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
518	 45.77	0	558865..559668	+	267	15640548	uppP	VC0526	-	undecaprenyl pyrophosphate phosphatase
519	 49.14	0	559777..560067	+	96	15640549	ftsB	VC0527	-	cell division protein FtsB
520	 52.50	+1	560064..560762	+	232	15640550	ispD	VC0528	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
521	 51.78	+1	560759..561235	+	158	15640551	ispF	VC0529	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
522	 50.55	0	561265..562350	+	361	15640552	truD	VC0530	-	tRNA pseudouridine synthase D
523	 49.87	0	562313..563104	+	263	15640553	surE	VC0531	-	stationary phase survival protein SurE
524	 51.04	0	563097..563723	+	208	15640554	pcm	VC0532	-	protein-L-isoaspartate O-methyltransferase
525	 44.12	0	563723..564658	+	311	15640555	-	VC0533	-	lipoprotein NlpD
526	 46.83	0	564732..565739	+	335	15640556	-	VC0534	-	RNA polymerase sigma-38 factor
527	 52.18	+1	565832..568420	-	862	15640557	-	VC0535	-	DNA mismatch repair protein
528	 48.04	0	568427..568528	+	33	15640558	-	VC0536	-	hypothetical protein
529	 52.14	+1	568688..569575	-	295	15640559	cysM	VC0537	-	cysteine synthase B
530	 49.40	0	569959..570960	+	333	15640560	-	VC0538	-	thiosulfate ABC transporter, periplasmic thiosulfate-binding protein
531	 51.41	0	571037..571888	+	283	15640561	-	VC0539	-	sulfate ABC transporter, permease protein
532	 51.50	0	571899..572762	+	287	15640562	-	VC0540	-	sulfate ABC transporter, permease protein
533	 50.75	0	572759..573889	+	376	15640563	-	VC0541	-	sulfate ABC transporter, ATP-binding protein
534	 51.48	0	574056..574562	+	168	15640564	-	VC0542	-	CinA-related protein
535	 46.97	0	574522..575760	+	412	15640565	recA	VC0543	-	recombinase A
536	 47.71	0	575893..576351	+	152	15640566	recX	VC0544	-	recombination regulator RecX
537	 50.60	0	576524..579106	+	860	15640567	alaS	VC0545	-	alanyl-tRNA synthetase
538	 36.67	-2	579138..579257	+	39	15640568	-	VC0546	-	hypothetical protein
539	 47.73	0	579310..580497	+	395	15640569	-	VC0547	-	aspartate kinase
540	 47.47	0	580589..580786	+	65	15640570	-	VC0548	-	carbon storage regulator
541	 48.87	0	582264..582617	+	117	15640571	-	VC0549	-	oxaloacetate decarboxylase subunit gamma
542	 50.78	0	582646..584439	+	597	15640572	-	VC0550	-	pyruvate carboxylase subunit B
543	 51.19	0	584449..585579	+	376	15640573	-	VC0551	-	oxaloacetate decarboxylase, beta subunit
544	 51.18	0	585639..586652	+	337	15640574	-	VC0552	-	quinone oxidoreductase
545	 48.92	0	586646..587107	+	153	15640575	-	VC0553	-	hypothetical protein
546	 48.93	0	587114..589972	+	952	15640576	-	VC0554	-	insulinase family protease/insulinase family protease
547	 52.94	+1	589962..590063	-	33	15640577	-	VC0555	-	hypothetical protein
548	 50.29	0	590084..591658	+	524	15640578	-	VC0556	-	glutamate--cysteine ligase
549	 48.55	0	591707..592225	+	172	15640579	-	VC0557	-	S-ribosylhomocysteinase
550	 46.60	0	592295..593575	-	426	15640580	-	VC0558	-	hemolysin, putative
551	 45.90	0	593658..594461	-	267	15640581	-	VC0559	-	hypothetical protein
552	 50.00	0	594665..596050	+	461	15640582	-	VC0560	-	signal recognition particle protein
553	 49.40	0	596286..596534	+	82	15640583	rpsP	VC0561	-	30S ribosomal protein S16
554	 44.32	0	596562..597116	+	184	15640584	rimM	VC0562	-	16S rRNA-processing protein
555	 49.60	0	597144..597887	+	247	15640585	trmD	VC0563	-	tRNA (guanine-N(1)-)-methyltransferase
556	 46.61	0	597929..598282	+	117	15640586	rplS	VC0564	-	50S ribosomal protein L19
557	 49.01	0	598403..599461	-	352	15640587	-	VC0565	-	protease DegS
558	 47.92	0	599638..601008	-	456	15640588	-	VC0566	-	protease DO
559	 46.58	0	601137..601574	-	145	15640589	-	VC0567	-	cytochrome d ubiquinol oxidase subunit III
560	 44.93	0	601728..602831	+	367	15640590	-	VC0568	-	hypothetical protein
561	 46.19	0	602761..602970	-	69	15640591	-	VC0569	-	hypothetical protein
562	 45.69	0	603055..603483	+	142	15640592	rplM	VC0570	-	50S ribosomal protein L13
563	 48.60	0	603499..603891	+	130	15640593	rpsI	VC0571	-	30S ribosomal protein S9
564	 42.06	-1	603901..604026	+	41	15640594	-	VC0572	-	hypothetical protein
565	 47.81	0	604219..604812	+	197	15640595	-	VC0573	-	ubiquinol--cytochrome c reductase, iron-sulfur subunit
566	 44.23	0	604812..606077	+	421	15640596	-	VC0574	-	ubiquinol--cytochrome c reductase, cytochrome B
567	 44.44	0	606074..606811	+	245	15640597	-	VC0575	-	ubiquinol--cytochrome c reductase, cytochrome c1
568	 43.55	0	606911..607546	+	211	15640598	sspA	VC0576	-	stringent starvation protein A
569	 46.96	0	607546..608022	+	158	15640599	-	VC0577	-	ClpXP protease specificity-enhancing factor
570	 46.49	0	608090..608659	-	189	15640600	-	VC0578	-	hemolysin, putative
571	 47.55	0	608662..609252	-	196	15640601	-	VC0579	-	phosphoheptose isomerase, putative
572	 43.36	0	609256..609624	-	122	15640602	-	VC0580	-	hypothetical protein
573	 47.09	0	609611..611572	-	653	15640603	-	VC0581	-	putative lipoprotein
574	 45.56	0	611486..612352	+	288	15640604	-	VC0582	-	hypothetical protein
575	 43.59	0	613391..613507	-	38	15640605	-	VC0584	-	hypothetical protein
576	 44.01	0	613472..614005	+	177	15640606	-	VC0585	-	hypoxanthine-guanine phosphoribosyltransferase
577	 46.79	0	614080..614748	-	222	15640607	-	VC0586	-	carbonic anhydrase, putative
578	 50.15	0	614896..616542	+	548	15640608	-	VC0587	-	sulfate permease family protein
579	 46.08	0	616650..616751	+	33	15640609	-	VC0588	-	hypothetical protein
580	 48.37	0	616926..617843	+	305	15640610	-	VC0589	-	ABC transporter, ATP-binding protein
581	 46.69	0	617849..618619	+	256	15640611	-	VC0590	-	permease, putative
582	 49.89	0	618683..619564	-	293	15640612	panC	VC0591	-	pantoate--beta-alanine ligase
583	 48.93	0	619575..620369	-	264	15640613	panB	VC0592	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
584	 51.98	+1	620372..620875	-	167	15640614	-	VC0593	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
47.43	MEAN

4.26	STD DEV
