IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

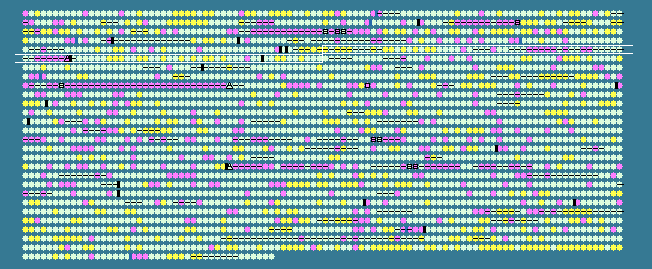

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
451	 52.74	+1	487639..488241	-	200	15640483	-	VC0456	-	putative deoxyribonucleotide triphosphate pyrophosphatase
452	 47.69	0	488311..488742	-	143	15640484	-	VC0457	-	hypothetical protein
453	 53.26	+1	488788..489078	-	96	15640485	-	VC0458	-	hypothetical protein
454	 51.79	+1	489078..489635	-	185	15640486	-	VC0459	-	hypothetical protein
455	 54.58	+1	489689..490507	-	272	15640487	-	VC0460	-	pyrroline-5-carboxylate reductase
456	 49.37	0	490560..491270	-	236	15640488	-	VC0461	-	hypothetical protein
457	 48.75	0	491296..492333	+	345	15640489	-	VC0462	-	twitching motility protein PilT
458	 50.77	0	492348..493454	+	368	15640490	-	VC0463	-	twitching motility protein PilT
459	 51.62	0	493566..494369	+	267	15640491	-	VC0464	-	LuxR family transcriptional regulator
460	 50.88	0	494454..495758	+	434	15640492	-	VC0465	-	tyrosyl-tRNA synthetase
461	 51.54	0	495796..496218	-	140	15640493	-	VC0466	-	Holliday junction resolvase-like protein
462	 51.24	0	496299..496862	-	187	161582023	-	VC0467	-	hypothetical protein
463	 49.32	0	496898..497854	-	318	15640495	-	VC0468	-	glutathione synthetase
464	 51.50	0	497868..498599	-	243	15640496	-	VC0469	-	hypothetical protein
465	 49.86	0	498737..499432	-	231	15640497	-	VC0470	-	extracellular deoxyribonuclease
466	 50.92	0	499560..500048	-	162	15640498	-	VC0471	-	hypothetical protein
467	 50.26	0	500170..501327	-	385	15640499	-	VC0472	-	S-adenosylmethionine synthetase
468	 53.43	+1	501605..503689	+	694	15640500	-	VC0473	-	transketolase
469	 50.95	0	503761..504657	-	298	15640501	-	VC0474	-	iron-regulated virulence regulatory protein IrgB
470	 49.82	0	504802..506760	+	652	15640502	-	VC0475	-	enterobactin receptor protein
471	 45.81	0	506912..507937	+	341	161582022	-	VC0476	-	erythrose 4-phosphate dehydrogenase
472	 48.94	0	508071..509249	+	392	15640504	pgk	VC0477	-	phosphoglycerate kinase
473	 47.17	0	509405..510481	+	358	15640505	-	VC0478	-	fructose-bisphosphate aldolase
474	 31.25	-2	510669..510764	+	31	15640506	-	VC0479	-	hypothetical protein
475	 45.25	0	510777..511640	+	287	15640507	-	VC0480	-	hypothetical protein
476	 45.13	0	511704..512339	-	211	15640508	-	VC0481	-	LysE/YggA family protein
477	 46.60	0	512504..513400	+	298	15640509	-	VC0482	-	chromosome replication initiation inhibitor protein
478	 46.44	0	513480..514196	+	238	15640510	-	VC0483	-	hypothetical protein
479	 39.39	-1	514529..514660	+	43	15640511	-	VC0484	-	hypothetical protein
480	 47.56	0	514732..516144	-	470	15640512	-	VC0485	-	pyruvate kinase
481	 45.21	0	516560..517342	+	260	15640513	-	VC0486	-	DeoR family transcriptional regulator
482	 49.48	0	517405..519237	+	610	15640514	-	VC0487	-	D-fructose-6-phosphate amidotransferase
483	 50.09	0	519298..520377	-	359	15640515	-	VC0488	-	extracellular solute-binding protein, putative
484	 48.32	0	520634..522394	-	586	15640516	-	VC0489	-	hemolysin, putative
485	 37.36	-2	523156..525117	-	653	15640517	-	VC0490	-	hypothetical protein
486	 34.45	-2	525118..525654	-	178	15640518	-	VC0491	-	hypothetical protein
487	 37.53	-2	525623..526789	-	388	15640519	-	VC0492	-	hypothetical protein
488	 39.27	-1	527045..527920	-	291	15640520	-	VC0493	-	hypothetical protein
489	 43.41	0	528305..528949	+	214	15640521	-	VC0494	-	hypothetical protein
490	 45.19	0	529011..529685	+	224	15640522	-	VC0495	-	hypothetical protein
491	 41.83	-1	529739..530338	+	199	15640523	-	VC0496	-	hypothetical protein
492	 44.78	0	530402..530602	+	66	15640524	-	VC0497	-	transcriptional regulator
493	 46.49	0	530684..531124	+	146	15640525	-	VC0498	-	ribonuclease H
494	 41.33	-1	534198..534722	-	174	15640526	-	VC0502	-	type IV pilin, putative
495	 43.79	0	535418..536698	+	426	15640527	-	VC0503	-	hypothetical protein
496	 45.18	0	536876..537103	-	75	15640528	-	VC0504	-	hypothetical protein
497	 49.32	0	537151..537519	-	122	15640529	-	VC0505	-	hypothetical protein
498	 48.03	0	537550..538284	-	244	15640530	-	VC0506	-	hypothetical protein
499	 44.07	0	538423..538599	-	58	15640531	-	VC0507	-	hypothetical protein
500	 46.40	0	538603..539046	-	147	15640532	-	VC0508	-	hypothetical protein
501	 46.62	0	539097..539540	-	147	15640533	-	VC0509	-	hypothetical protein
502	 47.89	0	539531..540004	-	157	15640534	-	VC0510	-	DNA repair protein RadC-related protein
503	 32.50	-2	540216..540335	+	39	15640535	-	VC0511	-	hypothetical protein
504	 43.65	0	541319..542908	+	529	15640536	-	VC0512	-	methyl-accepting chemotaxis protein
505	 27.45	-2	544362..545177	+	271	15640537	-	VC0513	-	AraC/XylS family transcriptional regulator
506	 35.25	-2	545174..547054	+	626	15640538	-	VC0514	-	methyl-accepting chemotaxis protein
507	 33.90	-2	547158..548390	+	410	15640539	-	VC0515	-	hypothetical protein
508	 40.34	-1	548780..550021	-	413	15640540	-	VC0516	-	phage integrase
509	 47.39	0	550407..552284	-	625	15640541	-	VC0517	-	RNA polymerase sigma factor RpoD
510	 46.40	0	552383..554145	-	587	15642769	dnaG	VC0518	-	DNA primase
511	 49.32	0	554235..554678	-	147	15640542	-	VC0519	-	hypothetical protein
512	 50.46	0	554708..554923	-	71	15640543	rpsU	VC0520	-	30S ribosomal protein S21
513	 50.05	0	555164..556182	+	339	66473506	gcp	VC0521	-	O-sialoglycoprotein endopeptidase
514	 49.94	0	556336..557148	+	270	15640544	-	VC0522	-	beta-ketoadipate enol-lactone hydrolase, putative
515	 52.31	+1	557197..557823	-	208	15640545	-	VC0523	-	putative glycerol-3-phosphate acyltransferase PlsY
516	 53.33	+1	557976..558365	+	129	15640546	-	VC0524	-	dihydroneopterin aldolase FolB, putative
517	 51.19	0	558281..558868	+	195	15640547	-	VC0525	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
518	 45.77	0	558865..559668	+	267	15640548	uppP	VC0526	-	undecaprenyl pyrophosphate phosphatase
519	 49.14	0	559777..560067	+	96	15640549	ftsB	VC0527	-	cell division protein FtsB
520	 52.50	+1	560064..560762	+	232	15640550	ispD	VC0528	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
521	 51.78	+1	560759..561235	+	158	15640551	ispF	VC0529	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
522	 50.55	0	561265..562350	+	361	15640552	truD	VC0530	-	tRNA pseudouridine synthase D
523	 49.87	0	562313..563104	+	263	15640553	surE	VC0531	-	stationary phase survival protein SurE
524	 51.04	0	563097..563723	+	208	15640554	pcm	VC0532	-	protein-L-isoaspartate O-methyltransferase
525	 44.12	0	563723..564658	+	311	15640555	-	VC0533	-	lipoprotein NlpD
526	 46.83	0	564732..565739	+	335	15640556	-	VC0534	-	RNA polymerase sigma-38 factor
527	 52.18	+1	565832..568420	-	862	15640557	-	VC0535	-	DNA mismatch repair protein
528	 48.04	0	568427..568528	+	33	15640558	-	VC0536	-	hypothetical protein
529	 52.14	+1	568688..569575	-	295	15640559	cysM	VC0537	-	cysteine synthase B
530	 49.40	0	569959..570960	+	333	15640560	-	VC0538	-	thiosulfate ABC transporter, periplasmic thiosulfate-binding protein
531	 51.41	0	571037..571888	+	283	15640561	-	VC0539	-	sulfate ABC transporter, permease protein
532	 51.50	0	571899..572762	+	287	15640562	-	VC0540	-	sulfate ABC transporter, permease protein
533	 50.75	0	572759..573889	+	376	15640563	-	VC0541	-	sulfate ABC transporter, ATP-binding protein
534	 51.48	0	574056..574562	+	168	15640564	-	VC0542	-	CinA-related protein
535	 46.97	0	574522..575760	+	412	15640565	recA	VC0543	-	recombinase A
536	 47.71	0	575893..576351	+	152	15640566	recX	VC0544	-	recombination regulator RecX
537	 50.60	0	576524..579106	+	860	15640567	alaS	VC0545	-	alanyl-tRNA synthetase
538	 36.67	-2	579138..579257	+	39	15640568	-	VC0546	-	hypothetical protein
539	 47.73	0	579310..580497	+	395	15640569	-	VC0547	-	aspartate kinase
540	 47.47	0	580589..580786	+	65	15640570	-	VC0548	-	carbon storage regulator
541	 48.87	0	582264..582617	+	117	15640571	-	VC0549	-	oxaloacetate decarboxylase subunit gamma
542	 50.78	0	582646..584439	+	597	15640572	-	VC0550	-	pyruvate carboxylase subunit B
543	 51.19	0	584449..585579	+	376	15640573	-	VC0551	-	oxaloacetate decarboxylase, beta subunit
544	 51.18	0	585639..586652	+	337	15640574	-	VC0552	-	quinone oxidoreductase
545	 48.92	0	586646..587107	+	153	15640575	-	VC0553	-	hypothetical protein
546	 48.93	0	587114..589972	+	952	15640576	-	VC0554	-	insulinase family protease/insulinase family protease
547	 52.94	+1	589962..590063	-	33	15640577	-	VC0555	-	hypothetical protein
548	 50.29	0	590084..591658	+	524	15640578	-	VC0556	-	glutamate--cysteine ligase
549	 48.55	0	591707..592225	+	172	15640579	-	VC0557	-	S-ribosylhomocysteinase
550	 46.60	0	592295..593575	-	426	15640580	-	VC0558	-	hemolysin, putative
47.43	MEAN

4.26	STD DEV
