IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

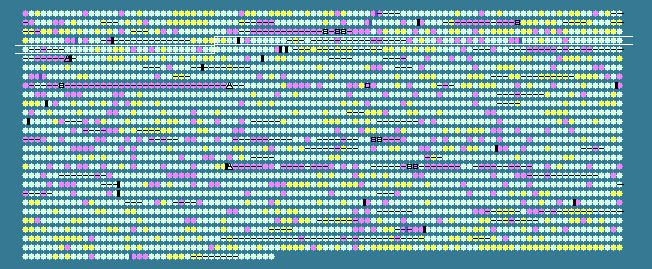

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
333	 50.24	0	357398..358834	-	478	15640365	-	VC0338	-	transporter, putative
334	 52.45	+1	359021..359878	-	285	15640366	-	VC0339	-	phosphatidylserine decarboxylase
335	 48.02	0	359871..361034	-	387	15640367	-	VC0340	-	ribosome-associated GTPase
336	 45.60	0	361157..361702	+	181	15640368	-	VC0341	-	oligoribonuclease
337	 48.38	0	363575..364684	-	369	15640369	-	VC0342	-	iron-sulfur cluster-binding protein
338	 43.56	0	364787..365353	+	188	15640370	-	VC0343	-	hypothetical protein
339	 47.48	0	365320..367065	+	581	15640371	-	VC0344	-	N-acetylmuramoyl-L-alanine amidase
340	 50.36	0	367072..369033	+	653	15640372	mutL	VC0345	-	DNA mismatch repair protein
341	 48.84	0	369030..369977	+	315	15640373	miaA	VC0346	-	tRNA delta(2)-isopentenylpyrophosphate transferase
342	 46.59	0	370149..370412	+	87	15640374	hfq	VC0347	-	RNA-binding protein Hfq
343	 48.06	0	370445..371734	+	429	15640375	-	VC0348	-	putative GTPase HflX
344	 49.49	0	371780..372967	+	395	15640376	-	VC0349	-	hflK protein
345	 46.89	0	372970..373950	+	326	15640377	-	VC0350	-	hflC protein
346	 51.21	0	373993..374199	+	68	15640378	-	VC0351	-	hypothetical protein
347	 44.74	0	374240..374467	-	75	161582027	-	VC0352	-	hypothetical protein
348	 49.29	0	374470..375453	-	327	15640380	-	VC0353	-	hypothetical protein
349	 46.92	0	375590..376369	+	259	15640381	-	VC0354	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
350	 46.20	0	376568..377290	+	240	15640382	-	VC0355	-	hypothetical protein
351	 48.99	0	377287..377682	+	131	15640383	-	VC0356	-	hypothetical protein
352	 46.78	0	377679..378035	+	118	15640384	-	VC0357	-	hypothetical protein
353	 42.39	-1	378045..378320	+	91	15640385	-	VC0358	-	hypothetical protein
354	 46.40	0	378505..378879	+	124	15640386	rpsL	VC0359	-	30S ribosomal protein S12
355	 46.28	0	378995..379465	+	156	15640387	-	VC0360	-	30S ribosomal protein S7
356	 47.73	0	379541..381637	+	698	15640388	-	VC0361	-	elongation factor G
357	 49.11	0	381760..382944	+	394	15640389	tuf	VC0362	-	elongation factor Tu
358	 44.14	0	383065..383175	-	36	15640390	-	VC0363	-	hypothetical protein
359	 43.92	0	383247..383435	+	62	15640391	-	VC0364	-	bacterioferritin-associated ferredoxin
360	 40.25	-1	383505..383981	+	158	15640392	-	VC0365	-	bacterioferritin
361	 46.88	0	384193..384561	+	122	15640393	rpsF	VC0366	-	30S ribosomal protein S6
362	 45.54	0	384569..384871	+	100	15640394	-	VC0367	-	primosomal replication protein N
363	 45.18	0	384887..385114	+	75	15640395	rpsR	VC0368	-	30S ribosomal protein S18
364	 46.00	0	385148..385597	+	149	15640396	rplI	VC0369	-	50S ribosomal protein L9
365	 43.33	0	385659..386468	-	269	15640397	-	VC0370	-	hypothetical protein
366	 50.46	0	386594..388000	+	468	15640398	-	VC0371	-	replicative DNA helicase
367	 52.39	+1	387972..389099	+	375	15640399	alr	VC0372	-	alanine racemase
368	 48.10	0	389182..389601	-	139	15640400	-	VC0373	-	hypothetical protein
369	 48.88	0	389886..391538	+	550	15640401	pgi	VC0374	-	glucose-6-phosphate isomerase
370	 40.74	-1	391571..391678	-	35	15640402	-	VC0375	-	hypothetical protein
371	 48.94	0	391741..392919	+	392	15640403	-	VC0376	-	hypothetical protein
372	 47.40	0	393036..393497	-	153	15640404	-	VC0377	-	hypothetical protein
373	 43.80	0	393507..393974	-	155	15640405	-	VC0378	-	zinc uptake regulation protein, putative
374	 50.51	0	394329..395312	+	327	15640406	-	VC0379	-	tRNA-dihydrouridine synthase A
375	 34.96	-2	395326..395448	-	40	15640407	-	VC0380	-	hypothetical protein
376	 47.00	0	395774..396439	+	221	15640408	-	VC0381	-	hypothetical protein
377	 35.67	-2	396393..396563	+	56	15640409	-	VC0382	-	hypothetical protein
378	 46.30	0	396521..396790	+	89	15640410	-	VC0383	-	hypothetical protein
379	 48.67	0	396876..398720	+	614	15640411	-	VC0384	-	sulfite reductase (NADPH) flavoprotein alpha-component
380	 49.19	0	398720..400453	+	577	15640412	-	VC0385	-	sulfite reductase subunit beta
381	 45.41	0	400446..401207	+	253	15640413	-	VC0386	-	phosphoadenosine phosphosulfate reductase
382	 42.71	-1	401344..401439	+	31	15640414	-	VC0387	-	hypothetical protein
383	 35.00	-2	401597..401716	+	39	15640415	-	VC0388	-	hypothetical protein
384	 44.49	0	407506..408840	-	444	15640416	-	VC0389	-	Na+/H+ antiporter, putative
385	 49.74	0	409037..412717	+	1226	15640417	metH	VC0390	-	B12-dependent methionine synthase
386	 50.07	0	412790..414229	-	479	15640418	-	VC0391	-	aspartate kinase III
387	 51.12	0	414609..415727	+	372	15640419	-	VC0392	-	aminotransferase, class V
388	 48.22	0	415806..417599	-	597	15640420	-	VC0393	-	hypothetical protein
389	 48.92	0	417655..420477	-	940	15640421	uvrA	VC0394	-	excinuclease ABC subunit A
390	 48.06	0	420633..421508	-	291	15640422	-	VC0395	-	UTP--glucose-1-phosphate uridylyltransferase
391	 43.72	0	421678..422322	-	214	15640423	-	VC0396	-	LuxR family transcriptional regulator
392	 49.81	0	422614..423147	+	177	15640424	-	VC0397	-	single-strand DNA-binding protein
393	 48.47	0	423262..425283	+	673	15640425	-	VC0398	-	regulatory protein CsrD
394	 48.89	0	425296..426735	+	479	15640426	-	VC0399	-	MSHA biogenesis protein MshI
395	 48.39	0	426732..427382	+	216	15640427	-	VC0400	-	MSHA biogenesis protein MshJ
396	 50.00	0	427375..427692	+	105	15640428	-	VC0401	-	MSHA biogenesis protein MshK
397	 47.74	0	427707..429386	+	559	15640429	-	VC0402	-	MSHA biogenesis protein MshL
398	 50.00	0	429391..430236	+	281	15640430	-	VC0403	-	MSHA biogenesis protein MshM
399	 50.43	0	430215..431384	+	389	15640431	-	VC0404	-	MSHA biogenesis protein MshN
400	 50.06	0	431374..433101	+	575	15640432	-	VC0405	-	MSHA biogenesis protein MshE
401	 48.94	0	433110..434333	+	407	15640433	-	VC0406	-	MSHA biogenesis protein MshG
402	 46.80	0	434336..434788	+	150	15640434	-	VC0407	-	MSHA biogenesis protein MshF
403	 47.38	0	434833..435423	+	196	15640435	-	VC0408	-	MSHA pilin protein MshB
404	 43.02	-1	435449..435985	+	178	15640436	-	VC0409	-	MSHA pilin protein MshA
405	 50.51	0	436022..436510	+	162	15640437	-	VC0410	-	MSHA pilin protein MshC
406	 47.39	0	436458..437069	+	203	15640438	-	VC0411	-	MSHA pilin protein MshD
407	 48.90	0	437069..437839	+	256	15640439	-	VC0412	-	hypothetical protein
408	 48.38	0	437805..438236	+	143	15640440	-	VC0413	-	hypothetical protein
409	 45.81	0	438229..441987	+	1252	15640441	-	VC0414	-	hypothetical protein
410	 50.77	0	442155..443198	+	347	15640442	-	VC0415	-	rod shape-determining protein MreB
411	 48.48	0	443255..444145	+	296	15640443	-	VC0416	-	rod shape-determining protein MreC
412	 49.28	0	444132..444620	+	162	15640444	-	VC0417	-	rod shape-determining protein MreD
413	 51.29	0	444563..445180	+	205	15640445	maf	VC0418	-	Maf-like protein
414	 49.39	0	445206..446675	+	489	15640446	-	VC0419	-	ribonuclease G
415	 50.34	0	446688..450563	+	1291	15640447	-	VC0420	-	hypothetical protein
416	 52.17	+1	450572..451399	+	275	15640448	-	VC0421	-	hypothetical protein
417	 51.38	0	451399..452844	+	481	15640449	-	VC0422	-	tldD protein
418	 50.82	0	452940..454163	-	407	15640450	-	VC0423	-	arginine deiminase
419	 43.50	0	454890..455312	+	140	15640451	-	VC0424	-	hypothetical protein
420	 49.62	0	455459..456256	+	265	15640452	-	VC0425	-	hypothetical protein
421	 48.44	0	456325..456708	-	127	15640453	-	VC0426	-	hypothetical protein
422	 36.94	-2	456727..456837	+	36	15640454	-	VC0427	-	hypothetical protein
423	 47.26	0	456859..457296	-	145	15640455	-	VC0428	-	hypothetical protein
424	 52.71	+1	457418..459982	-	854	15640456	-	VC0429	-	hypothetical protein
425	 48.94	0	460153..461139	-	328	15640457	-	VC0430	-	immunogenic protein
426	 49.04	0	461445..461915	-	156	161582026	-	VC0431	-	arginine repressor
427	 50.85	0	462243..463178	+	311	161582025	-	VC0432	-	malate dehydrogenase
428	 48.76	0	463652..465058	+	468	15640460	-	VC0433	-	arginine/ornithine antiporter
429	 46.90	0	465207..466253	-	348	15640461	-	VC0434	-	octaprenyl-diphosphate synthase
430	 43.59	0	466449..466760	+	103	15640462	rplU	VC0435	-	50S ribosomal protein L21
431	 44.44	0	466781..467041	+	86	15640463	rpmA	VC0436	-	50S ribosomal protein L27
432	 48.59	0	467264..468436	+	390	161582024	obgE	VC0437	-	GTPase ObgE
47.43	MEAN

4.26	STD DEV
