IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

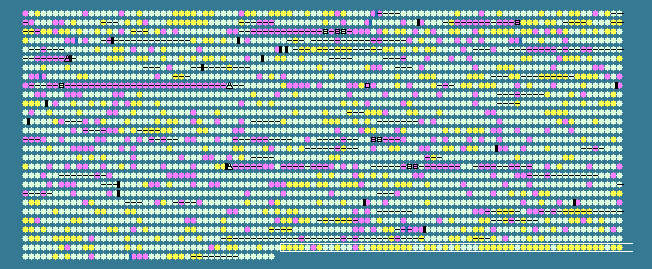

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2644	 51.43	0	2842621..2843178	-	185	15642670	-	VC2675	-	ATP-dependent protease peptidase subunit
2645	 51.99	+1	2843315..2843866	-	183	15642671	-	VC2676	-	cell division protein FtsN, putative
2646	 52.48	+1	2844038..2845045	-	335	15642672	-	VC2677	-	DNA-binding transcriptional regulator CytR
2647	 52.65	+1	2845351..2847555	-	734	15642673	-	VC2678	-	primosome assembly protein PriA
2648	 47.03	0	2847810..2848028	+	72	15642674	rpmE	VC2679	-	50S ribosomal protein L31
2649	 38.89	-2	2848126..2848269	+	47	15642675	-	VC2680	-	hypothetical protein
2650	 51.25	0	2848336..2849613	+	425	15642676	-	VC2681	-	malate oxidoreductase, putative
2651	 47.80	0	2849724..2850041	-	105	15642677	-	VC2682	-	transcriptional repressor protein MetJ
2652	 50.39	0	2850309..2851475	+	388	15642678	-	VC2683	-	cystathionine gamma-synthase
2653	 52.16	+1	2851488..2853899	+	803	15642679	metL	VC2684	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
2654	 50.23	0	2854186..2855073	+	295	161581980	metF	VC2685	-	5,10-methylenetetrahydrofolate reductase
2655	 46.91	0	2855136..2855378	-	80	15642681	-	VC2686	-	hypothetical protein
2656	 41.90	-1	2855427..2855531	+	34	15642682	-	VC2687	-	hypothetical protein
2657	 52.98	+1	2855699..2856706	+	335	15642683	glpX	VC2688	-	fructose 1,6-bisphosphatase II
2658	 49.30	0	2856783..2857778	-	331	15642684	pfkA	VC2689	-	6-phosphofructokinase
2659	 51.49	0	2858008..2858916	-	302	15642685	fieF	VC2690	-	ferrous iron efflux protein F
2660	 51.39	0	2859114..2859617	-	167	15642686	cpxP	VC2691	-	periplasmic repressor CpxP
2661	 51.53	0	2859805..2860491	+	228	15642687	-	VC2692	-	transcriptional regulator CpxR
2662	 51.11	0	2860491..2861885	+	464	15642688	cpxA	VC2693	-	two-component sensor protein
2663	 51.27	0	2861967..2862635	+	222	15642689	-	VC2694	-	superoxide dismutase, Mn
2664	 51.78	+1	2862688..2863164	+	158	15642690	-	VC2695	-	rRNA methylase
2665	 52.26	+1	2863198..2863683	-	161	15642691	fxsA	VC2696	-	FxsA
2666	 49.09	0	2863775..2864713	-	312	15642692	-	VC2697	-	GGDEF family protein
2667	 48.28	0	2864958..2866409	+	483	15642693	aspA	VC2698	-	aspartate ammonia-lyase
2668	 52.45	+1	2866537..2867844	+	435	161581979	-	VC2699	-	anaerobic C4-dicarboxylate transporter
2669	 51.75	+1	2871996..2873798	+	600	15642695	dipZ	VC2701	-	thiol:disulfide interchange protein precursor
2670	 50.00	0	2873971..2874600	+	209	15642696	-	VC2702	-	LuxR family transcriptional regulator
2671	 51.95	+1	2874699..2876444	-	581	15642697	-	VC2703	-	potassium/proton antiporter
2672	 45.69	0	2876823..2877089	+	88	15642698	-	VC2704	-	hypothetical protein
2673	 51.68	0	2877283..2878803	+	506	15642699	-	VC2705	-	sodium/solute symporter, putative
2674	 47.92	0	2878901..2879572	-	223	15642700	-	VC2706	-	hypothetical protein
2675	 45.74	0	2879759..2879887	+	42	15642701	-	VC2707	-	hypothetical protein
2676	 46.23	0	2879875..2880564	+	229	15642702	gmk	VC2708	-	guanylate kinase
2677	 52.01	+1	2880672..2880944	+	90	15642703	rpoZ	VC2709	-	DNA-directed RNA polymerase subunit omega
2678	 52.41	+1	2880976..2883093	+	705	15642704	-	VC2710	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
2679	 53.29	+1	2883212..2885290	+	692	15642705	-	VC2711	-	ATP-dependent DNA helicase RecG
2680	 51.07	0	2885599..2887041	+	480	15642706	-	VC2712	-	xanthine/uracil permease family protein
2681	 51.03	0	2887066..2888382	-	438	15642707	envZ	VC2713	-	osmolarity sensor protein
2682	 51.18	0	2888451..2889173	-	240	15642708	ompR	VC2714	-	osmolarity response regulator
2683	 48.77	0	2889311..2889796	-	161	15642709	greB	VC2715	-	transcription elongation factor GreB
2684	 53.88	+1	2890041..2892362	+	773	15642710	-	VC2716	-	hypothetical protein
2685	 54.22	+1	2892454..2892951	-	165	15642711	-	VC2717	-	hypothetical protein
2686	 54.28	+1	2893086..2893892	-	268	15642712	-	VC2718	-	bioH protein
2687	 53.77	+1	2893783..2894643	+	286	15642713	-	VC2719	-	ComF-related protein
2688	 51.19	0	2894731..2895318	+	195	15642714	-	VC2720	-	putative DNA uptake protein
2689	 49.54	0	2895457..2896005	+	182	161581978	nudE	VC2721	-	ADP-ribose diphosphatase NudE
2690	 53.09	+1	2895950..2896855	+	301	15642716	-	VC2722	-	cysQ protein
2691	 54.15	+1	2896907..2897665	-	252	15642717	-	VC2723	-	general secretion pathway protein N
2692	 52.89	+1	2897667..2898167	-	166	15642718	-	VC2724	-	cholera toxin secretion protein EpsM
2693	 51.14	0	2898174..2899397	-	407	15642719	-	VC2725	-	general secretion pathway protein L
2694	 52.23	+1	2899354..2900364	-	336	15642720	-	VC2726	-	general secretion pathway protein K
2695	 52.25	+1	2900354..2901019	-	221	15642721	-	VC2727	-	general secretion pathway protein J
2696	 52.26	+1	2901006..2901359	-	117	15642722	-	VC2728	-	general secretion pathway protein I
2697	 51.11	0	2901349..2901933	-	194	15642723	-	VC2729	-	general secretion pathway protein H
2698	 47.85	0	2901967..2902407	-	146	15642724	-	VC2730	-	general secretion pathway protein G
2699	 53.24	+1	2902448..2903668	-	406	15642725	-	VC2731	-	general secretion pathway protein F
2700	 52.58	+1	2903668..2905179	-	503	15642726	-	VC2732	-	general secretion pathway protein E
2701	 49.67	0	2907245..2908162	-	305	15642727	-	VC2734	-	general secretion pathway protein C
2702	 50.52	0	2908386..2908769	+	127	15642728	-	VC2735	-	hypothetical protein
2703	 49.61	0	2908788..2909678	+	296	15642729	hslO	VC2736	-	Hsp33-like chaperonin
2704	 44.00	0	2909817..2909966	-	49	15642730	-	VC2737	-	hypothetical protein
2705	 49.17	0	2910015..2911643	+	542	15642731	-	VC2738	-	phosphoenolpyruvate carboxykinase
2706	 50.93	0	2911830..2913716	+	628	15642732	-	VC2739	-	hypothetical protein
2707	 50.91	0	2913758..2914690	-	310	15642733	-	VC2740	-	hypothetical protein
2708	 51.03	0	2914757..2915191	-	144	15642734	-	VC2741	-	D-tyrosyl-tRNA deacylase
2709	 46.20	0	2915209..2916102	-	297	15642735	rbn	VC2742	-	ribonuclease BN
2710	 49.01	0	2916129..2916683	-	184	15642736	-	VC2743	-	hypothetical protein
2711	 49.84	0	2916766..2918595	-	609	15642737	-	VC2744	-	GTP-binding protein TypA
2712	 43.21	0	2918615..2918938	-	107	15642738	-	VC2745	-	hypothetical protein
2713	 48.58	0	2919083..2920492	+	469	15642739	glnA	VC2746	-	glutamine synthetase
2714	 48.22	0	2920670..2921260	+	196	15642740	-	VC2747	-	hypothetical protein
2715	 48.83	0	2921393..2922457	+	354	15642741	glnL	VC2748	-	nitrogen regulation protein NR(II)
2716	 48.61	0	2922461..2923867	+	468	15642742	-	VC2749	-	nitrogen regulation protein NR(I)
2717	 45.92	0	2923908..2926457	+	849	15642743	-	VC2750	-	GGDEF family protein
2718	 49.15	0	2926549..2927553	+	334	15642744	-	VC2751	-	adenosine deaminase
2719	 35.00	-2	2939035..2939154	-	39	15642745	-	VC2752	-	hypothetical protein
2720	 41.84	-1	2939167..2939307	-	46	15642746	-	VC2753	-	hypothetical protein
2721	 40.14	-1	2939334..2939480	-	48	15642747	-	VC2754	-	hypothetical protein
2722	 45.90	0	2939455..2939979	-	174	15642748	hemG	VC2755	-	protoporphyrinogen oxidase
2723	 48.90	0	2940002..2941459	-	485	15642749	-	VC2756	-	potassium uptake protein TrkH
2724	 47.24	0	2941479..2942111	-	210	15642750	-	VC2757	-	hypothetical protein
2725	 51.10	0	2942322..2944493	+	723	15642751	fadB	VC2758	-	multifunctional fatty acid oxidation complex subunit alpha
2726	 53.78	+1	2944519..2945682	+	387	15642752	fadA	VC2759	-	3-ketoacyl-CoA thiolase
2727	 51.38	0	2945749..2946657	-	302	15642753	-	VC2760	-	putative DNA-binding transcriptional regulator
2728	 49.46	0	2946813..2948015	+	400	161581977	-	VC2761	-	inner membrane transport protein YdhC
2729	 51.32	0	2948077..2949438	-	453	15642755	glmU	VC2762	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase/glucosamine-1-phosphate acetyltransferase
2730	 51.77	+1	2949685..2950107	-	140	15642756	atpC	VC2763	-	F0F1 ATP synthase subunit epsilon
2731	 50.14	0	2950126..2951529	-	467	15642757	-	VC2764	-	F0F1 ATP synthase subunit beta
2732	 47.75	0	2951564..2952430	-	288	15642758	-	VC2765	-	F0F1 ATP synthase subunit gamma
2733	 49.43	0	2952475..2954046	-	523	15642759	-	VC2766	-	F0F1 ATP synthase subunit alpha
2734	 46.82	0	2954030..2954563	-	177	15642760	-	VC2767	-	F0F1 ATP synthase subunit delta
2735	 44.59	0	2954578..2955048	-	156	15642761	-	VC2768	-	F0F1 ATP synthase subunit B
2736	 47.29	0	2955122..2955379	-	85	15642762	-	VC2769	-	F0F1 ATP synthase subunit C
2737	 44.90	0	2955423..2956235	-	270	15642763	-	VC2770	-	F0F1 ATP synthase subunit A
2738	 46.92	0	2956244..2956633	-	129	15642764	-	VC2771	-	F0F1 ATP synthase subunit I
2739	 47.28	0	2956823..2957704	-	293	15642765	-	VC2772	-	ParB family protein
2740	 47.42	0	2957731..2958504	-	257	15642766	-	VC2773	-	ParA family protein
2741	 47.87	0	2958519..2959151	-	210	15642767	gidB	VC2774	-	glucose-inhibited division protein B
2742	 49.84	0	2959151..2961046	-	631	15642768	-	VC2775	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
47.43	MEAN

4.26	STD DEV
