IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

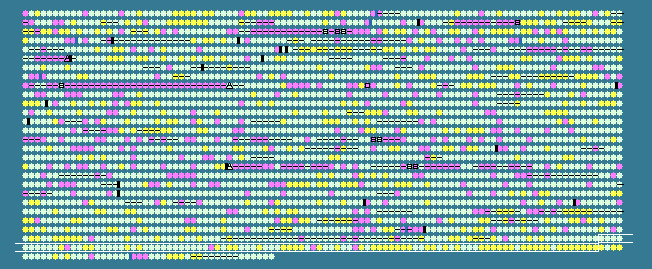

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2597	 50.77	0	2799345..2800445	-	366	15642623	aroB	VC2628	-	3-dehydroquinate synthase
2598	 47.24	0	2800458..2800982	-	174	15642624	aroK	VC2629	-	shikimate kinase I
2599	 46.86	0	2801169..2802905	-	578	15642625	-	VC2630	-	fimbrial assembly protein
2600	 49.13	0	2802910..2803428	-	172	15642626	-	VC2631	-	fimbrial assembly protein PilP, putative
2601	 49.50	0	2803418..2804017	-	199	15642627	-	VC2632	-	fimbrial assembly protein PilO, putative
2602	 47.21	0	2804001..2804591	-	196	15642628	-	VC2633	-	fimbrial assembly protein PilN, putative
2603	 47.20	0	2804575..2805591	-	338	15642629	-	VC2634	-	fimbrial assembly protein PilM, putative
2604	 49.60	0	2805704..2808211	+	835	15642630	-	VC2635	-	penicillin-binding protein 1A
2605	 49.66	0	2808285..2809178	-	297	15642631	-	VC2636	-	DNA-binding transcriptional regulator OxyR
2606	 46.91	0	2809306..2810049	+	247	15642632	-	VC2637	-	peroxiredoxin family protein/glutaredoxin
2607	 51.27	0	2810121..2811575	+	484	15642633	-	VC2638	-	dihydrolipoamide dehydrogenase
2608	 39.81	-1	2811572..2811679	-	35	15642634	-	VC2639	-	hypothetical protein
2609	 46.21	0	2811801..2812064	+	87	15642635	-	VC2640	-	hypothetical protein
2610	 50.18	0	2812315..2813691	-	458	15642636	-	VC2641	-	argininosuccinate lyase
2611	 50.95	0	2813924..2815138	-	404	15642637	-	VC2642	-	argininosuccinate synthase
2612	 53.61	+1	2815214..2816002	-	262	15642638	-	VC2643	-	acetylglutamate kinase
2613	 50.60	0	2816012..2817013	-	333	161581982	argC	VC2644	-	N-acetyl-gamma-glutamyl-phosphate reductase
2614	 50.31	0	2817169..2818305	+	378	15642640	-	VC2645	-	acetylornithine deacetylase
2615	 50.59	0	2818512..2821142	+	876	161581981	-	VC2646	-	phosphoenolpyruvate carboxylase
2616	 47.41	0	2821501..2822040	+	179	15642642	-	VC2647	-	hypothetical protein
2617	 44.19	0	2821989..2822117	+	42	15642643	-	VC2648	-	hypothetical protein
2618	 52.92	+1	2822156..2822977	-	273	15642644	cysE	VC2649	-	serine acetyltransferase
2619	 47.76	0	2822864..2823175	+	103	15642645	-	VC2650	-	hypothetical protein
2620	 51.79	+1	2823050..2824084	-	344	15642646	gpsA	VC2651	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
2621	 48.54	0	2824217..2824387	+	56	15642647	-	VC2652	-	hypothetical protein
2622	 49.68	0	2824274..2824738	-	154	15642648	-	VC2653	-	preprotein translocase subunit SecB
2623	 45.29	0	2824905..2825339	-	144	15642649	-	VC2654	-	hypothetical protein
2624	 48.67	0	2825469..2826518	-	349	15642650	-	VC2655	-	lysyl-tRNA synthetase
2625	 49.97	0	2826752..2828560	+	602	15642651	-	VC2656	-	fumarate reductase flavoprotein subunit
2626	 49.54	0	2828560..2829318	+	252	15642652	-	VC2657	-	fumarate reductase iron-sulfur subunit
2627	 48.18	0	2829321..2829704	+	127	15642653	-	VC2658	-	fumarate reductase subunit C
2628	 49.11	0	2829685..2830077	+	130	15642654	-	VC2659	-	fumarate reductase subunit D
2629	 47.44	0	2830191..2830757	-	188	15642655	-	VC2660	-	elongation factor P
2630	 48.88	0	2830790..2831812	+	340	15642656	-	VC2661	-	hypothetical protein
2631	 45.66	0	2831849..2832424	-	191	15642657	-	VC2662	-	hypothetical protein
2632	 38.10	-2	2832447..2832551	-	34	15642658	-	VC2663	-	hypothetical protein
2633	 52.17	+1	2832620..2834254	-	544	15642659	groEL	VC2664	-	chaperonin GroEL
2634	 44.67	0	2834308..2834598	-	96	15642660	groES	VC2665	-	co-chaperonin GroES
2635	 50.97	0	2834958..2835575	+	205	15642661	-	VC2666	-	hypothetical protein
2636	 52.22	+1	2835714..2836073	+	119	15642662	-	VC2667	-	hypothetical protein
2637	 49.66	0	2836200..2836640	-	146	15642663	-	VC2668	-	hypothetical protein
2638	 46.44	0	2836660..2837010	-	116	15642664	-	VC2669	-	5-carboxymethyl-2-hydroxymuconate delta isomerase, putative
2639	 50.75	0	2837230..2838027	+	265	15642665	tpiA	VC2670	-	triosephosphate isomerase
2640	 52.13	+1	2838145..2839527	+	460	15642666	-	VC2671	-	hypothetical protein
2641	 50.00	0	2839613..2840128	-	171	15642667	-	VC2672	-	ribonuclease activity regulator protein RraA
2642	 49.67	0	2840203..2841120	-	305	15642668	-	VC2673	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
2643	 50.30	0	2841224..2842555	-	443	15642669	hslU	VC2674	-	ATP-dependent protease ATP-binding subunit
2644	 51.43	0	2842621..2843178	-	185	15642670	-	VC2675	-	ATP-dependent protease peptidase subunit
2645	 51.99	+1	2843315..2843866	-	183	15642671	-	VC2676	-	cell division protein FtsN, putative
2646	 52.48	+1	2844038..2845045	-	335	15642672	-	VC2677	-	DNA-binding transcriptional regulator CytR
2647	 52.65	+1	2845351..2847555	-	734	15642673	-	VC2678	-	primosome assembly protein PriA
2648	 47.03	0	2847810..2848028	+	72	15642674	rpmE	VC2679	-	50S ribosomal protein L31
2649	 38.89	-2	2848126..2848269	+	47	15642675	-	VC2680	-	hypothetical protein
2650	 51.25	0	2848336..2849613	+	425	15642676	-	VC2681	-	malate oxidoreductase, putative
2651	 47.80	0	2849724..2850041	-	105	15642677	-	VC2682	-	transcriptional repressor protein MetJ
2652	 50.39	0	2850309..2851475	+	388	15642678	-	VC2683	-	cystathionine gamma-synthase
2653	 52.16	+1	2851488..2853899	+	803	15642679	metL	VC2684	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
2654	 50.23	0	2854186..2855073	+	295	161581980	metF	VC2685	-	5,10-methylenetetrahydrofolate reductase
2655	 46.91	0	2855136..2855378	-	80	15642681	-	VC2686	-	hypothetical protein
2656	 41.90	-1	2855427..2855531	+	34	15642682	-	VC2687	-	hypothetical protein
2657	 52.98	+1	2855699..2856706	+	335	15642683	glpX	VC2688	-	fructose 1,6-bisphosphatase II
2658	 49.30	0	2856783..2857778	-	331	15642684	pfkA	VC2689	-	6-phosphofructokinase
2659	 51.49	0	2858008..2858916	-	302	15642685	fieF	VC2690	-	ferrous iron efflux protein F
2660	 51.39	0	2859114..2859617	-	167	15642686	cpxP	VC2691	-	periplasmic repressor CpxP
2661	 51.53	0	2859805..2860491	+	228	15642687	-	VC2692	-	transcriptional regulator CpxR
2662	 51.11	0	2860491..2861885	+	464	15642688	cpxA	VC2693	-	two-component sensor protein
2663	 51.27	0	2861967..2862635	+	222	15642689	-	VC2694	-	superoxide dismutase, Mn
2664	 51.78	+1	2862688..2863164	+	158	15642690	-	VC2695	-	rRNA methylase
2665	 52.26	+1	2863198..2863683	-	161	15642691	fxsA	VC2696	-	FxsA
2666	 49.09	0	2863775..2864713	-	312	15642692	-	VC2697	-	GGDEF family protein
2667	 48.28	0	2864958..2866409	+	483	15642693	aspA	VC2698	-	aspartate ammonia-lyase
2668	 52.45	+1	2866537..2867844	+	435	161581979	-	VC2699	-	anaerobic C4-dicarboxylate transporter
2669	 51.75	+1	2871996..2873798	+	600	15642695	dipZ	VC2701	-	thiol:disulfide interchange protein precursor
2670	 50.00	0	2873971..2874600	+	209	15642696	-	VC2702	-	LuxR family transcriptional regulator
2671	 51.95	+1	2874699..2876444	-	581	15642697	-	VC2703	-	potassium/proton antiporter
2672	 45.69	0	2876823..2877089	+	88	15642698	-	VC2704	-	hypothetical protein
2673	 51.68	0	2877283..2878803	+	506	15642699	-	VC2705	-	sodium/solute symporter, putative
2674	 47.92	0	2878901..2879572	-	223	15642700	-	VC2706	-	hypothetical protein
2675	 45.74	0	2879759..2879887	+	42	15642701	-	VC2707	-	hypothetical protein
2676	 46.23	0	2879875..2880564	+	229	15642702	gmk	VC2708	-	guanylate kinase
2677	 52.01	+1	2880672..2880944	+	90	15642703	rpoZ	VC2709	-	DNA-directed RNA polymerase subunit omega
2678	 52.41	+1	2880976..2883093	+	705	15642704	-	VC2710	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
2679	 53.29	+1	2883212..2885290	+	692	15642705	-	VC2711	-	ATP-dependent DNA helicase RecG
2680	 51.07	0	2885599..2887041	+	480	15642706	-	VC2712	-	xanthine/uracil permease family protein
2681	 51.03	0	2887066..2888382	-	438	15642707	envZ	VC2713	-	osmolarity sensor protein
2682	 51.18	0	2888451..2889173	-	240	15642708	ompR	VC2714	-	osmolarity response regulator
2683	 48.77	0	2889311..2889796	-	161	15642709	greB	VC2715	-	transcription elongation factor GreB
2684	 53.88	+1	2890041..2892362	+	773	15642710	-	VC2716	-	hypothetical protein
2685	 54.22	+1	2892454..2892951	-	165	15642711	-	VC2717	-	hypothetical protein
2686	 54.28	+1	2893086..2893892	-	268	15642712	-	VC2718	-	bioH protein
2687	 53.77	+1	2893783..2894643	+	286	15642713	-	VC2719	-	ComF-related protein
2688	 51.19	0	2894731..2895318	+	195	15642714	-	VC2720	-	putative DNA uptake protein
2689	 49.54	0	2895457..2896005	+	182	161581978	nudE	VC2721	-	ADP-ribose diphosphatase NudE
2690	 53.09	+1	2895950..2896855	+	301	15642716	-	VC2722	-	cysQ protein
2691	 54.15	+1	2896907..2897665	-	252	15642717	-	VC2723	-	general secretion pathway protein N
2692	 52.89	+1	2897667..2898167	-	166	15642718	-	VC2724	-	cholera toxin secretion protein EpsM
2693	 51.14	0	2898174..2899397	-	407	15642719	-	VC2725	-	general secretion pathway protein L
2694	 52.23	+1	2899354..2900364	-	336	15642720	-	VC2726	-	general secretion pathway protein K
2695	 52.25	+1	2900354..2901019	-	221	15642721	-	VC2727	-	general secretion pathway protein J
2696	 52.26	+1	2901006..2901359	-	117	15642722	-	VC2728	-	general secretion pathway protein I
47.43	MEAN

4.26	STD DEV
