IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

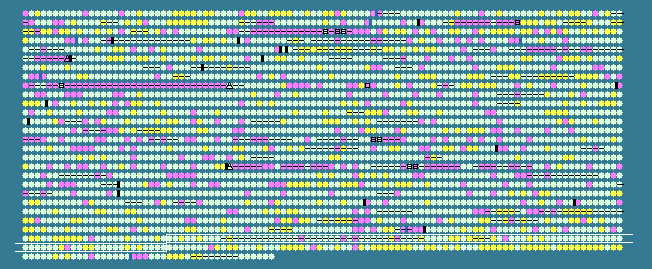

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2525	 50.27	0	2738194..2738559	+	121	15642551	-	VC2556	-	hypothetical protein
2526	 50.34	0	2738505..2739092	+	195	15642552	-	VC2557	-	hypothetical protein
2527	 53.40	+1	2739165..2739812	-	215	15642553	-	VC2558	-	adenylylsulfate kinase
2528	 48.50	0	2739823..2741253	-	476	15642554	cysN	VC2559	-	sulfate adenylyltransferase subunit 1
2529	 49.50	0	2741271..2742179	-	302	161581985	-	VC2560	-	sulfate adenylyltransferase subunit 2
2530	 54.78	+1	2742282..2743181	-	299	15642556	-	VC2561	-	uroporphyrin-III C-methyltransferase
2531	 48.97	0	2743382..2745427	+	681	15642557	cpdB	VC2562	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
2532	 50.53	0	2745547..2746116	+	189	15642558	-	VC2563	-	hypothetical protein
2533	 50.54	0	2746119..2747501	-	460	15642559	-	VC2564	-	ATP-dependent RNA helicase DbpA
2534	 49.11	0	2747727..2748176	+	149	15642560	-	VC2565	-	elaA protein
2535	 51.60	0	2748179..2748988	+	269	15642561	-	VC2566	-	hypothetical protein
2536	 50.09	0	2748938..2749510	-	190	15642562	-	VC2567	-	hypothetical protein
2537	 50.48	0	2749721..2750350	+	209	15642563	-	VC2568	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2538	 45.34	0	2750486..2750968	+	160	15642564	-	VC2569	-	hypothetical protein
2539	 49.10	0	2751112..2751498	-	128	15642565	rplQ	VC2570	-	50S ribosomal protein L17
2540	 47.03	0	2751525..2752517	-	330	15642566	-	VC2571	-	DNA-directed RNA polymerase subunit alpha
2541	 46.54	0	2752542..2753162	-	206	15642567	rpsD	VC2572	-	30S ribosomal protein S4
2542	 50.26	0	2753190..2753579	-	129	15642568	-	VC2573	-	30S ribosomal protein S11
2543	 47.34	0	2753599..2753955	-	118	15642569	rpsM	VC2574	-	30S ribosomal protein S13
2544	 45.61	0	2754105..2754218	-	37	15642570	rpmJ	VC2575	-	50S ribosomal protein L36
2545	 45.62	0	2754257..2755591	-	444	15642571	secY	VC2576	-	preprotein translocase subunit SecY
2546	 46.90	0	2755612..2756046	-	144	15642572	rplO	VC2577	-	50S ribosomal protein L15
2547	 41.24	-1	2756052..2756228	-	58	15642573	rpmD	VC2578	-	50S ribosomal protein L30
2548	 46.23	0	2756235..2756738	-	167	15642574	rpsE	VC2579	-	30S ribosomal protein S5
2549	 50.00	0	2756753..2757106	-	117	15642575	rplR	VC2580	-	50S ribosomal protein L18
2550	 47.75	0	2757116..2757649	-	177	15642576	rplF	VC2581	-	50S ribosomal protein L6
2551	 46.06	0	2757664..2758056	-	130	15642577	rpsH	VC2582	-	30S ribosomal protein S8
2552	 46.73	0	2758086..2758391	-	101	15642578	rpsN	VC2583	-	30S ribosomal protein S14
2553	 47.78	0	2758409..2758948	-	179	15642579	rplE	VC2584	-	50S ribosomal protein L5
2554	 41.19	-1	2758973..2759290	-	105	15642580	rplX	VC2585	-	50S ribosomal protein L24
2555	 47.31	0	2759303..2759674	-	123	15642581	rplN	VC2586	-	50S ribosomal protein L14
2556	 43.92	0	2759837..2760091	-	84	15642582	rpsQ	VC2587	-	30S ribosomal protein S17
2557	 46.35	0	2760091..2760282	-	63	15642583	rpmC	VC2588	-	50S ribosomal protein L29
2558	 47.69	0	2760282..2760692	-	136	15642584	rplP	VC2589	-	50S ribosomal protein L16
2559	 50.00	0	2760704..2761405	-	233	15642585	rpsC	VC2590	-	30S ribosomal protein S3
2560	 47.15	0	2761425..2761757	-	110	15642586	rplV	VC2591	-	50S ribosomal protein L22
2561	 45.16	0	2761768..2762046	-	92	15642587	rpsS	VC2592	-	30S ribosomal protein S19
2562	 51.39	0	2762067..2762891	-	274	15642588	rplB	VC2593	-	50S ribosomal protein L2
2563	 43.56	0	2762908..2763210	-	100	15642589	rplW	VC2594	-	50S ribosomal protein L23
2564	 46.60	0	2763207..2763809	-	200	15642590	rplD	VC2595	-	50S ribosomal protein L4
2565	 47.14	0	2763826..2764455	-	209	15642591	rplC	VC2596	-	50S ribosomal protein L3
2566	 46.79	0	2764470..2764781	-	103	15642592	rpsJ	VC2597	-	30S ribosomal protein S10
2567	 52.42	+1	2765252..2765995	-	247	15642593	-	VC2598	-	23S rRNA (guanosine-2'-O-)-methyltransferase
2568	 50.61	0	2766003..2768468	-	821	15642594	-	VC2599	-	ribonuclease R
2569	 47.83	0	2768612..2770480	+	622	15642595	-	VC2600	-	hypothetical protein
2570	 50.47	0	2770507..2771142	-	211	15642596	-	VC2601	-	sodium-type flagellar protein MotX
2571	 48.96	0	2771350..2772648	-	432	15642597	-	VC2602	-	adenylosuccinate synthetase
2572	 52.50	+1	2772776..2773756	-	326	15642598	-	VC2603	-	asparaginase, putative
2573	 52.31	+1	2773919..2774524	-	201	15642599	-	VC2604	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2574	 49.25	0	2774616..2774816	-	66	15642600	-	VC2605	-	hypothetical protein
2575	 51.80	+1	2774826..2776628	-	600	161581984	-	VC2606	-	glutathione-regulated potassium-efflux system protein KefB
2576	 51.10	0	2776609..2777199	-	196	15642602	-	VC2607	-	glutathione-regulated potassium-efflux system ancillary protein KefG
2577	 51.18	0	2777245..2779239	+	664	15642603	-	VC2608	-	ABC transporter, ATP-binding protein
2578	 46.91	0	2779240..2779725	+	161	15642604	-	VC2609	-	hypothetical protein
2579	 52.63	+1	2779722..2780711	+	329	15642605	-	VC2610	-	putative hydrolase
2580	 46.08	0	2780720..2780821	-	33	15642606	-	VC2611	-	hypothetical protein
2581	 43.81	0	2780839..2781048	+	69	15642607	-	VC2612	-	hypothetical protein
2582	 49.43	0	2781145..2782014	+	289	15642608	-	VC2613	-	phosphoribulokinase
2583	 47.24	0	2782257..2782889	+	210	15642609	-	VC2614	-	cAMP-regulatory protein
2584	 48.23	0	2782968..2783759	-	263	15642610	-	VC2615	-	hypothetical protein
2585	 54.39	+1	2783902..2785359	-	485	15642611	-	VC2616	-	succinylglutamic semialdehyde dehydrogenase
2586	 48.82	0	2785369..2786427	-	352	15642612	-	VC2617	-	arginine/ornithine succinyltransferase, putative
2587	 51.16	0	2786528..2787739	-	403	15642613	argD	VC2618	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
2588	 49.14	0	2788137..2788718	-	193	15642614	-	VC2619	-	para-aminobenzoate synthase component II
2589	 50.53	0	2788972..2790384	+	470	15642615	-	VC2620	-	hypothetical protein
2590	 50.31	0	2790458..2793067	-	869	15642616	-	VC2621	-	extracellular nuclease-related protein
2591	 48.32	0	2793337..2794110	-	257	15642617	-	VC2622	-	hypothetical protein
2592	 49.16	0	2794267..2795283	-	338	161581983	-	VC2623	-	tryptophanyl-tRNA synthetase
2593	 50.07	0	2795411..2796091	-	226	15642619	-	VC2624	-	phosphoglycolate phosphatase
2594	 50.77	0	2796111..2796821	-	236	15642620	-	VC2625	-	ribulose-phosphate 3-epimerase
2595	 48.32	0	2796912..2797745	-	277	15642621	-	VC2626	-	DNA adenine methylase
2596	 48.44	0	2797815..2799290	-	491	15642622	-	VC2627	-	DamX-related protein
2597	 50.77	0	2799345..2800445	-	366	15642623	aroB	VC2628	-	3-dehydroquinate synthase
2598	 47.24	0	2800458..2800982	-	174	15642624	aroK	VC2629	-	shikimate kinase I
2599	 46.86	0	2801169..2802905	-	578	15642625	-	VC2630	-	fimbrial assembly protein
2600	 49.13	0	2802910..2803428	-	172	15642626	-	VC2631	-	fimbrial assembly protein PilP, putative
2601	 49.50	0	2803418..2804017	-	199	15642627	-	VC2632	-	fimbrial assembly protein PilO, putative
2602	 47.21	0	2804001..2804591	-	196	15642628	-	VC2633	-	fimbrial assembly protein PilN, putative
2603	 47.20	0	2804575..2805591	-	338	15642629	-	VC2634	-	fimbrial assembly protein PilM, putative
2604	 49.60	0	2805704..2808211	+	835	15642630	-	VC2635	-	penicillin-binding protein 1A
2605	 49.66	0	2808285..2809178	-	297	15642631	-	VC2636	-	DNA-binding transcriptional regulator OxyR
2606	 46.91	0	2809306..2810049	+	247	15642632	-	VC2637	-	peroxiredoxin family protein/glutaredoxin
2607	 51.27	0	2810121..2811575	+	484	15642633	-	VC2638	-	dihydrolipoamide dehydrogenase
2608	 39.81	-1	2811572..2811679	-	35	15642634	-	VC2639	-	hypothetical protein
2609	 46.21	0	2811801..2812064	+	87	15642635	-	VC2640	-	hypothetical protein
2610	 50.18	0	2812315..2813691	-	458	15642636	-	VC2641	-	argininosuccinate lyase
2611	 50.95	0	2813924..2815138	-	404	15642637	-	VC2642	-	argininosuccinate synthase
2612	 53.61	+1	2815214..2816002	-	262	15642638	-	VC2643	-	acetylglutamate kinase
2613	 50.60	0	2816012..2817013	-	333	161581982	argC	VC2644	-	N-acetyl-gamma-glutamyl-phosphate reductase
2614	 50.31	0	2817169..2818305	+	378	15642640	-	VC2645	-	acetylornithine deacetylase
2615	 50.59	0	2818512..2821142	+	876	161581981	-	VC2646	-	phosphoenolpyruvate carboxylase
2616	 47.41	0	2821501..2822040	+	179	15642642	-	VC2647	-	hypothetical protein
2617	 44.19	0	2821989..2822117	+	42	15642643	-	VC2648	-	hypothetical protein
2618	 52.92	+1	2822156..2822977	-	273	15642644	cysE	VC2649	-	serine acetyltransferase
2619	 47.76	0	2822864..2823175	+	103	15642645	-	VC2650	-	hypothetical protein
2620	 51.79	+1	2823050..2824084	-	344	15642646	gpsA	VC2651	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
2621	 48.54	0	2824217..2824387	+	56	15642647	-	VC2652	-	hypothetical protein
2622	 49.68	0	2824274..2824738	-	154	15642648	-	VC2653	-	preprotein translocase subunit SecB
2623	 45.29	0	2824905..2825339	-	144	15642649	-	VC2654	-	hypothetical protein
2624	 48.67	0	2825469..2826518	-	349	15642650	-	VC2655	-	lysyl-tRNA synthetase
47.43	MEAN

4.26	STD DEV
