IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

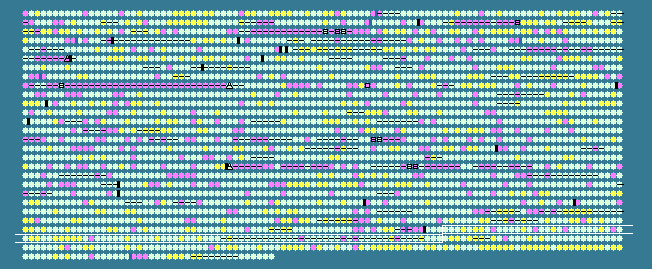

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2471	 50.60	0	2686560..2688071	+	503	15642497	-	VC2501	-	leucyl aminopeptidase
2472	 50.44	0	2688155..2688604	+	149	15642498	-	VC2502	-	DNA polymerase III subunit chi
2473	 50.77	0	2688698..2691559	+	953	15642499	valS	VC2503	-	valyl-tRNA synthetase
2474	 51.02	0	2691637..2692614	-	325	15642500	-	VC2504	-	D-lactate dehydrogenase
2475	 49.73	0	2692654..2693391	-	245	15642501	-	VC2505	-	ribosomal large subunit pseudouridine synthase A
2476	 51.82	+1	2693488..2696397	-	969	15642502	-	VC2506	-	ATP-dependent helicase HepA
2477	 51.13	0	2696819..2698195	+	458	15642503	-	VC2507	-	hypothetical protein
2478	 49.35	0	2698345..2699349	+	334	15642504	-	VC2508	-	ornithine carbamoyltransferase
2479	 43.75	0	2699447..2699542	+	31	15642505	-	VC2509	-	hypothetical protein
2480	 49.75	0	2699536..2700528	+	330	15642506	pyrB	VC2510	-	aspartate carbamoyltransferase catalytic subunit
2481	 47.65	0	2700540..2701007	+	155	15642507	-	VC2511	-	aspartate carbamoyltransferase regulatory subunit
2482	 50.51	0	2701112..2701501	+	129	15642508	-	VC2512	-	hypothetical protein
2483	 49.75	0	2701582..2702367	-	261	15642509	-	VC2513	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
2484	 51.75	+1	2702389..2703648	-	419	15642510	-	VC2514	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2485	 44.31	0	2703656..2703910	-	84	15642511	-	VC2515	-	BolA/YrbA family protein
2486	 43.03	-1	2703903..2704232	-	109	15642512	-	VC2516	-	anti-sigma B factor antagonist, putative
2487	 46.88	0	2704229..2704870	-	213	15642513	-	VC2517	-	hypothetical protein
2488	 46.54	0	2704871..2705362	-	163	15642514	-	VC2518	-	hypothetical protein
2489	 53.93	+1	2705365..2706141	-	258	15642515	-	VC2519	-	hypothetical protein
2490	 50.25	0	2706146..2706949	-	267	15642516	-	VC2520	-	ABC transporter, ATP-binding protein
2491	 42.19	-1	2707077..2707268	-	63	15642517	-	VC2521	-	hypothetical protein
2492	 49.55	0	2707506..2708504	+	332	15642518	-	VC2522	-	hypothetical protein
2493	 49.64	0	2708554..2709534	+	326	15642519	-	VC2523	-	hypothetical protein
2494	 48.03	0	2709534..2710091	+	185	15642520	-	VC2524	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
2495	 45.04	0	2710088..2710651	+	187	15642521	-	VC2525	-	hypothetical protein
2496	 45.00	0	2710587..2711126	+	179	15642522	-	VC2527	-	hypothetical protein
2497	 51.24	0	2711129..2711854	+	241	15642523	-	VC2528	-	ABC transporter, ATP-binding protein
2498	 49.80	0	2711910..2713373	+	487	15642524	-	VC2529	-	RNA polymerase factor sigma-54
2499	 40.97	-1	2713398..2713685	+	95	15642525	-	VC2530	-	sigma-54 modulation protein, putative
2500	 46.98	0	2713688..2714134	+	148	15642526	-	VC2531	-	PTS system, nitrogen regulatory IIA component
2501	 50.64	0	2714147..2715007	+	286	15642527	-	VC2532	-	hypothetical protein
2502	 51.61	0	2715016..2715294	+	92	15642528	-	VC2533	-	phosphocarrier protein NPr
2503	 53.30	+1	2715455..2716816	+	453	15642529	-	VC2534	-	magnesium transporter
2504	 50.74	0	2716888..2718231	-	447	15642530	-	VC2535	-	peptidase PmbA
2505	 50.00	0	2718330..2718911	+	193	15642531	-	VC2536	-	hypothetical protein
2506	 51.84	+1	2719014..2719748	-	244	15642532	-	VC2537	-	thiamine ABC transporter, ATP-binding protein, putative
2507	 52.73	+1	2719742..2721334	-	530	15642533	thiP	VC2538	-	thiamine transporter membrane protein
2508	 51.16	0	2721344..2722336	-	330	15642534	tbpA	VC2539	-	thiamine transporter substrate binding subunit
2509	 52.93	+1	2722206..2722598	-	130	15642535	-	VC2540	-	hypothetical protein
2510	 55.35	+1	2722598..2723233	-	211	15642536	-	VC2541	-	aromatic acid decarboxylase
2511	 50.59	0	2723240..2724595	-	451	15642537	-	VC2542	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
2512	 43.94	0	2724584..2724847	+	87	15642538	-	VC2543	-	hypothetical protein
2513	 48.76	0	2724901..2725911	+	336	15642539	-	VC2544	-	fructose-1,6-bisphosphatase
2514	 49.34	0	2726081..2726611	+	176	15642540	-	VC2545	-	inorganic pyrophosphatase
2515	 48.28	0	2726671..2727018	-	115	15642541	-	VC2546	-	hypothetical protein
2516	 50.86	0	2727029..2730793	-	1254	15642542	-	VC2547	-	hypothetical protein
2517	 49.51	0	2730790..2732538	-	582	15642543	-	VC2548	-	hypothetical protein
2518	 53.83	+1	2732684..2733322	+	212	15642544	-	VC2549	-	methionine sulfoxide reductase A
2519	 49.46	0	2733404..2733955	+	183	15642545	-	VC2550	-	hypothetical protein
2520	 50.00	0	2734173..2734478	+	101	15642546	-	VC2551	-	hypothetical protein
2521	 48.15	0	2734527..2735255	+	242	15642547	-	VC2552	-	hypothetical protein
2522	 50.77	0	2735337..2736053	+	238	15642548	-	VC2553	-	ABC transporter, ATP-binding protein, authentic frameshift
2523	 51.50	0	2736044..2737309	+	421	15642549	-	VC2554	-	hypothetical protein
2524	 47.89	0	2737362..2737883	+	173	15642550	-	VC2555	-	hypothetical protein
2525	 50.27	0	2738194..2738559	+	121	15642551	-	VC2556	-	hypothetical protein
2526	 50.34	0	2738505..2739092	+	195	15642552	-	VC2557	-	hypothetical protein
2527	 53.40	+1	2739165..2739812	-	215	15642553	-	VC2558	-	adenylylsulfate kinase
2528	 48.50	0	2739823..2741253	-	476	15642554	cysN	VC2559	-	sulfate adenylyltransferase subunit 1
2529	 49.50	0	2741271..2742179	-	302	161581985	-	VC2560	-	sulfate adenylyltransferase subunit 2
2530	 54.78	+1	2742282..2743181	-	299	15642556	-	VC2561	-	uroporphyrin-III C-methyltransferase
2531	 48.97	0	2743382..2745427	+	681	15642557	cpdB	VC2562	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
2532	 50.53	0	2745547..2746116	+	189	15642558	-	VC2563	-	hypothetical protein
2533	 50.54	0	2746119..2747501	-	460	15642559	-	VC2564	-	ATP-dependent RNA helicase DbpA
2534	 49.11	0	2747727..2748176	+	149	15642560	-	VC2565	-	elaA protein
2535	 51.60	0	2748179..2748988	+	269	15642561	-	VC2566	-	hypothetical protein
2536	 50.09	0	2748938..2749510	-	190	15642562	-	VC2567	-	hypothetical protein
2537	 50.48	0	2749721..2750350	+	209	15642563	-	VC2568	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2538	 45.34	0	2750486..2750968	+	160	15642564	-	VC2569	-	hypothetical protein
2539	 49.10	0	2751112..2751498	-	128	15642565	rplQ	VC2570	-	50S ribosomal protein L17
2540	 47.03	0	2751525..2752517	-	330	15642566	-	VC2571	-	DNA-directed RNA polymerase subunit alpha
2541	 46.54	0	2752542..2753162	-	206	15642567	rpsD	VC2572	-	30S ribosomal protein S4
2542	 50.26	0	2753190..2753579	-	129	15642568	-	VC2573	-	30S ribosomal protein S11
2543	 47.34	0	2753599..2753955	-	118	15642569	rpsM	VC2574	-	30S ribosomal protein S13
2544	 45.61	0	2754105..2754218	-	37	15642570	rpmJ	VC2575	-	50S ribosomal protein L36
2545	 45.62	0	2754257..2755591	-	444	15642571	secY	VC2576	-	preprotein translocase subunit SecY
2546	 46.90	0	2755612..2756046	-	144	15642572	rplO	VC2577	-	50S ribosomal protein L15
2547	 41.24	-1	2756052..2756228	-	58	15642573	rpmD	VC2578	-	50S ribosomal protein L30
2548	 46.23	0	2756235..2756738	-	167	15642574	rpsE	VC2579	-	30S ribosomal protein S5
2549	 50.00	0	2756753..2757106	-	117	15642575	rplR	VC2580	-	50S ribosomal protein L18
2550	 47.75	0	2757116..2757649	-	177	15642576	rplF	VC2581	-	50S ribosomal protein L6
2551	 46.06	0	2757664..2758056	-	130	15642577	rpsH	VC2582	-	30S ribosomal protein S8
2552	 46.73	0	2758086..2758391	-	101	15642578	rpsN	VC2583	-	30S ribosomal protein S14
2553	 47.78	0	2758409..2758948	-	179	15642579	rplE	VC2584	-	50S ribosomal protein L5
2554	 41.19	-1	2758973..2759290	-	105	15642580	rplX	VC2585	-	50S ribosomal protein L24
2555	 47.31	0	2759303..2759674	-	123	15642581	rplN	VC2586	-	50S ribosomal protein L14
2556	 43.92	0	2759837..2760091	-	84	15642582	rpsQ	VC2587	-	30S ribosomal protein S17
2557	 46.35	0	2760091..2760282	-	63	15642583	rpmC	VC2588	-	50S ribosomal protein L29
2558	 47.69	0	2760282..2760692	-	136	15642584	rplP	VC2589	-	50S ribosomal protein L16
2559	 50.00	0	2760704..2761405	-	233	15642585	rpsC	VC2590	-	30S ribosomal protein S3
2560	 47.15	0	2761425..2761757	-	110	15642586	rplV	VC2591	-	50S ribosomal protein L22
2561	 45.16	0	2761768..2762046	-	92	15642587	rpsS	VC2592	-	30S ribosomal protein S19
2562	 51.39	0	2762067..2762891	-	274	15642588	rplB	VC2593	-	50S ribosomal protein L2
2563	 43.56	0	2762908..2763210	-	100	15642589	rplW	VC2594	-	50S ribosomal protein L23
2564	 46.60	0	2763207..2763809	-	200	15642590	rplD	VC2595	-	50S ribosomal protein L4
2565	 47.14	0	2763826..2764455	-	209	15642591	rplC	VC2596	-	50S ribosomal protein L3
2566	 46.79	0	2764470..2764781	-	103	15642592	rpsJ	VC2597	-	30S ribosomal protein S10
2567	 52.42	+1	2765252..2765995	-	247	15642593	-	VC2598	-	23S rRNA (guanosine-2'-O-)-methyltransferase
2568	 50.61	0	2766003..2768468	-	821	15642594	-	VC2599	-	ribonuclease R
2569	 47.83	0	2768612..2770480	+	622	15642595	-	VC2600	-	hypothetical protein
2570	 50.47	0	2770507..2771142	-	211	15642596	-	VC2601	-	sodium-type flagellar protein MotX
47.43	MEAN

4.26	STD DEV
