IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

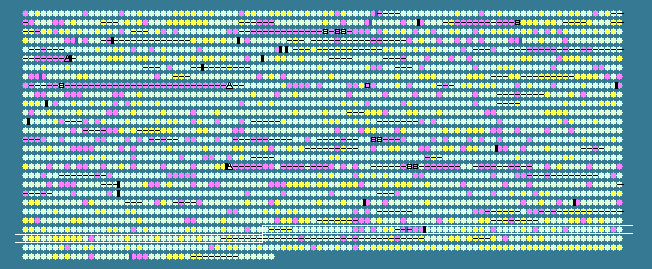

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2441	 48.28	0	2652277..2652537	-	86	15642467	-	VC2471	-	hypothetical protein
2442	 51.03	0	2652690..2653661	+	323	15642468	-	VC2472	-	hypothetical protein
2443	 44.02	0	2654268..2654501	+	77	15642469	-	VC2473	-	hypothetical protein
2444	 53.17	+1	2654602..2655831	-	409	15642470	-	VC2474	-	2-octaprenyl-6-methoxyphenol hydroxylase
2445	 53.10	+1	2655843..2657051	-	402	15642471	-	VC2475	-	2-octaprenyl-6-methoxyphenyl hydroxylase
2446	 47.89	0	2657072..2657545	-	157	15642472	-	VC2476	-	hypothetical protein
2447	 46.88	0	2657551..2657646	-	31	15642473	-	VC2477	-	hypothetical protein
2448	 45.31	0	2657888..2658196	+	102	15642474	-	VC2478	-	hypothetical protein
2449	 50.77	0	2658396..2658980	+	194	15642475	-	VC2479	-	hypothetical protein
2450	 49.47	0	2659090..2659746	+	218	15642476	-	VC2480	-	ribose-5-phosphate isomerase A
2451	 49.19	0	2660000..2661229	+	409	15642477	-	VC2481	-	D-3-phosphoglycerate dehydrogenase
2452	 49.90	0	2661461..2661955	-	164	15642478	-	VC2482	-	acetolactate synthase 3 regulatory subunit
2453	 47.91	0	2661957..2663678	-	573	15642479	-	VC2483	-	acetolactate synthase 3 catalytic subunit
2454	 46.35	0	2664163..2665968	-	601	15642480	-	VC2484	-	long-chain-fatty-acid--CoA ligase, putative
2455	 47.72	0	2666145..2667110	-	321	15642481	leuO	VC2485	-	leucine transcriptional activator
2456	 40.20	-1	2667128..2667229	-	33	15642482	-	VC2486	-	hypothetical protein
2457	 43.16	-1	2667410..2668498	-	362	15642483	-	VC2487	-	hypothetical protein
2458	 47.67	0	2668495..2669031	-	178	15642484	-	VC2488	-	hypothetical protein
2459	 42.61	-1	2669158..2669793	-	211	15642485	-	VC2489	-	TetR family transcriptional regulator
2460	 48.03	0	2670176..2671726	+	516	15642486	-	VC2490	-	2-isopropylmalate synthase
2461	 51.19	0	2671838..2672929	+	363	15642487	-	VC2491	-	3-isopropylmalate dehydrogenase
2462	 51.07	0	2672987..2674390	+	467	15642488	-	VC2492	-	isopropylmalate isomerase large subunit
2463	 47.10	0	2674406..2675008	+	200	15642489	leuD	VC2493	-	isopropylmalate isomerase small subunit
2464	 42.55	-1	2675109..2675900	+	263	15642490	-	VC2494	-	hypothetical protein
2465	 35.00	-2	2681453..2681572	-	39	15642491	-	VC2495	-	hypothetical protein
2466	 37.63	-2	2681585..2681677	-	30	15642492	-	VC2496	-	hypothetical protein
2467	 43.94	0	2681920..2683173	-	417	15642493	-	VC2497	-	hypothetical protein
2468	 49.28	0	2683604..2684086	+	160	15642494	-	VC2498	-	hypothetical protein
2469	 47.06	0	2684192..2685262	-	356	15642495	-	VC2499	-	hypothetical protein
2470	 46.50	0	2685266..2686366	-	366	15642496	-	VC2500	-	hypothetical protein
2471	 50.60	0	2686560..2688071	+	503	15642497	-	VC2501	-	leucyl aminopeptidase
2472	 50.44	0	2688155..2688604	+	149	15642498	-	VC2502	-	DNA polymerase III subunit chi
2473	 50.77	0	2688698..2691559	+	953	15642499	valS	VC2503	-	valyl-tRNA synthetase
2474	 51.02	0	2691637..2692614	-	325	15642500	-	VC2504	-	D-lactate dehydrogenase
2475	 49.73	0	2692654..2693391	-	245	15642501	-	VC2505	-	ribosomal large subunit pseudouridine synthase A
2476	 51.82	+1	2693488..2696397	-	969	15642502	-	VC2506	-	ATP-dependent helicase HepA
2477	 51.13	0	2696819..2698195	+	458	15642503	-	VC2507	-	hypothetical protein
2478	 49.35	0	2698345..2699349	+	334	15642504	-	VC2508	-	ornithine carbamoyltransferase
2479	 43.75	0	2699447..2699542	+	31	15642505	-	VC2509	-	hypothetical protein
2480	 49.75	0	2699536..2700528	+	330	15642506	pyrB	VC2510	-	aspartate carbamoyltransferase catalytic subunit
2481	 47.65	0	2700540..2701007	+	155	15642507	-	VC2511	-	aspartate carbamoyltransferase regulatory subunit
2482	 50.51	0	2701112..2701501	+	129	15642508	-	VC2512	-	hypothetical protein
2483	 49.75	0	2701582..2702367	-	261	15642509	-	VC2513	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
2484	 51.75	+1	2702389..2703648	-	419	15642510	-	VC2514	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2485	 44.31	0	2703656..2703910	-	84	15642511	-	VC2515	-	BolA/YrbA family protein
2486	 43.03	-1	2703903..2704232	-	109	15642512	-	VC2516	-	anti-sigma B factor antagonist, putative
2487	 46.88	0	2704229..2704870	-	213	15642513	-	VC2517	-	hypothetical protein
2488	 46.54	0	2704871..2705362	-	163	15642514	-	VC2518	-	hypothetical protein
2489	 53.93	+1	2705365..2706141	-	258	15642515	-	VC2519	-	hypothetical protein
2490	 50.25	0	2706146..2706949	-	267	15642516	-	VC2520	-	ABC transporter, ATP-binding protein
2491	 42.19	-1	2707077..2707268	-	63	15642517	-	VC2521	-	hypothetical protein
2492	 49.55	0	2707506..2708504	+	332	15642518	-	VC2522	-	hypothetical protein
2493	 49.64	0	2708554..2709534	+	326	15642519	-	VC2523	-	hypothetical protein
2494	 48.03	0	2709534..2710091	+	185	15642520	-	VC2524	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
2495	 45.04	0	2710088..2710651	+	187	15642521	-	VC2525	-	hypothetical protein
2496	 45.00	0	2710587..2711126	+	179	15642522	-	VC2527	-	hypothetical protein
2497	 51.24	0	2711129..2711854	+	241	15642523	-	VC2528	-	ABC transporter, ATP-binding protein
2498	 49.80	0	2711910..2713373	+	487	15642524	-	VC2529	-	RNA polymerase factor sigma-54
2499	 40.97	-1	2713398..2713685	+	95	15642525	-	VC2530	-	sigma-54 modulation protein, putative
2500	 46.98	0	2713688..2714134	+	148	15642526	-	VC2531	-	PTS system, nitrogen regulatory IIA component
2501	 50.64	0	2714147..2715007	+	286	15642527	-	VC2532	-	hypothetical protein
2502	 51.61	0	2715016..2715294	+	92	15642528	-	VC2533	-	phosphocarrier protein NPr
2503	 53.30	+1	2715455..2716816	+	453	15642529	-	VC2534	-	magnesium transporter
2504	 50.74	0	2716888..2718231	-	447	15642530	-	VC2535	-	peptidase PmbA
2505	 50.00	0	2718330..2718911	+	193	15642531	-	VC2536	-	hypothetical protein
2506	 51.84	+1	2719014..2719748	-	244	15642532	-	VC2537	-	thiamine ABC transporter, ATP-binding protein, putative
2507	 52.73	+1	2719742..2721334	-	530	15642533	thiP	VC2538	-	thiamine transporter membrane protein
2508	 51.16	0	2721344..2722336	-	330	15642534	tbpA	VC2539	-	thiamine transporter substrate binding subunit
2509	 52.93	+1	2722206..2722598	-	130	15642535	-	VC2540	-	hypothetical protein
2510	 55.35	+1	2722598..2723233	-	211	15642536	-	VC2541	-	aromatic acid decarboxylase
2511	 50.59	0	2723240..2724595	-	451	15642537	-	VC2542	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
2512	 43.94	0	2724584..2724847	+	87	15642538	-	VC2543	-	hypothetical protein
2513	 48.76	0	2724901..2725911	+	336	15642539	-	VC2544	-	fructose-1,6-bisphosphatase
2514	 49.34	0	2726081..2726611	+	176	15642540	-	VC2545	-	inorganic pyrophosphatase
2515	 48.28	0	2726671..2727018	-	115	15642541	-	VC2546	-	hypothetical protein
2516	 50.86	0	2727029..2730793	-	1254	15642542	-	VC2547	-	hypothetical protein
2517	 49.51	0	2730790..2732538	-	582	15642543	-	VC2548	-	hypothetical protein
2518	 53.83	+1	2732684..2733322	+	212	15642544	-	VC2549	-	methionine sulfoxide reductase A
2519	 49.46	0	2733404..2733955	+	183	15642545	-	VC2550	-	hypothetical protein
2520	 50.00	0	2734173..2734478	+	101	15642546	-	VC2551	-	hypothetical protein
2521	 48.15	0	2734527..2735255	+	242	15642547	-	VC2552	-	hypothetical protein
2522	 50.77	0	2735337..2736053	+	238	15642548	-	VC2553	-	ABC transporter, ATP-binding protein, authentic frameshift
2523	 51.50	0	2736044..2737309	+	421	15642549	-	VC2554	-	hypothetical protein
2524	 47.89	0	2737362..2737883	+	173	15642550	-	VC2555	-	hypothetical protein
2525	 50.27	0	2738194..2738559	+	121	15642551	-	VC2556	-	hypothetical protein
2526	 50.34	0	2738505..2739092	+	195	15642552	-	VC2557	-	hypothetical protein
2527	 53.40	+1	2739165..2739812	-	215	15642553	-	VC2558	-	adenylylsulfate kinase
2528	 48.50	0	2739823..2741253	-	476	15642554	cysN	VC2559	-	sulfate adenylyltransferase subunit 1
2529	 49.50	0	2741271..2742179	-	302	161581985	-	VC2560	-	sulfate adenylyltransferase subunit 2
2530	 54.78	+1	2742282..2743181	-	299	15642556	-	VC2561	-	uroporphyrin-III C-methyltransferase
2531	 48.97	0	2743382..2745427	+	681	15642557	cpdB	VC2562	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
2532	 50.53	0	2745547..2746116	+	189	15642558	-	VC2563	-	hypothetical protein
2533	 50.54	0	2746119..2747501	-	460	15642559	-	VC2564	-	ATP-dependent RNA helicase DbpA
2534	 49.11	0	2747727..2748176	+	149	15642560	-	VC2565	-	elaA protein
2535	 51.60	0	2748179..2748988	+	269	15642561	-	VC2566	-	hypothetical protein
2536	 50.09	0	2748938..2749510	-	190	15642562	-	VC2567	-	hypothetical protein
2537	 50.48	0	2749721..2750350	+	209	15642563	-	VC2568	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2538	 45.34	0	2750486..2750968	+	160	15642564	-	VC2569	-	hypothetical protein
2539	 49.10	0	2751112..2751498	-	128	15642565	rplQ	VC2570	-	50S ribosomal protein L17
2540	 47.03	0	2751525..2752517	-	330	15642566	-	VC2571	-	DNA-directed RNA polymerase subunit alpha
47.43	MEAN

4.26	STD DEV
