IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

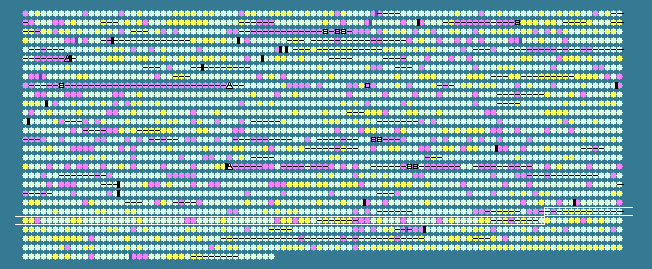

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2288	 49.74	0	2464704..2466074	+	456	15642314	-	VC2316	-	N-acetylglutamate synthase
2289	 33.33	-2	2466048..2466212	-	54	15642315	-	VC2317	-	hypothetical protein
2290	 44.62	0	2466301..2466486	+	61	15642316	-	VC2318	-	hypothetical protein
2291	 52.52	+1	2466516..2468636	-	706	15642317	-	VC2319	-	exodeoxyribonuclease V, 67 kDa subunit
2292	 54.04	+1	2468633..2472259	-	1208	15642318	-	VC2320	-	exodeoxyribonuclease V, 135 kDa subunit
2293	 50.98	0	2472416..2472517	-	33	15642319	-	VC2321	-	hypothetical protein
2294	 52.74	+1	2472524..2475970	-	1148	15642320	recC	VC2322	-	exonuclease V subunit gamma
2295	 53.56	+1	2476209..2477177	-	322	15642321	-	VC2323	-	hypothetical protein
2296	 49.62	0	2477288..2478202	+	304	15642322	-	VC2324	-	LysR family transcriptional regulator
2297	 49.55	0	2478157..2478267	+	36	15642323	-	VC2325	-	hypothetical protein
2298	 50.49	0	2478318..2478626	+	102	15642324	-	VC2326	-	hypothetical protein
2299	 44.44	0	2478627..2478725	-	32	15642325	-	VC2327	-	hypothetical protein
2300	 45.45	0	2478920..2479051	+	43	15642326	-	VC2328	-	hypothetical protein
2301	 53.39	+1	2479033..2480064	+	343	15642327	-	VC2329	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
2302	 51.65	0	2480146..2481390	-	414	15642328	-	VC2330	-	hypothetical protein
2303	 34.26	-2	2481353..2481460	-	35	15642329	-	VC2331	-	hypothetical protein
2304	 49.18	0	2481493..2482584	-	363	15642330	-	VC2332	-	acetyltransferase
2305	 49.10	0	2482789..2484240	+	483	15642331	-	VC2333	-	ribosomal protein S6 modification protein-related protein
2306	 48.17	0	2484430..2485413	+	327	15642332	-	VC2334	-	hypothetical protein
2307	 49.66	0	2485397..2485984	+	195	15642333	-	VC2335	-	hypothetical protein
2308	 50.14	0	2485981..2486325	-	114	15642334	-	VC2336	-	hypothetical protein
2309	 51.69	0	2486484..2487491	+	335	15642335	-	VC2337	-	LacI family transcription regulator
2310	 51.27	0	2490959..2492101	+	380	15642336	-	VC2339	-	chromate resistance protein-related protein
2311	 45.89	0	2492237..2493391	+	384	15642337	-	VC2340	-	hypothetical protein
2312	 46.75	0	2493591..2495282	+	563	15642338	-	VC2341	-	long-chain-fatty-acid--CoA ligase, putative
2313	 47.13	0	2495396..2497483	-	695	15642339	-	VC2342	-	elongation factor G
2314	 49.28	0	2497754..2499133	-	459	15642340	-	VC2343	-	DNA repair protein RadA
2315	 47.31	0	2499261..2501600	+	779	15642341	-	VC2344	-	hypothetical protein
2316	 49.44	0	2501805..2502791	-	328	15642342	serB	VC2345	-	phosphoserine phosphatase
2317	 44.98	0	2502825..2503511	+	228	15642343	-	VC2346	-	smp protein, putative
2318	 48.76	0	2503591..2504316	-	241	15642344	deoD	VC2347	-	purine nucleoside phosphorylase
2319	 50.53	0	2504399..2505619	-	406	15642345	-	VC2348	-	phosphopentomutase
2320	 52.41	+1	2505637..2506983	-	448	161581990	deoA	VC2349	-	thymidine phosphorylase
2321	 48.46	0	2507071..2507850	-	259	15642347	-	VC2350	-	deoxyribose-phosphate aldolase
2322	 49.21	0	2507952..2508140	+	62	15642348	-	VC2351	-	hypothetical protein
2323	 48.77	0	2508452..2509708	-	418	15642349	-	VC2352	-	NupC family protein
2324	 50.35	0	2509895..2510746	-	283	15642350	-	VC2353	-	hypothetical protein
2325	 48.61	0	2510691..2510834	-	47	15642351	-	VC2354	-	hypothetical protein
2326	 45.35	0	2510861..2511634	-	257	15642352	-	VC2355	-	hypothetical protein
2327	 48.71	0	2511798..2513228	-	476	15642353	-	VC2356	-	sodium/alanine symporter
2328	 41.88	-1	2513867..2514100	+	77	15642354	-	VC2357	-	hypothetical protein
2329	 42.68	-1	2514244..2514885	-	213	15642355	-	VC2358	-	hypothetical protein
2330	 48.75	0	2514885..2515565	-	226	15642356	-	VC2359	-	uracil-DNA glycosylase
2331	 47.85	0	2515934..2516794	-	286	15642357	-	VC2360	-	endonuclease IV
2332	 47.88	0	2517140..2517517	+	125	15642358	-	VC2361	-	autonomous glycyl radical cofactor GrcA
2333	 49.73	0	2517597..2518877	-	426	15642359	-	VC2362	-	threonine synthase
2334	 52.04	+1	2518874..2519830	-	318	15642360	-	VC2363	-	homoserine kinase
2335	 50.08	0	2519851..2522328	-	825	15642361	thrA	VC2364	-	bifunctional aspartokinase I/homeserine dehydrogenase I
2336	 47.20	0	2522858..2523340	+	160	15642362	-	VC2365	-	hypothetical protein
2337	 44.58	0	2523337..2523825	-	162	15642363	-	VC2366	-	ribonuclease activity regulator protein RraA
2338	 44.01	0	2523852..2524235	-	127	15642364	-	VC2367	-	hypothetical protein
2339	 47.56	0	2524550..2525266	+	238	15642365	-	VC2368	-	two-component response regulator
2340	 46.90	0	2525325..2527682	-	785	15642366	-	VC2369	-	aerobic respiration control sensor protein ArcB
2341	 49.43	0	2527789..2529528	-	579	15642367	-	VC2370	-	sensory box/GGDEF family protein
2342	 50.05	0	2529596..2530546	-	316	15642368	-	VC2371	-	hypothetical protein
2343	 31.67	-2	2530568..2530687	-	39	15642369	-	VC2372	-	hypothetical protein
2344	 51.99	+1	2531065..2535657	+	1530	15642370	-	VC2373	-	glutamate synthase, large subunit
2345	 52.38	+1	2535658..2537127	+	489	15642371	gltD	VC2374	-	glutamate synthase subunit beta
2346	 43.24	0	2537161..2537271	+	36	15642372	-	VC2375	-	hypothetical protein
2347	 53.00	+1	2537655..2542118	+	1487	15642373	gltB	VC2376	-	glutamate synthase subunit alpha
2348	 52.61	+1	2542134..2543549	+	471	15642374	gltD	VC2377	-	glutamate synthase subunit beta
2349	 50.57	0	2543736..2544170	+	144	15642375	-	VC2378	-	hypothetical protein
2350	 49.86	0	2544258..2544953	+	231	15642376	-	VC2379	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
2351	 52.10	+1	2544966..2545919	+	317	15642377	-	VC2380	-	adenosylcobinamide-phosphate synthase
2352	 50.78	0	2545920..2546750	+	276	15642378	-	VC2381	-	hypothetical protein
2353	 52.08	+1	2546734..2547453	+	239	15642379	-	VC2382	-	hypothetical protein
2354	 51.57	0	2547605..2548465	+	286	15642380	-	VC2383	-	LysR family transcriptional regulator
2355	 51.65	0	2548395..2549180	-	261	15642381	-	VC2384	-	hypothetical protein
2356	 31.89	-2	2549642..2550613	+	323	15642382	-	VC2385	-	RNA-directed DNA polymerase
2357	 30.68	-2	2550614..2552236	+	540	15642383	-	VC2386	-	hypothetical protein
2358	 30.10	-2	2552249..2552866	+	205	15642384	-	VC2387	-	hypothetical protein
2359	 48.24	0	2553477..2553959	+	160	15642385	-	VC2388	-	hypothetical protein
2360	 51.81	+1	2554049..2557279	-	1076	15642386	carB	VC2389	-	carbamoyl phosphate synthase large subunit
2361	 50.35	0	2557296..2558435	-	379	15642387	-	VC2390	-	carbamoyl phosphate synthase small subunit
2362	 50.62	0	2558918..2559727	-	269	15642388	-	VC2391	-	dihydrodipicolinate reductase
2363	 49.12	0	2559842..2560240	-	132	15642389	-	VC2392	-	mutator MutT protein
2364	 43.45	0	2560226..2560393	+	55	15642390	-	VC2393	-	hypothetical protein
2365	 48.97	0	2560390..2563101	-	903	15642391	secA	VC2394	-	preprotein translocase subunit SecA
2366	 48.73	0	2563455..2563928	+	157	15642392	-	VC2395	-	hypothetical protein
2367	 47.17	0	2564032..2564949	-	305	15642393	lpxC	VC2396	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
2368	 49.29	0	2565047..2566243	-	398	15642394	-	VC2397	-	cell division protein FtsZ
2369	 48.61	0	2566274..2567536	-	420	15642395	ftsA	VC2398	-	cell division protein FtsA
2370	 41.76	-1	2567529..2568311	-	260	15642396	-	VC2399	-	cell division protein FtsQ
2371	 50.69	0	2568493..2570013	-	506	15642397	murC	VC2400	-	UDP-N-acetylmuramate--L-alanine ligase
2372	 52.86	+1	2569967..2571031	-	354	15642398	murG	VC2401	-	N-acetylglucosaminyl transferase
2373	 48.29	0	2571015..2572211	-	398	15642399	-	VC2402	-	cell division protein FtsW
2374	 50.41	0	2572228..2573562	-	444	161581989	murD	VC2403	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
2375	 49.77	0	2573574..2574656	-	360	15642401	mraY	VC2404	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
2376	 50.66	0	2574653..2576014	-	453	15642402	-	VC2405	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
2377	 52.76	+1	2576011..2577549	-	512	15642403	murE	VC2406	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
2378	 51.46	0	2577515..2579257	-	580	15642404	-	VC2407	-	penicillin-binding protein 3
2379	 48.60	0	2579254..2579574	-	106	15642405	-	VC2408	-	cell division protein FtsL
2380	 50.26	0	2579584..2580534	-	316	15642406	mraW	VC2409	-	S-adenosyl-methyltransferase MraW
2381	 50.98	0	2581102..2581203	-	33	15642407	-	VC2410	-	hypothetical protein
2382	 38.52	-2	2581198..2581332	+	44	15642408	-	VC2411	-	hypothetical protein
2383	 49.44	0	2581292..2582719	-	475	15642409	-	VC2412	-	dihydrolipoamide dehydrogenase
2384	 52.20	+1	2582987..2584894	-	635	15642410	aceF	VC2413	-	dihydrolipoamide acetyltransferase
2385	 50.66	0	2584895..2587555	-	886	15642411	aceE	VC2414	-	pyruvate dehydrogenase subunit E1
2386	 49.81	0	2587605..2588375	-	256	15642412	pdhR	VC2415	-	transcriptional regulator PdhR
2387	 46.09	0	2588859..2590763	+	634	15642413	-	VC2416	-	2`,3`-cyclic-nucleotide 2`-phosphodiesterase, putative
47.43	MEAN

4.26	STD DEV
