IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

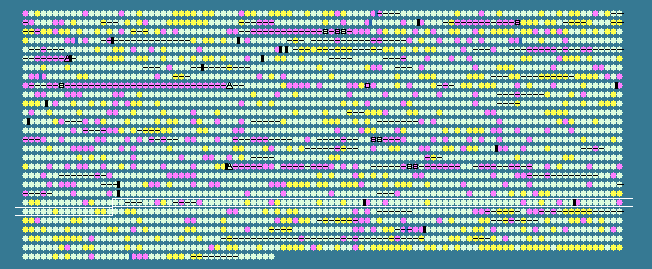

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2116	 49.52	0	2299084..2300220	-	378	15642143	-	VC2144	-	flagellin
2117	 48.84	0	2300344..2301252	-	302	15642144	-	VC2145	-	tyrA protein
2118	 48.39	0	2301318..2301782	-	154	15642145	-	VC2146	-	hypothetical protein
2119	 45.10	0	2301926..2302282	+	118	15642146	-	VC2147	-	hypothetical protein
2120	 49.49	0	2302258..2302356	-	32	15642147	-	VC2148	-	hypothetical protein
2121	 49.31	0	2302349..2302636	-	95	15642148	-	VC2149	-	hypothetical protein
2122	 45.45	0	2302839..2303234	+	131	15642149	-	VC2150	-	hypothetical protein
2123	 41.67	-1	2303200..2303295	-	31	15642150	-	VC2151	-	hypothetical protein
2124	 51.59	0	2303265..2304398	+	377	15642151	-	VC2152	-	succinyl-diaminopimelate desuccinylase
2125	 47.20	0	2304326..2305075	+	249	15642152	-	VC2153	-	D,D-carboxypeptidase-related protein
2126	 45.78	0	2305065..2305289	+	74	15642153	-	VC2154	-	hypothetical protein
2127	 42.71	-1	2305273..2305368	-	31	15642154	-	VC2155	-	hypothetical protein
2128	 49.41	0	2305382..2306401	-	339	15642155	-	VC2156	-	lipoprotein
2129	 48.58	0	2306459..2307337	-	292	15642156	dapA	VC2157	-	dihydrodipicolinate synthase
2130	 42.86	-1	2307501..2307605	+	34	15642157	-	VC2158	-	hypothetical protein
2131	 45.86	0	2307615..2308157	+	180	15642158	-	VC2159	-	glycine cleavage system transcriptional repressor, putative
2132	 45.51	0	2308172..2308639	+	155	15642159	bcp	VC2160	-	thioredoxin-dependent thiol peroxidase
2133	 48.24	0	2308741..2310612	-	623	15642160	-	VC2161	-	methyl-accepting chemotaxis protein
2134	 47.70	0	2310803..2311867	-	354	15642161	-	VC2162	-	permease PerM, putative
2135	 48.52	0	2311860..2312096	-	78	15642162	-	VC2163	-	hypothetical protein
2136	 50.03	0	2312280..2313734	+	484	15642163	-	VC2164	-	hypothetical protein
2137	 47.58	0	2313757..2314107	+	116	15642164	-	VC2165	-	arsenate reductase
2138	 51.87	+1	2314104..2314664	+	186	15642165	-	VC2166	-	Trp repressor-binding protein
2139	 48.86	0	2314667..2315104	+	145	15642166	-	VC2167	-	hypothetical protein
2140	 50.04	0	2315311..2316459	-	382	15642167	-	VC2168	-	hypothetical protein
2141	 45.05	0	2316513..2316623	-	36	15642168	-	VC2169	-	hypothetical protein
2142	 39.64	-1	2316596..2316706	-	36	15642169	-	VC2170	-	hypothetical protein
2143	 52.39	+1	2316680..2317933	+	417	15642170	-	VC2171	-	uracil permease
2144	 47.20	0	2318004..2318486	-	160	15642171	-	VC2172	-	hypothetical protein
2145	 49.55	0	2318504..2318614	-	36	15642172	-	VC2173	-	hypothetical protein
2146	 48.19	0	2318621..2320282	-	553	15642173	ushA	VC2174	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
2147	 50.47	0	2320824..2321675	-	283	15642174	-	VC2175	-	2-dehydro-3-deoxyphosphooctonate aldolase
2148	 47.48	0	2321695..2322507	-	270	15642175	-	VC2176	-	hypothetical protein
2149	 46.09	0	2322523..2322906	-	127	15642176	-	VC2177	-	hypothetical protein
2150	 51.92	+1	2322906..2323766	-	286	15642177	-	VC2178	-	hemK protein
2151	 50.32	0	2323770..2324858	-	362	15642178	prfA	VC2179	-	peptide chain release factor 1
2152	 50.08	0	2324888..2326147	-	419	15642179	hemA	VC2180	-	glutamyl-tRNA reductase
2153	 46.23	0	2326288..2326923	+	211	15642180	lolB	VC2181	-	outer membrane lipoprotein LolB
2154	 51.01	0	2326905..2327792	+	295	15642181	-	VC2182	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
2155	 49.84	0	2327823..2328767	+	314	15642182	-	VC2183	-	ribose-phosphate pyrophosphokinase
2156	 48.22	0	2328936..2329526	+	196	15642183	-	VC2184	-	peptidyl-tRNA hydrolase
2157	 48.63	0	2329537..2330628	+	363	161581994	-	VC2185	-	translation-associated GTPase
2158	 43.18	0	2332845..2332976	+	43	15642185	-	VC2186	-	hypothetical protein
2159	 48.32	0	2332968..2334101	-	377	15642186	-	VC2187	-	flagellin
2160	 48.77	0	2334656..2335795	-	379	15642187	-	VC2188	-	flagellin
2161	 41.11	-1	2335944..2336123	-	59	15642188	-	VC2189	-	hypothetical protein
2162	 47.40	0	2336203..2337396	-	397	15642189	flgL	VC2190	-	flagellar hook-associated protein FlgL
2163	 47.95	0	2337409..2339283	-	624	15642190	flgK	VC2191	-	flagellar hook-associated protein FlgK
2164	 48.78	0	2339463..2340401	-	312	15642191	flgJ	VC2192	-	peptidoglycan hydrolase
2165	 50.46	0	2340412..2341497	-	361	15642192	flgI	VC2193	-	flagellar basal body P-ring protein
2166	 49.11	0	2341588..2342373	-	261	15642193	flgH	VC2194	-	flagellar basal body L-ring protein
2167	 48.92	0	2342388..2343176	-	262	15642194	flgG	VC2195	-	flagellar basal body rod protein FlgG
2168	 51.60	0	2343196..2343945	-	249	15642195	flgF	VC2196	-	flagellar basal body rod protein FlgF
2169	 47.43	0	2344128..2345432	-	434	15642196	flgE	VC2197	-	flagellar hook protein FlgE
2170	 48.16	0	2345461..2346168	-	235	15642197	flgD	VC2198	-	flagellar basal body rod modification protein
2171	 46.28	0	2346186..2346602	-	138	15642198	flgC	VC2199	-	flagellar basal body rod protein FlgC
2172	 48.99	0	2346607..2347002	-	131	15642199	flgB	VC2200	-	flagellar basal body rod protein FlgB
2173	 46.38	0	2347222..2348049	-	275	15642200	-	VC2201	-	chemotaxis protein methyltransferase CheR
2174	 44.01	0	2348060..2348986	-	308	15642201	-	VC2202	-	chemotaxis protein CheV
2175	 45.70	0	2349043..2349810	+	255	15642202	flgA	VC2203	-	flagellar basal body P-ring biosynthesis protein FlgA
2176	 49.07	0	2349941..2350264	+	107	15642203	-	VC2204	-	negative regulator of flagellin synthesis FlgM, putative
2177	 44.91	0	2350362..2350793	+	143	15642204	-	VC2205	-	hypothetical protein
2178	 50.00	0	2350903..2351340	-	145	15642205	-	VC2206	-	hypothetical protein
2179	 47.98	0	2351348..2352016	-	222	15642206	-	VC2207	-	hypothetical protein
2180	 47.62	0	2352144..2353277	+	377	15642207	-	VC2208	-	hypothetical protein
2181	 49.58	0	2353407..2360647	-	2413	15642774	vibF	VC2209	-	nonribosomal peptide synthetase VibF
2182	 45.83	0	2360905..2361720	-	271	15642208	-	VC2210	-	vibriobactin utilization protein ViuB
2183	 46.27	0	2362024..2364087	-	687	15642209	-	VC2211	-	ferric vibriobactin receptor
2184	 43.35	0	2364507..2365205	+	232	15642210	-	VC2212	-	hypothetical protein
2185	 47.72	0	2365293..2366258	-	321	15642211	-	VC2213	-	outer membrane protein OmpA
2186	 48.50	0	2366554..2368083	-	509	15642212	gltX	VC2214	-	glutamyl-tRNA synthetase
2187	 51.02	0	2368152..2370899	+	915	15642213	-	VC2215	-	cation transporter E1-E2 family ATPase
2188	 46.80	0	2370896..2371348	+	150	15642214	-	VC2216	-	hypothetical protein
2189	 49.55	0	2371485..2374136	-	883	15642215	-	VC2217	-	beta-N-acetylhexosaminidase
2190	 42.11	-1	2374169..2374282	+	37	15642216	-	VC2218	-	hypothetical protein
2191	 45.30	0	2374364..2374480	-	38	15642217	-	VC2219	-	hypothetical protein
2192	 47.27	0	2374553..2375449	+	298	15642218	-	VC2220	-	hypothetical protein
2193	 43.26	0	2375930..2376070	+	46	15642219	-	VC2221	-	hypothetical protein
2194	 49.57	0	2376252..2376830	+	192	15642220	-	VC2222	-	hypothetical protein
2195	 47.41	0	2376860..2377882	+	340	15642221	-	VC2223	-	pseudouridine synthase family 1 protein
2196	 45.16	0	2377980..2379518	-	512	15642222	-	VC2224	-	GGDEF family protein
2197	 46.41	0	2379749..2380375	-	208	15642223	upp	VC2225	-	uracil phosphoribosyltransferase
2198	 50.14	0	2380542..2381582	+	346	15642224	-	VC2226	-	phosphoribosylaminoimidazole synthetase
2199	 48.51	0	2381585..2382223	+	212	15642225	purN	VC2227	-	phosphoribosylglycinamide formyltransferase
2200	 39.81	-1	2382242..2382349	+	35	15642226	-	VC2228	-	hypothetical protein
2201	 50.24	0	2382364..2383209	-	281	15642227	-	VC2229	-	hypothetical protein
2202	 45.66	0	2383272..2383847	-	191	15642228	gmhA	VC2230	-	phosphoheptose isomerase
2203	 50.31	0	2384165..2386609	+	814	15642229	fadE	VC2231	-	acyl-CoA dehydrogenase
2204	 47.30	0	2386756..2388015	-	419	15642230	-	VC2232	-	hypothetical protein
2205	 47.58	0	2388024..2388767	-	247	15642231	-	VC2233	-	DNA polymerase III subunit epsilon
2206	 52.87	+1	2388824..2389294	+	156	15642232	rnhA	VC2234	-	ribonuclease H
2207	 45.39	0	2389365..2390102	-	245	15642233	-	VC2235	-	hypothetical protein
2208	 49.41	0	2390140..2390898	+	252	15642234	-	VC2236	-	hydroxyacylglutathione hydrolase GloB, putative
2209	 49.66	0	2390970..2392568	+	532	15642235	-	VC2237	-	membrane-bound lytic murein transglycosylase D
2210	 47.87	0	2392585..2393430	-	281	15642236	-	VC2238	-	hypothetical protein
2211	 47.54	0	2393498..2393842	-	114	15642237	-	VC2239	-	nitrogen regulatory protein P-II
2212	 44.76	0	2393996..2394520	-	174	15642238	-	VC2240	-	decarboxylase
2213	 51.54	0	2394897..2395220	-	107	15642239	-	VC2241	-	cytochrome c554
2214	 52.31	+1	2395256..2396578	-	440	15642240	-	VC2242	-	mesJ protein
2215	 46.67	0	2396546..2396650	+	34	15642241	-	VC2243	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
