IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

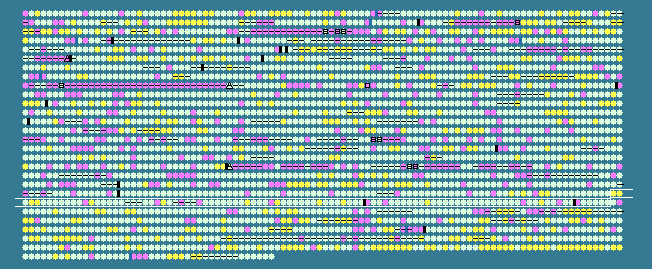

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2099	 51.39	0	2280125..2280628	-	167	15642126	fliL	VC2127	-	flagellar basal body-associated protein FliL
2100	 53.04	+1	2280663..2282687	-	674	15642127	-	VC2128	-	flagellar hook-length control protein FliK, putative
2101	 46.06	0	2282851..2283345	-	164	15642128	fliJ	VC2129	-	flagellar biosynthesis chaperone
2102	 52.80	+1	2283309..2284628	-	439	15642129	fliI	VC2130	-	flagellum-specific ATP synthase
2103	 52.28	+1	2284632..2285444	-	270	15642130	fliH	VC2131	-	flagellar assembly protein H
2104	 49.09	0	2285525..2286571	-	348	15642131	fliG	VC2132	-	flagellar motor switch protein G
2105	 50.37	0	2286564..2288306	-	580	15642132	fliF	VC2133	-	flagellar MS-ring protein
2106	 45.19	0	2288322..2288633	-	103	161581995	fliE	VC2134	-	flagellar hook-basal body protein FliE
2107	 50.28	0	2288709..2290148	-	479	15642134	-	VC2135	-	sigma-54 dependent response regulator
2108	 50.85	0	2290145..2291200	-	351	15642135	-	VC2136	-	sensory box sensor histidine kinase
2109	 49.90	0	2291312..2292778	-	488	15642136	-	VC2137	-	sigma-54 dependent transcriptional activator
2110	 46.23	0	2293010..2293420	-	136	15642137	fliS	VC2138	-	flagellar protein FliS
2111	 41.90	-1	2293431..2293745	-	104	15642138	-	VC2139	-	flagellar rod protein FlaI, putative
2112	 51.52	0	2293738..2295738	-	666	15642139	fliD	VC2140	-	flagellar capping protein
2113	 48.48	0	2295760..2296221	-	153	15642140	-	VC2141	-	flagellar protein FlaG
2114	 50.40	0	2296295..2297425	-	376	15642141	-	VC2142	-	flagellin
2115	 48.68	0	2297661..2298794	-	377	15642142	-	VC2143	-	flagellin
2116	 49.52	0	2299084..2300220	-	378	15642143	-	VC2144	-	flagellin
2117	 48.84	0	2300344..2301252	-	302	15642144	-	VC2145	-	tyrA protein
2118	 48.39	0	2301318..2301782	-	154	15642145	-	VC2146	-	hypothetical protein
2119	 45.10	0	2301926..2302282	+	118	15642146	-	VC2147	-	hypothetical protein
2120	 49.49	0	2302258..2302356	-	32	15642147	-	VC2148	-	hypothetical protein
2121	 49.31	0	2302349..2302636	-	95	15642148	-	VC2149	-	hypothetical protein
2122	 45.45	0	2302839..2303234	+	131	15642149	-	VC2150	-	hypothetical protein
2123	 41.67	-1	2303200..2303295	-	31	15642150	-	VC2151	-	hypothetical protein
2124	 51.59	0	2303265..2304398	+	377	15642151	-	VC2152	-	succinyl-diaminopimelate desuccinylase
2125	 47.20	0	2304326..2305075	+	249	15642152	-	VC2153	-	D,D-carboxypeptidase-related protein
2126	 45.78	0	2305065..2305289	+	74	15642153	-	VC2154	-	hypothetical protein
2127	 42.71	-1	2305273..2305368	-	31	15642154	-	VC2155	-	hypothetical protein
2128	 49.41	0	2305382..2306401	-	339	15642155	-	VC2156	-	lipoprotein
2129	 48.58	0	2306459..2307337	-	292	15642156	dapA	VC2157	-	dihydrodipicolinate synthase
2130	 42.86	-1	2307501..2307605	+	34	15642157	-	VC2158	-	hypothetical protein
2131	 45.86	0	2307615..2308157	+	180	15642158	-	VC2159	-	glycine cleavage system transcriptional repressor, putative
2132	 45.51	0	2308172..2308639	+	155	15642159	bcp	VC2160	-	thioredoxin-dependent thiol peroxidase
2133	 48.24	0	2308741..2310612	-	623	15642160	-	VC2161	-	methyl-accepting chemotaxis protein
2134	 47.70	0	2310803..2311867	-	354	15642161	-	VC2162	-	permease PerM, putative
2135	 48.52	0	2311860..2312096	-	78	15642162	-	VC2163	-	hypothetical protein
2136	 50.03	0	2312280..2313734	+	484	15642163	-	VC2164	-	hypothetical protein
2137	 47.58	0	2313757..2314107	+	116	15642164	-	VC2165	-	arsenate reductase
2138	 51.87	+1	2314104..2314664	+	186	15642165	-	VC2166	-	Trp repressor-binding protein
2139	 48.86	0	2314667..2315104	+	145	15642166	-	VC2167	-	hypothetical protein
2140	 50.04	0	2315311..2316459	-	382	15642167	-	VC2168	-	hypothetical protein
2141	 45.05	0	2316513..2316623	-	36	15642168	-	VC2169	-	hypothetical protein
2142	 39.64	-1	2316596..2316706	-	36	15642169	-	VC2170	-	hypothetical protein
2143	 52.39	+1	2316680..2317933	+	417	15642170	-	VC2171	-	uracil permease
2144	 47.20	0	2318004..2318486	-	160	15642171	-	VC2172	-	hypothetical protein
2145	 49.55	0	2318504..2318614	-	36	15642172	-	VC2173	-	hypothetical protein
2146	 48.19	0	2318621..2320282	-	553	15642173	ushA	VC2174	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
2147	 50.47	0	2320824..2321675	-	283	15642174	-	VC2175	-	2-dehydro-3-deoxyphosphooctonate aldolase
2148	 47.48	0	2321695..2322507	-	270	15642175	-	VC2176	-	hypothetical protein
2149	 46.09	0	2322523..2322906	-	127	15642176	-	VC2177	-	hypothetical protein
2150	 51.92	+1	2322906..2323766	-	286	15642177	-	VC2178	-	hemK protein
2151	 50.32	0	2323770..2324858	-	362	15642178	prfA	VC2179	-	peptide chain release factor 1
2152	 50.08	0	2324888..2326147	-	419	15642179	hemA	VC2180	-	glutamyl-tRNA reductase
2153	 46.23	0	2326288..2326923	+	211	15642180	lolB	VC2181	-	outer membrane lipoprotein LolB
2154	 51.01	0	2326905..2327792	+	295	15642181	-	VC2182	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
2155	 49.84	0	2327823..2328767	+	314	15642182	-	VC2183	-	ribose-phosphate pyrophosphokinase
2156	 48.22	0	2328936..2329526	+	196	15642183	-	VC2184	-	peptidyl-tRNA hydrolase
2157	 48.63	0	2329537..2330628	+	363	161581994	-	VC2185	-	translation-associated GTPase
2158	 43.18	0	2332845..2332976	+	43	15642185	-	VC2186	-	hypothetical protein
2159	 48.32	0	2332968..2334101	-	377	15642186	-	VC2187	-	flagellin
2160	 48.77	0	2334656..2335795	-	379	15642187	-	VC2188	-	flagellin
2161	 41.11	-1	2335944..2336123	-	59	15642188	-	VC2189	-	hypothetical protein
2162	 47.40	0	2336203..2337396	-	397	15642189	flgL	VC2190	-	flagellar hook-associated protein FlgL
2163	 47.95	0	2337409..2339283	-	624	15642190	flgK	VC2191	-	flagellar hook-associated protein FlgK
2164	 48.78	0	2339463..2340401	-	312	15642191	flgJ	VC2192	-	peptidoglycan hydrolase
2165	 50.46	0	2340412..2341497	-	361	15642192	flgI	VC2193	-	flagellar basal body P-ring protein
2166	 49.11	0	2341588..2342373	-	261	15642193	flgH	VC2194	-	flagellar basal body L-ring protein
2167	 48.92	0	2342388..2343176	-	262	15642194	flgG	VC2195	-	flagellar basal body rod protein FlgG
2168	 51.60	0	2343196..2343945	-	249	15642195	flgF	VC2196	-	flagellar basal body rod protein FlgF
2169	 47.43	0	2344128..2345432	-	434	15642196	flgE	VC2197	-	flagellar hook protein FlgE
2170	 48.16	0	2345461..2346168	-	235	15642197	flgD	VC2198	-	flagellar basal body rod modification protein
2171	 46.28	0	2346186..2346602	-	138	15642198	flgC	VC2199	-	flagellar basal body rod protein FlgC
2172	 48.99	0	2346607..2347002	-	131	15642199	flgB	VC2200	-	flagellar basal body rod protein FlgB
2173	 46.38	0	2347222..2348049	-	275	15642200	-	VC2201	-	chemotaxis protein methyltransferase CheR
2174	 44.01	0	2348060..2348986	-	308	15642201	-	VC2202	-	chemotaxis protein CheV
2175	 45.70	0	2349043..2349810	+	255	15642202	flgA	VC2203	-	flagellar basal body P-ring biosynthesis protein FlgA
2176	 49.07	0	2349941..2350264	+	107	15642203	-	VC2204	-	negative regulator of flagellin synthesis FlgM, putative
2177	 44.91	0	2350362..2350793	+	143	15642204	-	VC2205	-	hypothetical protein
2178	 50.00	0	2350903..2351340	-	145	15642205	-	VC2206	-	hypothetical protein
2179	 47.98	0	2351348..2352016	-	222	15642206	-	VC2207	-	hypothetical protein
2180	 47.62	0	2352144..2353277	+	377	15642207	-	VC2208	-	hypothetical protein
2181	 49.58	0	2353407..2360647	-	2413	15642774	vibF	VC2209	-	nonribosomal peptide synthetase VibF
2182	 45.83	0	2360905..2361720	-	271	15642208	-	VC2210	-	vibriobactin utilization protein ViuB
2183	 46.27	0	2362024..2364087	-	687	15642209	-	VC2211	-	ferric vibriobactin receptor
2184	 43.35	0	2364507..2365205	+	232	15642210	-	VC2212	-	hypothetical protein
2185	 47.72	0	2365293..2366258	-	321	15642211	-	VC2213	-	outer membrane protein OmpA
2186	 48.50	0	2366554..2368083	-	509	15642212	gltX	VC2214	-	glutamyl-tRNA synthetase
2187	 51.02	0	2368152..2370899	+	915	15642213	-	VC2215	-	cation transporter E1-E2 family ATPase
2188	 46.80	0	2370896..2371348	+	150	15642214	-	VC2216	-	hypothetical protein
2189	 49.55	0	2371485..2374136	-	883	15642215	-	VC2217	-	beta-N-acetylhexosaminidase
2190	 42.11	-1	2374169..2374282	+	37	15642216	-	VC2218	-	hypothetical protein
2191	 45.30	0	2374364..2374480	-	38	15642217	-	VC2219	-	hypothetical protein
2192	 47.27	0	2374553..2375449	+	298	15642218	-	VC2220	-	hypothetical protein
2193	 43.26	0	2375930..2376070	+	46	15642219	-	VC2221	-	hypothetical protein
2194	 49.57	0	2376252..2376830	+	192	15642220	-	VC2222	-	hypothetical protein
2195	 47.41	0	2376860..2377882	+	340	15642221	-	VC2223	-	pseudouridine synthase family 1 protein
2196	 45.16	0	2377980..2379518	-	512	15642222	-	VC2224	-	GGDEF family protein
2197	 46.41	0	2379749..2380375	-	208	15642223	upp	VC2225	-	uracil phosphoribosyltransferase
2198	 50.14	0	2380542..2381582	+	346	15642224	-	VC2226	-	phosphoribosylaminoimidazole synthetase
47.43	MEAN

4.26	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
