IslandPathversion 1.0

IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

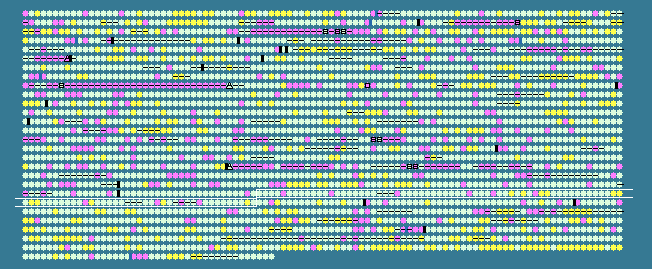

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2040	 47.77	0	2221908..2222849	-	313	15642067	-	VC2067	-	MinD-related protein
2041	 50.27	0	2222809..2224296	-	495	15642068	flhF	VC2068	-	flagellar biosynthesis regulator FlhF
2042	 49.95	0	2224331..2226424	-	697	15642069	flhA	VC2069	-	flagellar biosynthesis protein FlhA
2043	 49.37	0	2226756..2227229	-	157	15642070	-	VC2070	-	phosphohistidine phosphatase
2044	 41.03	-1	2227222..2227338	+	38	15642071	-	VC2071	-	hypothetical protein
2045	 47.59	0	2227373..2230192	+	939	15642072	-	VC2072	-	peptidase insulinase family protein
2046	 49.41	0	2230189..2230785	-	198	15642073	-	VC2073	-	hypothetical protein
2047	 48.67	0	2230919..2232718	+	599	15642074	argS	VC2074	-	arginyl-tRNA synthetase
2048	 49.32	0	2232809..2233252	+	147	15642075	-	VC2075	-	histidine triad family protein
2049	 48.48	0	2233514..2233744	-	76	15642076	-	VC2076	-	hypothetical protein
2050	 46.90	0	2233741..2236017	-	758	15642077	-	VC2077	-	ferrous iron transport protein B
2051	 47.62	0	2236014..2236244	-	76	15642078	-	VC2078	-	ferrous iron transport protein A
2052	 38.89	-2	2236868..2236975	+	35	15642079	-	VC2079	-	hypothetical protein
2053	 44.12	0	2237016..2240381	-	1121	15642080	-	VC2080	-	AraC/XylS family transcriptional regulator
2054	 46.98	0	2240563..2241456	-	297	15642081	-	VC2081	-	zinc ABC transporter, periplasmic zinc-binding protein
2055	 46.26	0	2241531..2242319	+	262	15642082	-	VC2082	-	zinc ABC transporter, ATP-binding protein
2056	 49.81	0	2242312..2243094	+	260	15642083	-	VC2083	-	zinc ABC transporter, permease protein
2057	 48.57	0	2243201..2244073	-	290	15642084	-	VC2084	-	succinyl-CoA synthetase subunit alpha
2058	 47.47	0	2244073..2245239	-	388	15642085	sucC	VC2085	-	succinyl-CoA synthetase subunit beta
2059	 49.22	0	2245407..2246621	-	404	15642086	-	VC2086	-	dihydrolipoamide acetyltransferase
2060	 50.23	0	2246650..2249460	-	936	15642087	kgd	VC2087	-	alpha-ketoglutarate decarboxylase
2061	 44.30	0	2249549..2250259	-	236	15642088	sdhB	VC2088	-	succinate dehydrogenase iron-sulfur subunit
2062	 49.41	0	2250274..2252040	-	588	15642089	sdhA	VC2089	-	succinate dehydrogenase flavoprotein subunit
2063	 43.48	0	2252041..2252385	-	114	15642090	-	VC2090	-	succinate dehydrogenase, hydrophobic membrane anchor protein
2064	 48.09	0	2252379..2252771	-	130	15642091	sdhC	VC2091	-	succinate dehydrogenase cytochrome b556 large membrane subunit
2065	 46.84	0	2253161..2254456	+	431	15642092	gltA	VC2092	-	type II citrate synthase
2066	 45.65	0	2254508..2255278	-	256	15642093	-	VC2093	-	hypothetical protein
2067	 44.06	0	2255331..2256104	+	257	15642094	-	VC2094	-	hypothetical protein
2068	 48.82	0	2256154..2257800	-	548	15642095	-	VC2095	-	phosphoglucomutase
2069	 46.63	0	2257909..2258442	-	177	15642096	-	VC2096	-	replication initiation regulator SeqA
2070	 47.67	0	2258535..2259308	+	257	15642097	-	VC2097	-	esterase/lipase YbfF, putative
2071	 45.50	0	2259404..2259625	+	73	15642098	-	VC2098	-	hypothetical protein
2072	 46.40	0	2259674..2260201	+	175	15642099	-	VC2099	-	flavodoxin FldA
2073	 50.29	0	2260275..2260964	-	229	15642100	-	VC2100	-	hypothetical protein
2074	 48.07	0	2260970..2261410	-	146	15642101	-	VC2101	-	hypothetical protein
2075	 36.96	-2	2261373..2261510	-	45	15642102	-	VC2102	-	hypothetical protein
2076	 50.51	0	2261526..2262404	+	292	15642103	-	VC2103	-	LysR family transcriptional regulator
2077	 47.62	0	2262408..2262617	-	69	15642104	-	VC2104	-	hypothetical protein
2078	 47.20	0	2262535..2262909	-	124	15642105	-	VC2105	-	hypothetical protein
2079	 43.93	0	2263275..2263727	+	150	15642106	fur	VC2106	-	ferric uptake regulator
2080	 49.36	0	2263809..2264825	-	338	15642107	-	VC2107	-	aspartate-semialdehyde dehydrogenase
2081	 49.91	0	2264806..2265969	-	387	15642108	-	VC2108	-	erythronate-4-phosphate dehydrogenase
2082	 51.56	0	2267483..2269507	+	674	15642109	mnmC	VC2110	-	5-methylaminomethyl-2-thiouridine methyltransferase
2083	 50.57	0	2269586..2270113	-	175	15642110	-	VC2111	-	hypothetical protein
2084	 51.89	+1	2270321..2270584	-	87	15642111	-	VC2112	-	hypothetical protein
2085	 47.65	0	2270623..2271153	-	176	15642112	-	VC2113	-	hypothetical protein
2086	 43.59	0	2271344..2271460	-	38	15642113	-	VC2114	-	hypothetical protein
2087	 52.24	+1	2271517..2272140	+	207	15642114	-	VC2115	-	hypothetical protein
2088	 51.01	0	2272222..2273307	-	361	15642115	-	VC2116	-	chorismate synthase
2089	 46.67	0	2273405..2273629	+	74	15642116	-	VC2117	-	hypothetical protein
2090	 49.31	0	2273537..2274481	-	314	15642117	-	VC2118	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
2091	 50.09	0	2274536..2275096	+	186	15642118	-	VC2119	-	hypothetical protein
2092	 50.49	0	2275104..2276234	-	376	15642119	flhB	VC2120	-	flagellar biosynthesis protein FlhB
2093	 49.81	0	2276244..2277026	-	260	15642120	fliR	VC2121	-	flagellar biosynthesis protein FliR
2094	 45.19	0	2277035..2277304	-	89	15642121	fliQ	VC2122	-	flagellar biosynthesis protein FliQ
2095	 47.89	0	2277317..2278216	-	299	15642122	fliP	VC2123	-	flagellar biosynthesis protein FliP
2096	 50.51	0	2278194..2278583	-	129	15642123	-	VC2124	-	flagellar protein FliO
2097	 50.60	0	2278587..2279003	-	138	15642124	fliN	VC2125	-	flagellar motor switch protein
2098	 49.05	0	2279068..2280117	-	349	15642125	fliM	VC2126	-	flagellar motor switch protein FliM
2099	 51.39	0	2280125..2280628	-	167	15642126	fliL	VC2127	-	flagellar basal body-associated protein FliL
2100	 53.04	+1	2280663..2282687	-	674	15642127	-	VC2128	-	flagellar hook-length control protein FliK, putative
2101	 46.06	0	2282851..2283345	-	164	15642128	fliJ	VC2129	-	flagellar biosynthesis chaperone
2102	 52.80	+1	2283309..2284628	-	439	15642129	fliI	VC2130	-	flagellum-specific ATP synthase
2103	 52.28	+1	2284632..2285444	-	270	15642130	fliH	VC2131	-	flagellar assembly protein H
2104	 49.09	0	2285525..2286571	-	348	15642131	fliG	VC2132	-	flagellar motor switch protein G
2105	 50.37	0	2286564..2288306	-	580	15642132	fliF	VC2133	-	flagellar MS-ring protein
2106	 45.19	0	2288322..2288633	-	103	161581995	fliE	VC2134	-	flagellar hook-basal body protein FliE
2107	 50.28	0	2288709..2290148	-	479	15642134	-	VC2135	-	sigma-54 dependent response regulator
2108	 50.85	0	2290145..2291200	-	351	15642135	-	VC2136	-	sensory box sensor histidine kinase
2109	 49.90	0	2291312..2292778	-	488	15642136	-	VC2137	-	sigma-54 dependent transcriptional activator
2110	 46.23	0	2293010..2293420	-	136	15642137	fliS	VC2138	-	flagellar protein FliS
2111	 41.90	-1	2293431..2293745	-	104	15642138	-	VC2139	-	flagellar rod protein FlaI, putative
2112	 51.52	0	2293738..2295738	-	666	15642139	fliD	VC2140	-	flagellar capping protein
2113	 48.48	0	2295760..2296221	-	153	15642140	-	VC2141	-	flagellar protein FlaG
2114	 50.40	0	2296295..2297425	-	376	15642141	-	VC2142	-	flagellin
2115	 48.68	0	2297661..2298794	-	377	15642142	-	VC2143	-	flagellin
2116	 49.52	0	2299084..2300220	-	378	15642143	-	VC2144	-	flagellin
2117	 48.84	0	2300344..2301252	-	302	15642144	-	VC2145	-	tyrA protein
2118	 48.39	0	2301318..2301782	-	154	15642145	-	VC2146	-	hypothetical protein
2119	 45.10	0	2301926..2302282	+	118	15642146	-	VC2147	-	hypothetical protein
2120	 49.49	0	2302258..2302356	-	32	15642147	-	VC2148	-	hypothetical protein
2121	 49.31	0	2302349..2302636	-	95	15642148	-	VC2149	-	hypothetical protein
2122	 45.45	0	2302839..2303234	+	131	15642149	-	VC2150	-	hypothetical protein
2123	 41.67	-1	2303200..2303295	-	31	15642150	-	VC2151	-	hypothetical protein
2124	 51.59	0	2303265..2304398	+	377	15642151	-	VC2152	-	succinyl-diaminopimelate desuccinylase
2125	 47.20	0	2304326..2305075	+	249	15642152	-	VC2153	-	D,D-carboxypeptidase-related protein
2126	 45.78	0	2305065..2305289	+	74	15642153	-	VC2154	-	hypothetical protein
2127	 42.71	-1	2305273..2305368	-	31	15642154	-	VC2155	-	hypothetical protein
2128	 49.41	0	2305382..2306401	-	339	15642155	-	VC2156	-	lipoprotein
2129	 48.58	0	2306459..2307337	-	292	15642156	dapA	VC2157	-	dihydrodipicolinate synthase
2130	 42.86	-1	2307501..2307605	+	34	15642157	-	VC2158	-	hypothetical protein
2131	 45.86	0	2307615..2308157	+	180	15642158	-	VC2159	-	glycine cleavage system transcriptional repressor, putative
2132	 45.51	0	2308172..2308639	+	155	15642159	bcp	VC2160	-	thioredoxin-dependent thiol peroxidase
2133	 48.24	0	2308741..2310612	-	623	15642160	-	VC2161	-	methyl-accepting chemotaxis protein
2134	 47.70	0	2310803..2311867	-	354	15642161	-	VC2162	-	permease PerM, putative
2135	 48.52	0	2311860..2312096	-	78	15642162	-	VC2163	-	hypothetical protein
2136	 50.03	0	2312280..2313734	+	484	15642163	-	VC2164	-	hypothetical protein
2137	 47.58	0	2313757..2314107	+	116	15642164	-	VC2165	-	arsenate reductase
2138	 51.87	+1	2314104..2314664	+	186	15642165	-	VC2166	-	Trp repressor-binding protein
2139	 48.86	0	2314667..2315104	+	145	15642166	-	VC2167	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
