IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

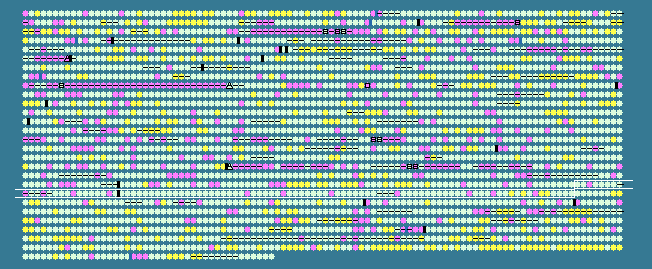

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1993	 47.76	0	2171894..2172697	-	267	161581997	-	VC2018	-	4-amino-4-deoxychorismate lyase
1994	 50.12	0	2172775..2174019	-	414	15642021	-	VC2019	-	3-oxoacyl-(acyl carrier protein) synthase II
1995	 43.46	0	2174108..2174344	-	78	161581996	acpP	VC2020	-	acyl carrier protein
1996	 50.47	0	2174580..2175326	-	248	15642023	fabG	VC2021	-	3-ketoacyl-(acyl-carrier-protein) reductase
1997	 48.99	0	2175342..2176280	-	312	15642024	-	VC2022	-	acyl carrier protein S-malonyltransferase
1998	 49.53	0	2176335..2177285	-	316	15642025	-	VC2023	-	3-oxoacyl-(acyl carrier protein) synthase III
1999	 48.34	0	2177291..2178316	-	341	15642026	-	VC2024	-	putative glycerol-3-phosphate acyltransferase PlsX
2000	 48.54	0	2178326..2178496	-	56	15642027	rpmF	VC2025	-	50S ribosomal protein L32
2001	 41.90	-1	2178531..2179055	-	174	15642028	-	VC2026	-	hypothetical protein
2002	 45.02	0	2179203..2179784	+	193	15642029	maf	VC2027	-	Maf-like protein
2003	 48.95	0	2179885..2180832	-	315	15642030	-	VC2028	-	ribosomal large subunit pseudouridine synthase C
2004	 41.25	-1	2180746..2180985	+	79	15642031	-	VC2029	-	hypothetical protein
2005	 50.21	0	2181444..2184602	+	1052	15642032	-	VC2030	-	ribonuclease E
2006	 49.23	0	2184950..2186515	+	521	15642033	-	VC2031	-	sulfate permease family protein
2007	 50.23	0	2186633..2187508	+	291	15642034	-	VC2032	-	hypothetical protein
2008	 48.72	0	2187618..2190302	-	894	15642035	-	VC2033	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
2009	 25.93	-2	2190523..2190630	+	35	15642036	-	VC2034	-	hypothetical protein
2010	 48.51	0	2190929..2191567	+	212	15642037	-	VC2035	-	hypothetical protein
2011	 49.69	0	2191657..2192769	-	370	15642038	-	VC2036	-	aspartate-semialdehyde dehydrogenase
2012	 47.58	0	2193194..2194639	+	481	15642039	-	VC2037	-	Na+/H+ antiporter
2013	 46.75	0	2194664..2195878	-	404	15642040	-	VC2038	-	hypothetical protein
2014	 44.61	0	2196041..2197042	-	333	15642041	-	VC2039	-	nucleoid-associated protein NdpA
2015	 40.74	-1	2197127..2197342	+	71	15642042	-	VC2040	-	hypothetical protein
2016	 45.76	0	2197377..2199179	+	600	15642043	-	VC2041	-	hypothetical protein
2017	 49.62	0	2199637..2200557	-	306	15642044	-	VC2042	-	histone deacetylase/AcuC/AphA family protein
2018	 49.13	0	2200578..2202521	-	647	15642045	-	VC2043	-	DNA topoisomerase III
2019	 48.05	0	2202606..2202938	-	110	15642046	-	VC2044	-	hypothetical protein
2020	 47.35	0	2203190..2203774	+	194	15642047	-	VC2045	-	superoxide dismutase, Fe
2021	 48.79	0	2203856..2204392	+	178	15642048	-	VC2046	-	hypothetical protein
2022	 46.70	0	2204761..2205441	+	226	15642049	-	VC2047	-	short chain dehydrogenase
2023	 47.32	0	2205454..2206218	-	254	15642050	-	VC2048	-	vacJ lipoprotein
2024	 45.05	0	2207961..2208515	-	184	15642051	-	VC2051	-	thiol:disulfide interchange protein DsbE
2025	 49.85	0	2208516..2210471	-	651	15642052	-	VC2052	-	cytochrome c-type biogenesis protein CcmF
2026	 47.83	0	2210468..2210950	-	160	15642053	-	VC2053	-	cytochrome c-type biogenesis protein CcmE
2027	 46.38	0	2210947..2211153	-	68	15642054	-	VC2054	-	heme exporter protein D
2028	 50.46	0	2211153..2211905	-	250	15642055	-	VC2055	-	heme exporter protein C
2029	 49.48	0	2211996..2212664	-	222	15642056	-	VC2056	-	heme exporter protein B
2030	 47.12	0	2212661..2213284	-	207	15642057	-	VC2057	-	cytochrome c biogenesis protein CcmA
2031	 47.42	0	2213658..2214161	-	167	15642058	-	VC2058	-	hypothetical protein
2032	 45.90	0	2214137..2214661	-	174	15642059	-	VC2059	-	purine-binding chemotaxis protein CheW
2033	 46.80	0	2214670..2215686	-	338	15642060	-	VC2060	-	hypothetical protein
2034	 46.20	0	2215679..2216455	-	258	15642061	-	VC2061	-	ParA family protein
2035	 49.03	0	2216465..2217598	-	377	15642062	-	VC2062	-	chemotaxis-specific methylesterase
2036	 48.85	0	2217625..2219982	-	785	15642063	-	VC2063	-	chemotaxis protein CheA
2037	 45.28	0	2219992..2220711	-	239	15642064	-	VC2064	-	chemotaxis protein CheZ
2038	 42.24	-1	2220767..2221159	-	130	15642065	-	VC2065	-	chemotaxis protein CheY
2039	 45.44	0	2221181..2221915	-	244	15642066	fliA	VC2066	-	flagellar biosynthesis sigma factor
2040	 47.77	0	2221908..2222849	-	313	15642067	-	VC2067	-	MinD-related protein
2041	 50.27	0	2222809..2224296	-	495	15642068	flhF	VC2068	-	flagellar biosynthesis regulator FlhF
2042	 49.95	0	2224331..2226424	-	697	15642069	flhA	VC2069	-	flagellar biosynthesis protein FlhA
2043	 49.37	0	2226756..2227229	-	157	15642070	-	VC2070	-	phosphohistidine phosphatase
2044	 41.03	-1	2227222..2227338	+	38	15642071	-	VC2071	-	hypothetical protein
2045	 47.59	0	2227373..2230192	+	939	15642072	-	VC2072	-	peptidase insulinase family protein
2046	 49.41	0	2230189..2230785	-	198	15642073	-	VC2073	-	hypothetical protein
2047	 48.67	0	2230919..2232718	+	599	15642074	argS	VC2074	-	arginyl-tRNA synthetase
2048	 49.32	0	2232809..2233252	+	147	15642075	-	VC2075	-	histidine triad family protein
2049	 48.48	0	2233514..2233744	-	76	15642076	-	VC2076	-	hypothetical protein
2050	 46.90	0	2233741..2236017	-	758	15642077	-	VC2077	-	ferrous iron transport protein B
2051	 47.62	0	2236014..2236244	-	76	15642078	-	VC2078	-	ferrous iron transport protein A
2052	 38.89	-2	2236868..2236975	+	35	15642079	-	VC2079	-	hypothetical protein
2053	 44.12	0	2237016..2240381	-	1121	15642080	-	VC2080	-	AraC/XylS family transcriptional regulator
2054	 46.98	0	2240563..2241456	-	297	15642081	-	VC2081	-	zinc ABC transporter, periplasmic zinc-binding protein
2055	 46.26	0	2241531..2242319	+	262	15642082	-	VC2082	-	zinc ABC transporter, ATP-binding protein
2056	 49.81	0	2242312..2243094	+	260	15642083	-	VC2083	-	zinc ABC transporter, permease protein
2057	 48.57	0	2243201..2244073	-	290	15642084	-	VC2084	-	succinyl-CoA synthetase subunit alpha
2058	 47.47	0	2244073..2245239	-	388	15642085	sucC	VC2085	-	succinyl-CoA synthetase subunit beta
2059	 49.22	0	2245407..2246621	-	404	15642086	-	VC2086	-	dihydrolipoamide acetyltransferase
2060	 50.23	0	2246650..2249460	-	936	15642087	kgd	VC2087	-	alpha-ketoglutarate decarboxylase
2061	 44.30	0	2249549..2250259	-	236	15642088	sdhB	VC2088	-	succinate dehydrogenase iron-sulfur subunit
2062	 49.41	0	2250274..2252040	-	588	15642089	sdhA	VC2089	-	succinate dehydrogenase flavoprotein subunit
2063	 43.48	0	2252041..2252385	-	114	15642090	-	VC2090	-	succinate dehydrogenase, hydrophobic membrane anchor protein
2064	 48.09	0	2252379..2252771	-	130	15642091	sdhC	VC2091	-	succinate dehydrogenase cytochrome b556 large membrane subunit
2065	 46.84	0	2253161..2254456	+	431	15642092	gltA	VC2092	-	type II citrate synthase
2066	 45.65	0	2254508..2255278	-	256	15642093	-	VC2093	-	hypothetical protein
2067	 44.06	0	2255331..2256104	+	257	15642094	-	VC2094	-	hypothetical protein
2068	 48.82	0	2256154..2257800	-	548	15642095	-	VC2095	-	phosphoglucomutase
2069	 46.63	0	2257909..2258442	-	177	15642096	-	VC2096	-	replication initiation regulator SeqA
2070	 47.67	0	2258535..2259308	+	257	15642097	-	VC2097	-	esterase/lipase YbfF, putative
2071	 45.50	0	2259404..2259625	+	73	15642098	-	VC2098	-	hypothetical protein
2072	 46.40	0	2259674..2260201	+	175	15642099	-	VC2099	-	flavodoxin FldA
2073	 50.29	0	2260275..2260964	-	229	15642100	-	VC2100	-	hypothetical protein
2074	 48.07	0	2260970..2261410	-	146	15642101	-	VC2101	-	hypothetical protein
2075	 36.96	-2	2261373..2261510	-	45	15642102	-	VC2102	-	hypothetical protein
2076	 50.51	0	2261526..2262404	+	292	15642103	-	VC2103	-	LysR family transcriptional regulator
2077	 47.62	0	2262408..2262617	-	69	15642104	-	VC2104	-	hypothetical protein
2078	 47.20	0	2262535..2262909	-	124	15642105	-	VC2105	-	hypothetical protein
2079	 43.93	0	2263275..2263727	+	150	15642106	fur	VC2106	-	ferric uptake regulator
2080	 49.36	0	2263809..2264825	-	338	15642107	-	VC2107	-	aspartate-semialdehyde dehydrogenase
2081	 49.91	0	2264806..2265969	-	387	15642108	-	VC2108	-	erythronate-4-phosphate dehydrogenase
2082	 51.56	0	2267483..2269507	+	674	15642109	mnmC	VC2110	-	5-methylaminomethyl-2-thiouridine methyltransferase
2083	 50.57	0	2269586..2270113	-	175	15642110	-	VC2111	-	hypothetical protein
2084	 51.89	+1	2270321..2270584	-	87	15642111	-	VC2112	-	hypothetical protein
2085	 47.65	0	2270623..2271153	-	176	15642112	-	VC2113	-	hypothetical protein
2086	 43.59	0	2271344..2271460	-	38	15642113	-	VC2114	-	hypothetical protein
2087	 52.24	+1	2271517..2272140	+	207	15642114	-	VC2115	-	hypothetical protein
2088	 51.01	0	2272222..2273307	-	361	15642115	-	VC2116	-	chorismate synthase
2089	 46.67	0	2273405..2273629	+	74	15642116	-	VC2117	-	hypothetical protein
2090	 49.31	0	2273537..2274481	-	314	15642117	-	VC2118	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
2091	 50.09	0	2274536..2275096	+	186	15642118	-	VC2119	-	hypothetical protein
2092	 50.49	0	2275104..2276234	-	376	15642119	flhB	VC2120	-	flagellar biosynthesis protein FlhB
47.43	MEAN

4.26	STD DEV
